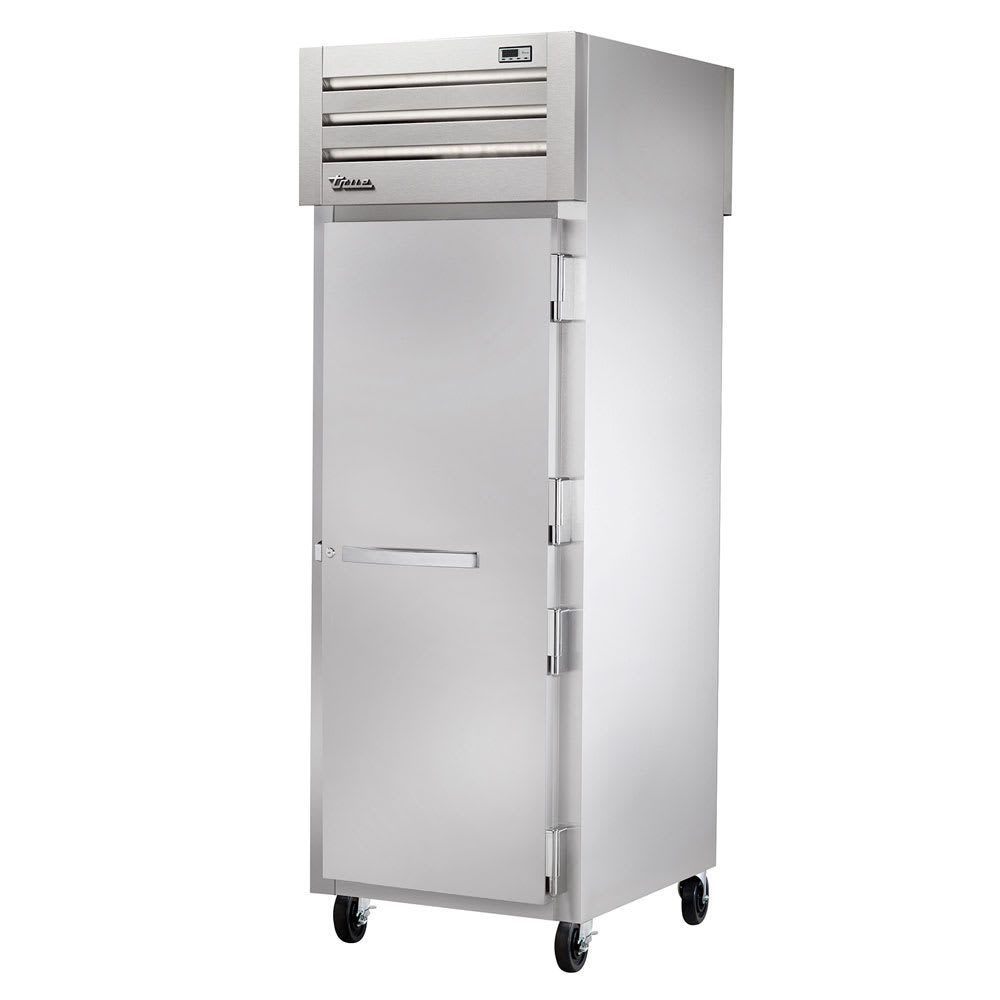

True STR1RPT-1S-1S-HC 27 1/2" One Section Pass Thru Refrigerator, (2) Right Hinge Solid Doors, 115v

Providing it with durability, the True STR1RPT-1S-1S-HC Spec Series® pass-thru refrigerator has a stainless steel construction that offers rust and dent resistance. Polyurethane foam in the walls adds structure and provides a dense barrier against outside heat. Around the doors, magnetic gaskets create a strong seal and reduce gaps where heat could enter the cabinet. The door handles are sturdy and made of metal.

The True STR1RPT-1S-1S-HC pass-thru refrigerator is equipped with stainless steel front and rear doors. Although these doors do not provide cabinet visibility, they offer better insulation than glass doors. Each one closes on its own to prevent large amounts of cold air from flowing out. When loading large or heavy goods into the refrigerator, the doors can be pulled open 120 degrees to prevent them from closing. This stay-open design frees up a hand so staff can work comfortably. For visibility in the interior, LED lighting shines on the shelves, and bolt locks on the doors protect contents from theft.

Inside the refrigerator, the temperature can be set anywhere within a range of 33 to 38 degrees Fahrenheit. These temperatures are achieved by the top-mounted refrigeration system, which uses capillary tubes and R290 hydrocarbon refrigerant. These tubes regulate refrigerant flow while the condenser and evaporator fans circulate cold air, keeping airflow consistent and saving energy. To keep users informed, the temperature is displayed on the outside of the unit. This display is digital to increase its readability and works in Celsius or Fahrenheit.

The condensing fan motor blows in a reverse direction after the unit is turned on to help reduce buildup of dirt and dust on the condensing coil. With a cleaner surface, the coil can operate more efficiently without using as much energy. Despite this technology's effectiveness, it shouldn't replace general maintenance of the coil.

Product Details

• Part of the Spec Series
• Interior and exterior are corrosion-resistant stainless steel
• Cabinet's polyurethane insulation is dense
• Includes 3 chrome-plated shelves to support product
• Shelves have a wire design that enables air circulation
• LED lighting helps users see contents
• Digital display shows temperature in Fahrenheit or Celsius
• 4 castors with locking front pair

Pass-thru Doors

• Provide access from front and back
• Solid and made of sturdy stainless steel
• Durable all-metal handles
• Bolt-style locks provide security
• Cam-lift hinges close the door when opened less than 120 degrees
• 120-degree, stay-open mechanism provides unhindered access when loading product
• Magnetic gaskets tightly seal doors shut
• 1-piece gaskets can be removed effortlessly

Refrigeration System

• Temperature holding range: 33-38 degrees F
• Capillary tubes use R290 hydrocarbon refrigerant to cool the cabinet
• Evaporator avoids rusting since it is coated in epoxy
• Evaporator and condenser have fan motors that produce consistent airflow
• Fan motor blows air in an opposite direction for 20 seconds when compressor is turned on
• Cooling components are all in the same place to speed up maintenance
• Top-mounted system leaves more storage space in the cabinet than bottom-mounted systems
• Electronic controls

Dimensions & Utilities

• Shelves: 26⁵⁄₁₆ in. W x 21⁹⁄₁₆ in. D
• Overall: 27¹⁄₂ in. W x 39⁷⁄₁₆ in. D x 84¹⁄₈ in. H
• 3.8 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 9-ft cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration STR1RPT-1S-1S-HC within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Refrigerator, pass-thru, one-section, (1) stainless steel door front & rear with locks, cam-lift hinges, digital temperature control, (1) interior kit, LED interior lights, stainless steel front & sides, stainless steel interior, 5" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 3.8 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration STR1RPT-1S-1S-HC Specifications
