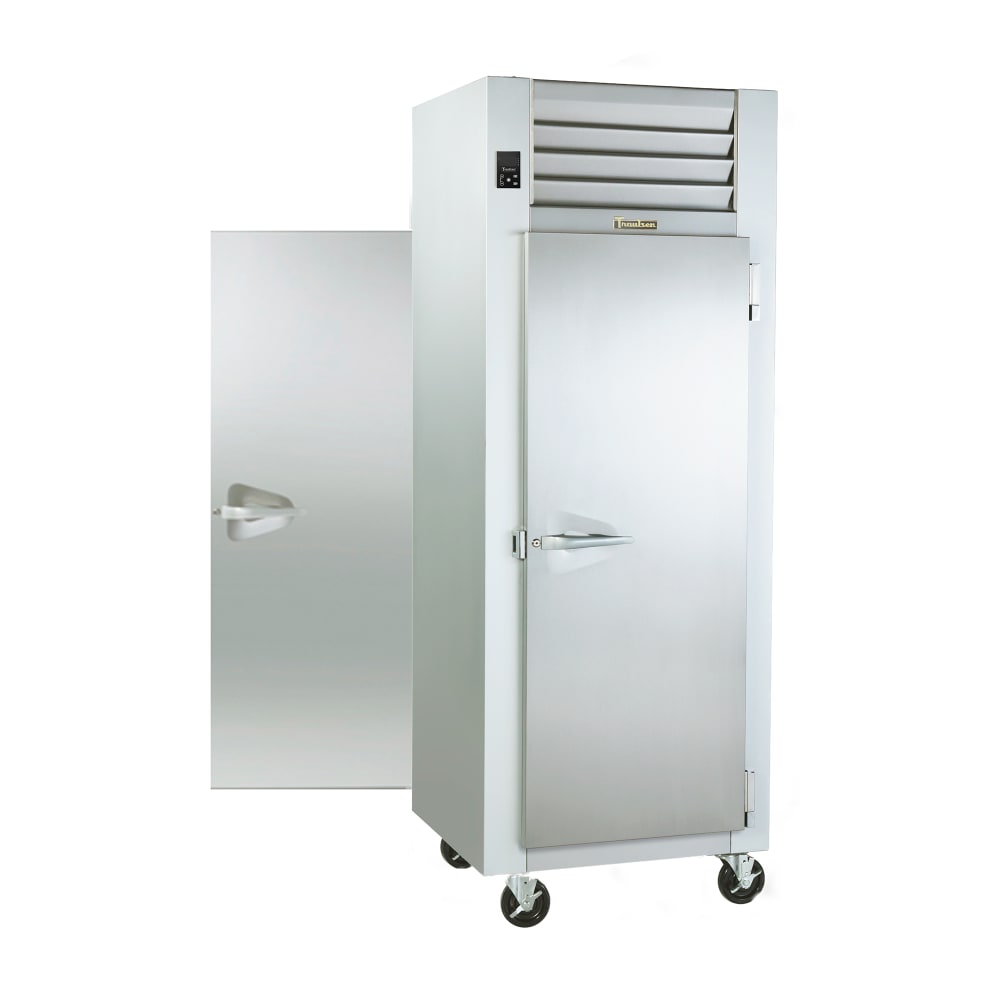

Traulsen G10013P 29 7/8 One Section Pass Thru Refrigerator, (2) Right Hinge Solid Doors, 115v

The top-mounted refrigeration system in the Traulsen G10013P one-section pass-thru refrigerator prevents the condenser from sucking in dust and debris from the floor. Because propane-based hydrocarbon options are flammable, it uses R-450A refrigerant. Each of the three wire shelves have sideguards that prevent placement too close to the wall, which would disrupt airflow.

The interior of this Traulsen G10013P pass-thru refrigerator is made of anodized aluminum—a corrosion-resistant material that also covers the exterior sides—while the front is made of stainless steel. High-density cabinet insulation helps prevent cold air from escaping, and because there is a door on the front and back of the cabinet, the unit has a pass-thru design that can connect the front and back of the house. Both doors are solid and made of stainless steel, and their self-closing design retains cold air, while their stay-open feature ensures loading is convenient with a 120-degree opening.

Product Details

• 24.85-cu.-ft. interior space
• 3 epoxy-coated steel wire shelves
• Load-Sure Guard on the side walls in the cabinet prevents users from placing items too close and preventing full air circulation
• LED cabinet lights ensure stored items are visible
• Stainless steel exterior front has anodized aluminum sides
• Anodized aluminum interior
• 2-in.-thick high-density polyurethane insulation is foamed in place to retain cold air
• Locking, 6-in. casters
• 1,650 BTU
• Part of the G series

Self-contained Refrigeration System

• Temperature holding range: 34-38 degrees F
• Microprocessor controller
• 3-digit LED temperature display operates in Fahrenheit or Celsius
• Uses R-450A refrigerant
• Thermostatic expansion valve efficiently meters refrigerant that goes to the evaporator coil based on the temperature
• Top-mounted placement keeps components away from dirt on the floor
• 1-piece removable louver enables clear component access
• Front-facing condenser coil provides cleaning access

Pass-thru Door Design

• Right-hinged stainless steel front door
• Left-hinged stainless steel rear door
• Self-closing design ensures doors are not left standing open
• Doors stay open at a 120-degree angle when users are stocking products
• Durable EZ Clean door gaskets
• Heaters behind the door openings eliminate condensate

Dimensions & Utilities

• 29⁷⁄₈ in. W x 38⁷⁄₈ in. D x 83⁷⁄₁₆ in. H
• 4.9 A, 2.47 kW, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

From The Manufacturer

Dealer's Choice Refrigerator, Pass-thru, one-section, 24.85 cu. ft., self-contained refrigeration, control side: (1) full-height solid door (right hinged), other side: (1) full-height solid door (left hinged), (3) epoxy coated shelves (factory installed), microprocessor control with LED display, LED interior lights, stainless steel doors and louver rail, anodized aluminum sides & interior, 6" high casters, non-flammable R-450A refrigerant, 1/5 HP, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

6-year Parts & Labor; 7-year Compressor
