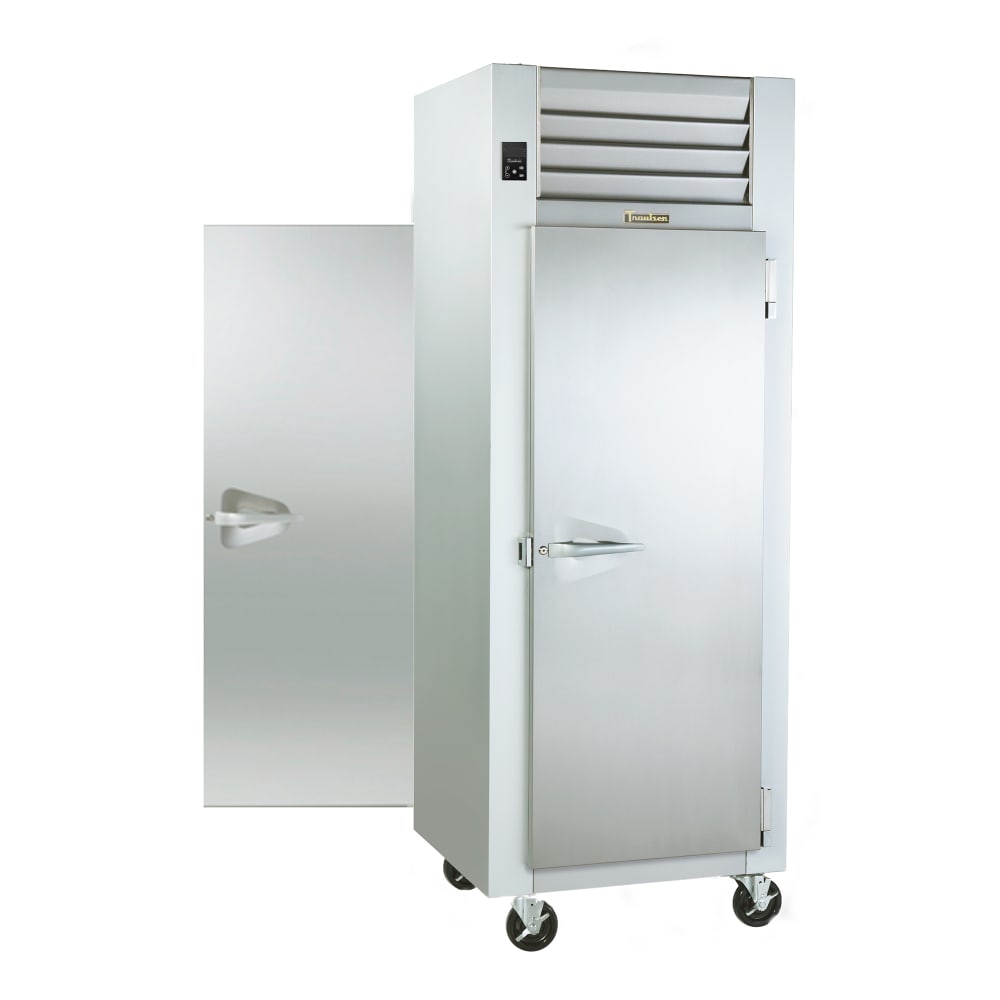

Traulsen G10014P 29 7/8" One Section Pass Thru Refrigerator, 2 Right Hinge Solid Doors, 115v
$7,674.00 /Each
Attention: Order by 12-01-2026 to save before the price increases!
Traulsen G10014P Description
The temperature in the Traulsen G10014P one-section pass-thru refrigerator ranges from 34 to 38 degrees Fahrenheit, as operators use the microprocessor controller to adjust the level. On the digital display, operators can check this level in Fahrenheit or Celsius, and R290 hydrocarbon refrigerant removes heat from the cabinet. It is metered by a thermostatic expansion valve based on the cabinet conditions.
In the Traulsen G10014P pass-thru refrigerator, three wire shelves hold the stored items, encouraging even airflow while the epoxy coating resists corrosion. A Load-Sure Guard in the cabinet prevents operators from storing product against the wall and disrupting flowing air. The interior and exterior sides are made of anodized aluminum, while the exterior front is made of stainless steel. This refrigerator has a door on both the front and rear, creating a pass-thru design that can connect the kitchen with the serving area. Solid and made of stainless steel, these doors retain air better than glass doors, though they do not provide interior visibility.
- 24.85-cu.-ft. interior space
- 3 epoxy-coated steel wire shelves
- Interior Load-Sure Guard prevents users from storing product close to the walls, ensuring a consistent and uniform air pattern
- LED interior lights provide product visibility
- Foamed-in-place, 2-in.-thick high-density polyurethane insulation retains cold air
- Anodized aluminum interior
- Stainless steel exterior front has anodized aluminum sides
- 6-in. locking casters
- 1,650 BTU
- Part of the G series
- Temperature holding range: 34-38 degrees F
- Microprocessor control system
- 3-digit LED temperature reader can be set to display in Fahrenheit or Celsius
- Uses R290 refrigerant
- Efficient thermostatic expansion valve meters refrigerant to the evaporator coil based on interior temperature
- Top-mounted components are kept away from dust and dirt on the floor
- Removable, 1-piece louver for component access
- Condenser coil is front facing and cleanable
- Left-hinged stainless steel front and rear doors
- Self-closing feature prevents doors from standing open
- Doors stay open at 120 degrees for convenient product stocking
- Long-lasting EZ Clean door gaskets
- Heaters behind the door openings reduce condensate buildup
- 29 7⁄8 in. W x 38 7⁄8 in. D x 83 7⁄16 in. H
- 4.9 A, 2.47 kW, 1⁄5 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Traulsen G10014P within the 48 contiguous states.
From The Manufacturer
Traulsen G10014P Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Additional Info | Contact Customer Service for Additional Information |
| Color | Silver |
| Compressor Location | Top |
| Cubic Feet | 24.85 |
| Depth (in) | 37.94 |
| Door Type | Solid |
| Doors | Full |
| Evaporator Type | Expansion Valve |
| Height (in) | 83.44 |
| Hertz | 60 |
| Hinge Configuration | Left |
| Interior Material | Aluminum |
| NEMA | 5-15P |
| No. of Doors | 2 |
| Number of Shelves | 3 |
| Phase | 1 |
| Product | Reach-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 1 |
| Series | Dealer's Choice |
| Special Features | Casters Included - Uninstalled |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Pass Thru |
| Voltage | 115 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 29.88 |
| Weight | 365.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
This unit provides 24.85 cu. ft. of refrigerated storage in one section.
The compressor is mounted at the top of the cabinet.
This unit measures 29 7⁄8 in. W x 37 15⁄16 in. D x 83 7⁄16 in. H.
Yes. The magnetic door gaskets are removable for cleaning or replacement.
This model has half-height solid doors.
Yes. It plugs into a standard outlet with a NEMA 5-15P plug.
Yes. Casters are included for repositioning or cleaning access.
It uses R290 hydrocarbon refrigerant.
This reach-in fits restaurants, bars, cafes, and prep areas needing concealed refrigerated storage in a compact upright cabinet.
It has one section and two doors.
It comes with three shelves for organizing refrigerated items.
It maintains a holding temperature range from 34-38° F.
