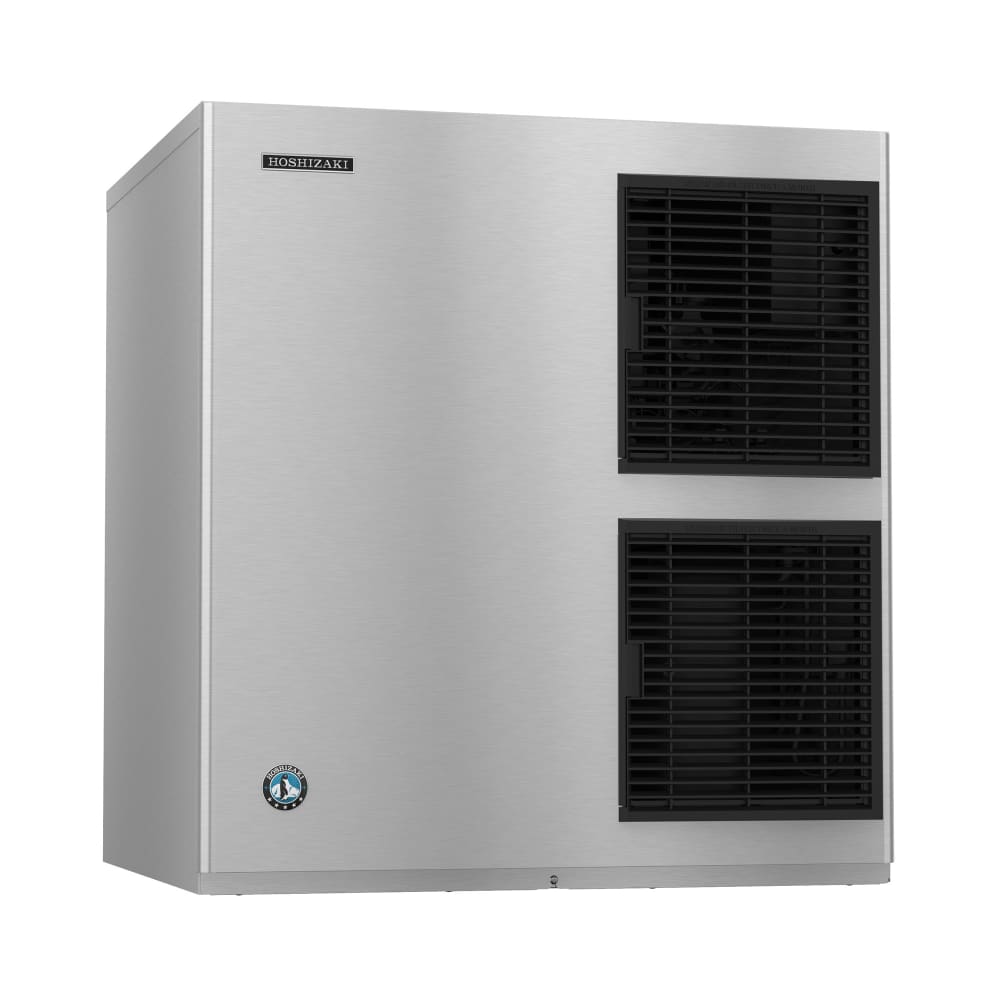

Hoshizaki KM-901MAJ 30" Crescent Cube Ice Machine Head - 905 lb/24 hr, Air Cooled, 208/230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 440-KM901MAJ • MPN: KM-901MAJ
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $4,505.00

Image may not depict product color, inclusions or accessories.

Hoshizaki KM-901MAJ Description


The Hoshizaki KM-901MAJ crescent cube ice machine head uses CycleSaver™ technology to produce large quantities of ice in a few cycles. In a 24-hour period, it can produce 905 pounds of ice if the air temperature is 70 degrees Fahrenheit and the water temperature is 50 degrees Fahrenheit. Measuring 112 inch by 118 inch by 12 inch, the crescent cubes are perfect for soft drinks, dispensing applications, and more.

Temperatures in the unit are maintained by R-404A refrigerant, and the air-cooled condenser makes installation and servicing simple. If there is an issue within the system, the EverCheck™ system alerts the operator with a series of beeps. For service access, the panels on the Hoshizaki KM-901MAJ crescent cube ice machine are easy to remove. With the stainless steel construction, the exterior of the unit resists minor damage and corrosion.

Product Details

  • Produces 905 lbs. of ice in 24 hours when air temperature is 70 degrees F and water temperature is 50 degrees F
  • Produces 753 lbs. of ice in 24 hours when air temperature is 90 degrees F and water temperature is 70 degrees F
  • Makes large amounts of ice in a few cycles with the CycleSaver technology

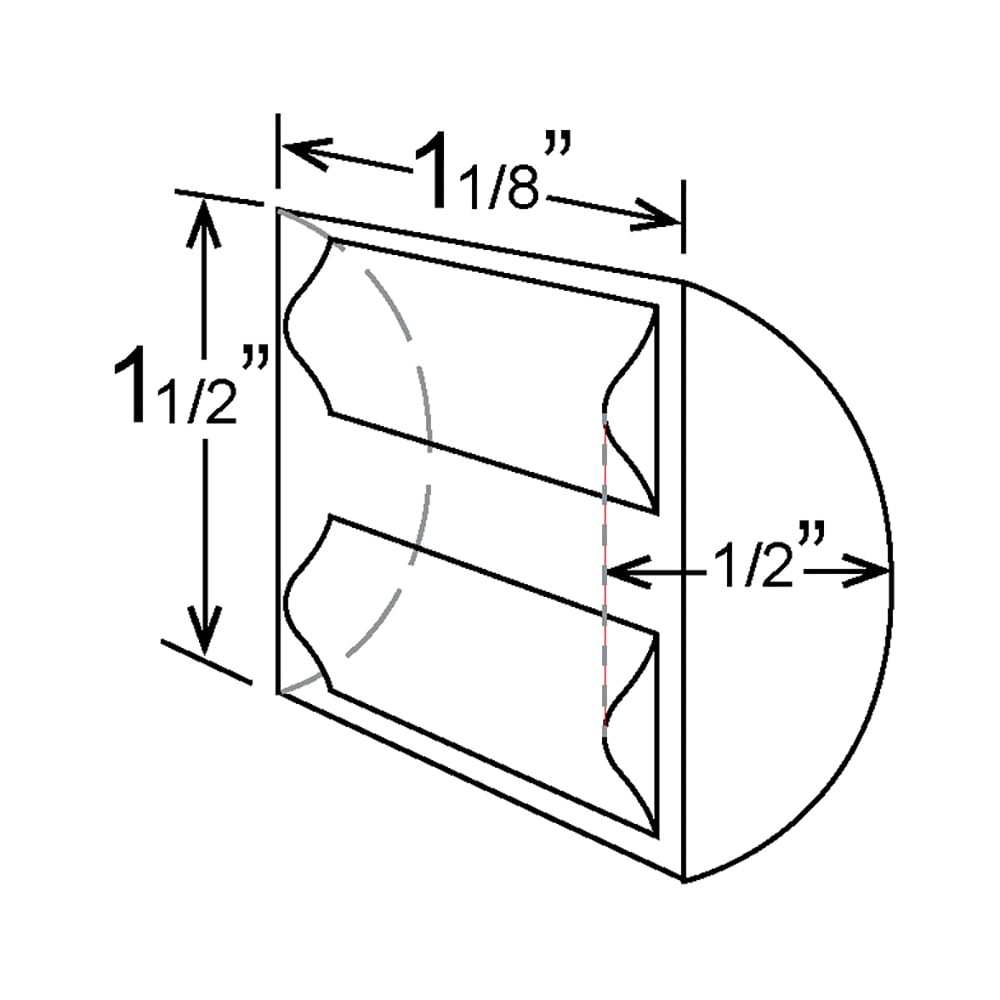

  • Crescent cube ice measures 112 in. x 118 in. x 12 in.
  • R-404A refrigerant keeps temperatures cool
  • Air-cooled condensing unit makes the unit simple to install and service
  • EverCheck alert system uses various beep signals to signify different system issues
  • Easily remove the panels for service access
  • H-Guard Plus™ antimicrobial agent slows the growth of bacteria
  • Exterior is constructed of stainless steel for durability and corrosion resistance
  • Storage bin is not included
  • 13,000 BTU
  • 208-230 V/60 Hz/1 ph, 13 A, 5 kW
  • Overall Dimensions: 3014 in. W x 2858 in. D x 3212 in. H
  • UL listed; AHRI and NSF certified

Product Features

Hoshizaki km901maj Features

Operation Requirements

  • Ambient temperatures should stay between 45-100 degrees F
  • Water temperature should stay between 45-90 degrees F
  • Water pressure should measure between 10-113 PSIG
  • Requires a 12-in. top, rear, and side clearance for air flow and service access

Ice Maker, Cube-Style, 30"W, air-cooled, self-contained condenser, production capacity up to 905 lb/24 hours at 70°/50° (753 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 13.0 amps, NSF, UL

Warning Small Important Prop 65 information for California residents.

Hoshizaki KM-901MAJ Specifications

PDF Spec Sheet
Manufacturer Hoshizaki
Ice Type Crescent Cube
Warranty 3-yr parts & labor; 5-yr parts & labor on evaporator; 5-yr parts on compressor & air-cooled condenser
Voltage 208/230
Compressor Type Air Cooled
Hertz 60
Phase 1
Product Type Ice Makers & Bins
Recommended Bins B-250PF, B-300PF, B-300SF, B-500PF, B-500SF, B-700PF, B-700SF, B-800PF, B-800SF, B-900PF, B-900SF, B-1150SS, B-1300SS, DB-130H, DB-200H
Depth (in) 27.4
Width (in) 30
Product Ice Machine Head
24 Hr. Production (lbs) 905
Height (in) 32.5
Cold Water (in) 1/2
Indirect Waste Size (in) 3/4
Amps 13
Production Range (lbs/day) 100-999 lb
Width (in) Range 30 - 39
Special Features CycleSaver™
Weight 260.00
Hoshizaki KM-901MAJ Certifications
  • UL
  • NSF
