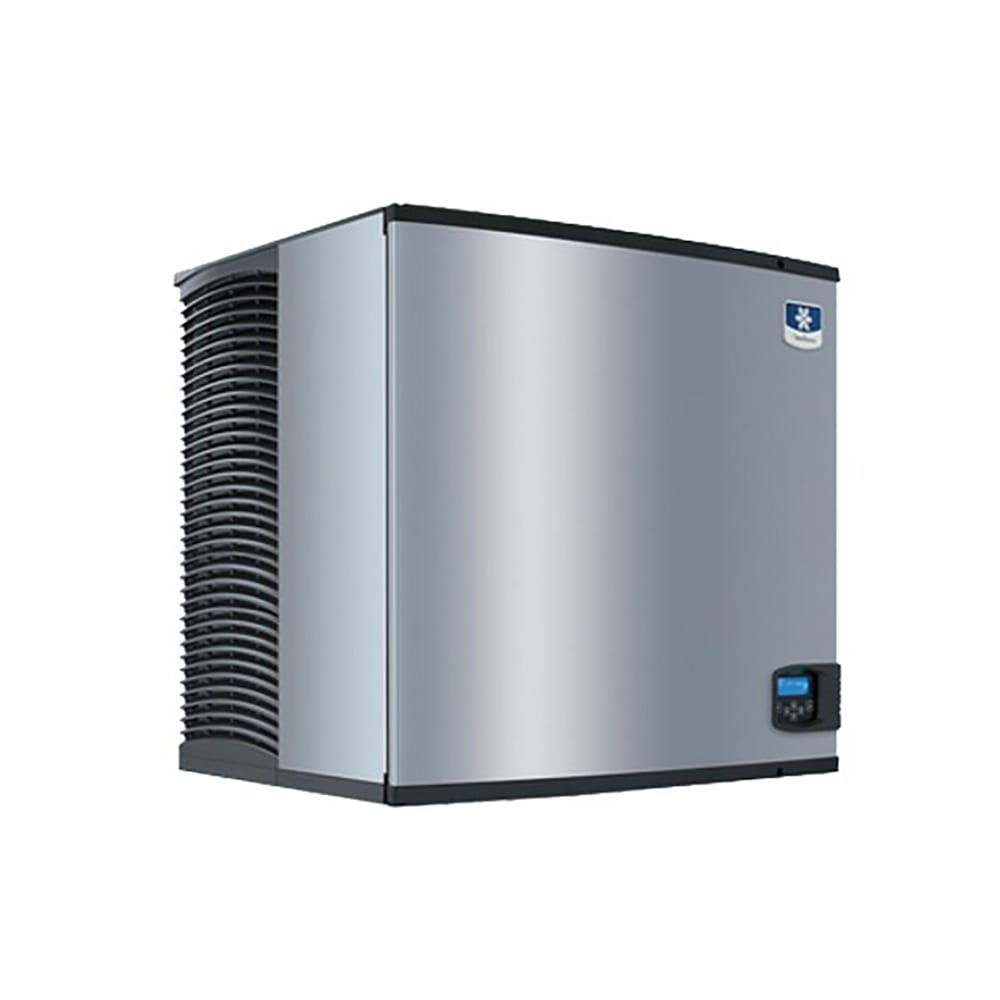

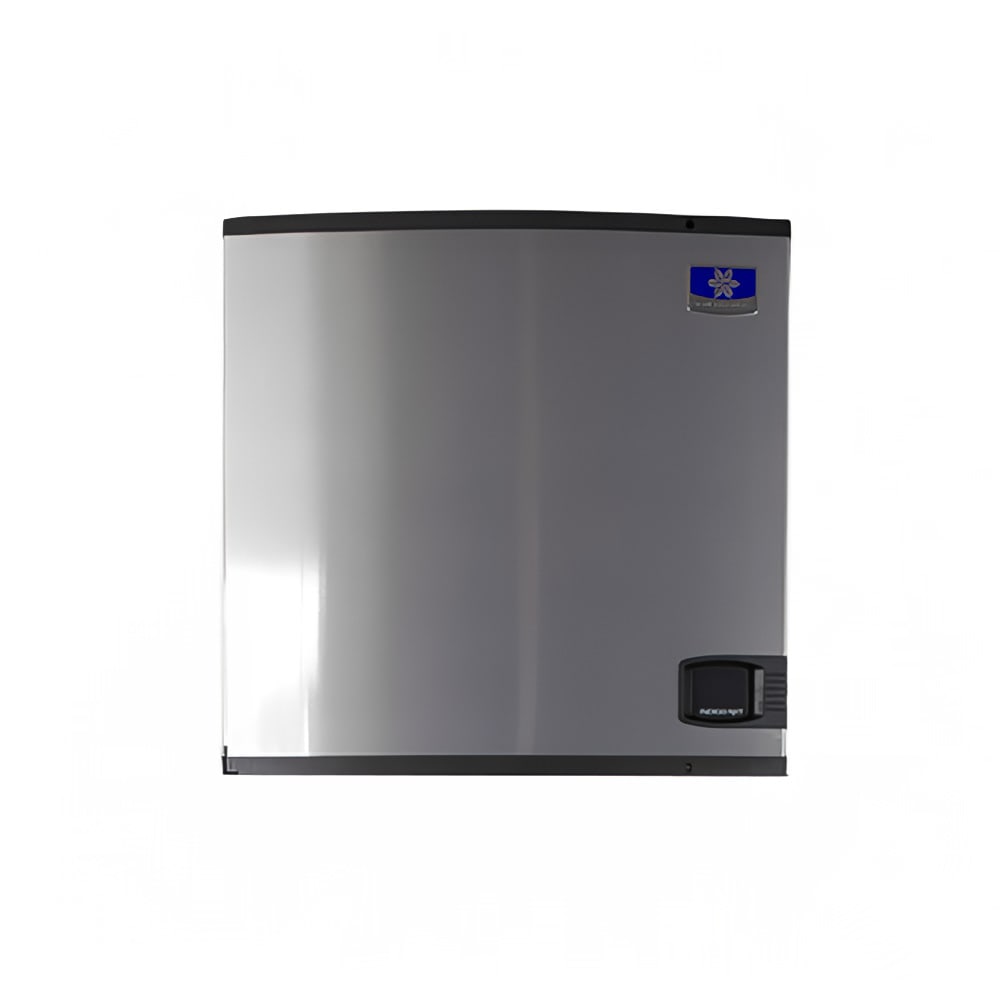

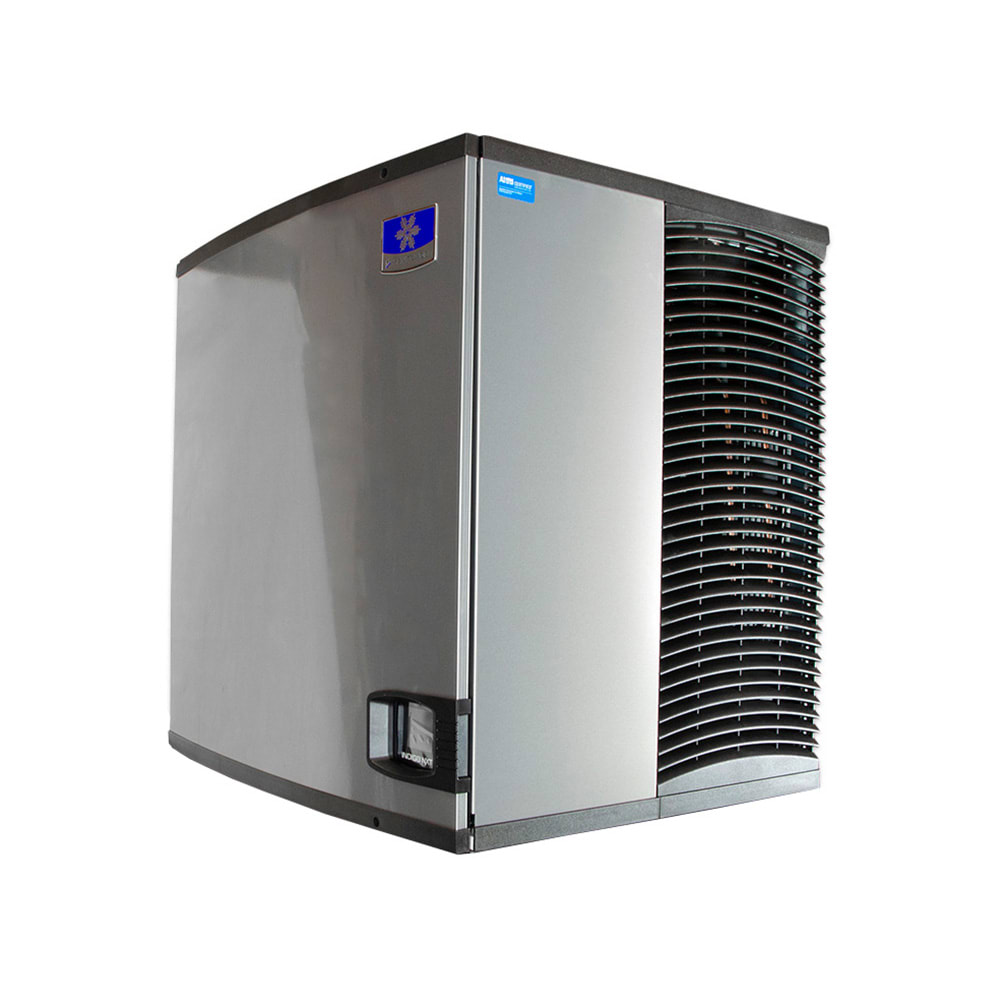

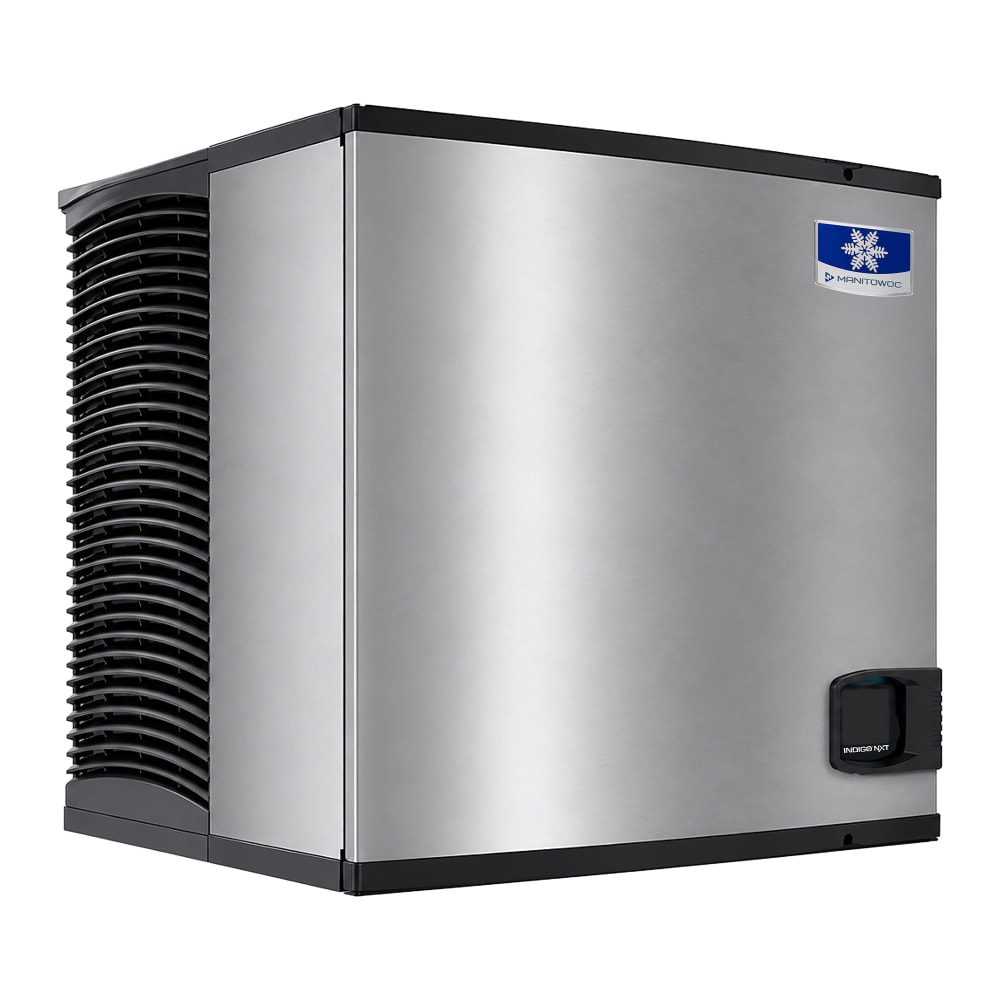

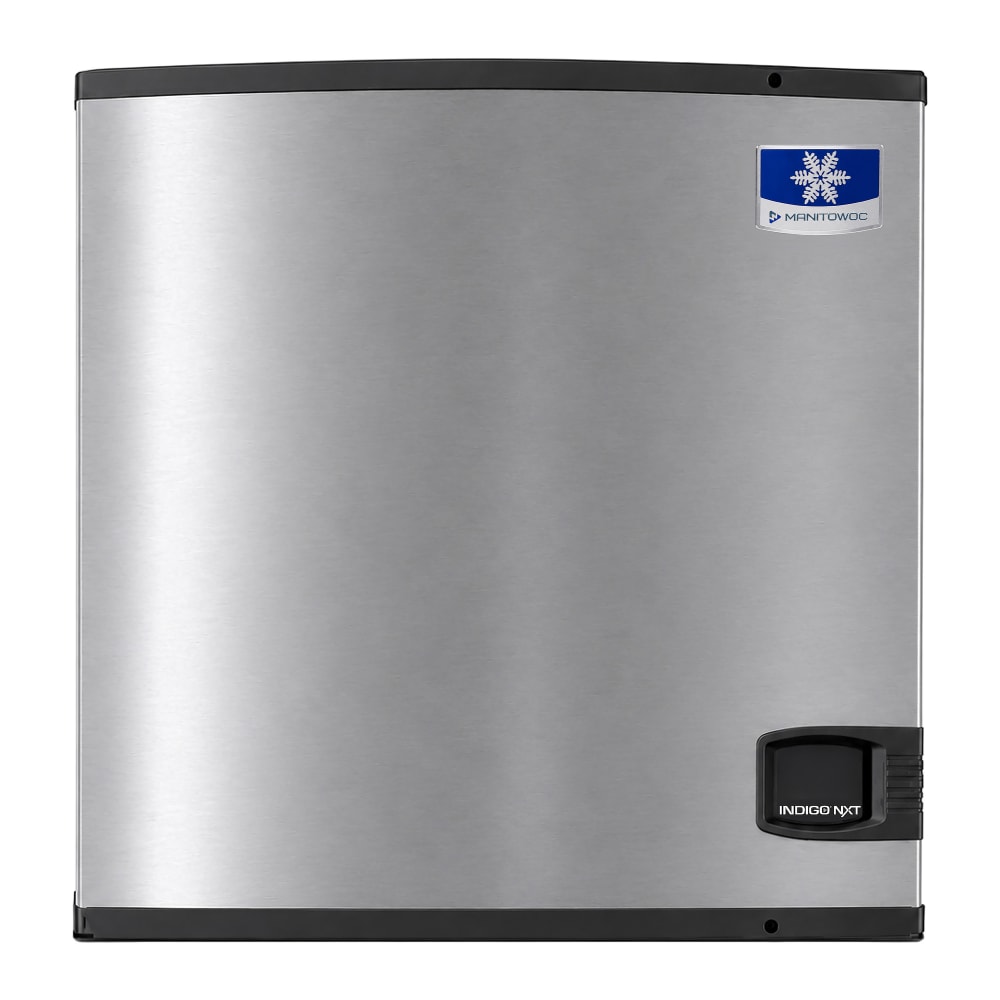

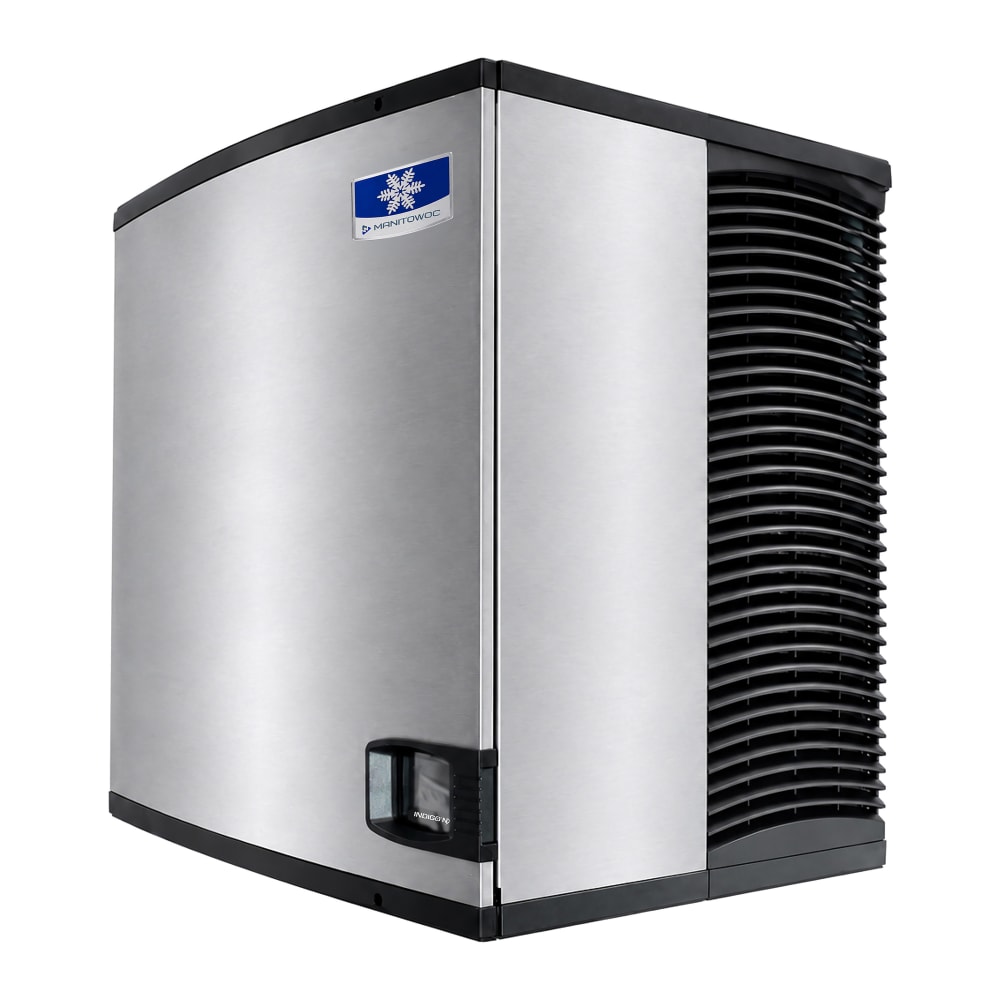

Manitowoc Ice IYT1200A 30" Indigo NXT™ Half Cube Ice Machine Head - 1213 lb/24 hr, Air Cooled, 208-230v/1ph

The Manitowoc Ice IYT1200A Indigo NXT™ commercial ice maker head employs an air-cooled condenser system, which will operate reliably and effectively in the kitchen. However, it may not be the right choice for kitchens that are looking to minimize heat and noise level. Within 24 hours, the machine puts out as much as 1,213 pounds of ice and is a suitable fit for many standard-size restaurants. Its easyTouch® screen lets the user operate the head and run diagnostics on problems, set time-based inactivity patterns, or cap the daily ice production volume.

An acoustical ice sensing probe checks ice cube thickness in the Manitowoc Ice IYT1200A ice machine head, making sure the same result is produced each time. Equipped with a DuraTech® exterior, this unit resists corrosion, fingerprint smudges, and dirt marks. Important internal elements can be taken out for cleaning and servicing.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Indigo NXT series
• 1,213-lb. maximum daily ice production
• 950-lb. AHRI-certified daily ice production
• Air-cooled system

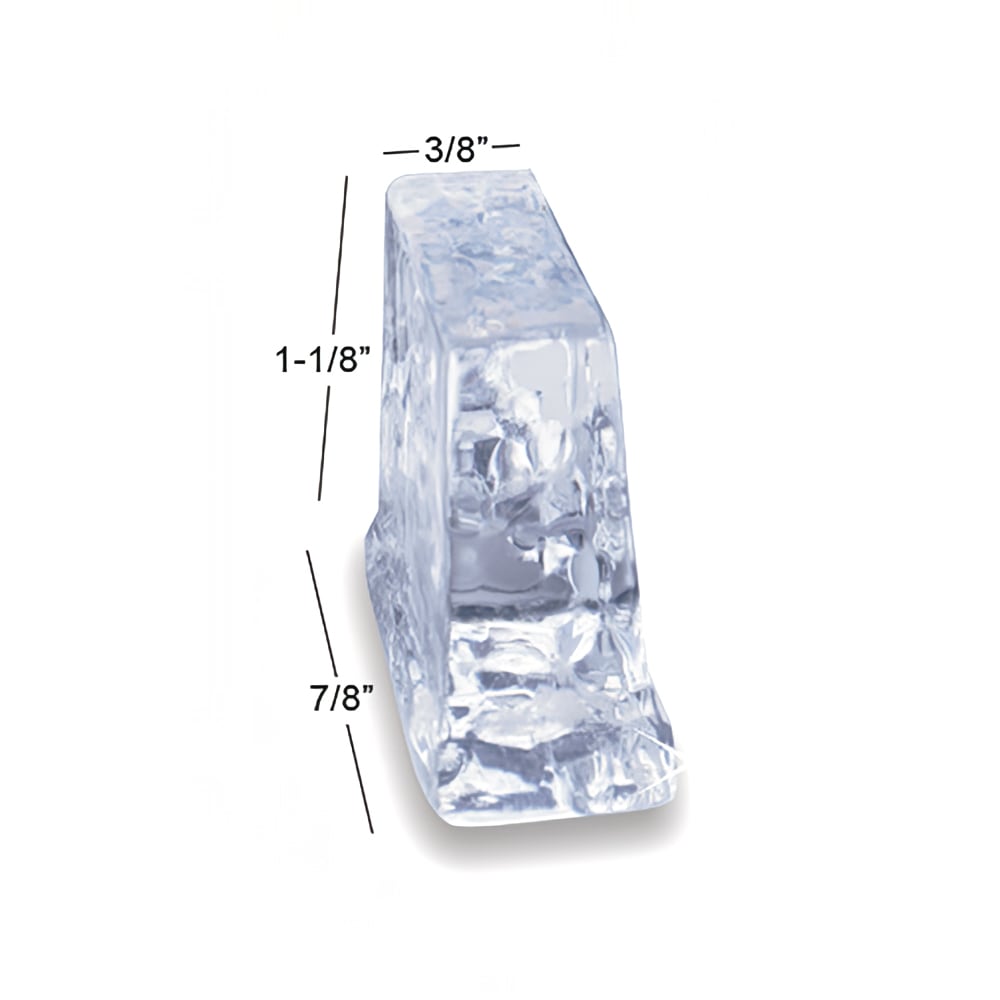

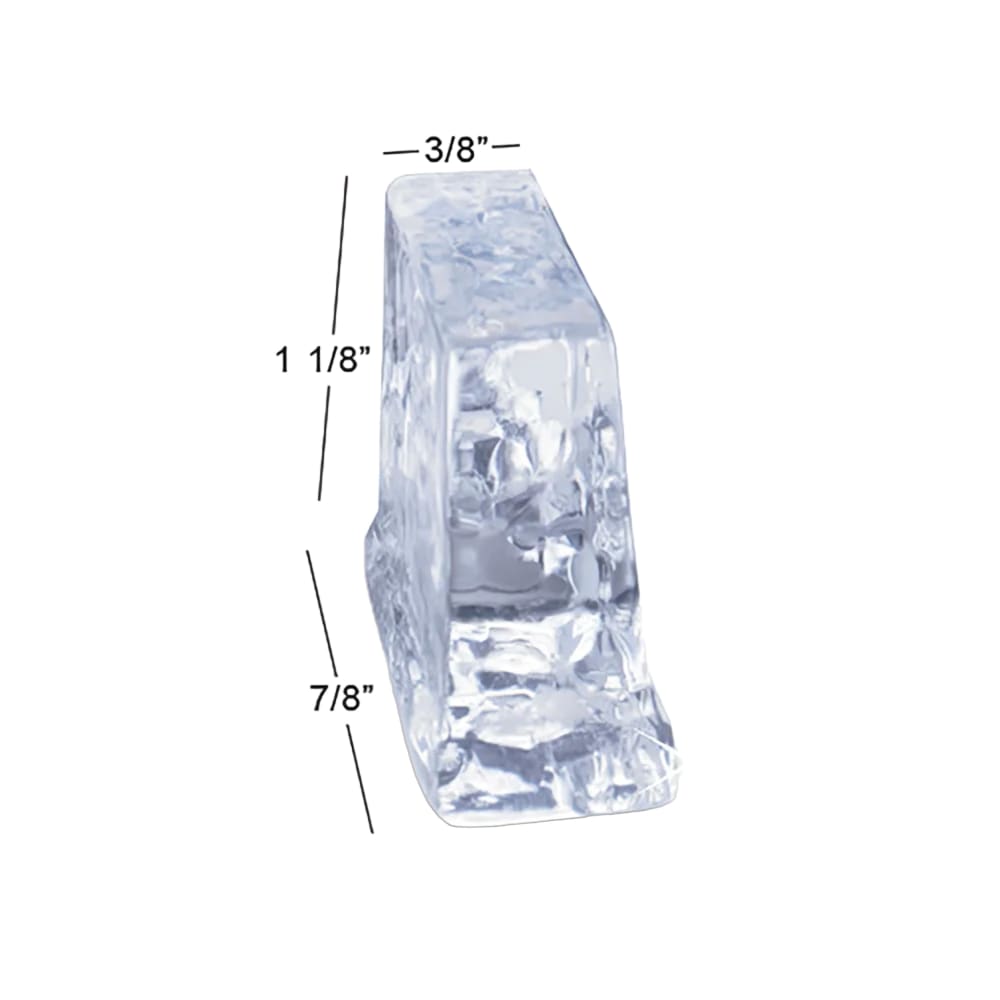

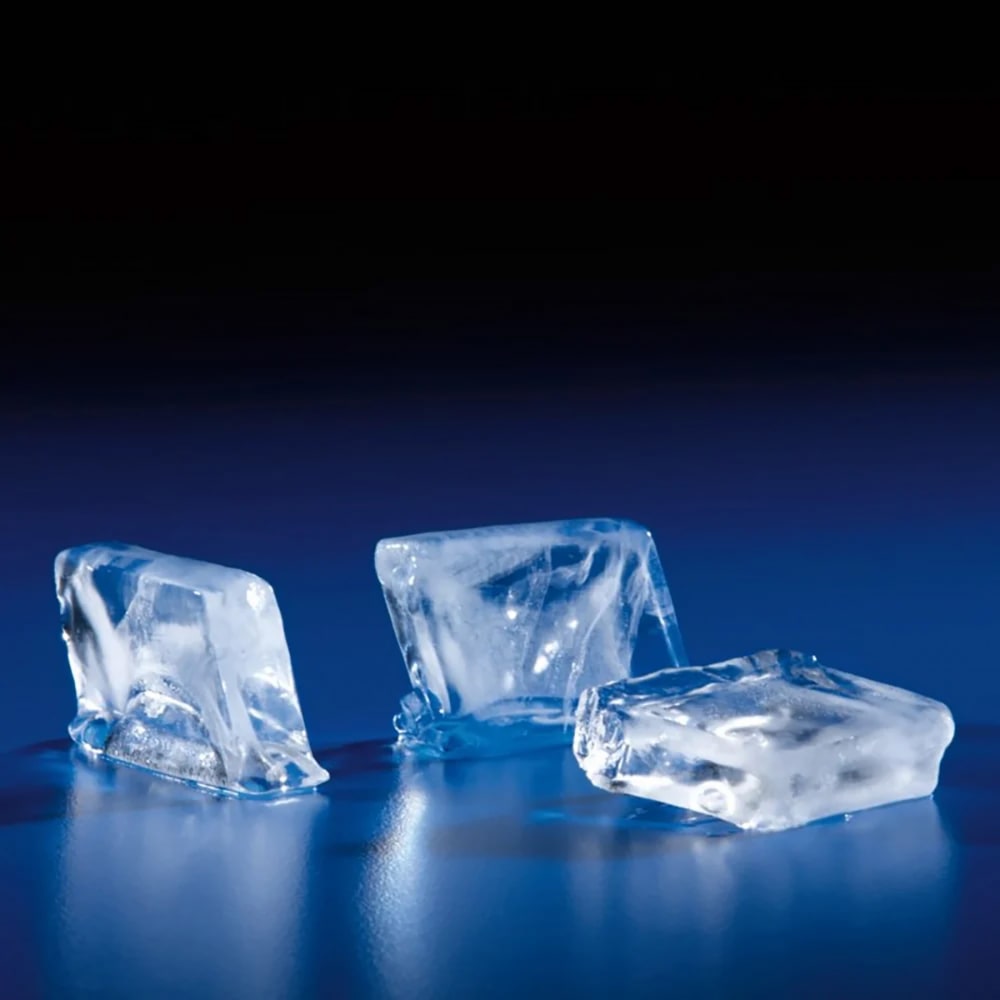

• Produces half-dice ice measuring ³⁄₈ in. x 1¹⁄₈ in. x ⁷⁄₈ in.
• EasyTouch screen has straightforward icon-based interface
• DuraTech exterior decreases the amount of dirt and fingerprint smudges and holds up against corrosion
• Acoustical ice sensing probe monitors ice cube thickness for consistency
• Water trough, distribution tube, curtain, water probe, and water pump are all conveniently removable
• Intelligent diagnostics assist with troubleshooting
• Uses R410A refrigerant
• Ice bin is not included
• Ambient temperature range: 40-110 degrees F
• Incoming water temperature: 40-90 degrees F
• Incoming water pressure: 20-80 PSI
• 16,200 average BTU; 19,000 peak BTU

Dimensions & Utilities

• 30 in. W x 24¹⁄₂ in. D x 29¹⁄₂ in. H
• 14.2
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IYT1200A within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 29-1/2"H, production capacity up to 1213 lb/24 hours at 70°/50° (950 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor
