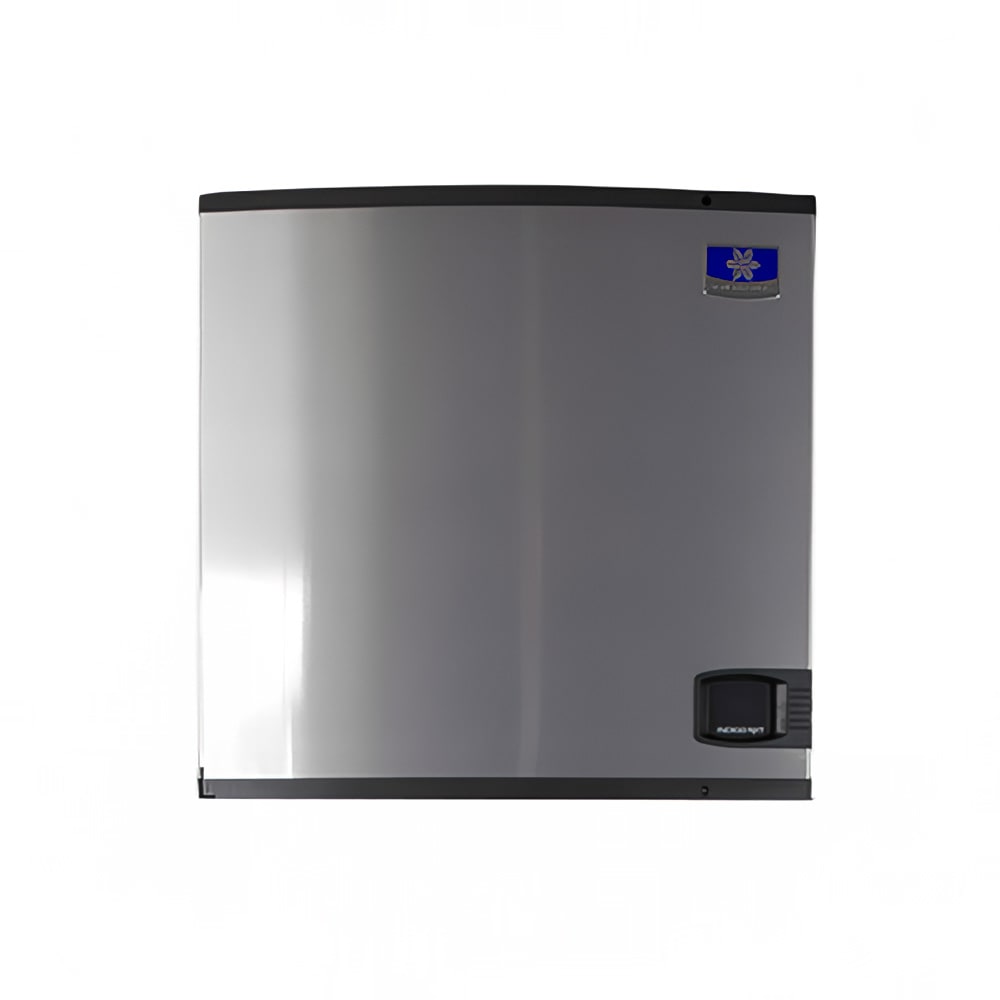

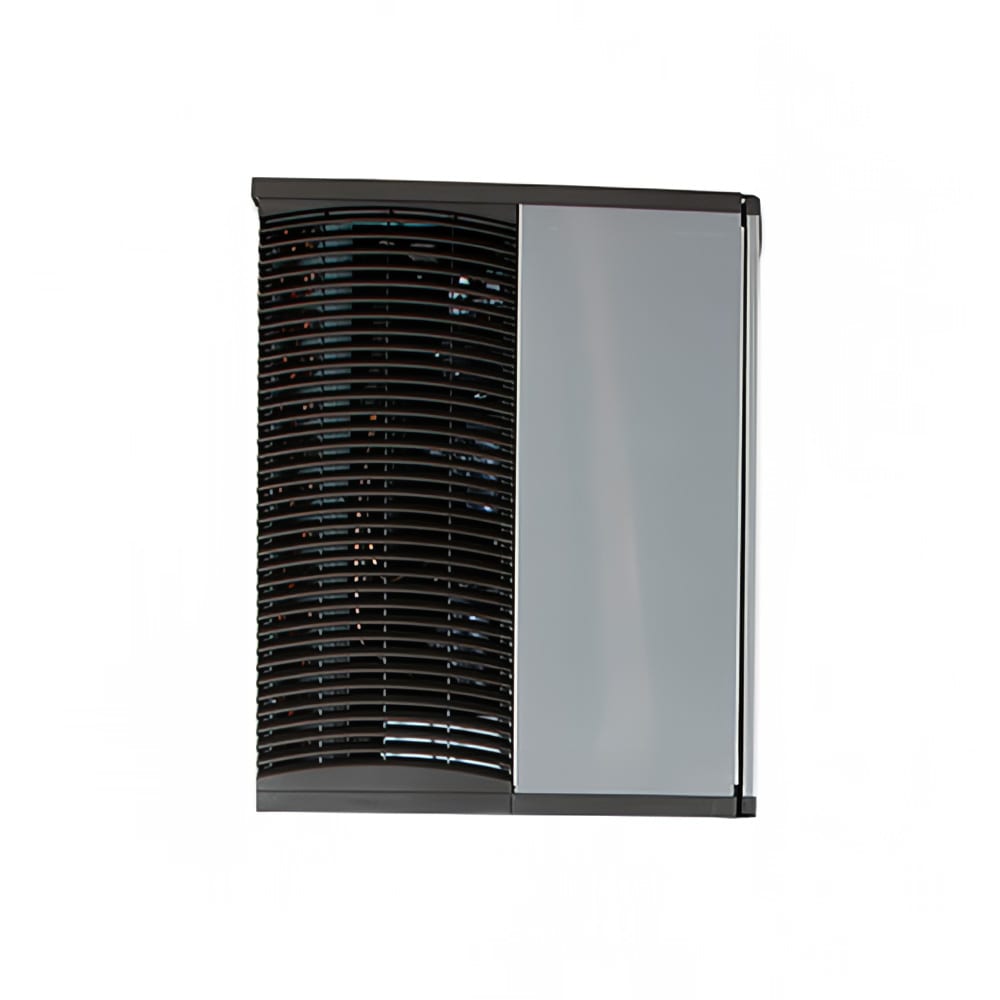

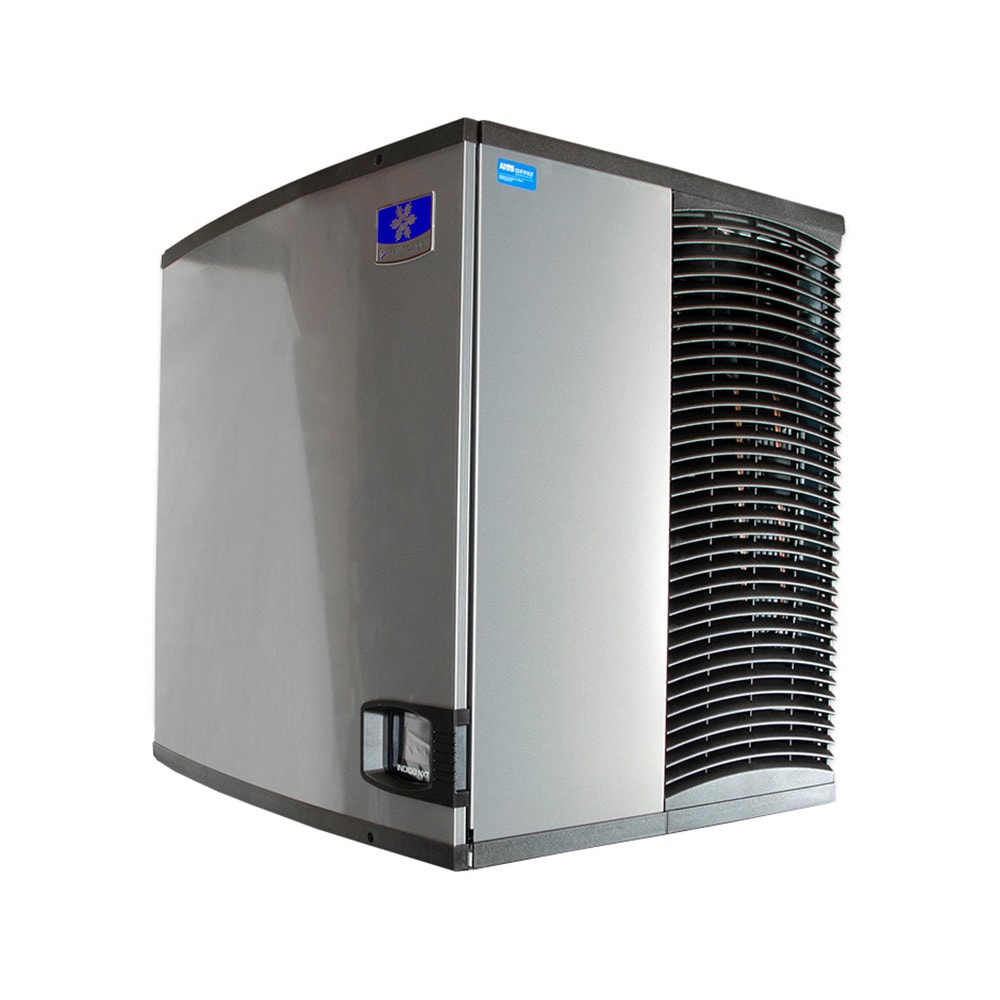

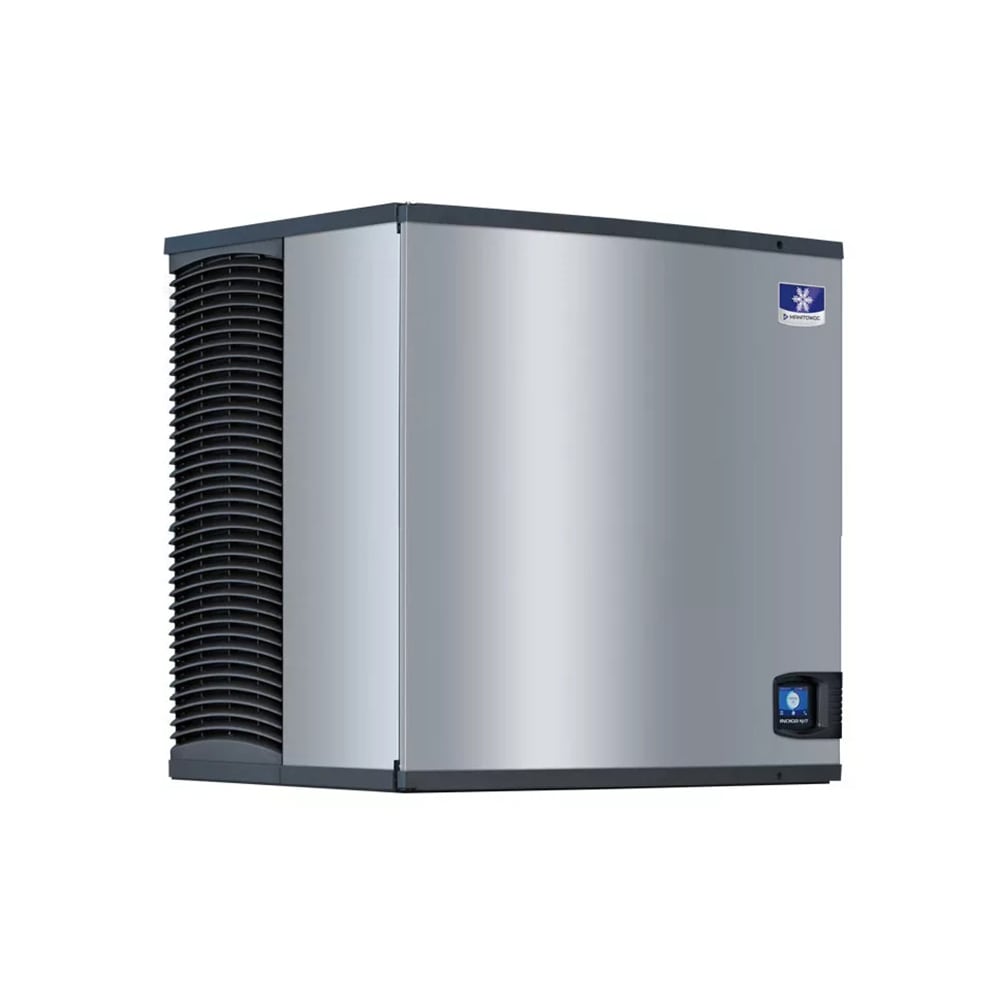

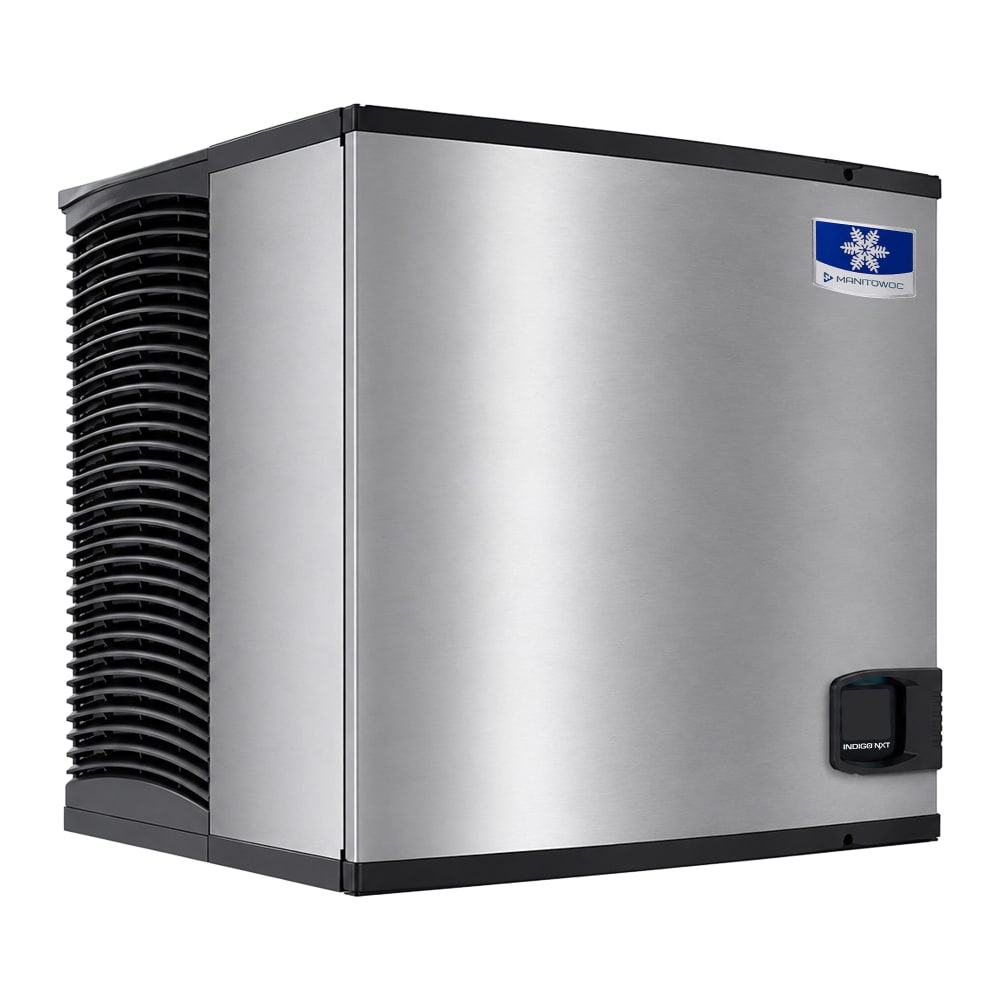

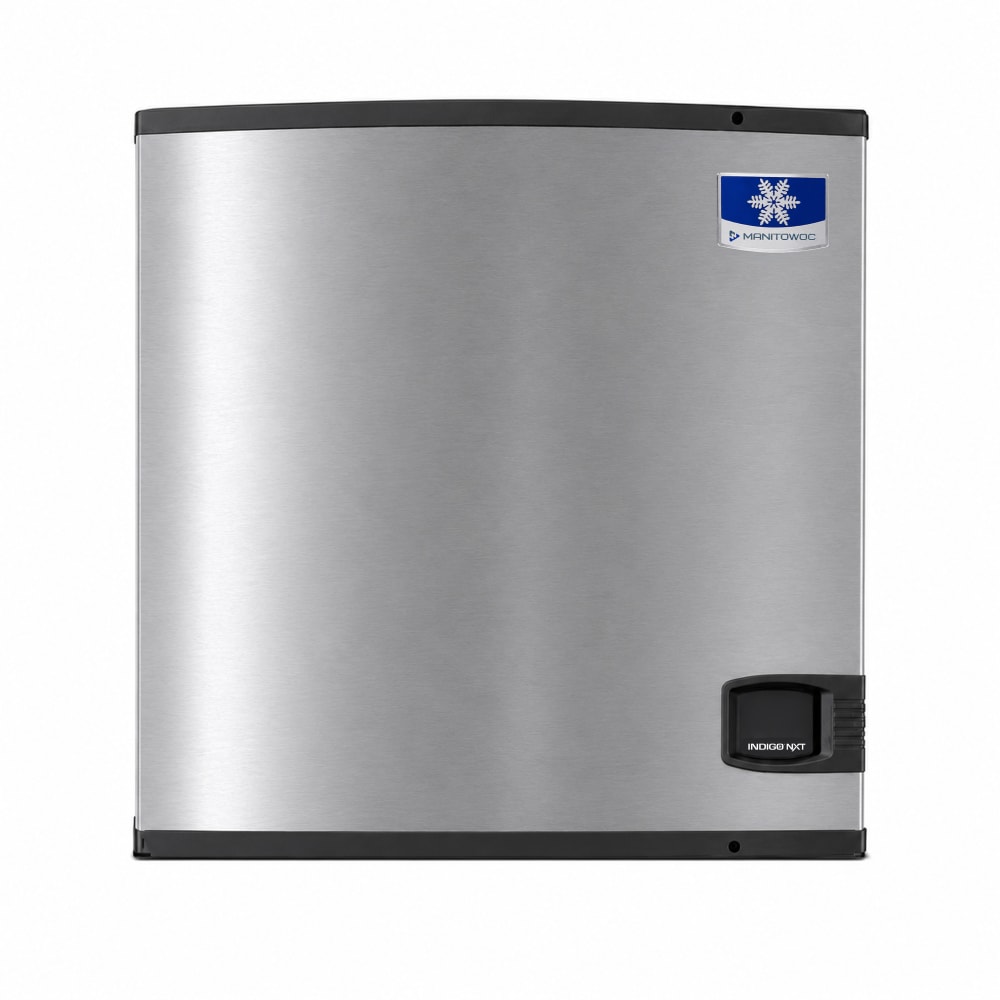

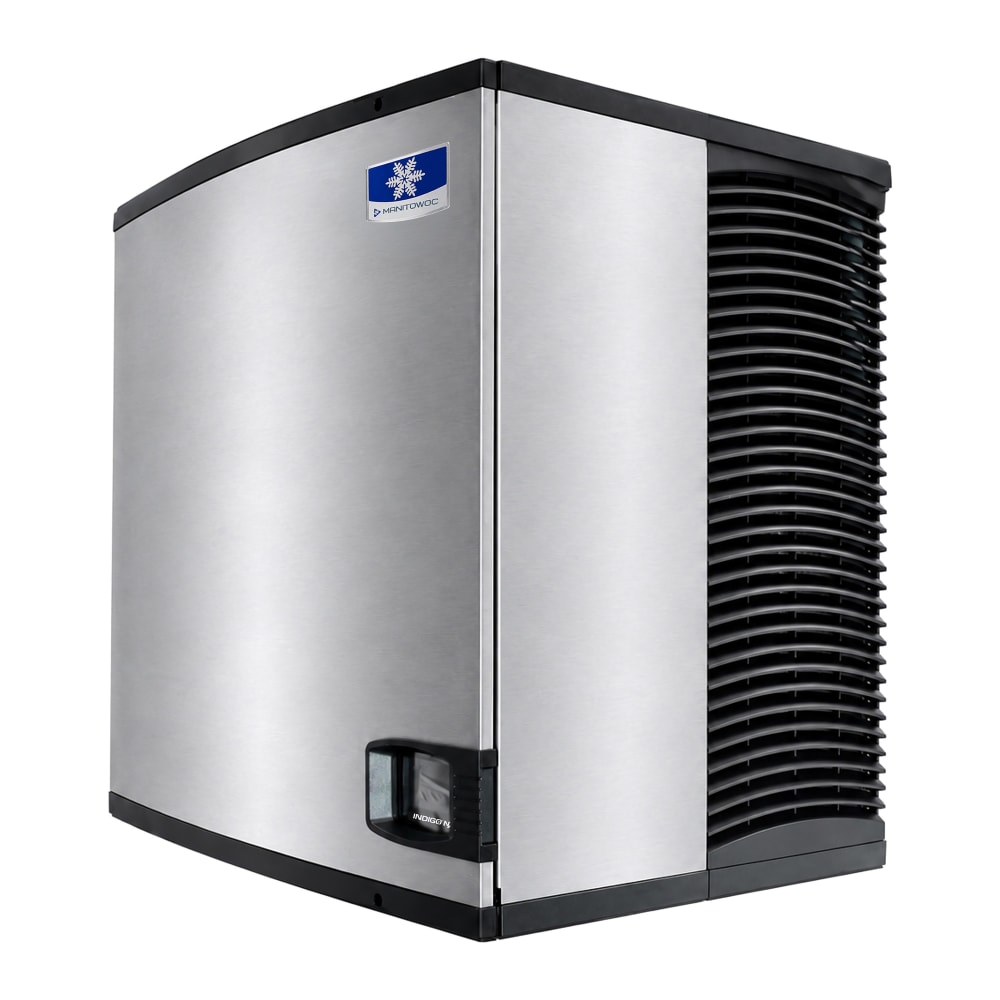

Manitowoc Ice IYT1200A 30" Indigo NXT™ Half Cube Ice Machine Head - 1213 lb/24 hr, Air Cooled, 208-230v/3ph
$7,430.00 /Each
Contact us for details!
Selected Voltage: 208-230V, 3 Phase
| 208-230V, 3 Phase |
| 208-230V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Manitowoc Ice IYT1200A Description
Producing dice-cube style ice, the Manitowoc Ice IYT1200A half cube ice machine head is useful for locations such as bars and restaurants that often serve soft drinks and mixed cocktails. Great for high-volume locations, it can produce as much as 1,213 pounds of ice per day in favorable ambient conditions. Coated with DuraTech™ clear overlay, the ice machine head resists damage such as rust, dents, and fingerprint smudges. The built-in self-diagnostic features monitor performance 24 hours per day, and alert users when maintenance or repairs are needed.
The Manitowoc Ice IYT1200A ice machine head produces half-dice cube ice, a type that fills glasses efficiently and promotes product displacement. For cleaning and maintenance purposes, a front access door on the unit opens outward on hinges and several key components are removable. Improving the unit’s resistance to microbial growth, some parts are treated with AlphaSan® antimicrobial enhancement. An acoustical ice-sensing probe moderates machine production.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Part of the Indigo NXT™ series

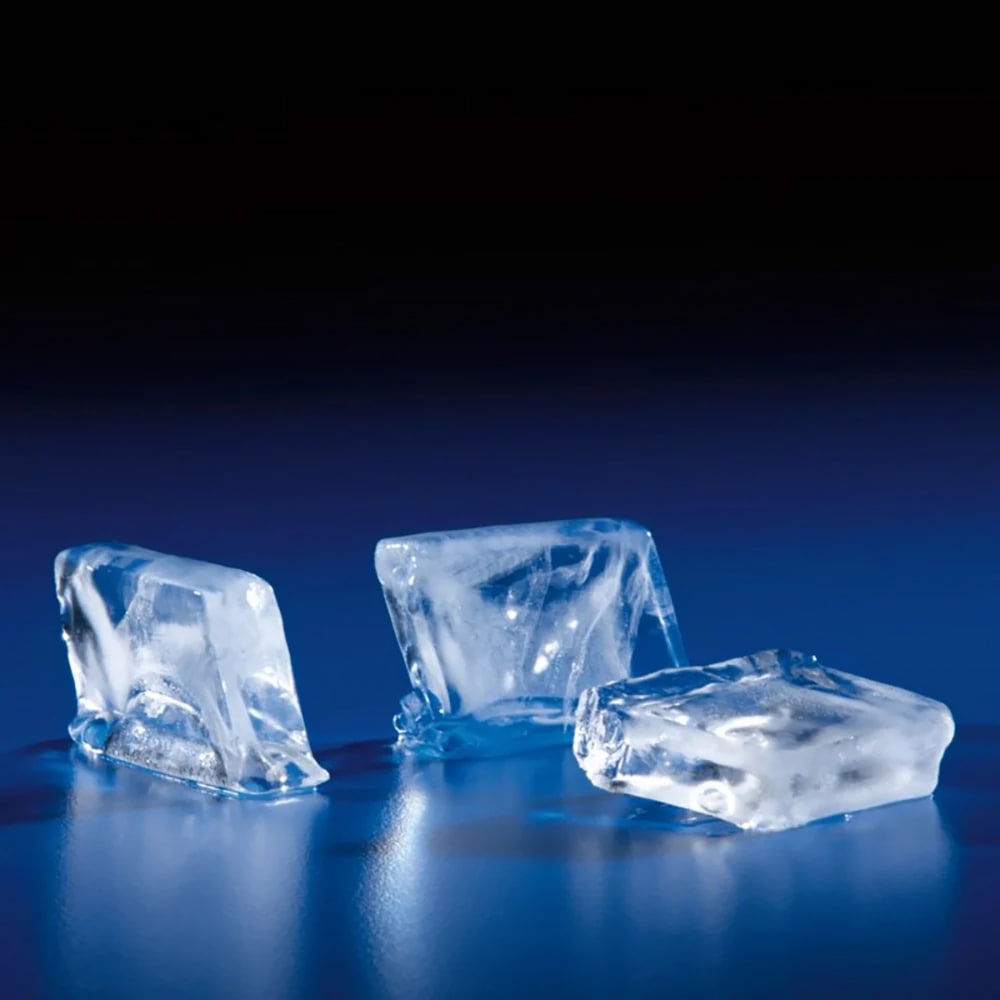

- Half-dice cube style ice

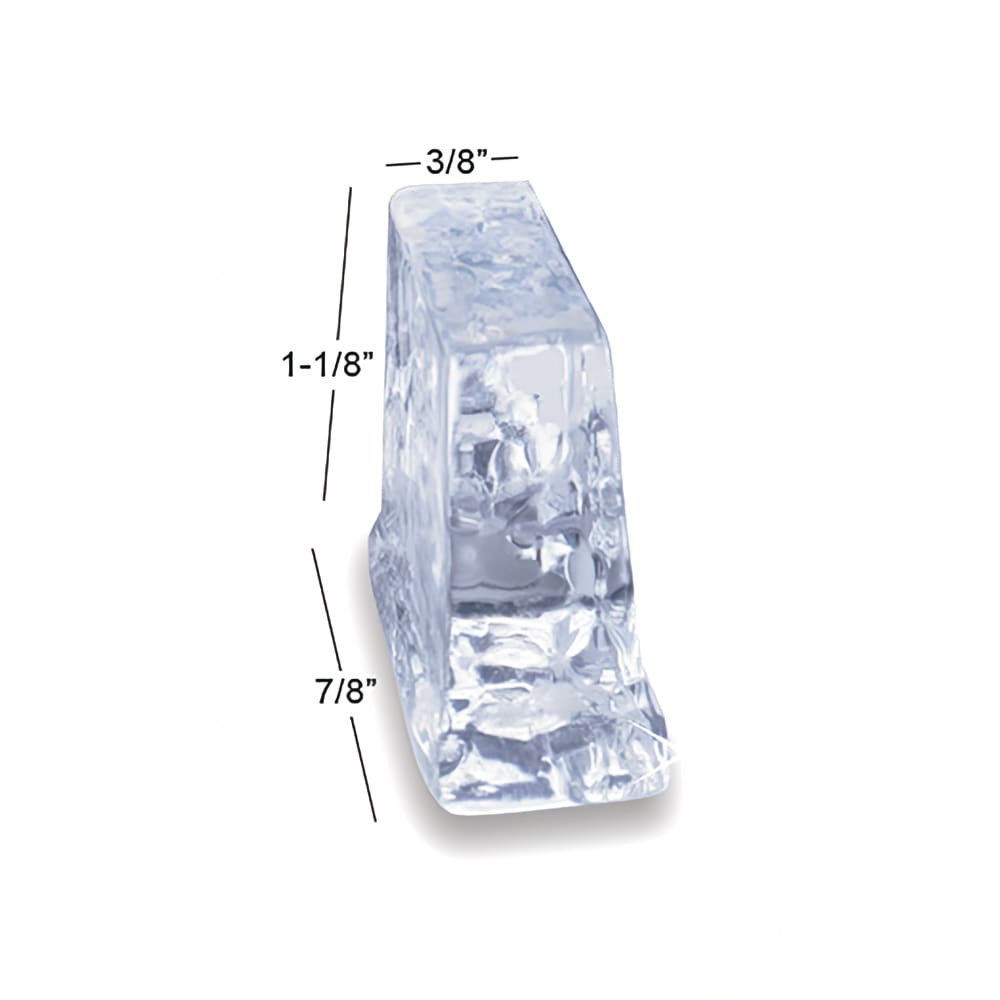

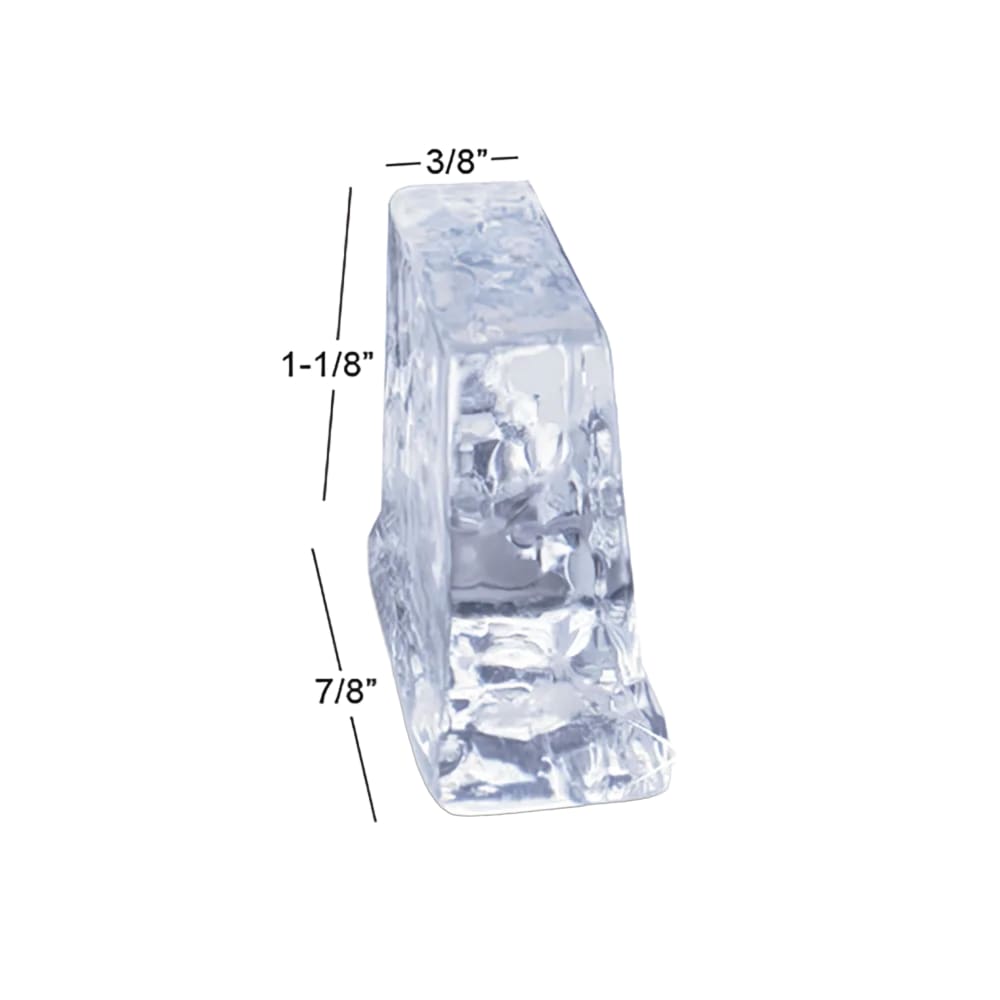

- Half cube size: 3⁄8 in. x 1 1⁄8 in. x 7⁄8 in.
- 1,213-lb. maximum daily ice production
- 950-lb. AHRI-certified daily ice production
- DuraTech™ clear coat protects the exterior
- easyTouch® icon-based touchscreen display
- Production can be programmed to moderate energy use
- Vital system components are accessible through hinged access door
- Water trough, distribution tube, curtain, and sensing probes are detachable
- AlphaSan® antimicrobial treatment enhances select components
- Self-diagnostic features provide 24-hr. feedback
- Acoustical ice-sensing probe
- Air-cooled system
- Self-contained condenser
- 19,100-BTU maximum heat transfer capacity
- CFS-free R410A refrigerant
- Ideal incoming air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 30 in. W x 24.5 in. D x 29.5 in. H
- 8.6 A, 4.75 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYT1200A within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 29-1/2"H, production capacity up to 1213 lb/24 hours at 70°/50° (950 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE
Watch a video about this product
Manitowoc Ice IYT1200A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 971 |
| Also Known As | IYT1200A |
| Compressor Type | Air Cooled |
| Depth (in) | 24.5 |
| Height (in) | 29.5 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 241.00 |
