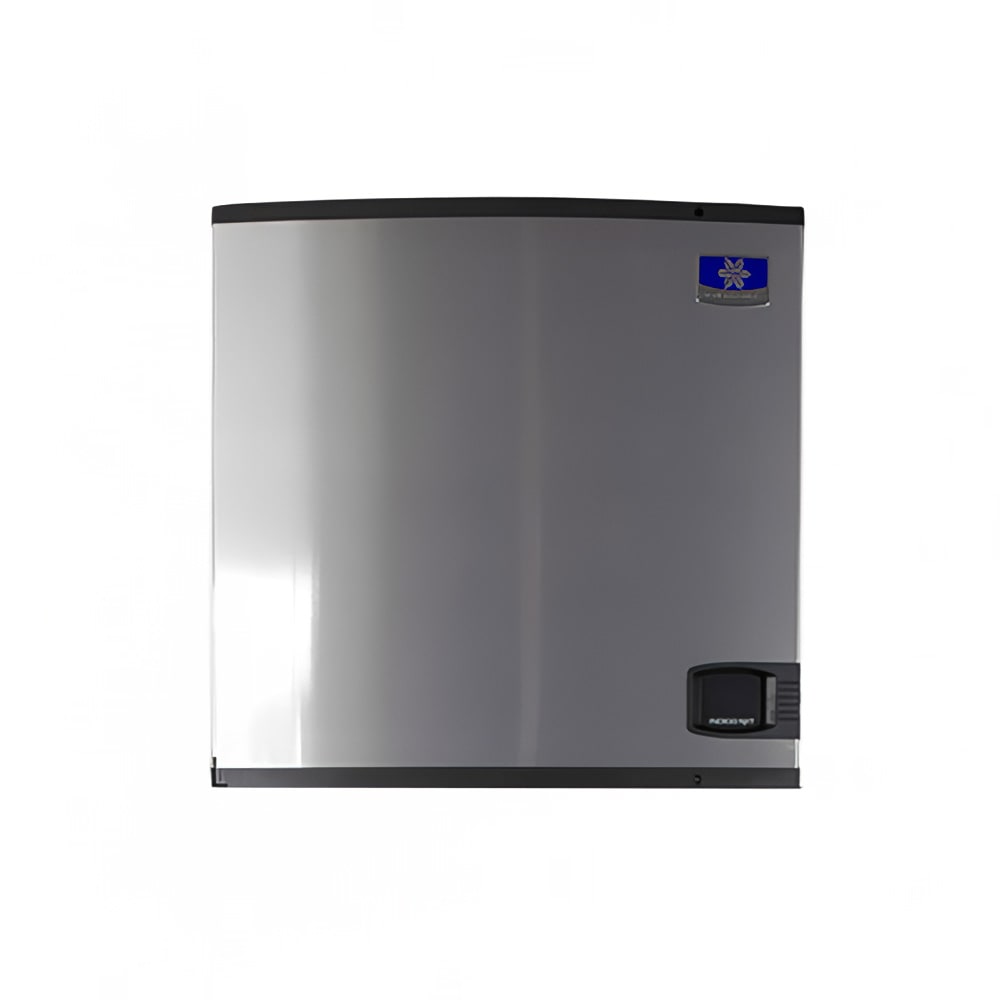

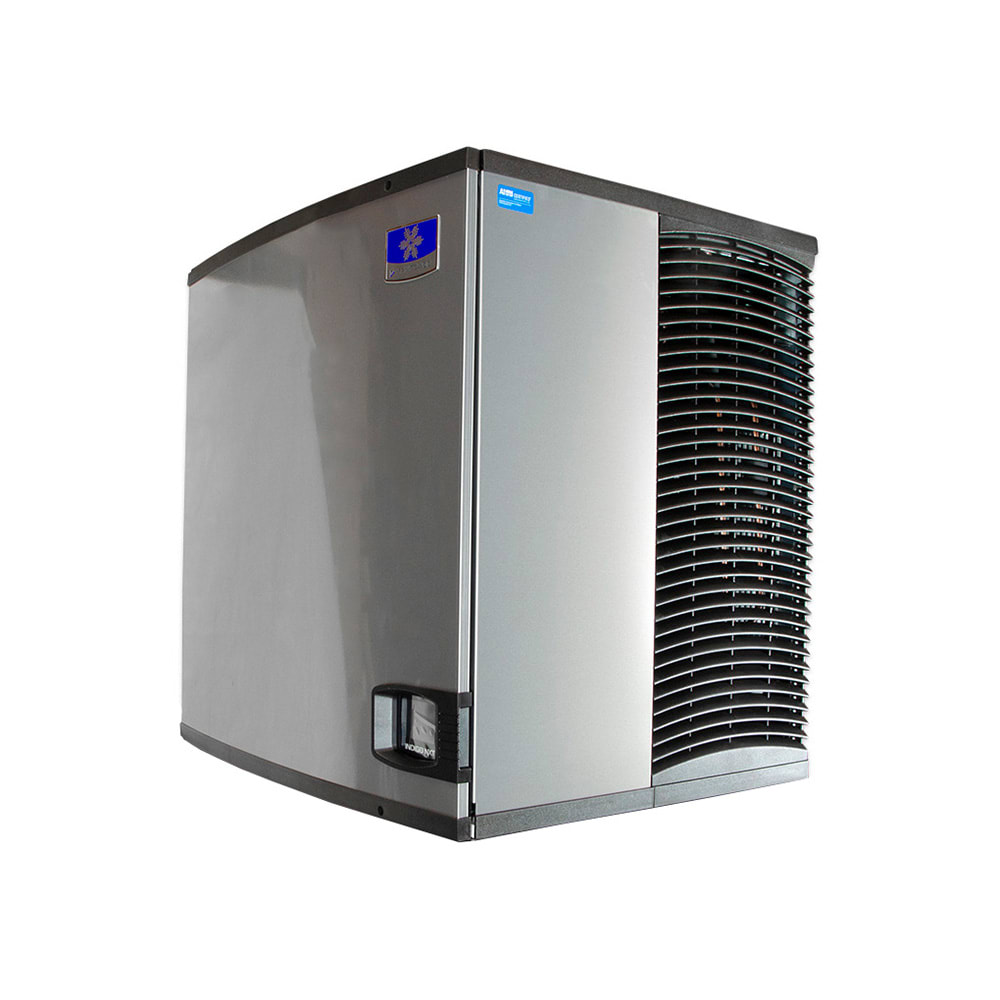

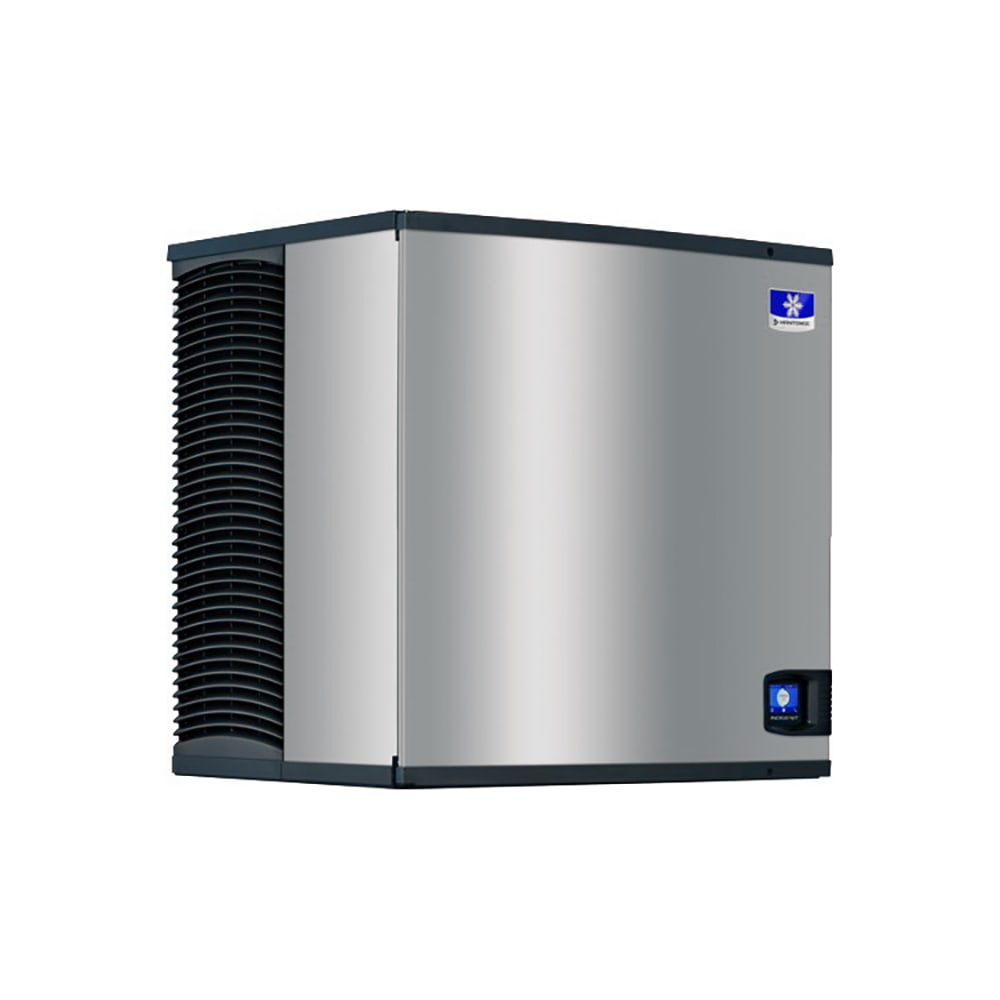

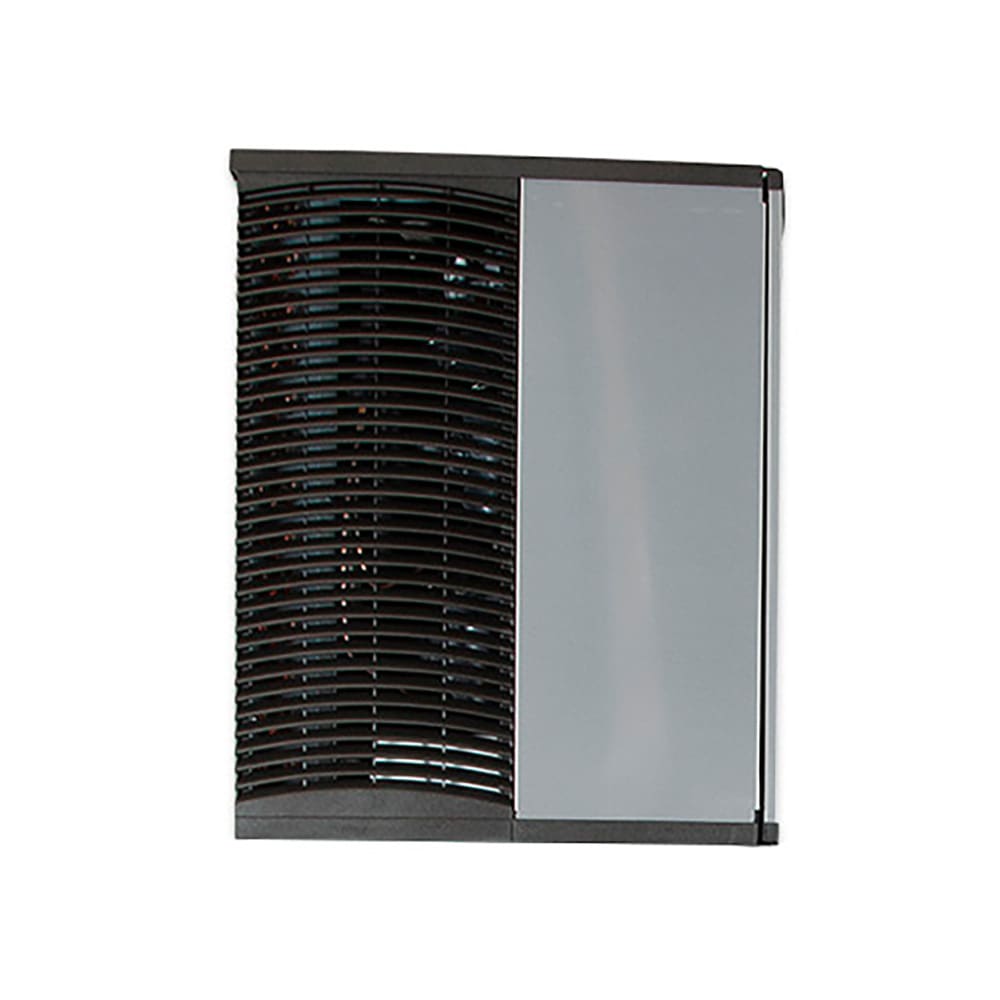

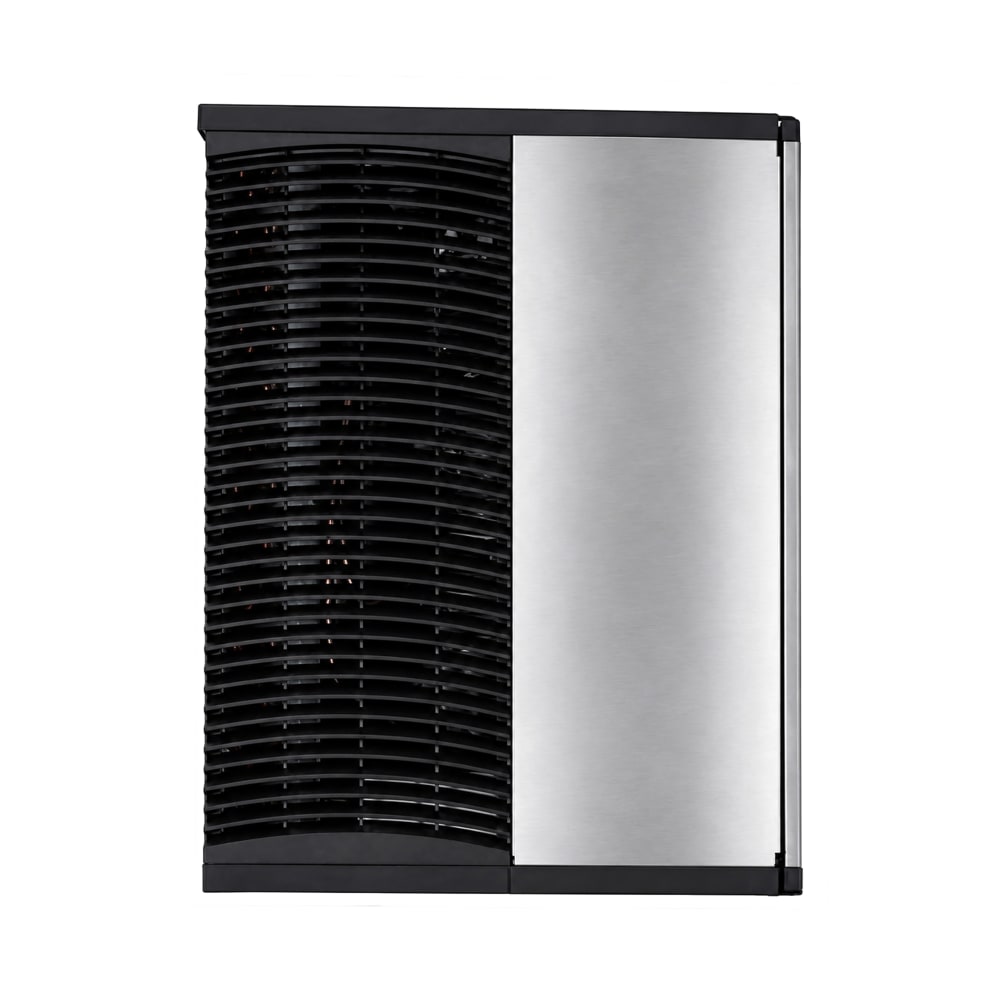

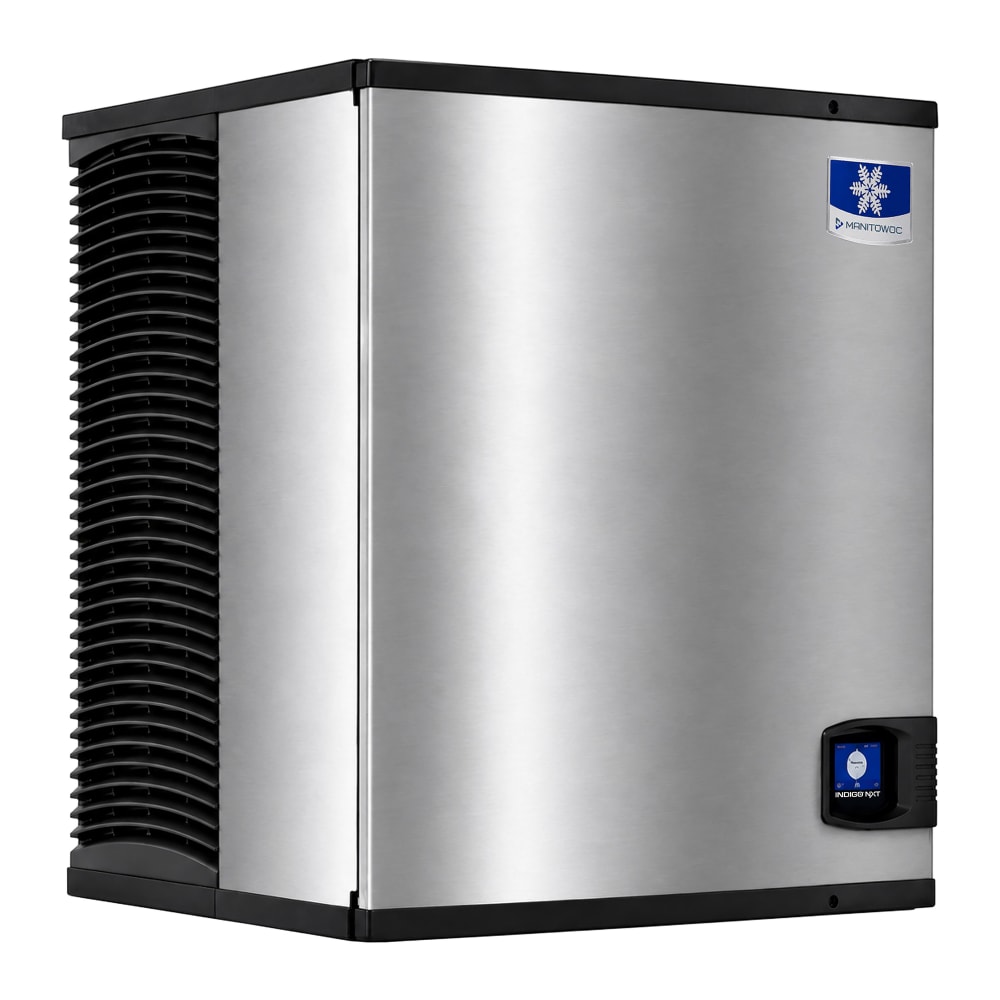

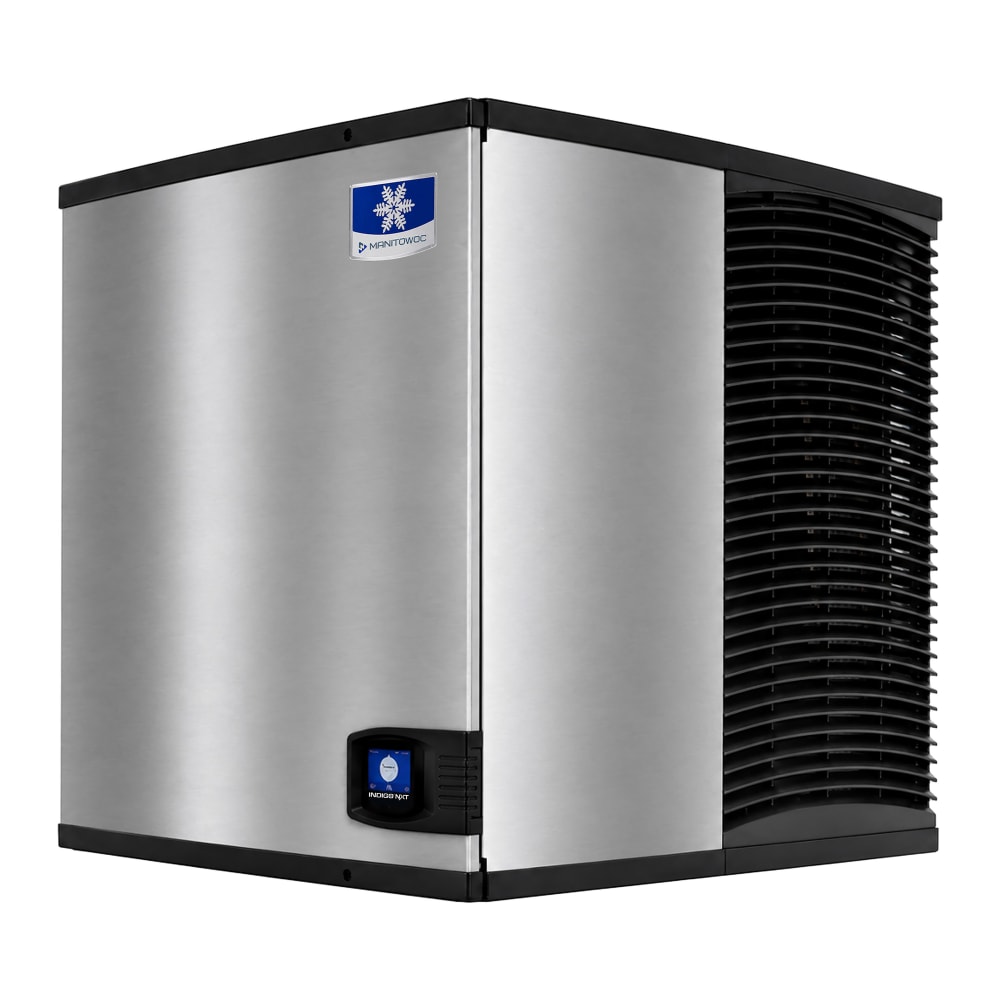

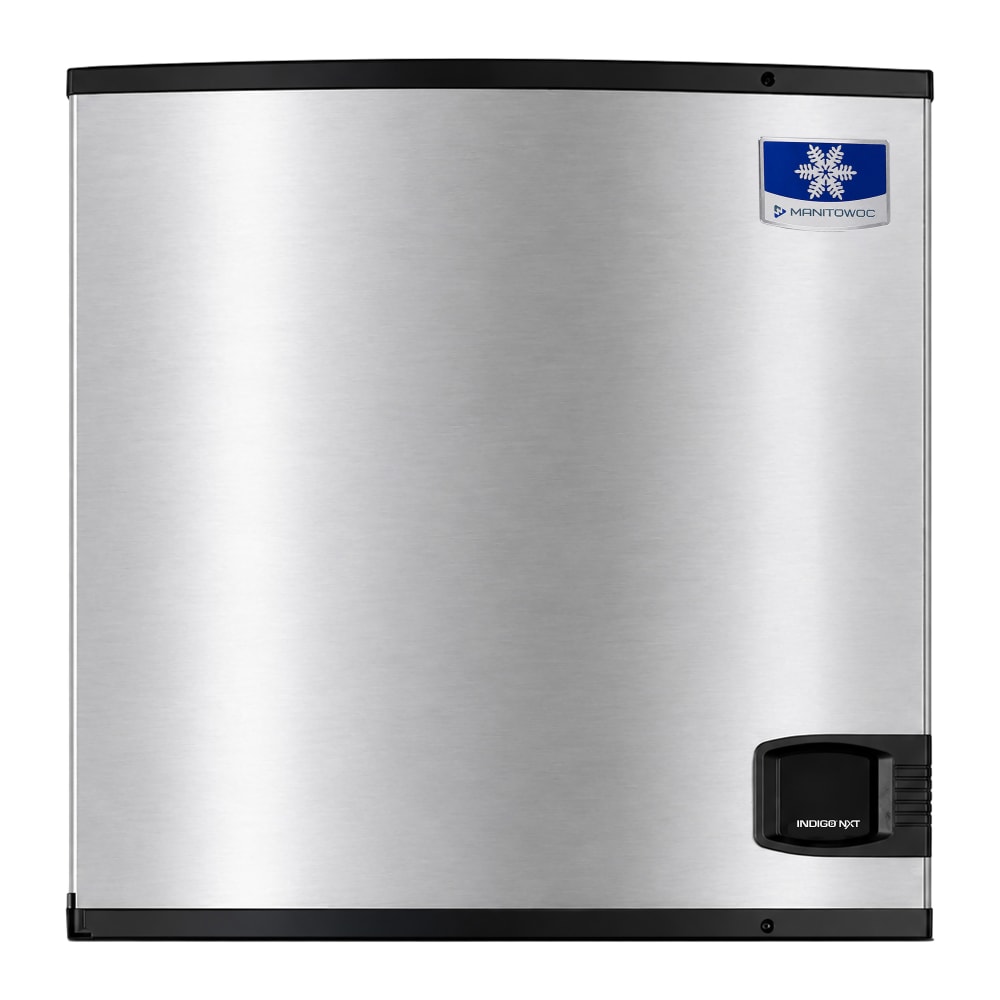

Manitowoc Ice IYT1200N 30" Indigo NXT™ Half Cube Ice Machine Head - 1215-lb/24-hr, Remote Cooled, 208/230v/1ph

The Manitowoc IYT-1200N ice machine head makes half-dice ice and is a remote unit that enables the condenser (sold separately) to be placed out of customer-facing areas, isolating noise and heat production. It can produce 1,150 pounds in 24 hours. The DuraTech® coating on the exterior is highly resistant to corrosion and has a clear coating that hides dirt and fingerprints. Its wide door and removable components make the interior easy to clean. Some of the components are made with AlphaSan® antimicrobial, slowing down the growth of bacteria.

The Manitowoc IYT-1200N ice machine head features a user-friendly easyTouch® display. Potential system problems are monitored by the unit's self-diagnostic system. It can be programmed to save energy by reducing ice production at select times. The unit should be installed in areas with ambient temperatures between 40 and 110 degrees Fahrenheit. This unit requires an ice bin attachment that is sold separately.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Can produce 1,150 lbs. of ice in 24 hrs.
• Ideal ambient air temperature: 70 degrees F
• Ideal water temperature: 50 degrees F
• Produces half-dice cubes
• Multilingual easyTouch interface is simple to use
• Programmable to reduce ice production during select hours
• Self-diagnostic system checks for possible issues
• Acoustic sensing probe measures ice thickness to ensure the cycle is consistent
• Compatible ice bin and remote condenser sold separately
• Corrosion-resistant DuraTech coating on the stainless steel exterior hides dirt and fingerprints
• Swing-out door opening eases maintenance and cleaning
• Curtain, water trough, water probe, water pump, and distribution tube are removable to help with cleanup
• Some parts are made with AlphaSan antimicrobial to slow bacteria growth between cleanings
• Uses R410A refrigerant
• Ambient temperature range: 40-110 degrees F
• Water temperature range: 40-90 degrees F
• 11.1 A, 4.4 kW
• 208-230 V/60 Hz/1 ph

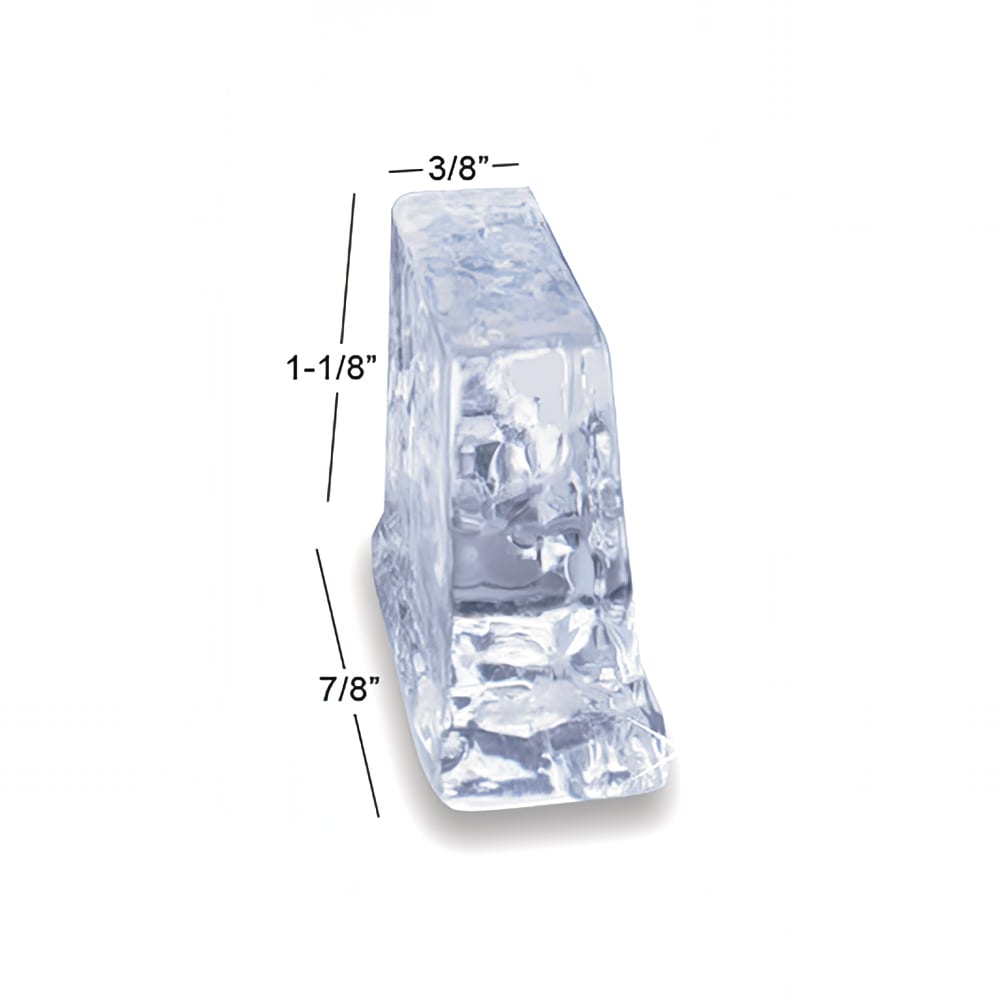

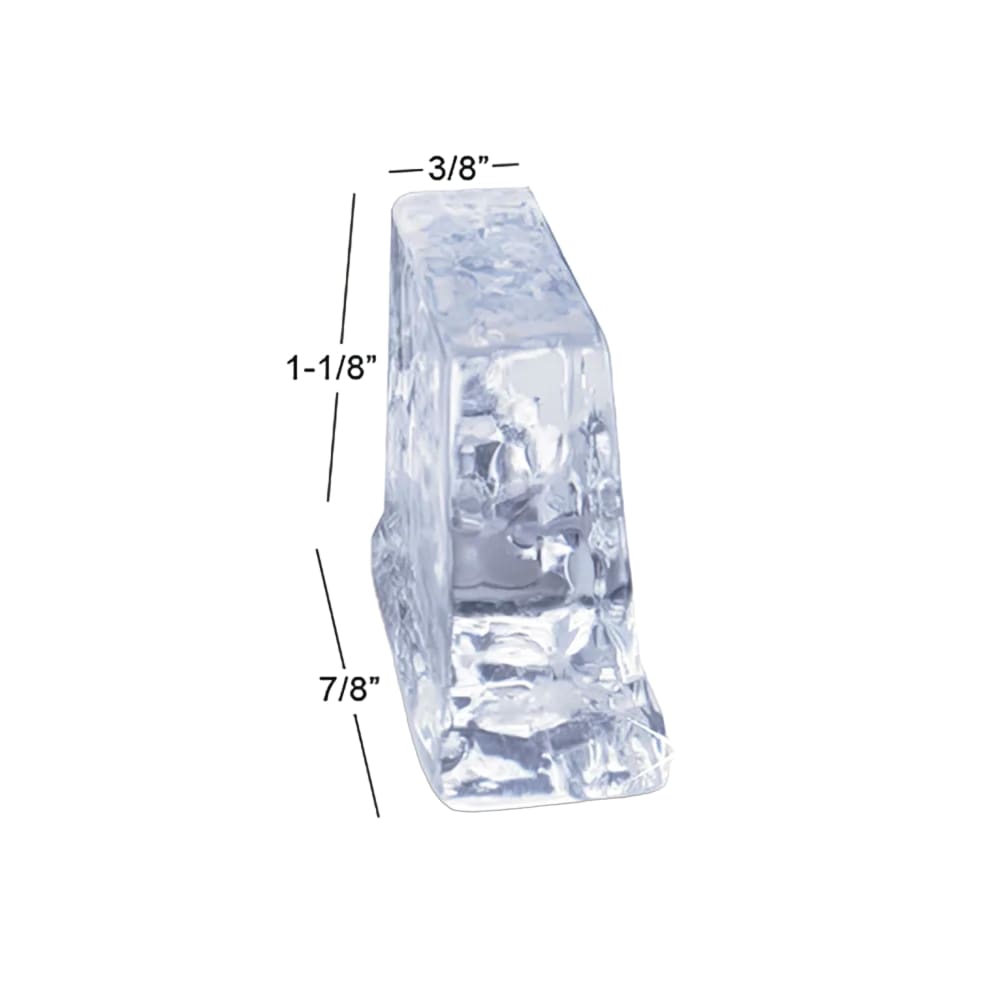

• Ice dimensions: 0.325 in. x 1.125 in. x 0.875 in.
• Overall dimensions: 30 in. W x 24.5 in. D x 29.5 in. H
• Manitowoc will not honor the warranty on a remote unit paired with an existing condenser (must be purchased with condenser)

Product Features

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, designed for remote refrigeration (vertical condenser and lines sold separately), 30"W x 24-1/2"D x 29-1/2"H, production capacity up to 1215 lb/24 hours at 70°/50° (1000 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus,

*Image may not depict product color, inclusions or accessories.

3-year Warranty, 5-year Compressor Parts
