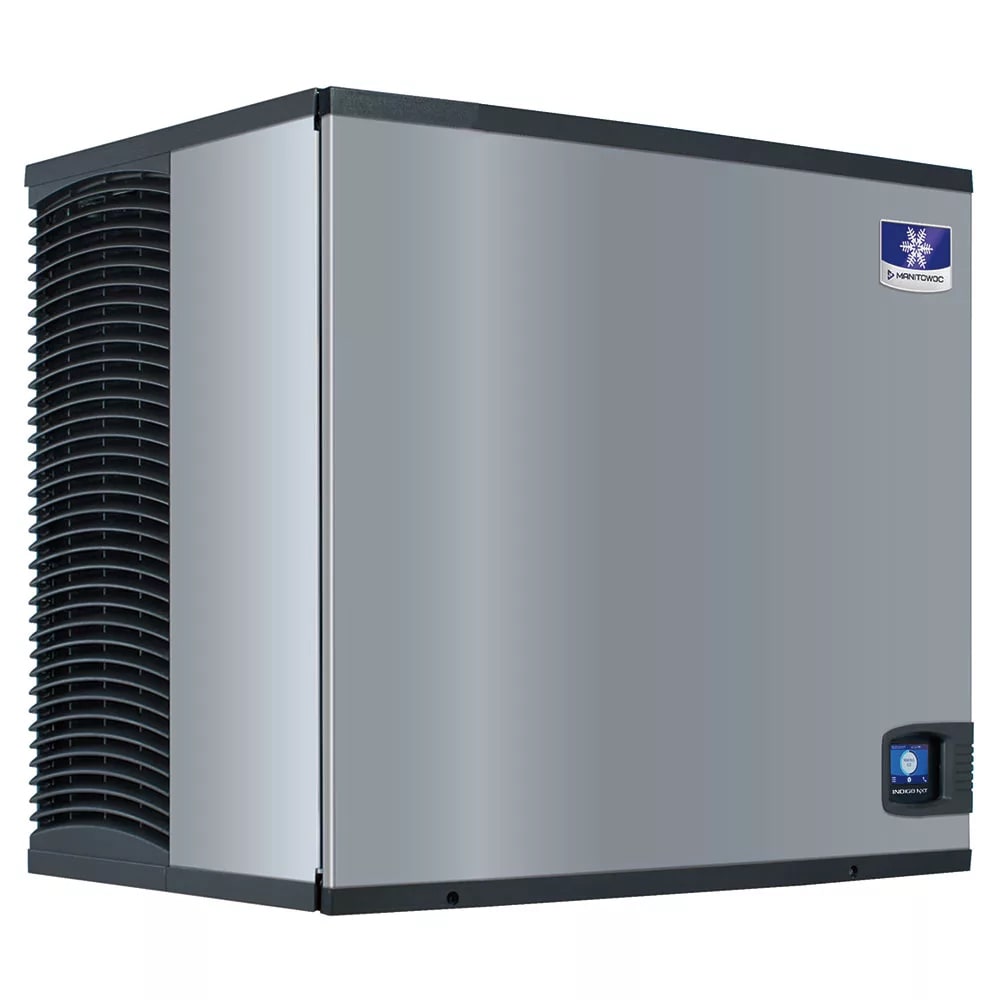

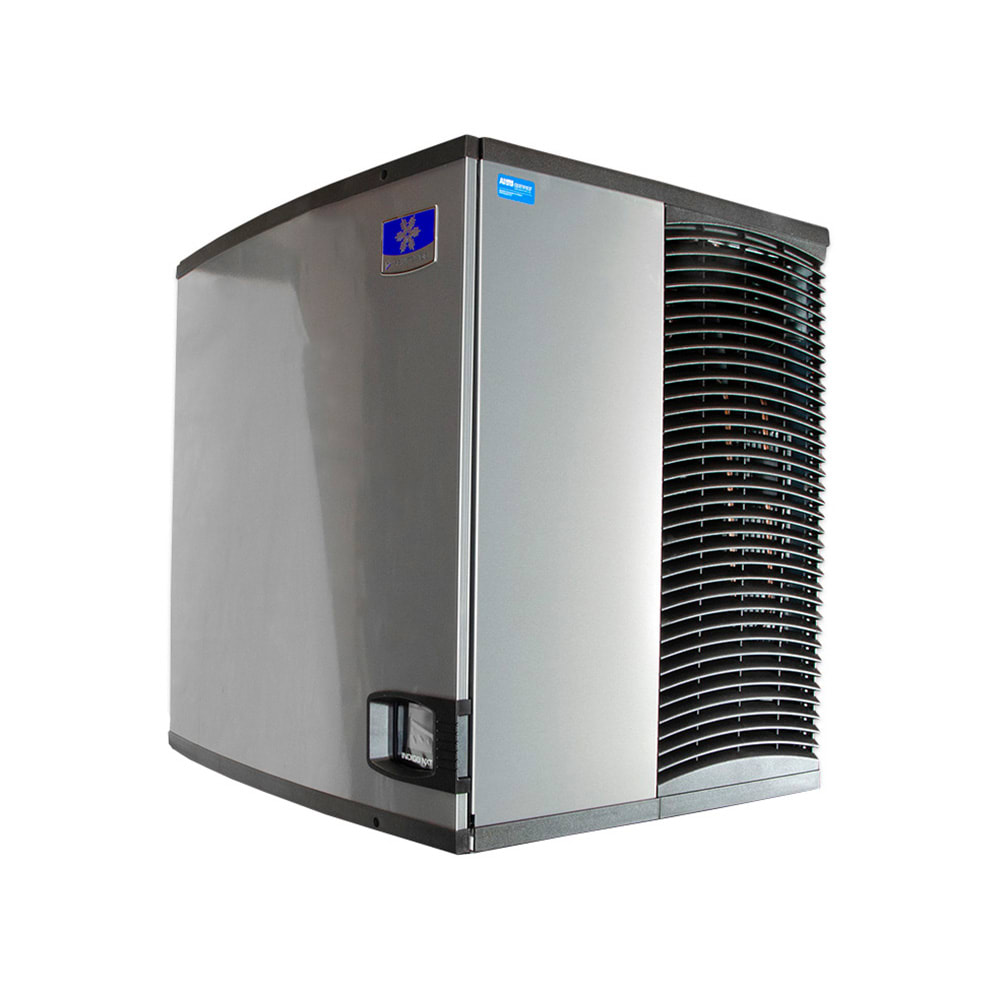

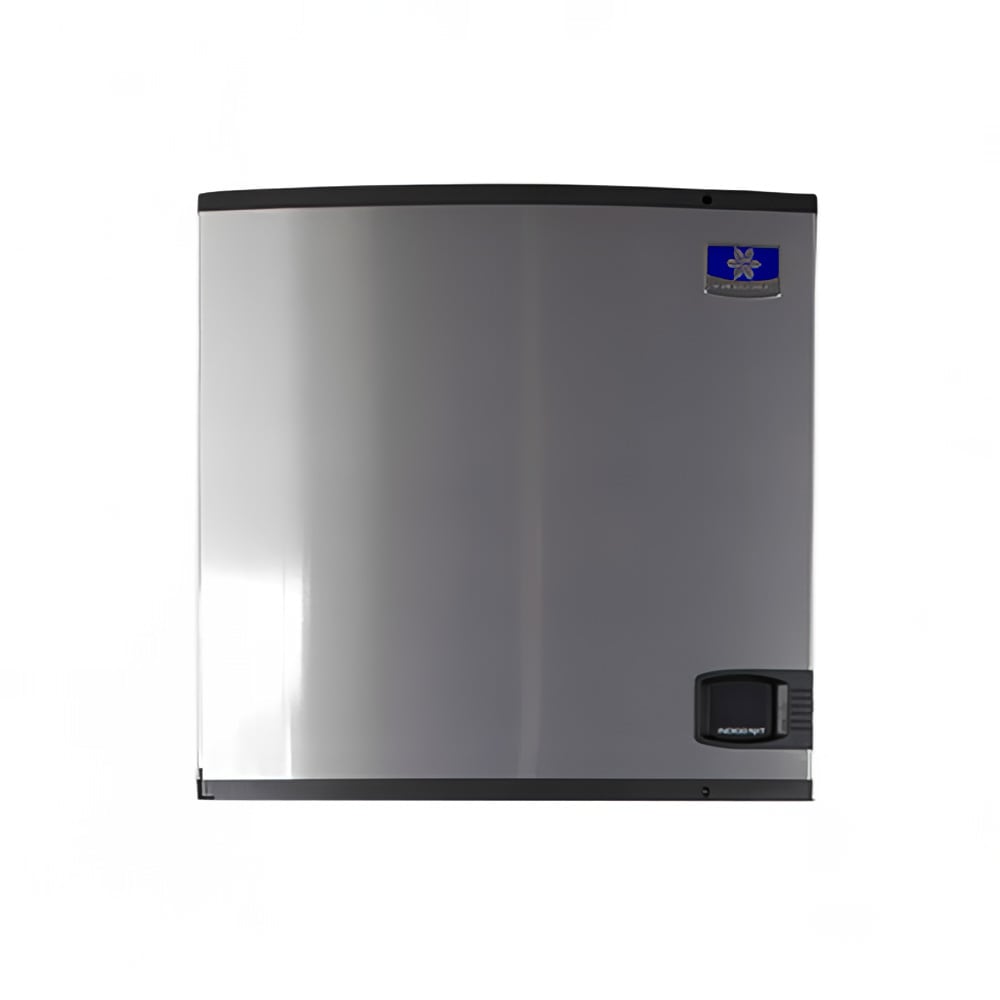

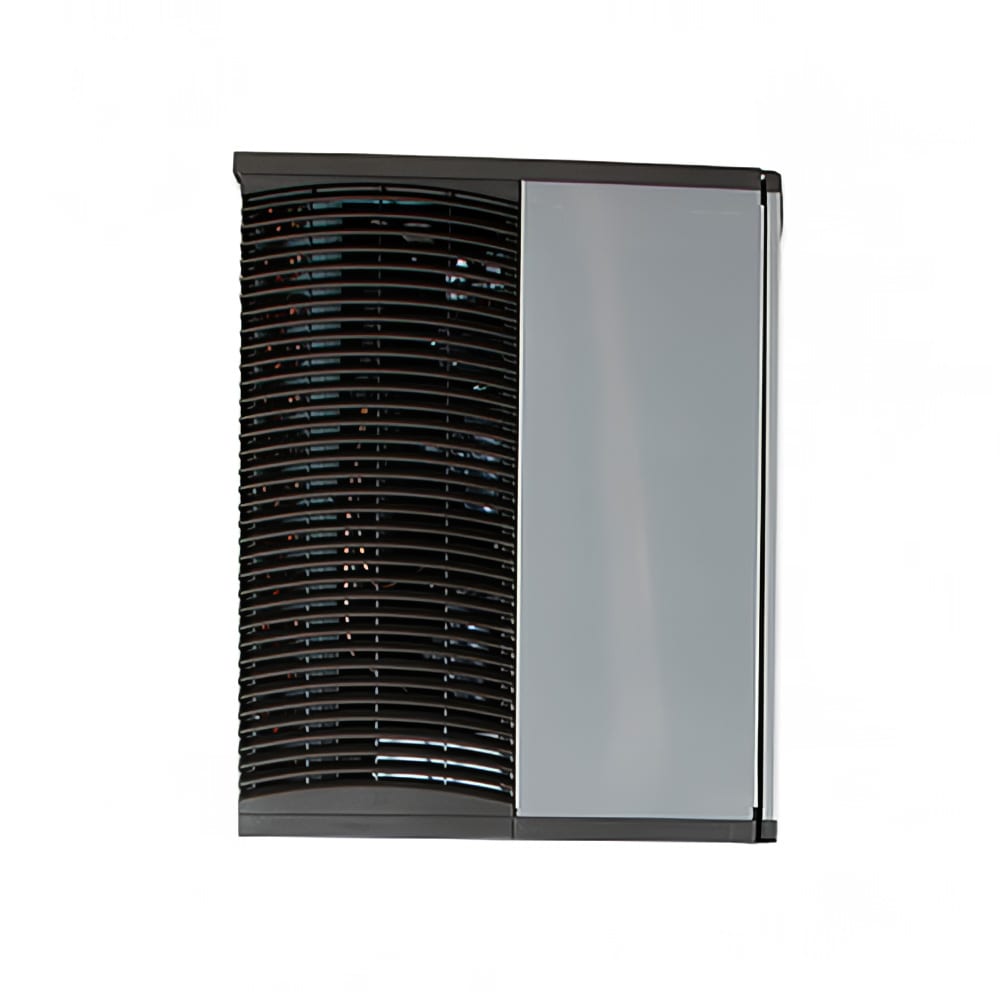

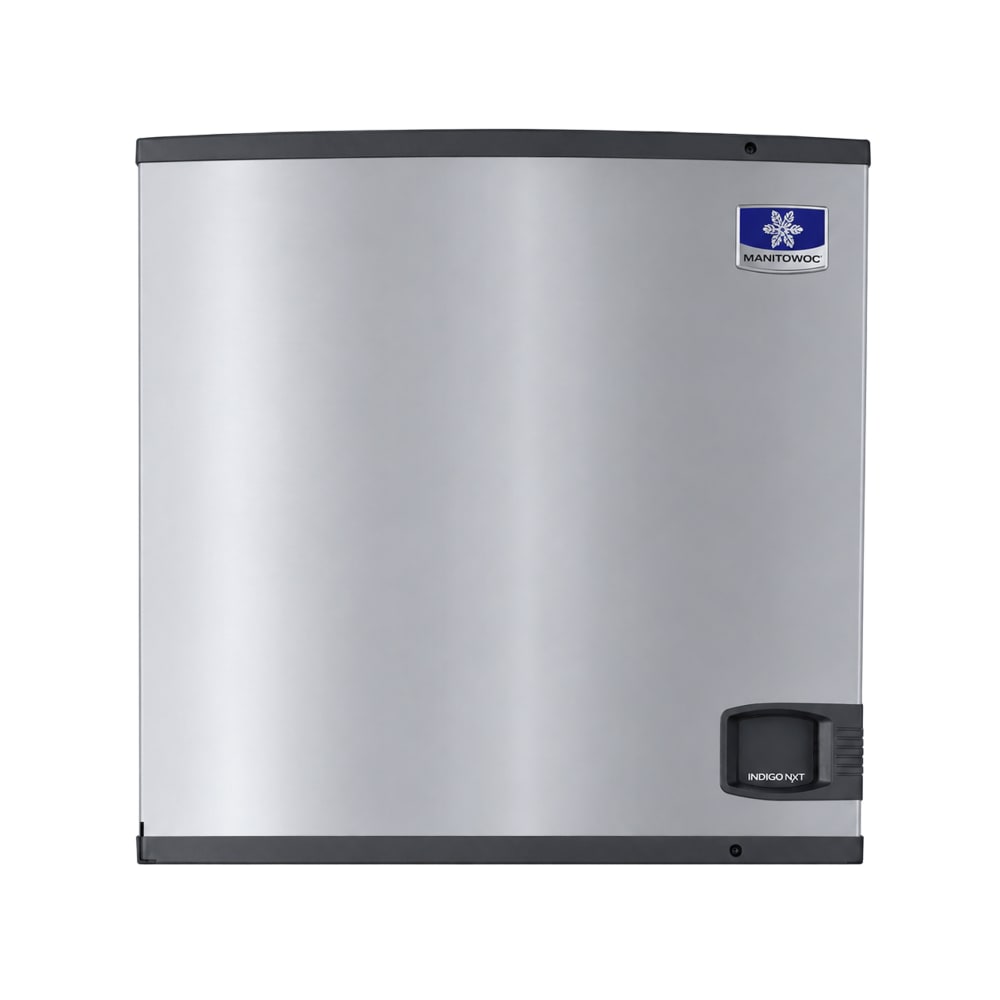

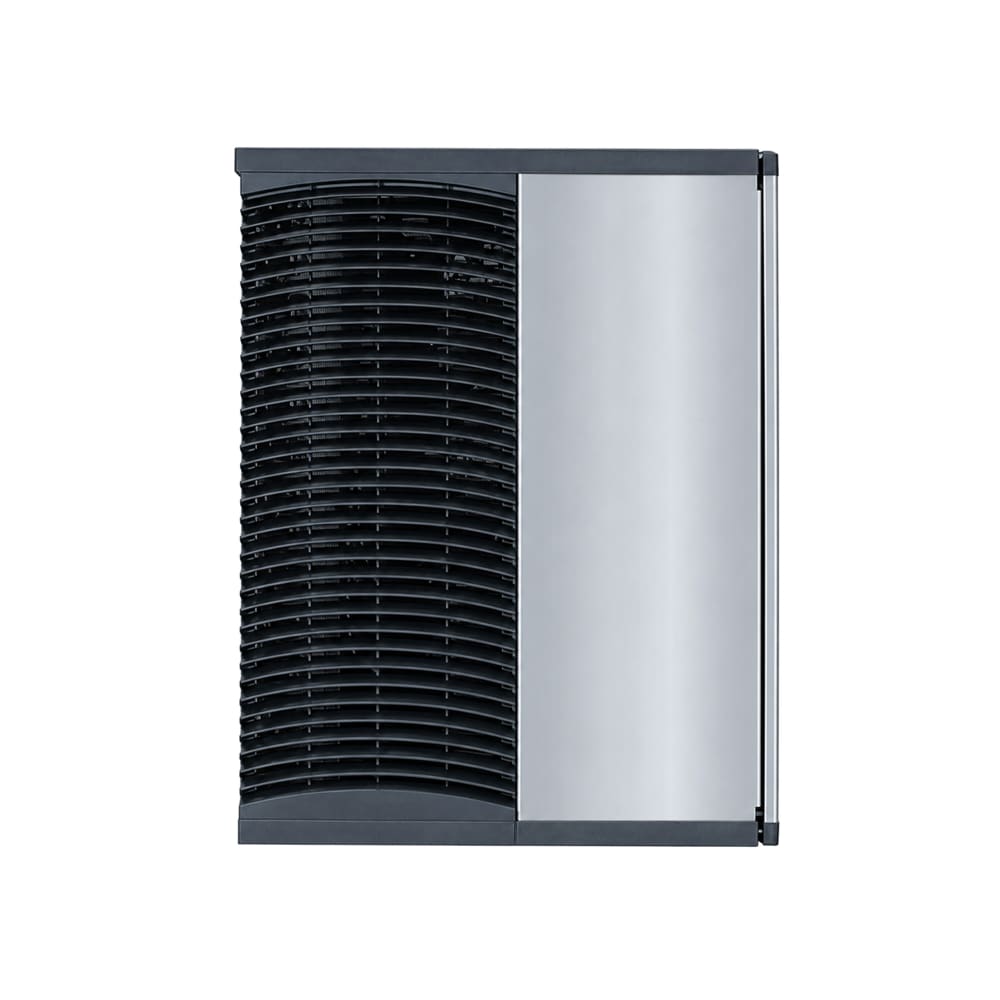

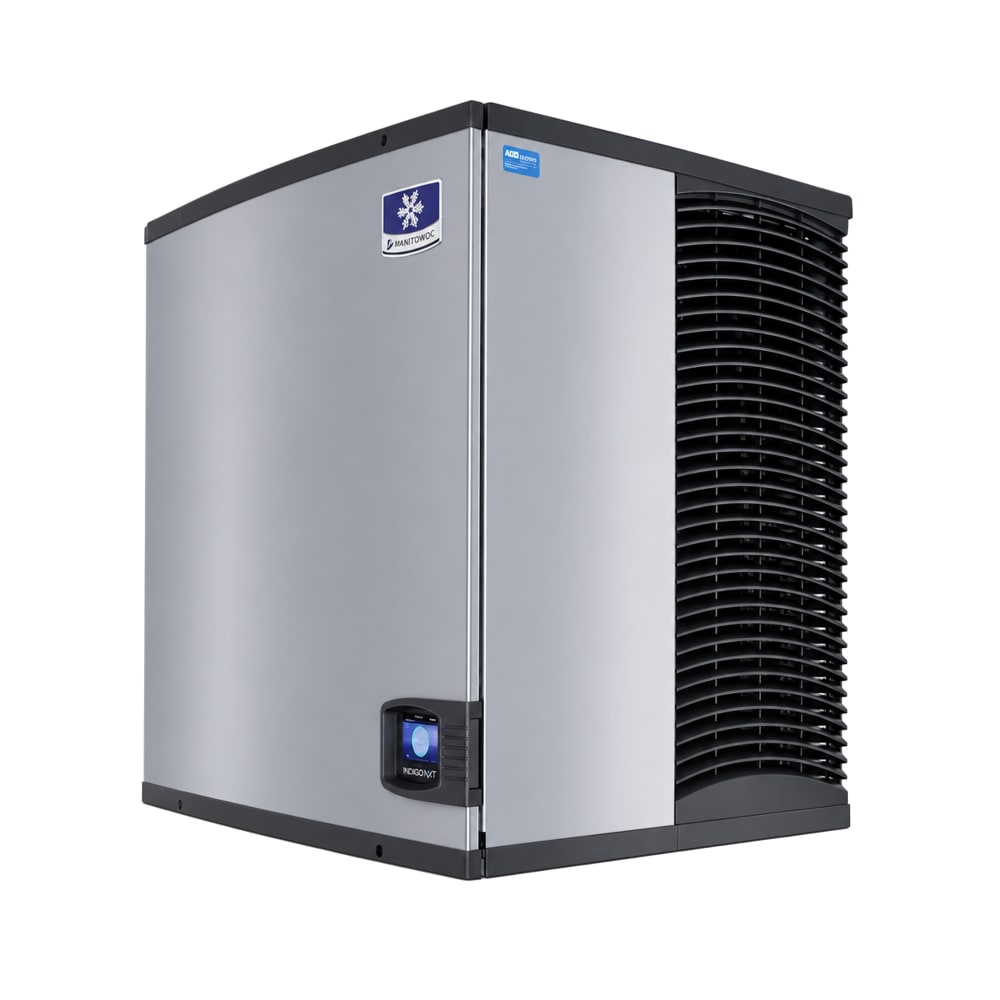

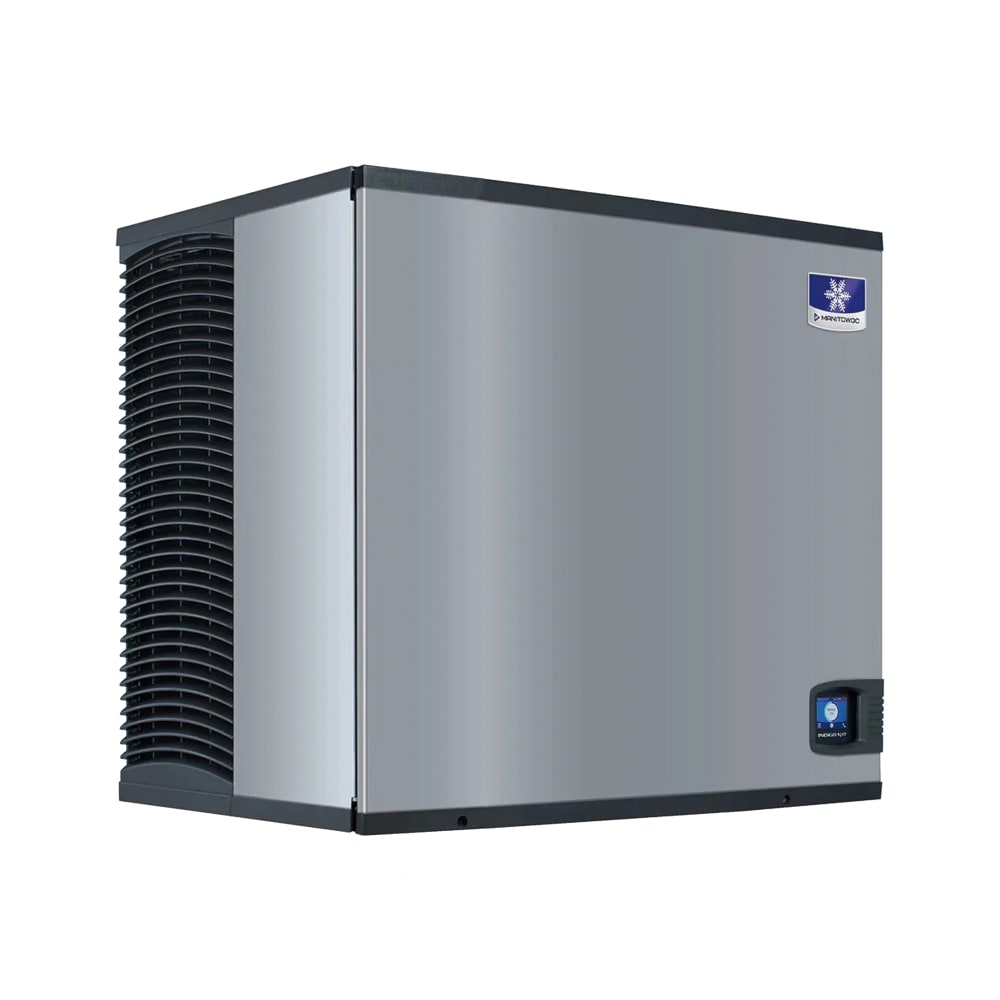

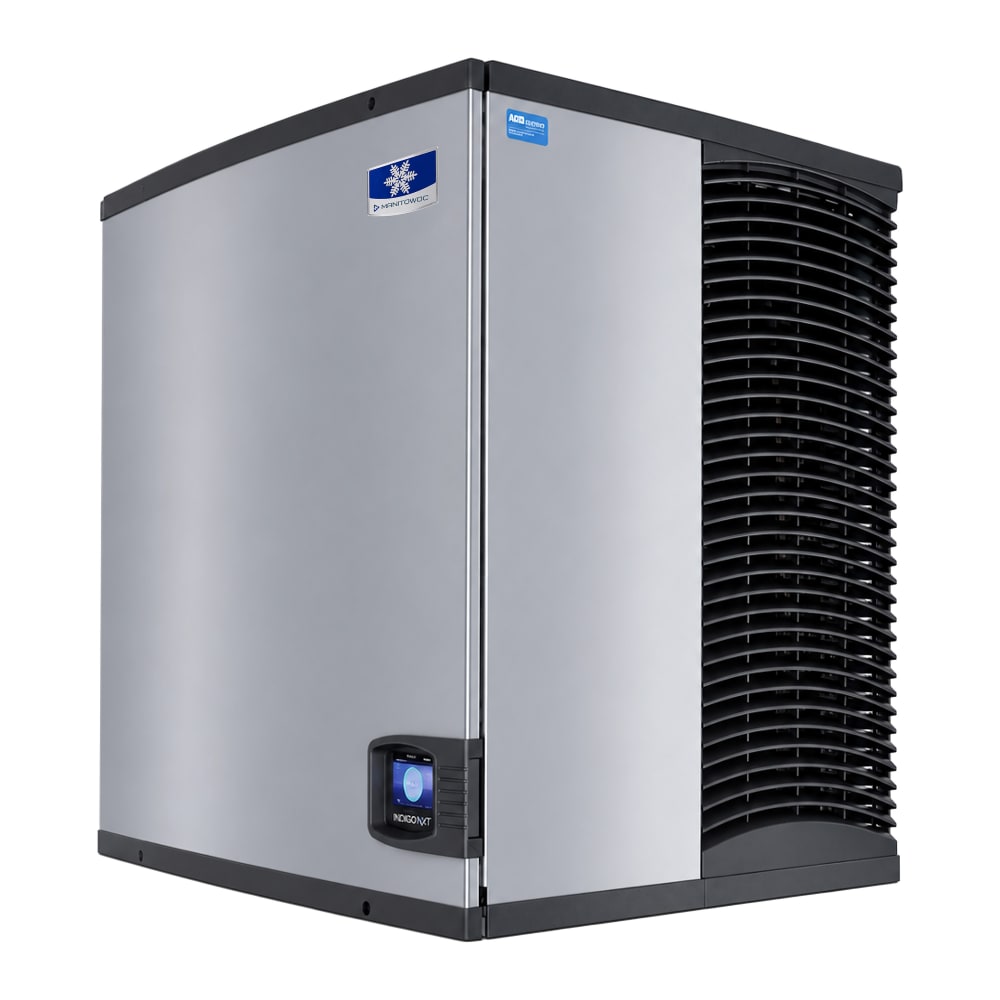

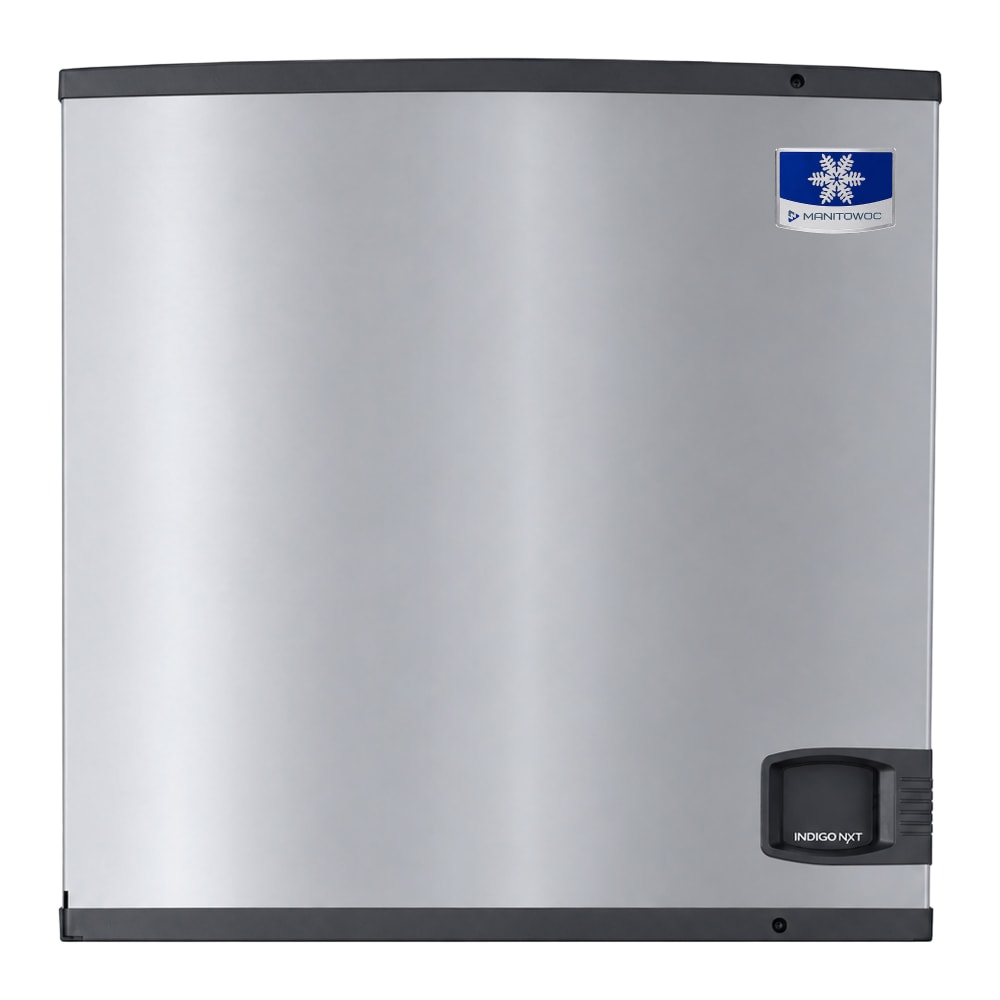

Manitowoc Ice IDT1200N 30" Indigo NXT™ Full Cube Ice Machine Head - 1127 lb/24 hr, Remote Cooled, 208-230v/1ph

The Manitowoc IDT1200N Indigo NXT™ ice machine head operates with remote cooling. Between cleanings, a built-in AlphaSan® antimicrobial agent minimizes bacterial growth on components in the foodzone. Designed with a DuraTech® coating on the steel exterior, this unit hides stains and fingerprints. Its user-friendly easyTouch® control panel displays the operating status and enables the user to program ice production by time or volume. Overall, it can produce 955 to 1,127 pounds of dice-size ice cubes in 24 hours depending on the ambient air and incoming water temperature.

Because of the acoustical ice-sensing probe and active sense, the Manitowoc IDT1200N commercial ice maker head's ice thickness remains consistent with constant monitoring. If internal issues arise with operation, users can find diagnostic information on the touchscreen control panel. For general maintenance, users can open the swing-out hinged front door to remove the water trough, distribution tube, curtain, water probe, and water pump to effectively clean its interior. Structured to fit on top of a D-570 or D-970 ice storage bin, it measures 30 inches wide by 24.5 inches deep by 29.5 inches high.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Indigo NXT series
• Air-cooled
• Remote condenser
• Maximum ice production: 1,127 lbs. per 24 hours
• AHRI-certified production: 955 lbs. per 24 hours

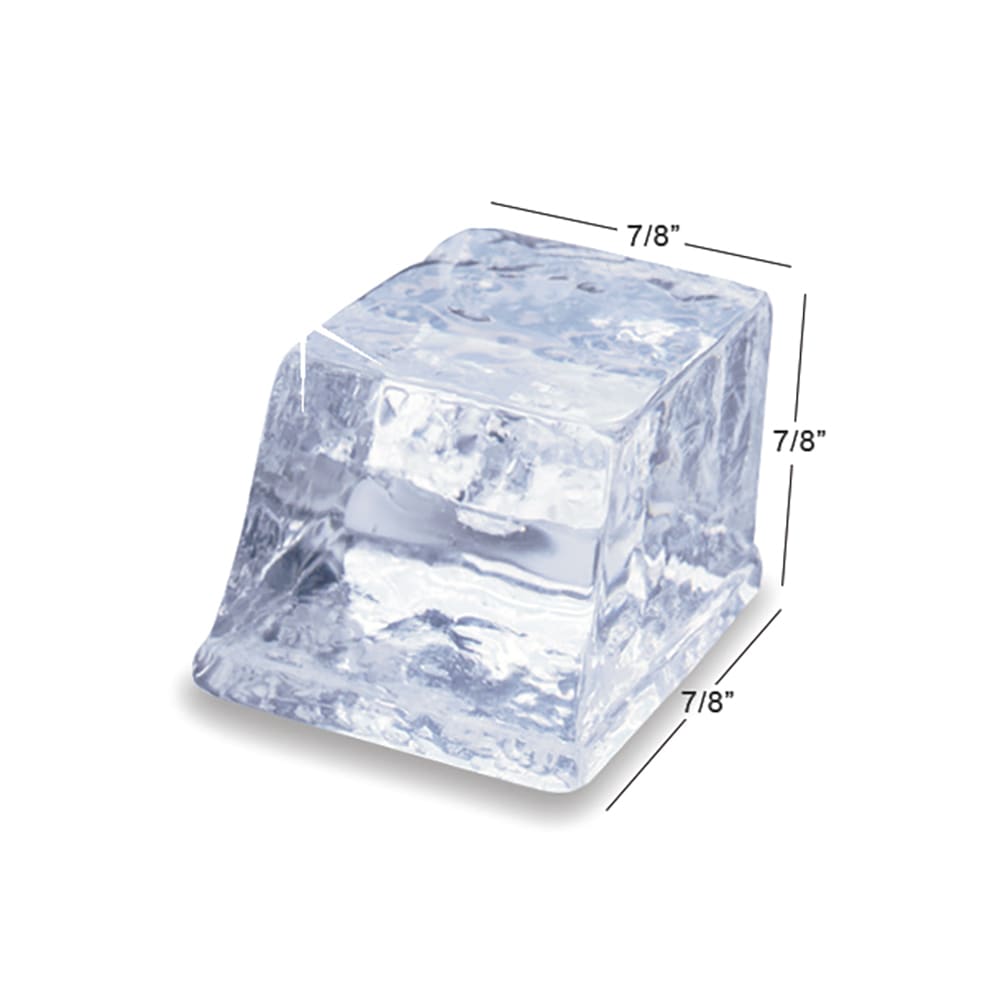

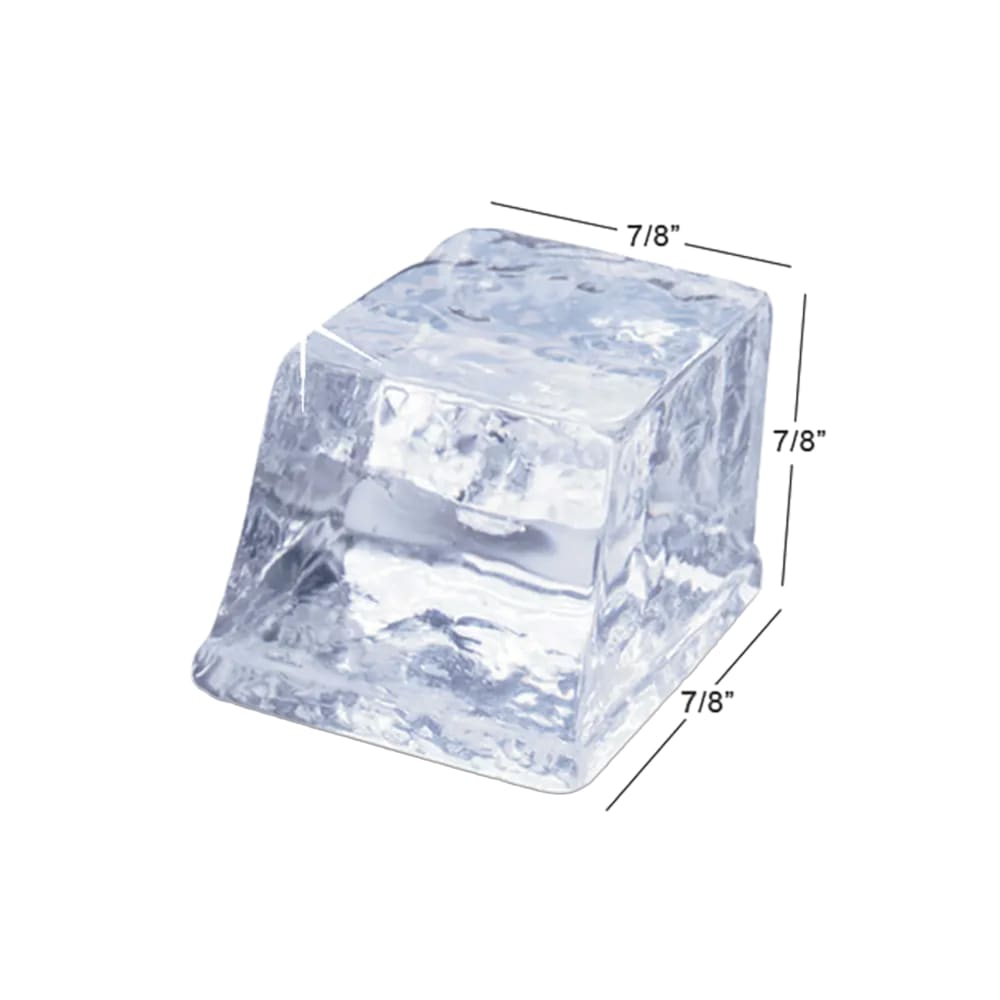

• Dice-size ice cube dimensions: 0.88 in. x 0.88 in. x 0.88 in.
• 24-hour preventive maintenance diagnostics
• Ice probe monitors the thickness of the ice
• easyTouch panel displays date, time, operating status, and cleaning reminders
• 13 language options
• Automatic accessory detection
• 1-touch asset information and cleaning cycle
• Programmable ice production according to time or volume
• AlphaSan in foodzone components slows bacteria growth
• DuraTech-coated exterior resists corrosion

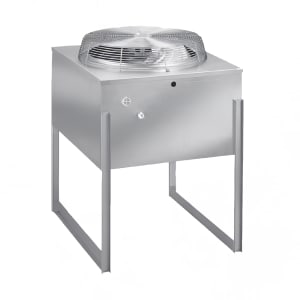

• Remote condensing unit (condensing unit sold separately)
• Uses R410A refrigerant
• Ice bin sold separately
• Ideal incoming air temperature: 40-110 degrees F
• Ideal incoming water temperature range: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 16,200-BTU heat transfer capacity
• Manitowoc will not honor the warranty on a remote unit paired with an existing condenser (must be purchased with condenser)

Dimensions & Utilities

• 30 in. W x 24.5 in. D x 29.5 in. H
• 10.9 A, 4.63 kW
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IDT1200N within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, designed for remote refrigeration (vertical condenser and lines sold separately), 30"W x 24-1/2"D x 29-1/2"H, production capacity up to 1110 lb/24 hours at 70°/50° (925 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor
