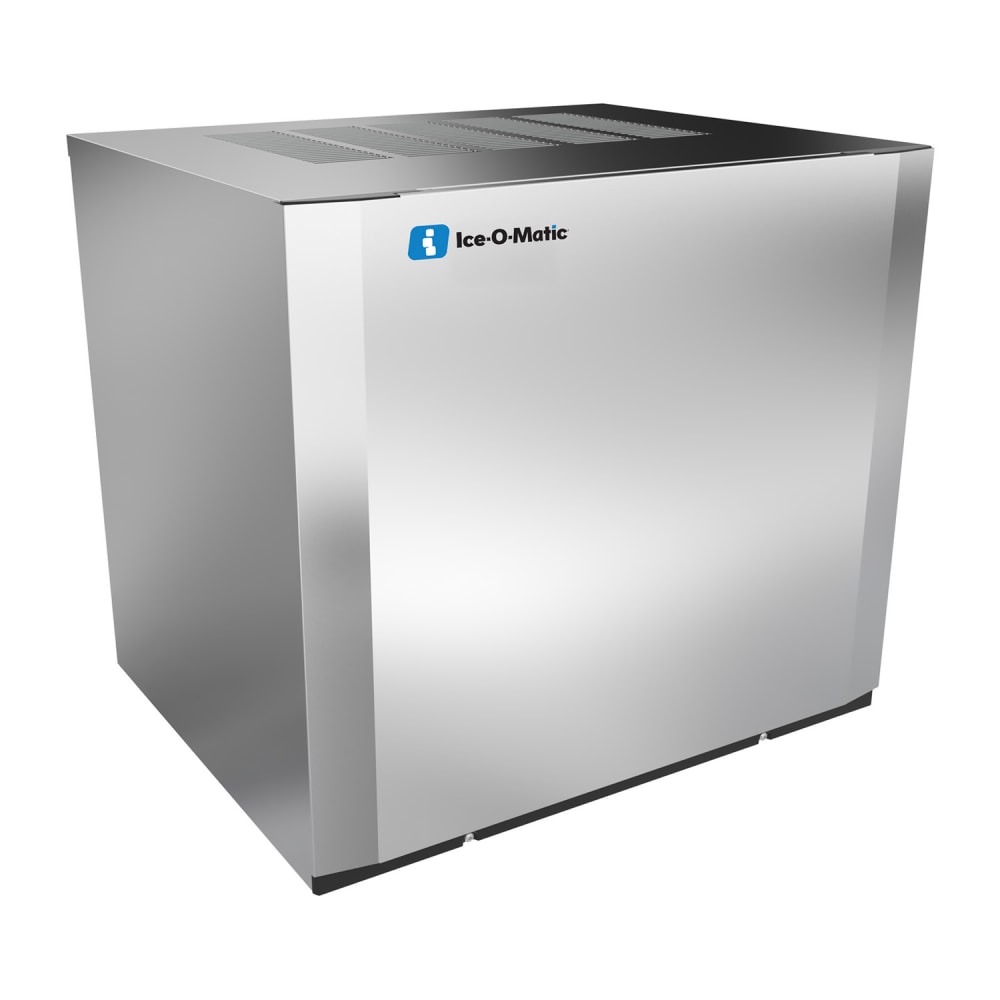

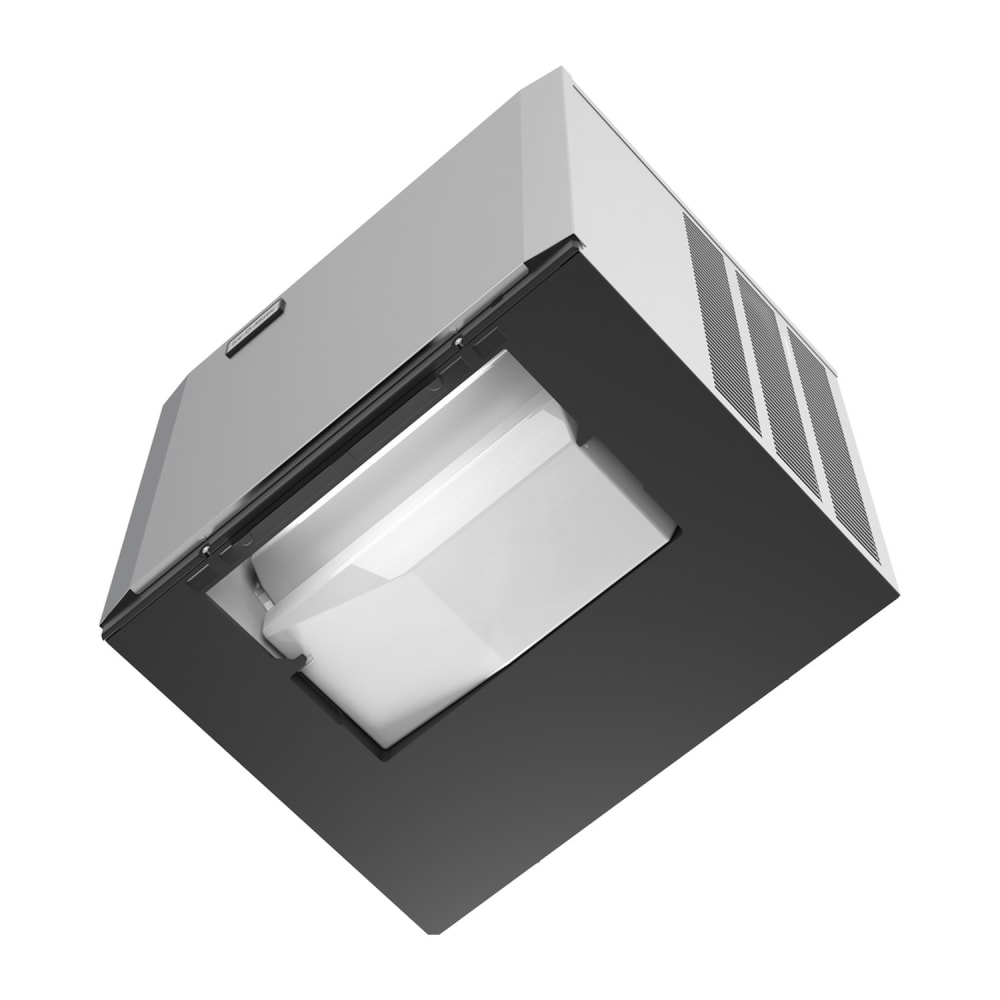

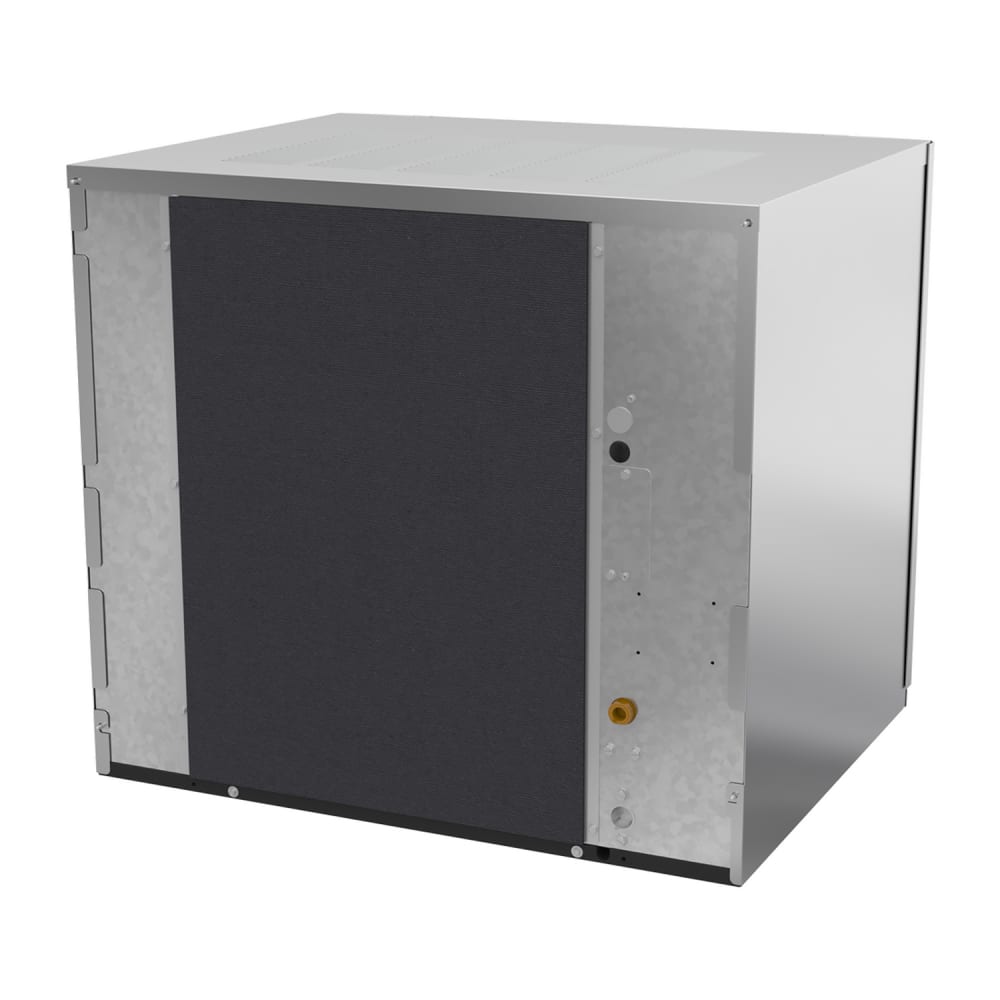

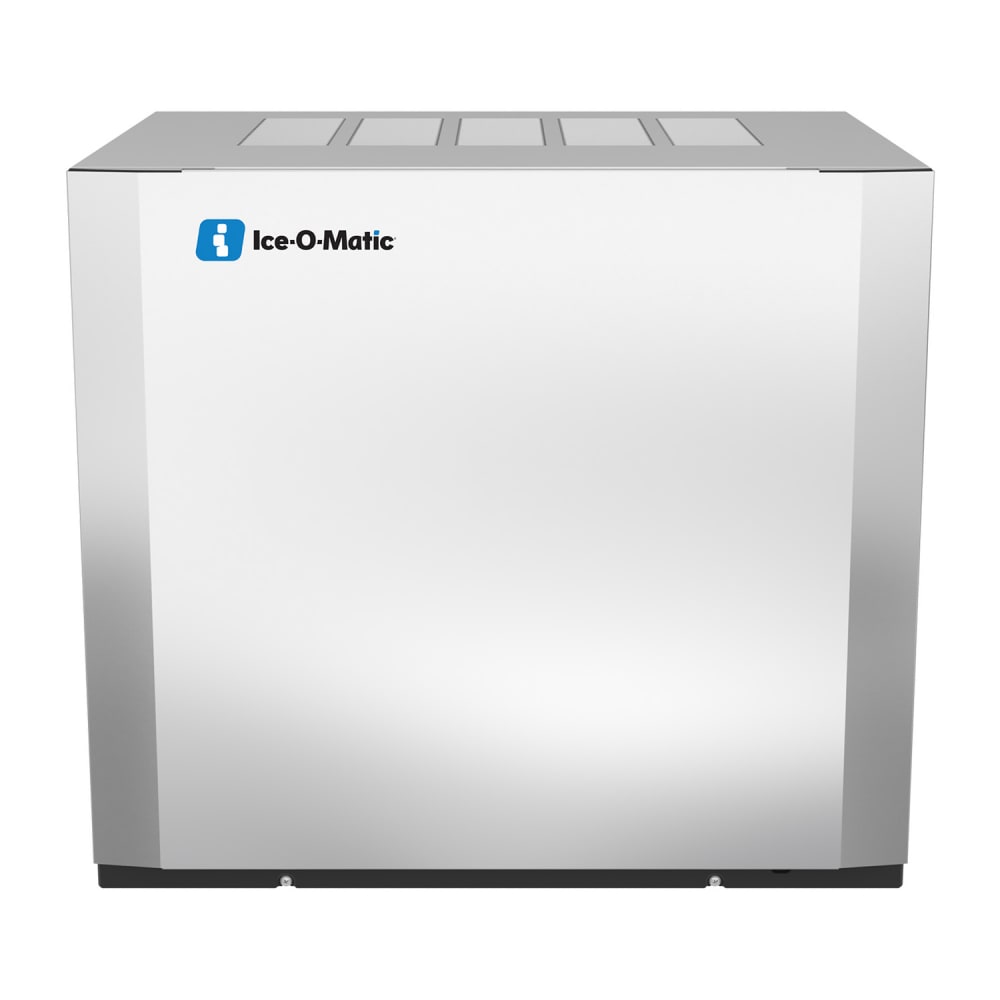

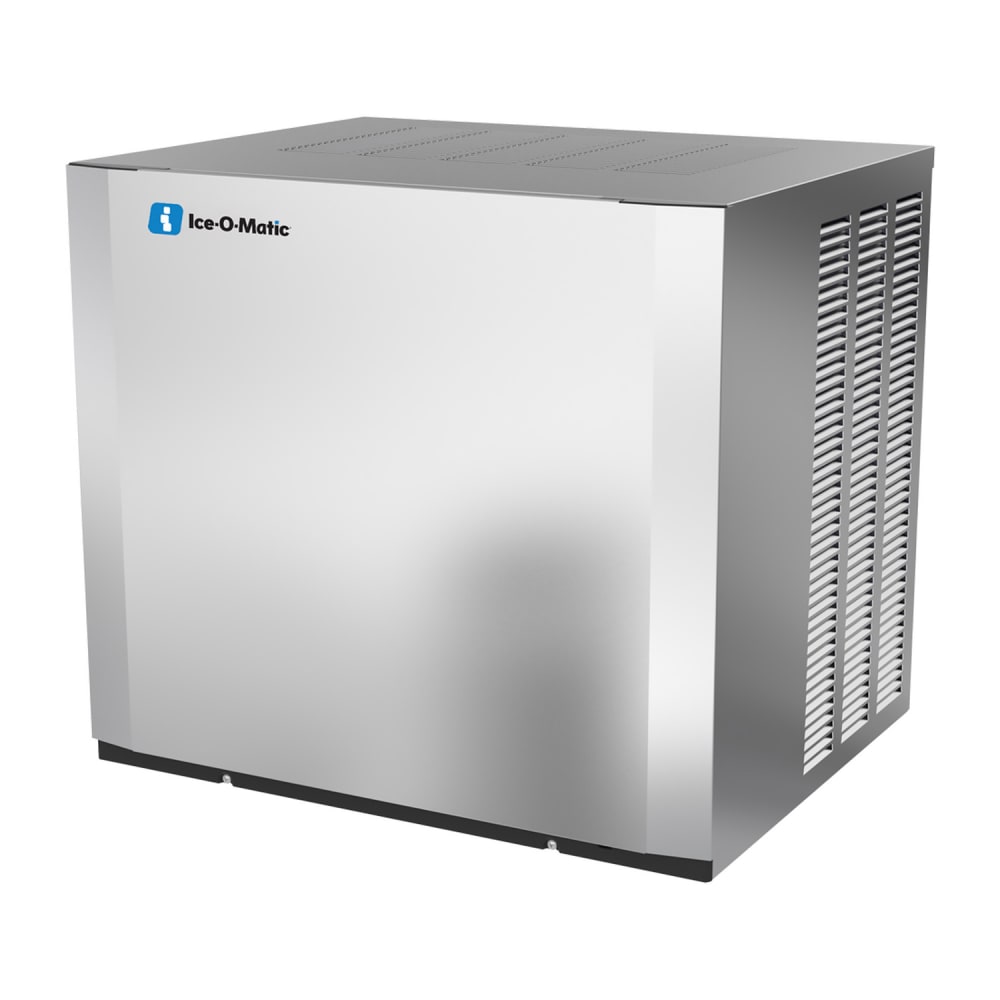

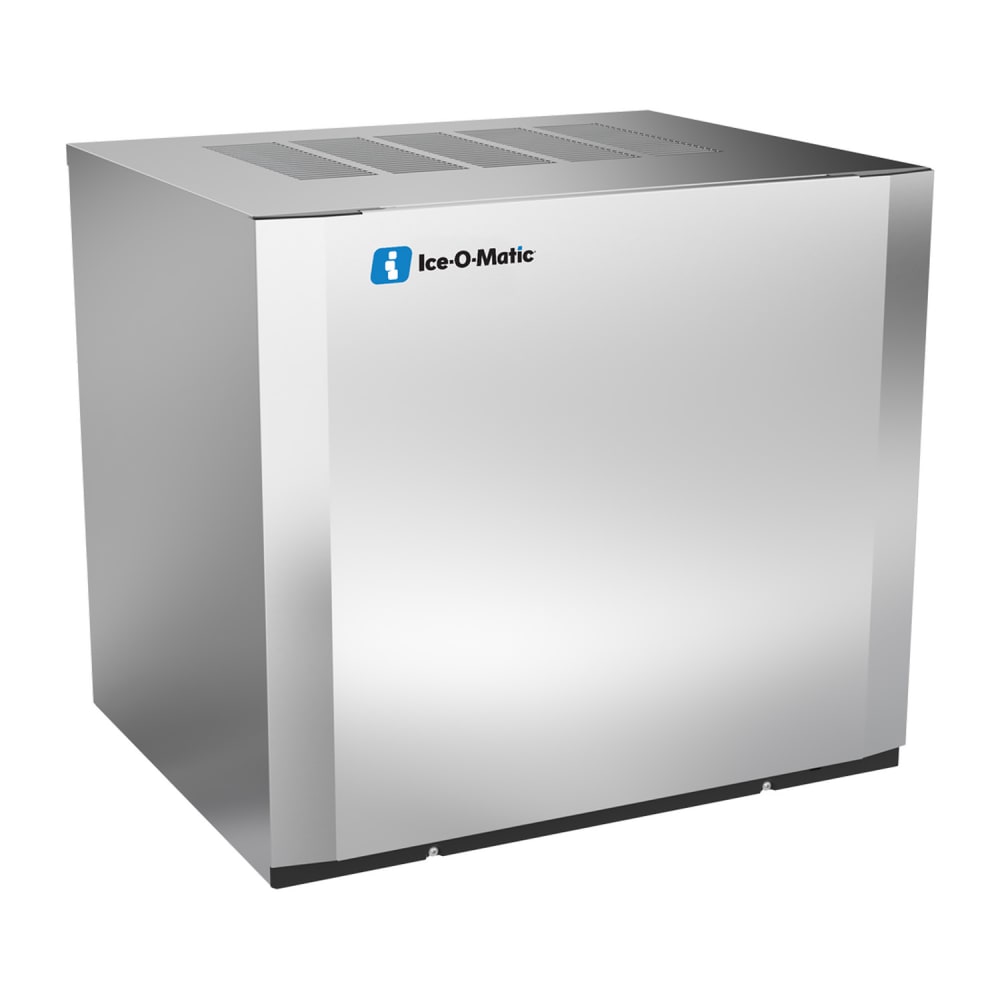

Ice-O-Matic CIM1136HA 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 932 lb/24 hr, Air Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$6,801.00 /Each
Selected Ice Type: Half Cube

Ice-O-Matic CIM1136HA Description
Depending on ambient air and incoming water temperature, the Ice-O-Matic CIM1136HA Elevation Series™ ice maker can produce 932 pounds of half-cube ice daily. Measuring 3/8 inch by 7/8 inch by 7/8 inch, the cubes have a high ice-to-water ratio, forming hard pieces that melt relatively slowly but cool drinks quickly. Cooled with air, the condenser houses coils that hold refrigerant, and when a fan blows cold air over them, they remove heat from the evaporator plate so water will freeze and form ice. Air discharges at the unit's side and rear to improve installation flexibility.

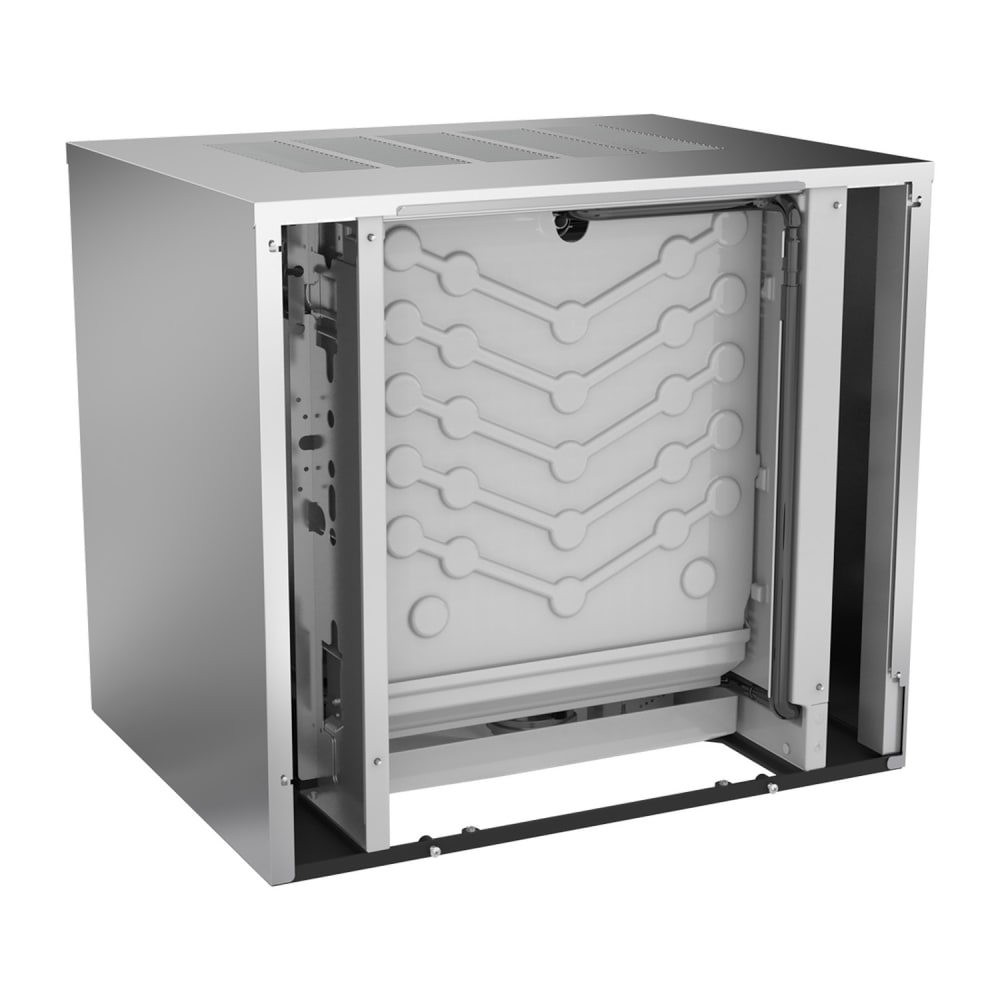

A one-touch cleaning feature in the Ice-O-Matic CIM1136HA ice machine head simplifies cleaning and sanitizing. When this is required, an LED indication light illuminates to notify the operator. The food zone houses the components that touch water and ice, so it needs to be cleaned thoroughly. This area is made of plastic without hard-to-clean cracks and crevices, and the removable components snap in and out of place and can be cleaned in the dishmachine.
Note: This unit must be paired with an ice maker bin or ice dispenser.
Product Details
- 932-lb. maximum daily production
- Half-cube ice size: 3/8 in. x 7/8 in. x 7/8 in.
- Air-cooled condensing unit
- Air discharges at the side and top, increasing flexibility during installation without obstructing flow of air
- Smart Harness™ control board provides digital diagnostic information
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
- Part of the Elevation Series
- Ice bin or dispenser is sold separately
Simple to Clean and Sanitize
- Food zone is made of easy-to-clean plastic without crevices that can trap bacteria
- Agion® antimicrobial agent provides protection against mold and bacteria growth
- BPA-free, warewasher-safe components have a snap-in-snap-out design for convenient removal
- LED indicator light illuminates when cleaning is required
- 1-touch cleaning and sanitizing control system
Dimensions & Utilities
- Ice maker: 301/4 in. W x 241/4 in. D x 269/10 in. H
- 12.2 A, 5.1 kW
- 208-230 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM1136HA within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30 1/4"W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
*Image may not depict product color, inclusions or accessories.

Hardwired
Product does not come with plug and must be hardwired to operate

BPA Free
Contains no chemical Bisphenol A (BPA)

Ice-O-Matic CIM1136HA Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Ice-O-Matic |
24 Hr. Production (lb) | 932 |
Compressor Type | Air Cooled |
Depth (in) | 24.25 |
Height (in) | 26.9 |
Ice Type | Half Cube |
Voltage | 208/230 |
Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
Width (in) | 30.25 |
Series | Elevation Series™ |
Phase | 1 |
Rating | Better |
Product | Ice Machine Heads |
Product Type | Ice Makers & Bins |
Certifications | Hardwired |
Certifications | NSF |
Certifications | C-UL US |
Certifications | CE |
Certifications | BPA Free |
Weight | 230.00 |
