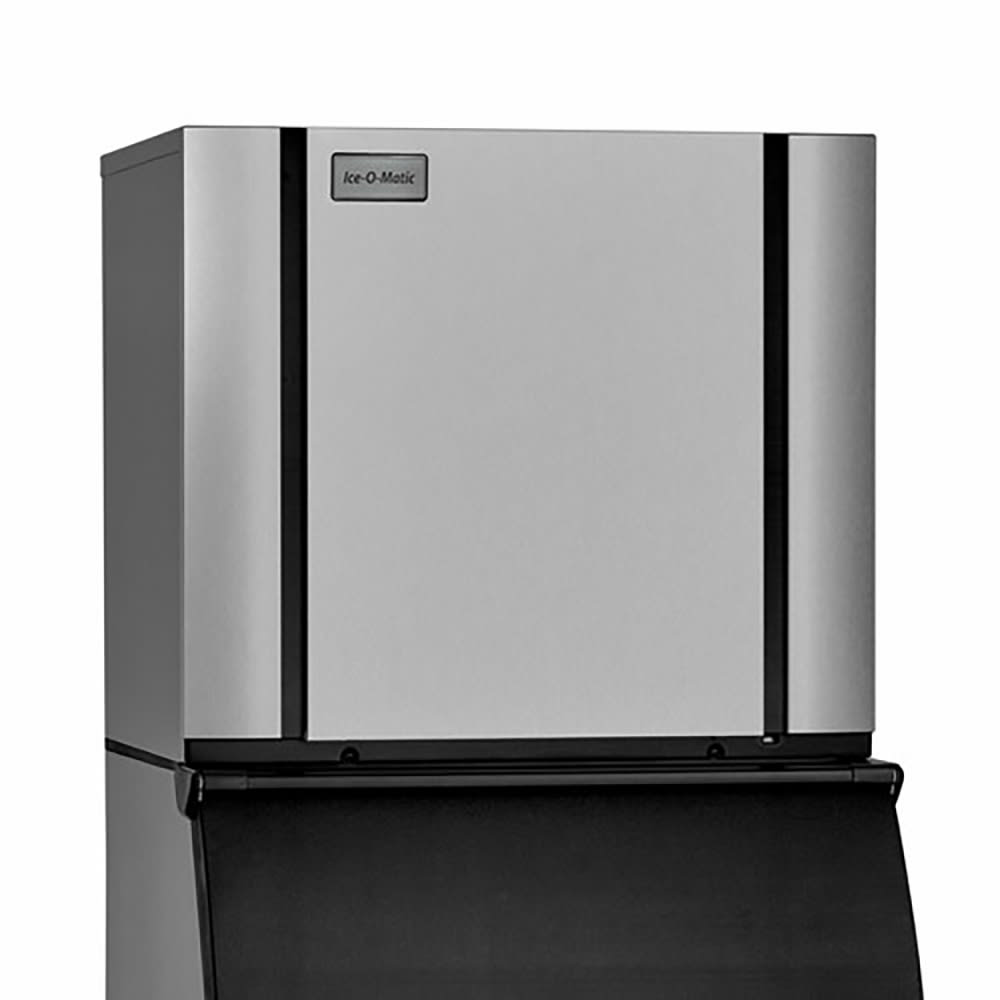

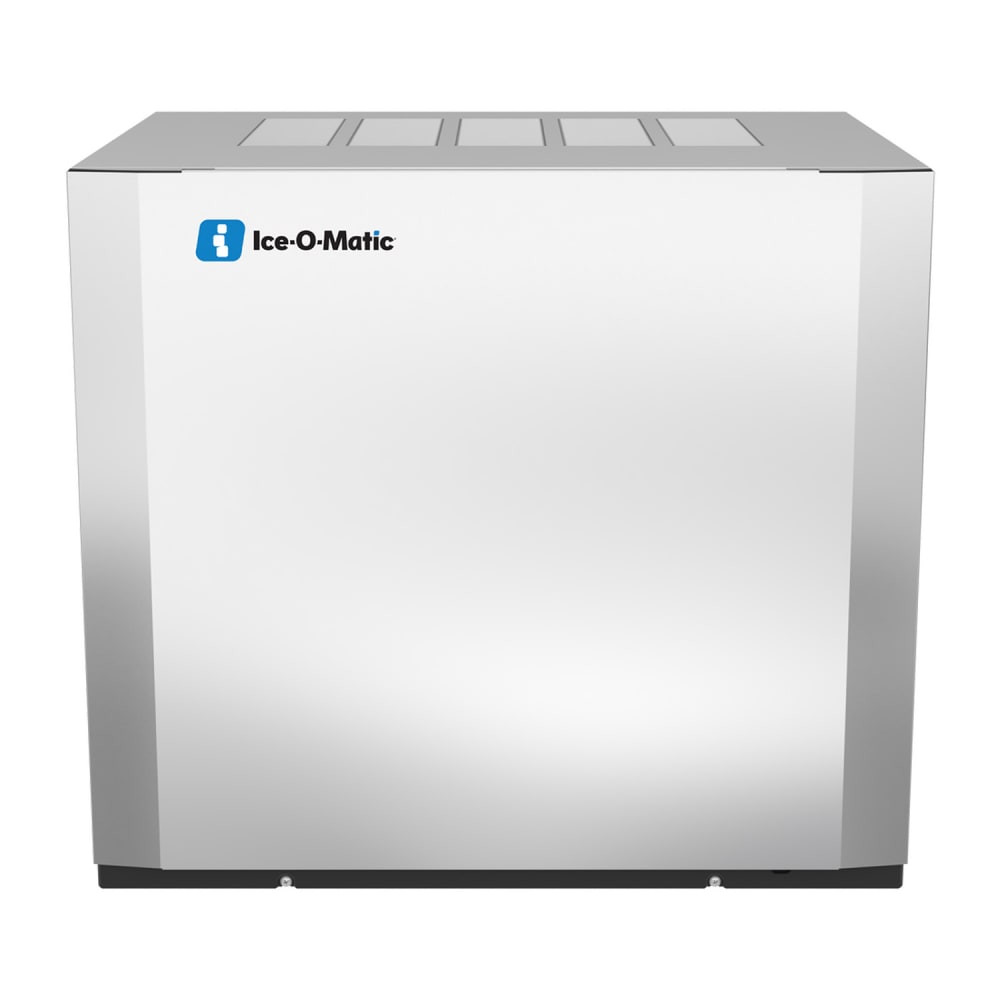

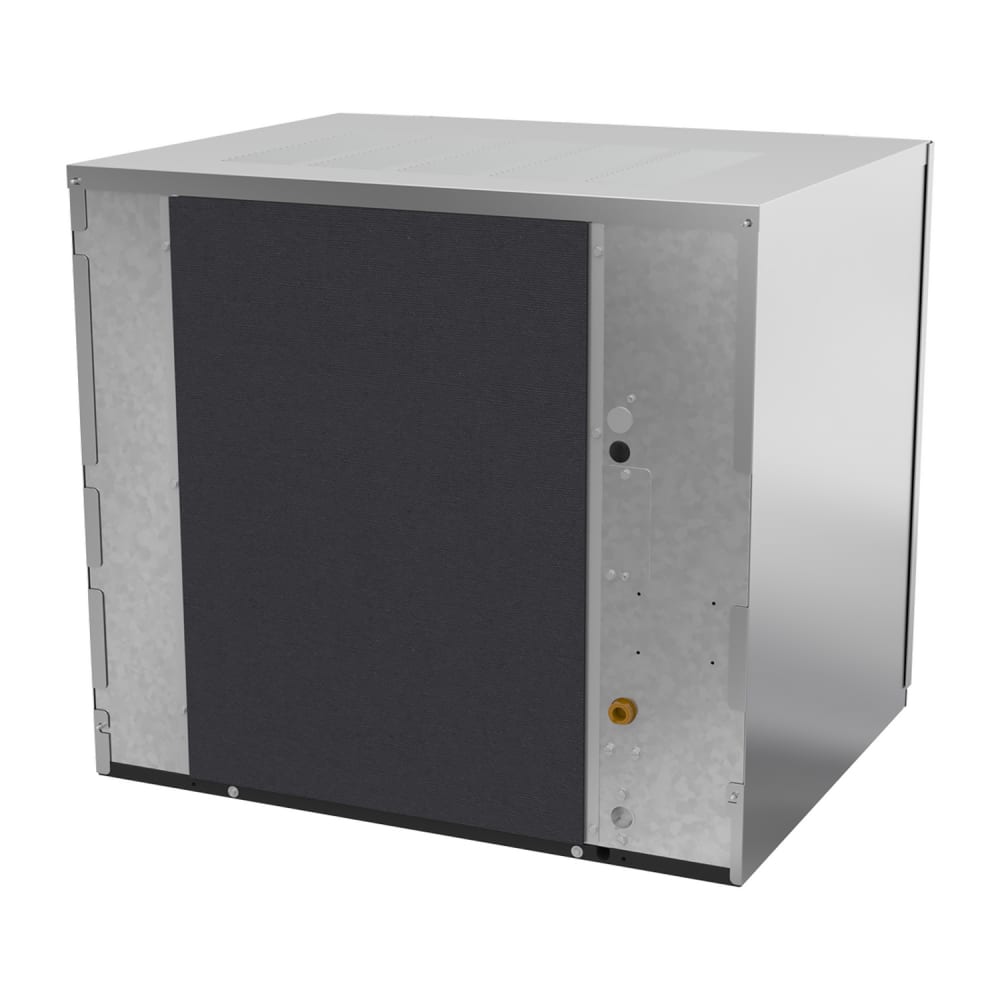

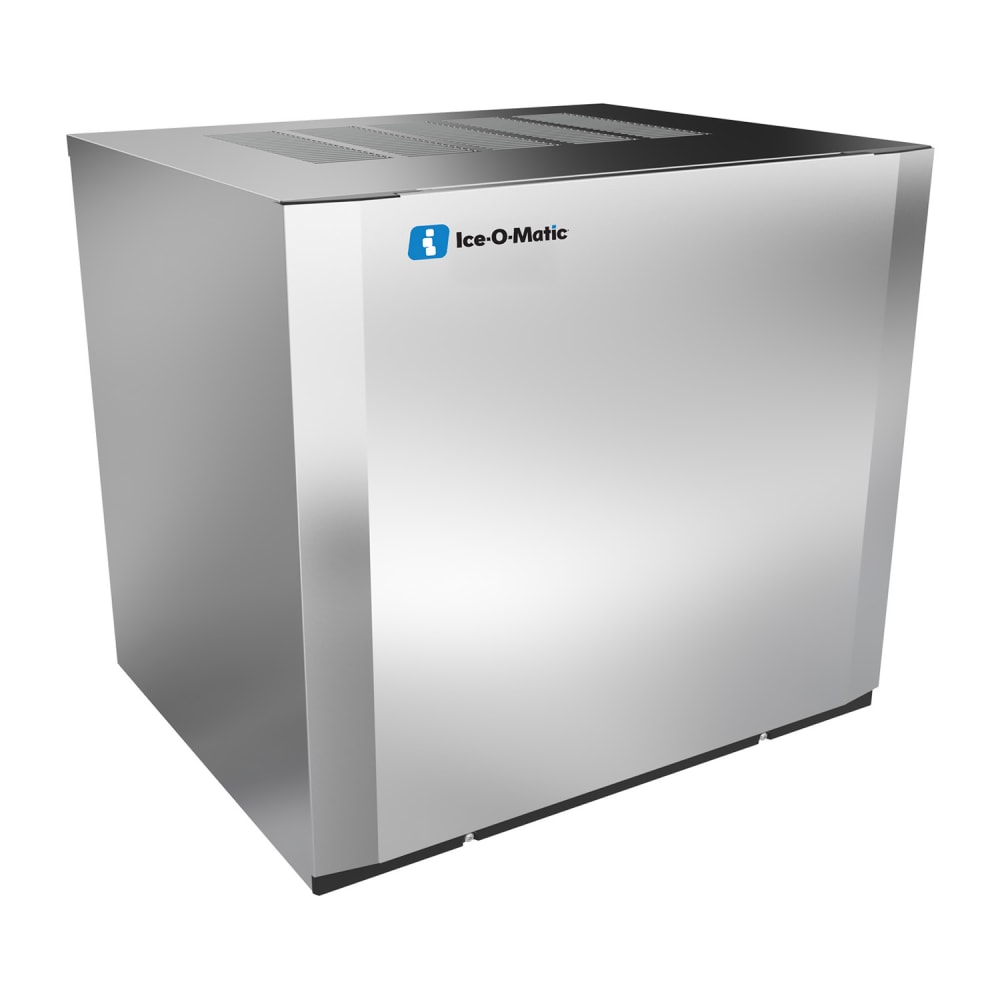

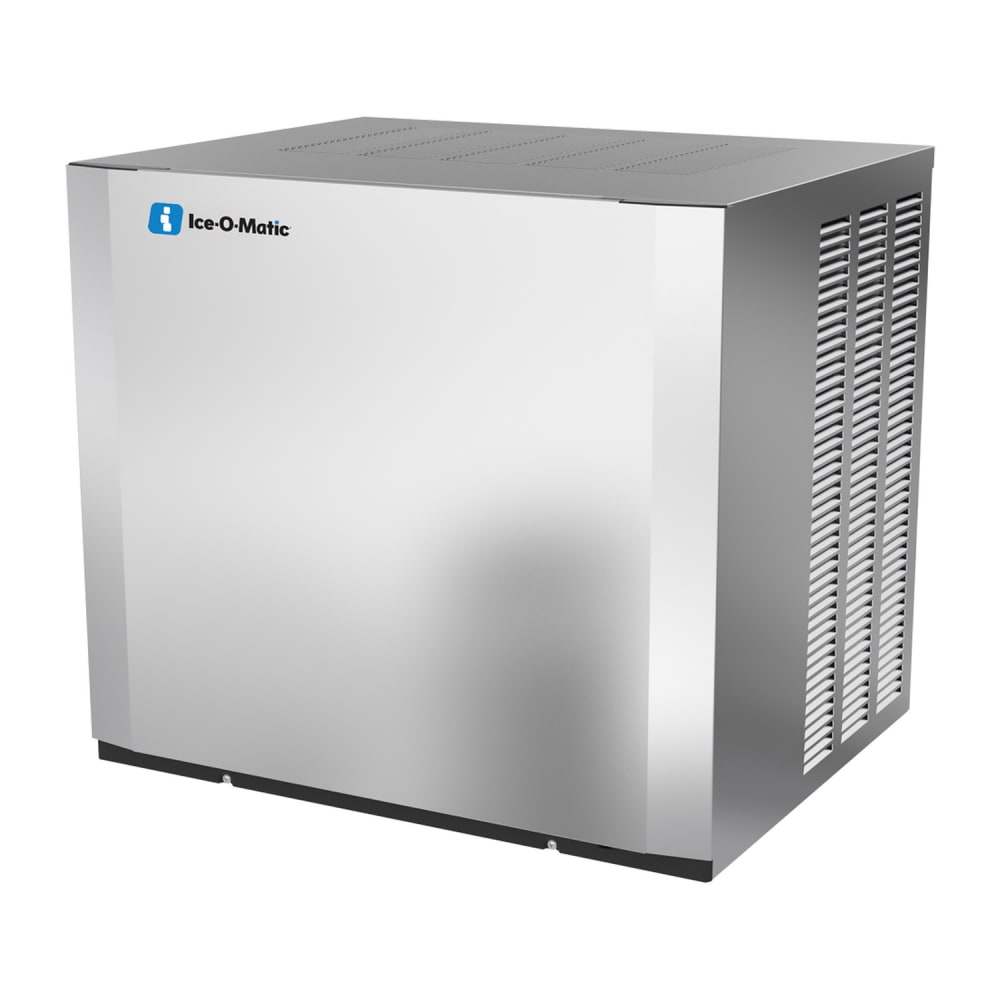

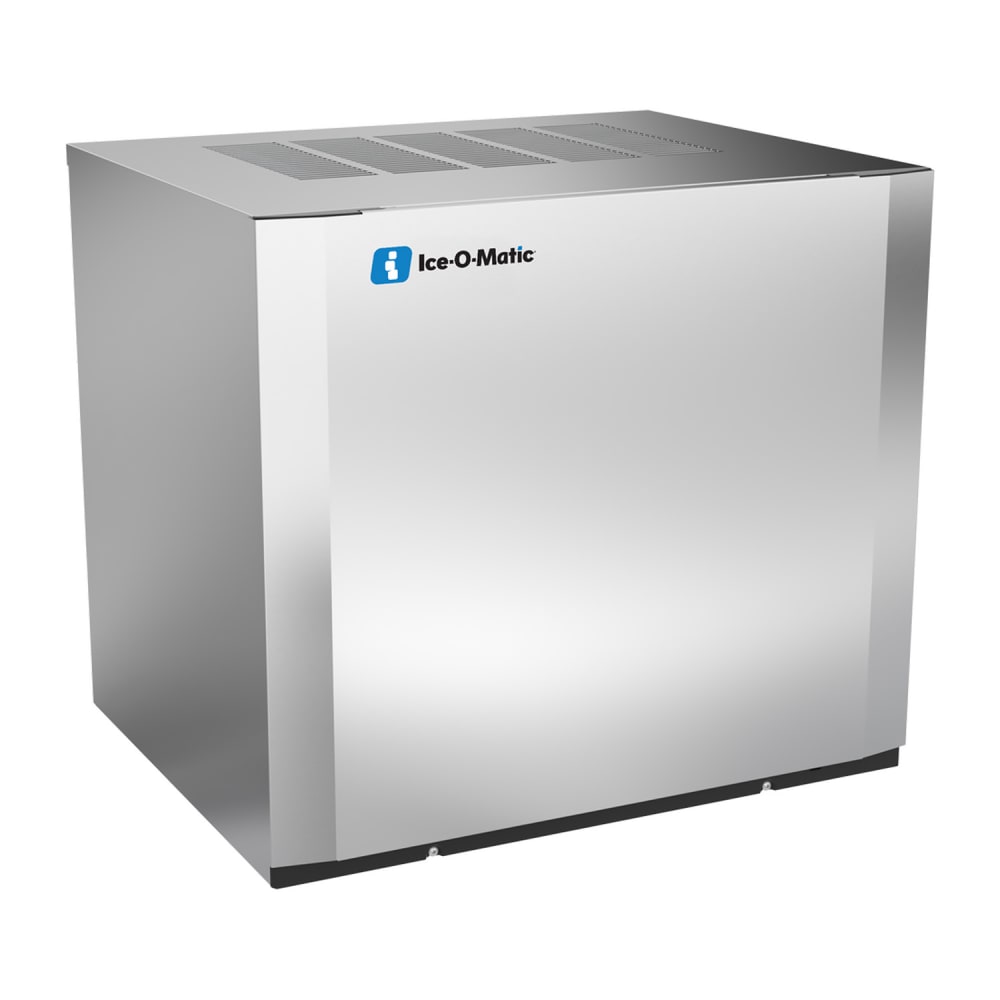

Ice-O-Matic CIM1136FA 30" Elevation Series™ Full Cube Ice Machine Head - 932 lb/24 hr, Air Cooled, 208/230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 159-CIM1136FA • MPN: CIM1136FA
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $4,244.00

Image may not depict product color, inclusions or accessories.

Ice-O-Matic CIM1136FA Description


In 24 hours, the Ice-O-Matic CIM1136FA Elevation Series™ ice machine head can make 932 pounds of full-cube ice. These cubes are 0.875 inch by 0.875 inch by 0.875 inch, and since they melt slowly in drinks, they are perfect for restaurants and bars. The unit's condenser is air cooled, meaning a fan blows air over the coils to cool refrigerant as it moves away from the evaporator plate, freezing water to form cubes.

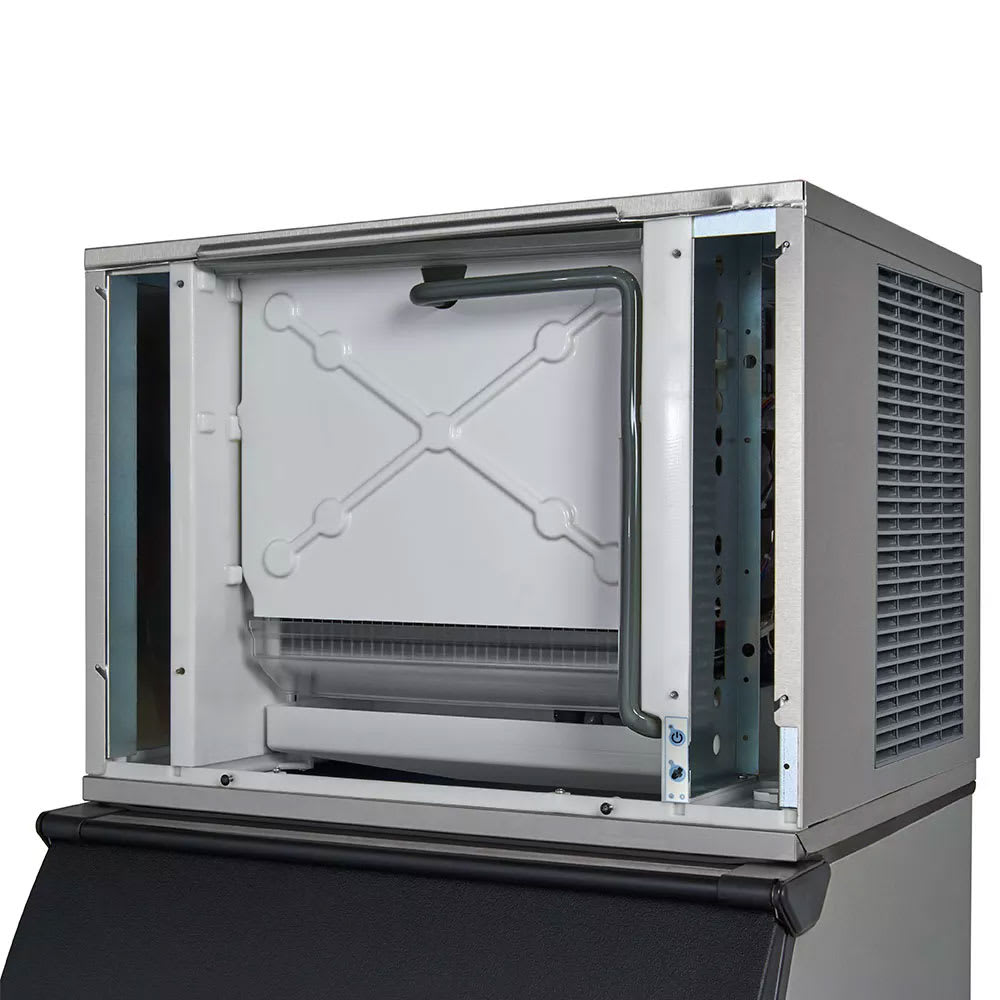

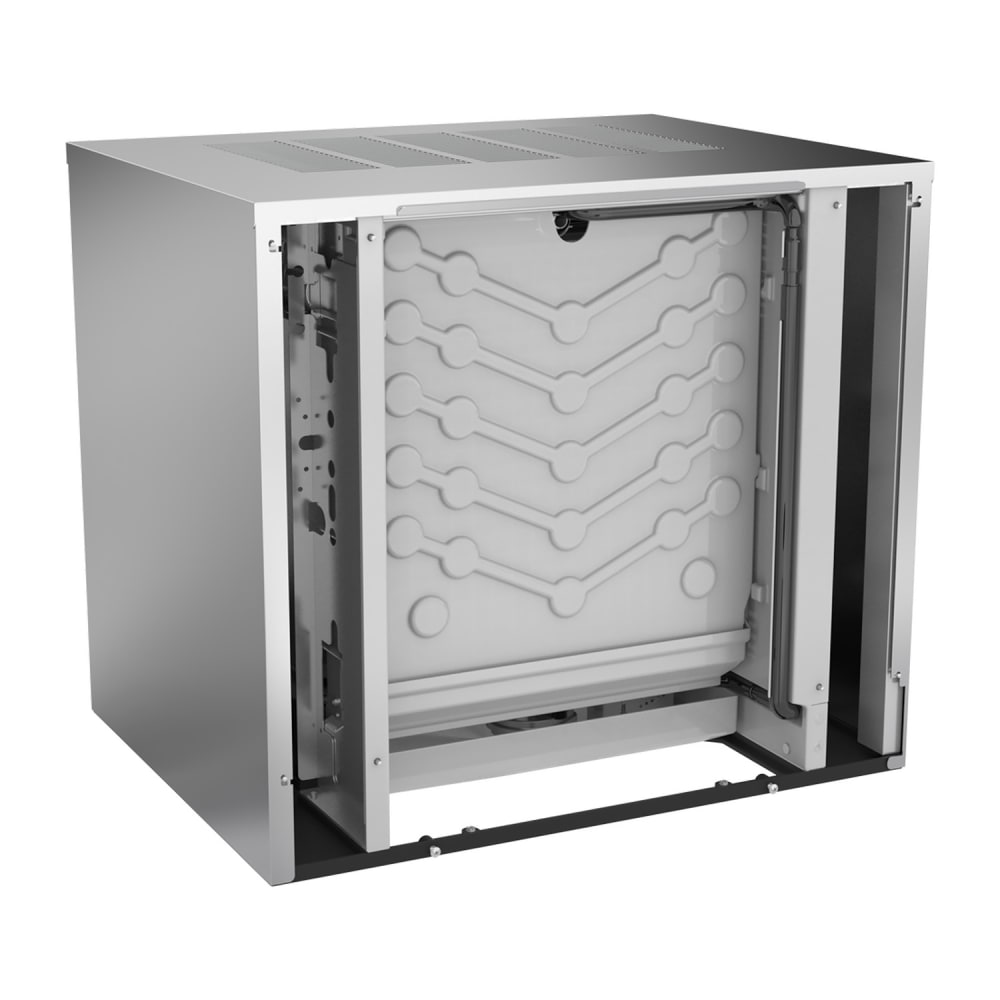

Cleaning and sanitizing this Ice-O-Matic CIM1136FA ice maker is simple since it has one-touch controls. When cleaning is needed, an LED indicator light illuminates to notify the operator. The food zone—which houses the parts that come in contact with ice and water—is made of easy-to-clean plastic without cracks or crevices. Antimicrobial protection in this area slows bacteria, scale, and mold growth, and the components have a snap-in-and-out design that ensures they are convenient to remove for cleaning.

Product Details

  • 932-lb. maximum daily production
  • Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
  • Condensing unit is cooled with air
  • Air exhales from the side and top, increasing installation flexibility without cutting off airflow
  • Smart Harness™ control board gives diagnostic information for servicing
  • Required ambient air temperature: 50-100 degrees F
  • Required incoming water temperature: 40-100 degrees F
  • Required incoming water pressure: 20-80 PSIG
  • Part of the Elevation Series
  • Ice bin or dispenser is sold separately
  • CE approved; cULus listed; NSF certified

Simple Cleaning and Sanitizing

  • Plastic food zone is made without cracks and crevices so it can be conveniently wiped down
  • Agion® antimicrobial agent protects against bacteria growth

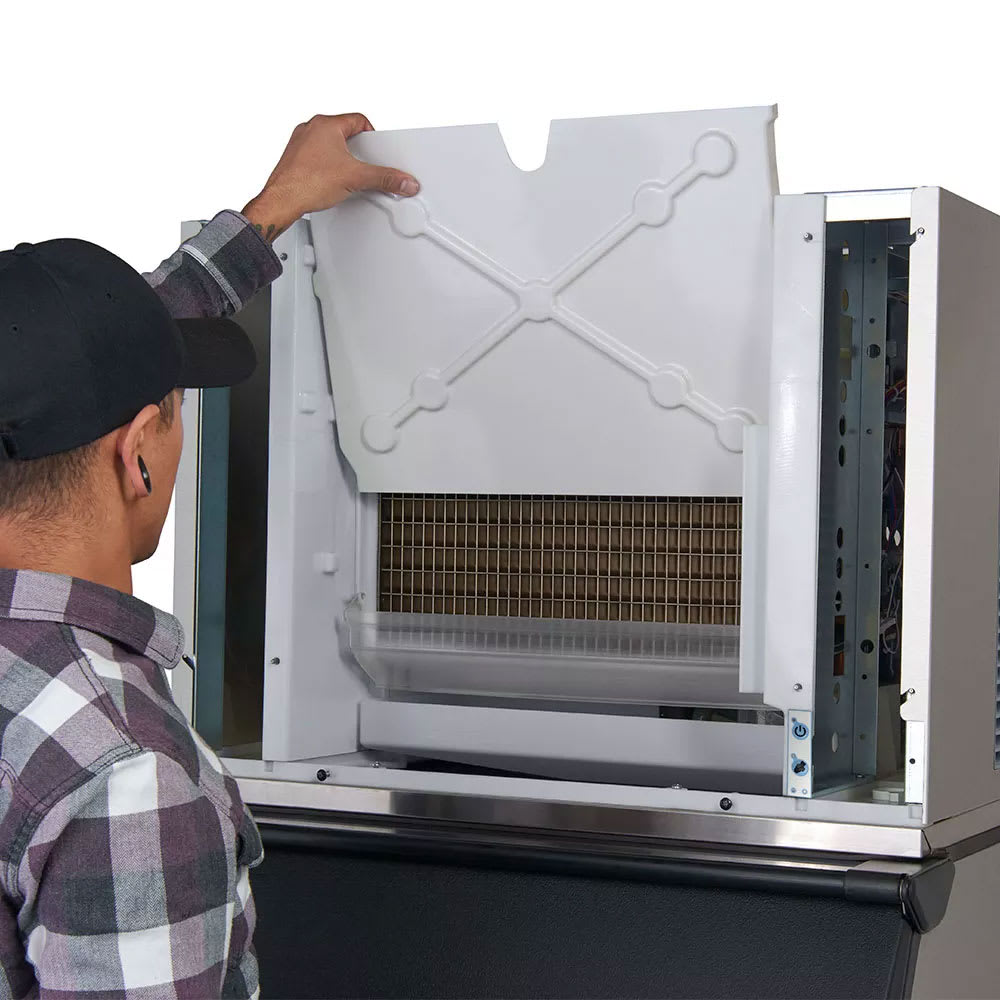

  • BPA-free components snap in and out for convenient dishwasher cleaning
  • LED light illuminates to indicate when cleaning is needed

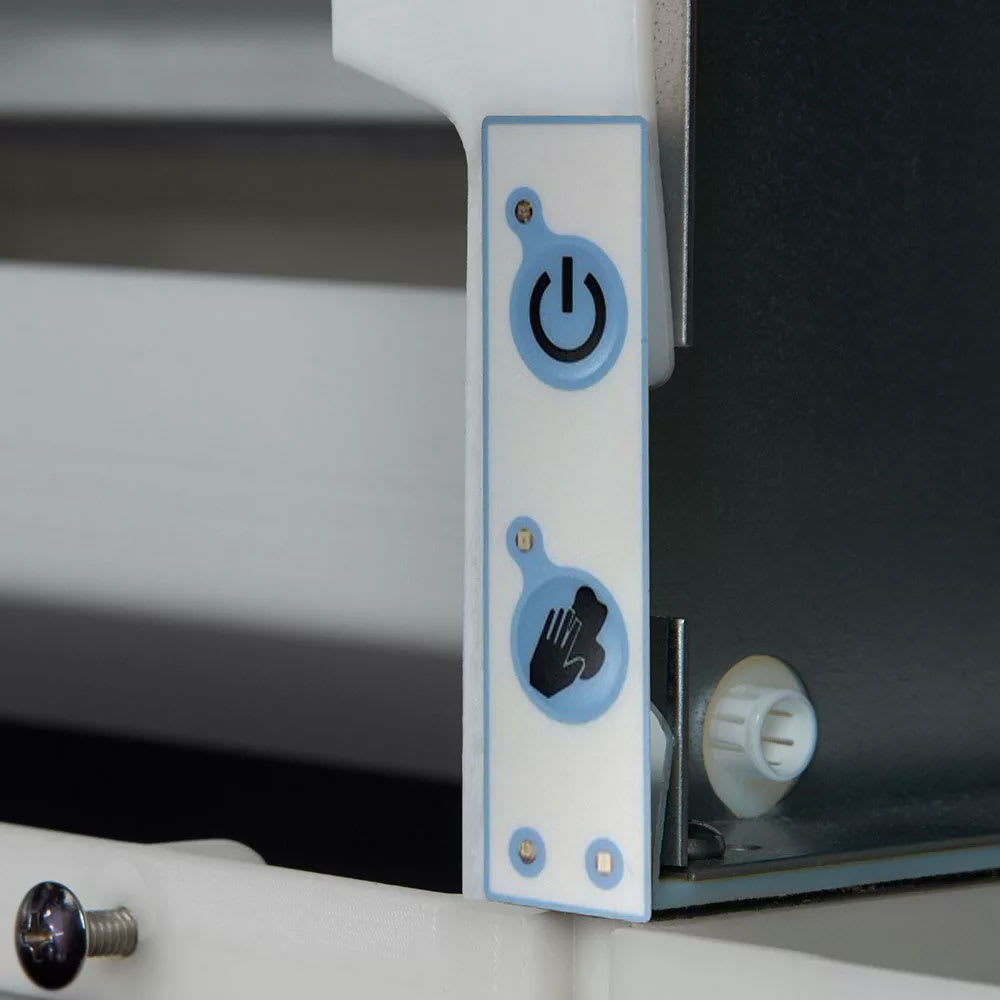

  • 1-touch control for cleaning and sanitizing

Dimensions & Utilities

  • 30.25 in. W x 24.25 in. D x 26.9 in. H
  • 12.2 A, 5.1 kW
  • 208-230 V/60 Hz/1 ph

You can read more about air-cooled cube ice machines in this explainer for ice makers.

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), full-size cubes, Agion® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 12.2 amps, cULus, NSF, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic CIM1136FA Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
Warranty 3-yr. Parts & Labor; 5-yr. Evaporator; 5-yr. Compressor Parts
Series Elevation Series™
Height (in) 26.9
Voltage 208/230
Phase 1
Made in USA Yes
Recommended Bins B25PP, B40PS, B55PS, B110PS, B700-30, B1000-48, B1300-48, B1325-60, B1600-60, CD40030, CD40130, IOD200, IOD250
Product Type Ice Makers & Bins
24 Hr. Production (lbs) 932
Ice Type Full Cube
Width (in) 30.25
Compressor Type Air Cooled
Depth (in) 24.25
Product Ice Machine Head
Cold Water (in) 3/8
Indirect Waste Size (in) 3/4
Amps 12.2
Width (in) Range 30 - 39
Production Range (lbs/day) 100-999 lb
Special Features Agion® Antimicrobial
Special Features Top Air Discharge
Weight 230.00
Ice-O-Matic CIM1136FA Certifications
  • UL
  • NSF
