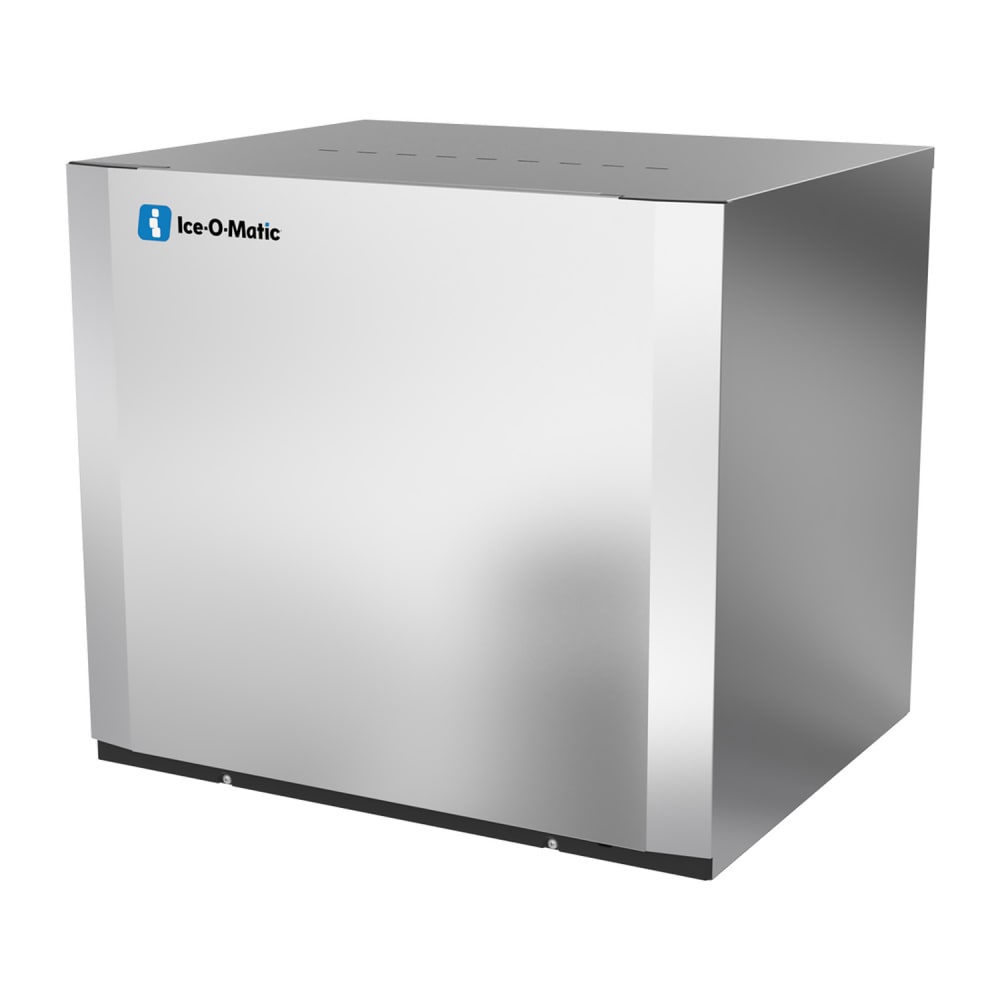

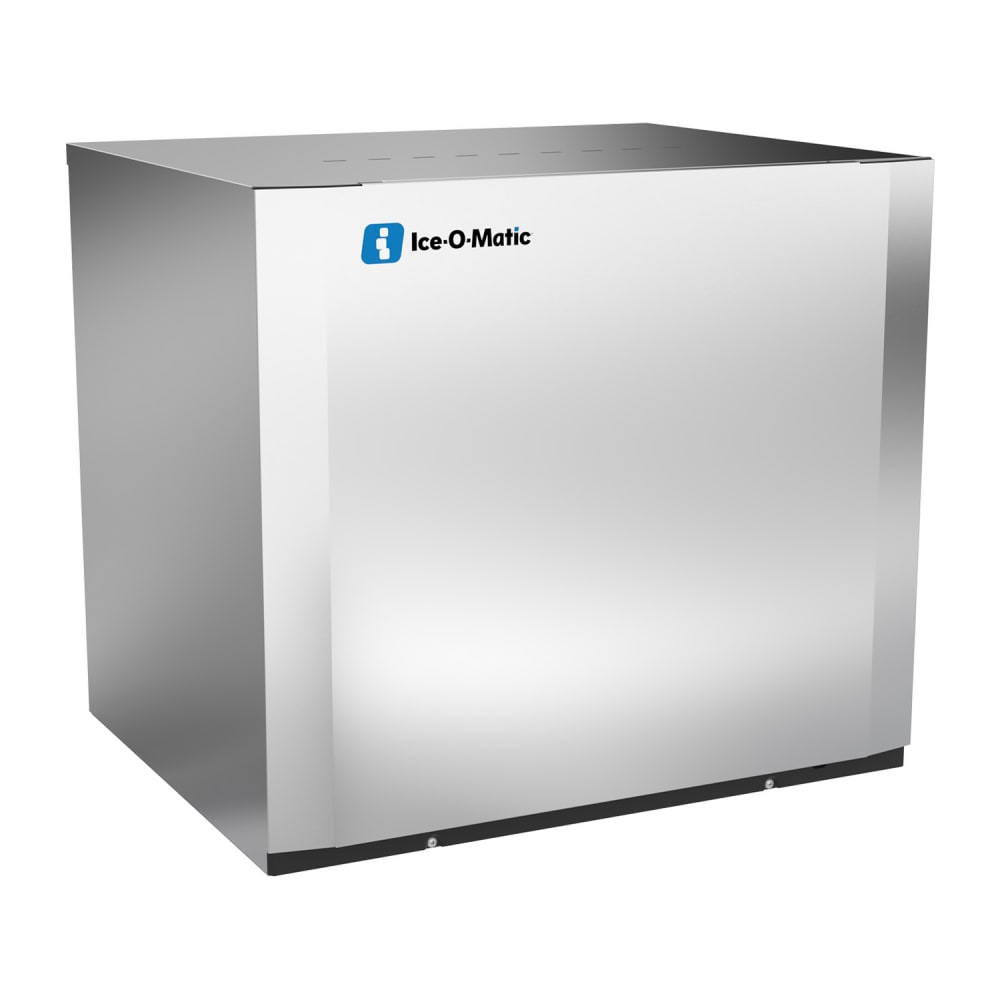

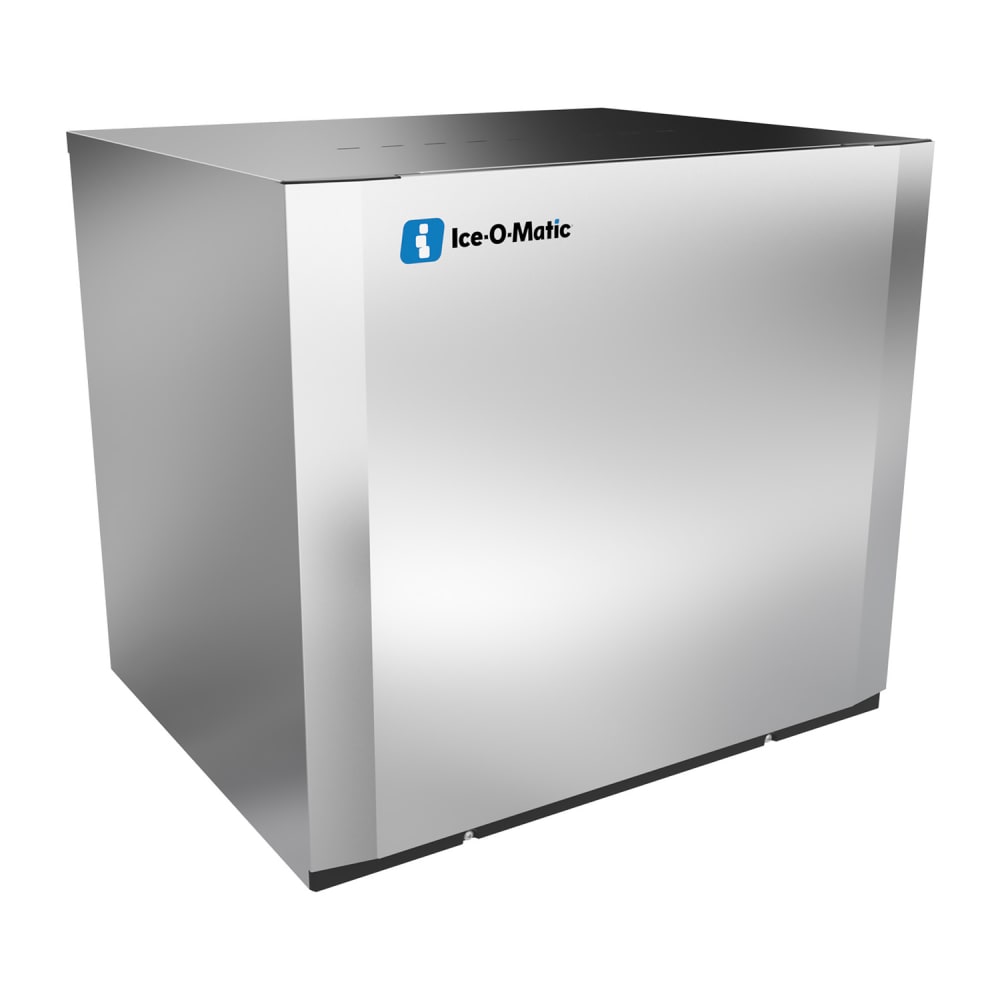

Ice-O-Matic CIM1136FW90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 968 lb/24 hr, Water Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$6,986.00 /Each
Selected Ice Type: Full Cube
Ice-O-Matic CIM1136FW90 Description
Part of the Elevation Series™, the Ice-O-Matic CIM1136FW90 modular cube ice maker is a water-cooled unit with a self-contained condenser. This system removes heat by pumping cool water by the condenser coils; it's recommended for commercial foodservice establishments that can tie their machine to a water-circulating chiller system. Water-cooled systems use significantly less energy than air or remote condensers.
The Ice-O-Matic CIM1136FW90 ice machine head measures 30 1⁄4 inches in width by 24 1⁄4 inches in depth by 26 9⁄10 inches in height and produces as much as 968 pounds of ice in 24 hours when environmental conditions are ideal. This piece of equipment produces full-size cubes, the largest after gourmet ice. Full-size ice measures 7⁄8 by 7⁄8 by 7⁄8 inch.
- Part of the Elevation Series
- 968-lb. maximum daily ice production
- 896-lb. AHRI-certified daily ice production
- Full-size ice cubes
- Cube dimensions: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Water cooled
- R290 refrigerant
- Environmentally friendly construction incorporates recyclable components

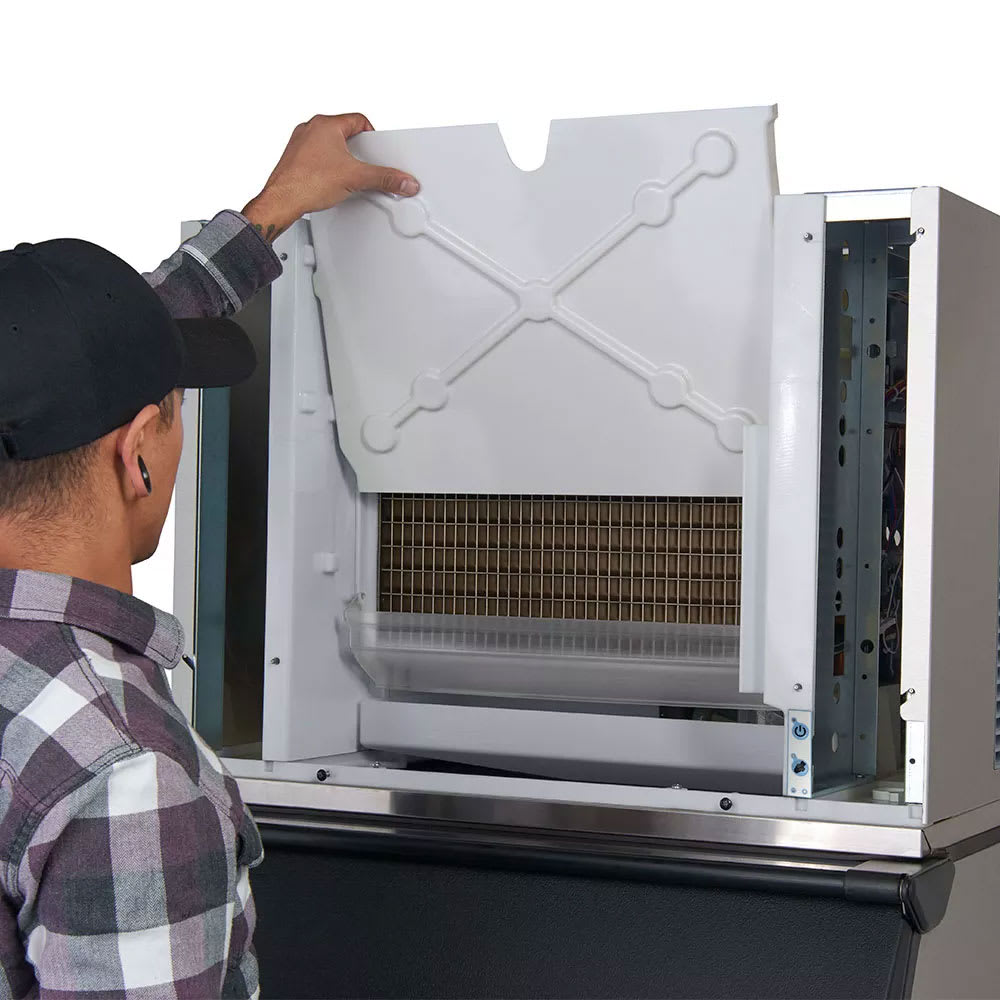

- Cleaning streamlined by plastic food zone
- PURE ICE® antimicrobial treatment inhibits bacterial spread

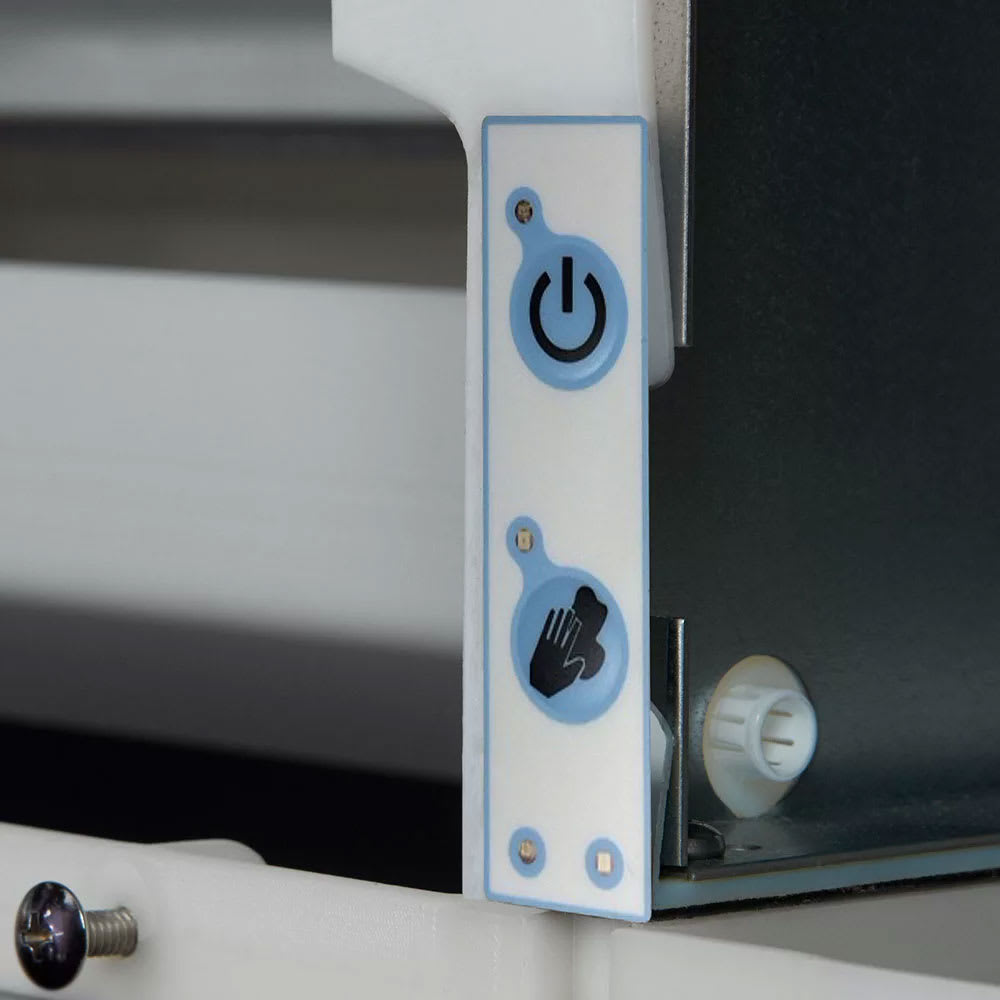

- Smart LED light notifies operators when maintenance is required
- 1-touch sanitizing and descaling function
- Self-contained condenser
- BPA-free interior pieces can be removed for warewasher cleaning
- Universal Smart Harness™ streamlines installation and servicing
- Ideal ambient temperature: 50-70 degrees F
- Ideal water pressure: 20-80 PSIG
- 18,200-BTU heat transfer capacity
- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D x 26 9⁄10 in. H
- 11.8 A, 4.1 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM1136FW90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30 1/4"W, approximately 968 lb production/24 hours at 70°/50° (896 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM1136FW90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 968 |
| Also Known As | CIM1136FW |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 26.9 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 225.00 |
- Ice-O-Matic ICE1006FW
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM1136FW90 Ice-O-Matic CIM1136FW90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 968 lb/24 hr, Water Cooled, 208-230v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $6,986.00 / Each | $7,370.00 / Each | $8,430.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | QUICK SHIP: Typically ships in 1 - 3 Business Days | |
| 24 Hr. Production (lb) | 968 | 983 | 1073 |
| Ice Type | Full Cube | Full Cube | Crescent Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 30.25 | 30 | 30 |
| Rating | Better | Best | Best |
| Voltage | 208/230 | 208/230 | 208/230 |
| Series | Elevation Series™ | Prodigy ELITE® | KM EDGE |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R404A |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
