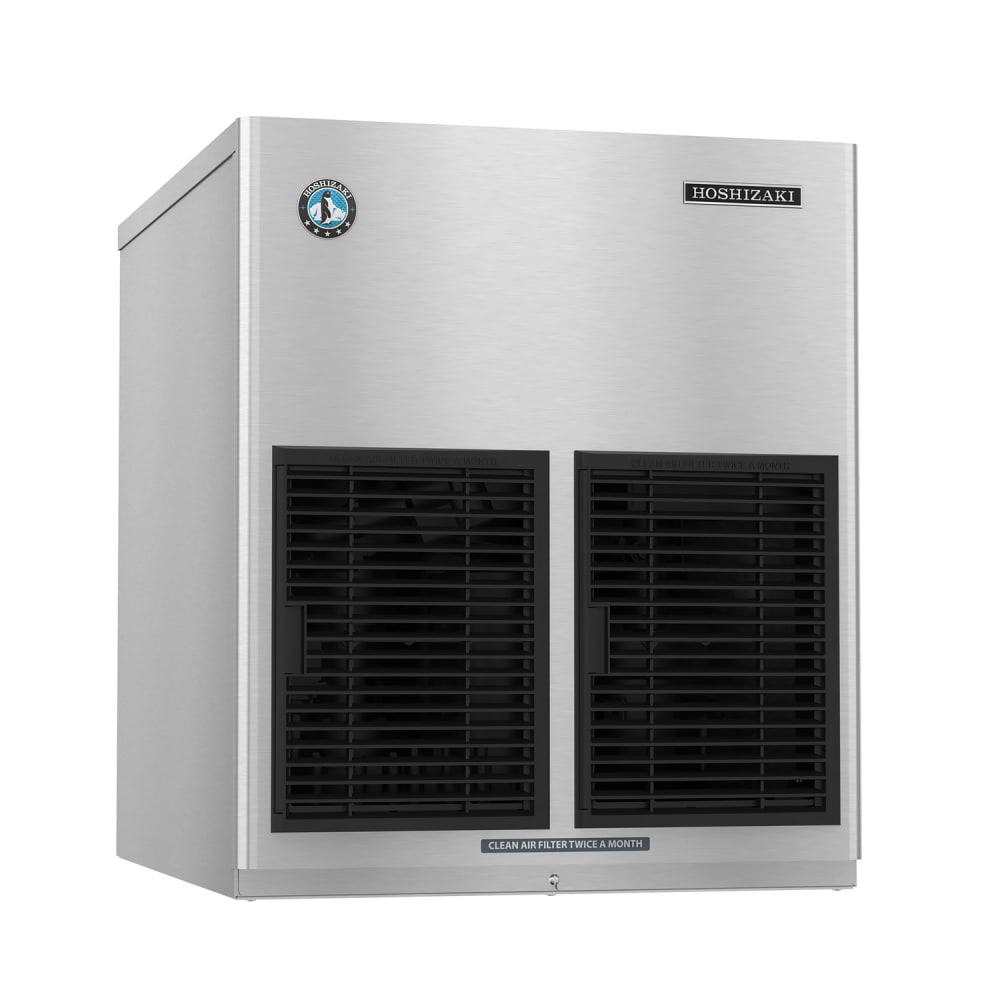

Hoshizaki F-1022MAK 22" Flake Ice Machine Head - 915 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$8,715.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Hoshizaki F-1022MAK Description
Because it's air cooled, the Hoshizaki F-1022MAK ice maker uses fans to move fresh air over the self-contained condenser to cool the components. Unlike remote-type condensers, this self-contained unit is inside the ice maker and doesn't require additional wiring beyond the electrical connection. It cools with R290 refrigerant and produces chewable flake ice. This unit can make 915 pounds of ice daily when operating conditions are ideal, though when temperatures are higher, it makes closer to 758 pounds per day. It's protected with H-GUARD Plus® antimicrobial to slow the growth of germs.
The Hoshizaki F-1022MAK flake ice machine head uses infrared bin control to guide ice into the bin or dispenser—which must be purchased separately. To remove sediment and impurities, it performs a 2-second flush cycle each hour. While the auger and greaseless bearing are made of rust-resistant stainless steel, the exterior is also made of stainless steel for durability.
- 915-lb. daily ice production capacity

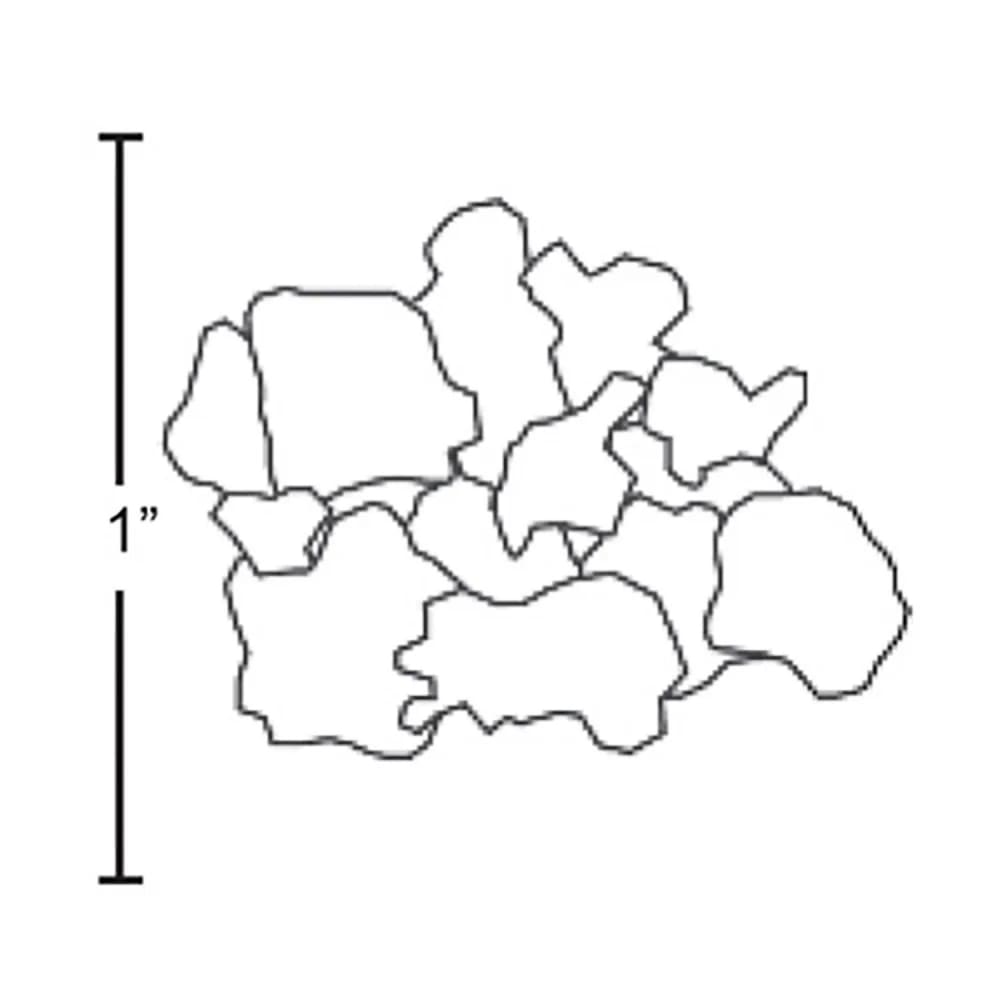

- Produces flake ice
- R290 refrigerant
- Self-contained, air-cooled condenser
- Advanced CleanCycle24™ design
- Protected with H-GUARD Plus antimicrobial

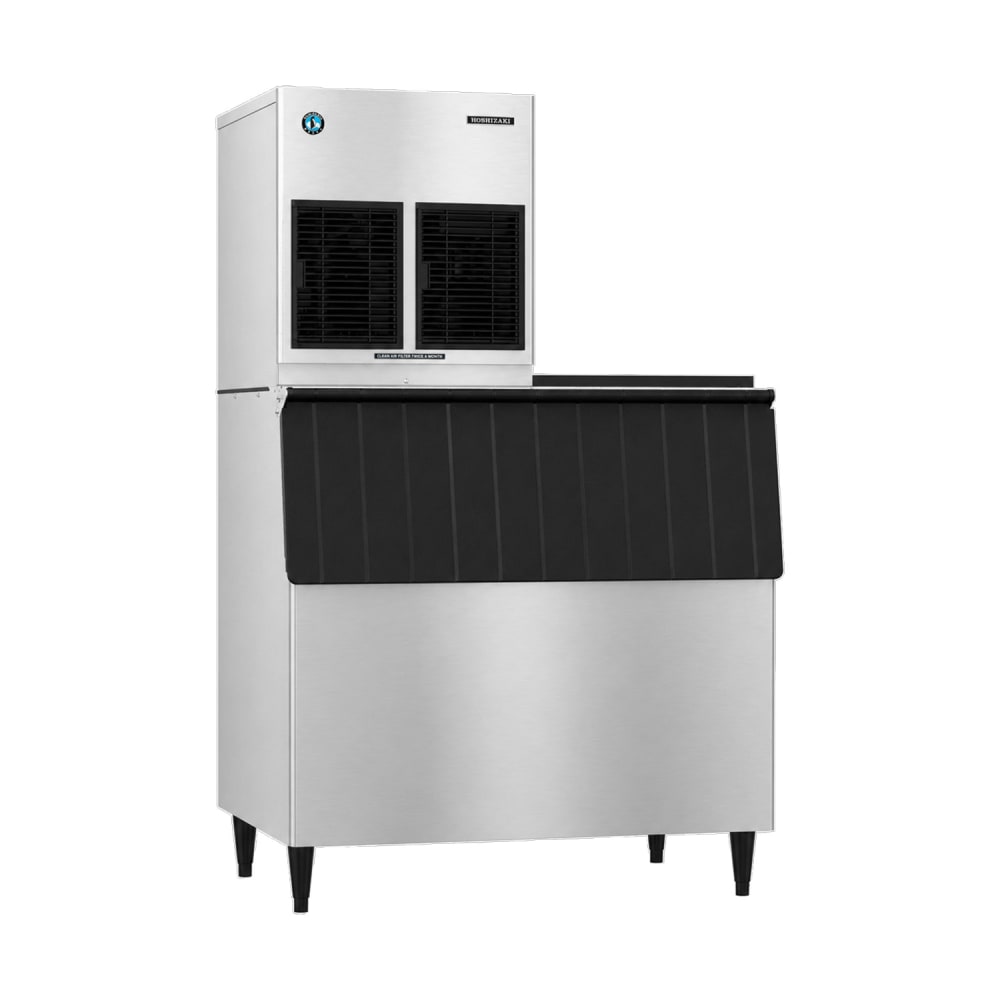

- Infrared bin control guides ice into a bin (sold separately)
- Performs a 2-second flush each hour
- Stainless steel exterior
- Stainless steel auger and greaseless bearing
- 8,500-BTU heat transfer capacity
- Ideal incoming air temperature: 45-110 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- 22 in. W x 27.3 in. D x 26 in. H
- 15.2 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki F-1022MAK within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Hoshizaki F-1022MAK Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 915 |
| Also Known As | F-1002MAJ |
| Compressor Type | Air Cooled |
| Depth (in) | 27.38 |
| Height (in) | 26 |
| Ice Type | Flake |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Slim-Line |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 210.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hoshizaki F-1022MAK Hoshizaki F-1022MAK 22" Flake Ice Machine Head - 915 lb/24 hr, Air Cooled, 115v/1ph Current Item |
Ice-O-Matic MFI1256A90 Ice-O-Matic MFI1256A90 21" Flake Ice Machine Head - 1045 lb/24 hr, Air Cooled, 208-230v/1ph |
||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $8,715.00 / Each | $8,064.00 / Each | $6,364.00 / Each | $7,592.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | IN STOCK: Ships in 1 Business Day | Typically ships in 4 - 8 Business Days | Typically ships in 6 - 8 weeks |
| 24 Hr. Production (lb) | 915 | 1056 | 800 | 1045 |
| Ice Type | Flake | Flake | Flake | Flake |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 22 | 22 | 22 | 21 |
| Rating | Best | Best | Best | Better |
| Voltage | 115 | 208/230 | 115 | 208/230 |
| Series | Slim-Line | Prodigy Plus® | Prodigy Plus® | |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Compressor Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
I would buy this product again
Great ice production and reliable
We're glad it has been reliable and is keeping up with your ice needs. Consistent production makes a big difference in a busy operation.
Yes. It requires the purchase of a separate bin or dispenser.
This unit performs a two-second flush cycle hourly.
Yes. It features H-GUARD Plus antimicrobial protection.
The water filtration system reduces sediment buildup.
Yes. It requires 24 in. of top and 6 in. of side/rear clearance.
The infrared bin control guides ice placement.
