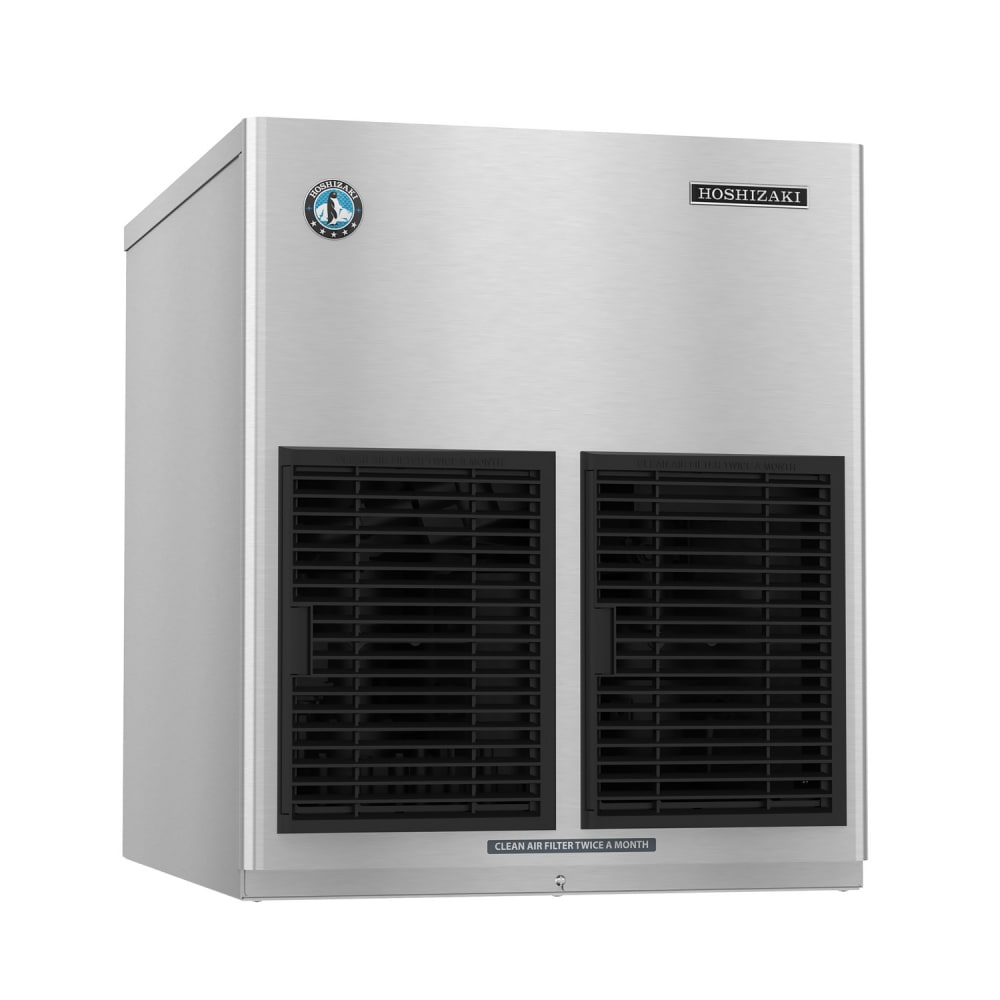

Hoshizaki F-1002MWJ 22" Flake Ice Machine Head - 955 lb/24 hr, Water Cooled, 115v/1ph

To ensure clean ice is consistently produced, the Hoshizaki F-1002MWJ flake ice machine head performs a two-second flush cycle every hour to remove sediment. H-GUARD Plus antimicrobial agent coats the ice head to slow the growth of bacteria, prolonging the time needed between cleanings. This water-cooled unit makes 955 pounds of ice when it's operating at peak conditions, but if room temperatures exceed a range of 70 to 90 degrees Fahrenheit, it will produce 833 pounds.

The Hoshizaki F-1002MWJ flake ice machine head has a self-contained condenser to streamline installation and reduce the risk of cross contamination. It uses R404A refrigerant to produce ice and keep it cold. To ensure the unit doesn't corrode when operating in wet conditions, it has a rust-resistant and durable stainless steel finish. An ice bin or dispenser must be purchased separately for use with this machine.

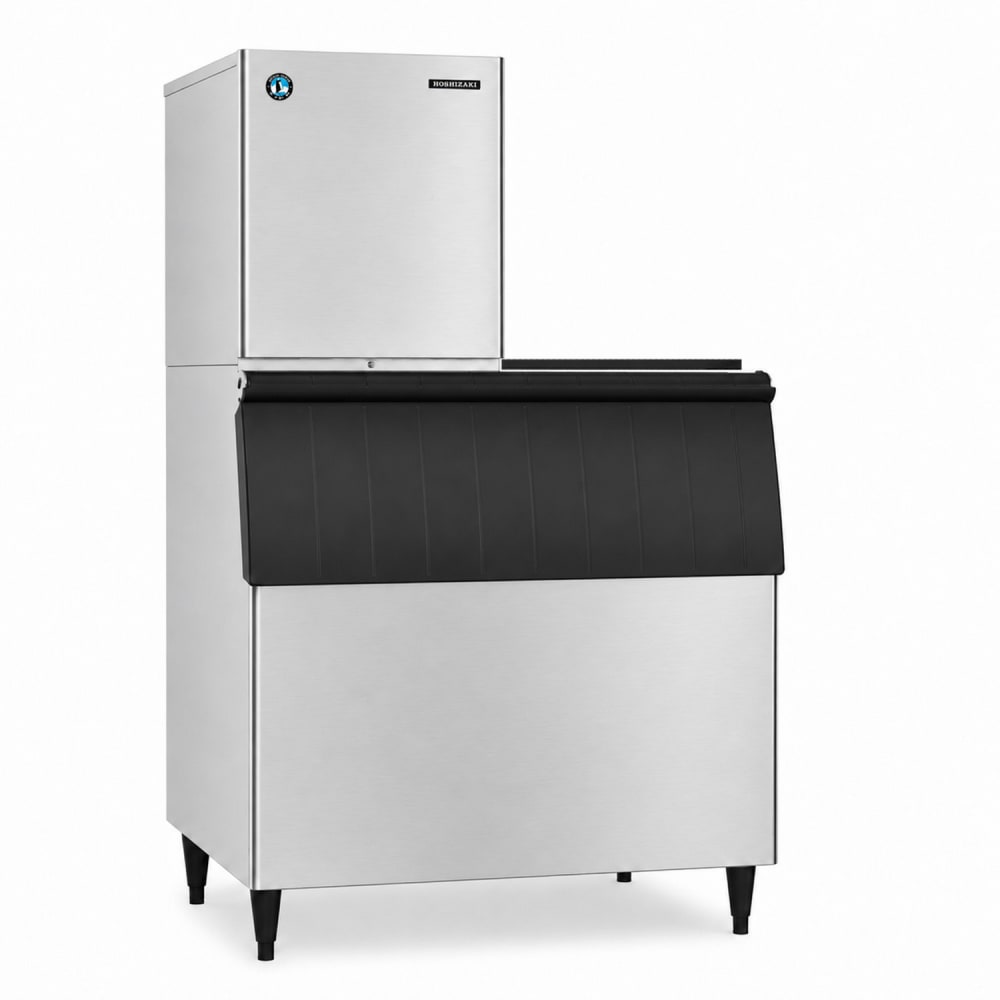

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• 955-lb. maximum daily ice production
• 833-lb. AHRI-certified daily ice production

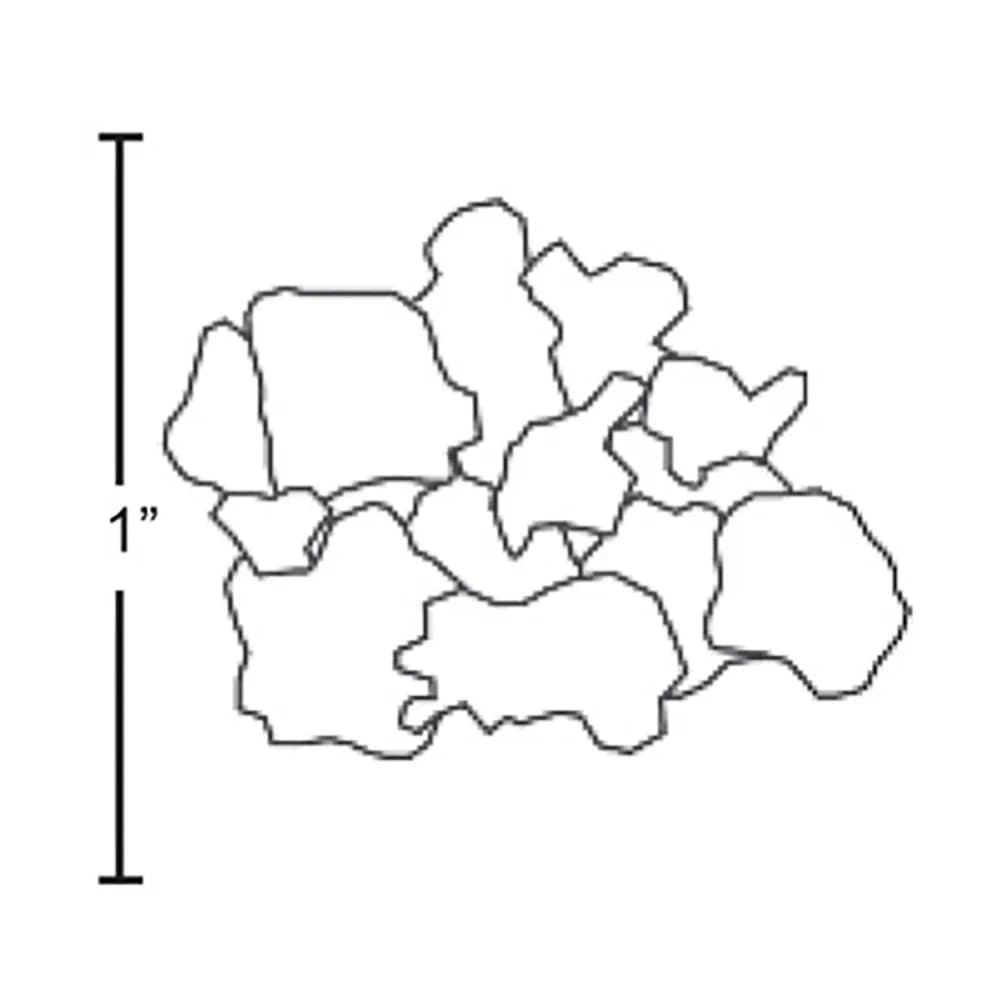

• Makes flake ice
• Resilient stainless steel finish
• CleanCycle24™ design speeds up the cleaning process
• Reliable infrared bin control
• H-GUARD Plus® antimicrobial reduces the rate at which bacteria grows
• 2-sec. flush cycle each hr. removes sediment
• Water-cooled, self-contained condenser
• Operates with R404A refrigerant
• No bin or dispenser included
• Recommended clearances: 24 in. at top and 6 in. at rear and sides
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 8,200-BTU heat transfer capacity

Product Features

Dimensions & Utilities

• 22 in. W x 27.38 in. D x 26 in. H
• 13.7 A, 3.57 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Ice Maker, Flake-Style, 22"W, water-cooled, self-contained condenser, production capacity up to 955 lb/24 hours at 70°/50° (833 lb AHRI certified at 90°/70°), stainless steel finish, Advanced CleanCycle24™, infrared bin sensor, R-404A refrigerant, 115v/60/1-ph, 13.7 amps, NSF, UL

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

3-year Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki F-1002MWJ Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Certifications
