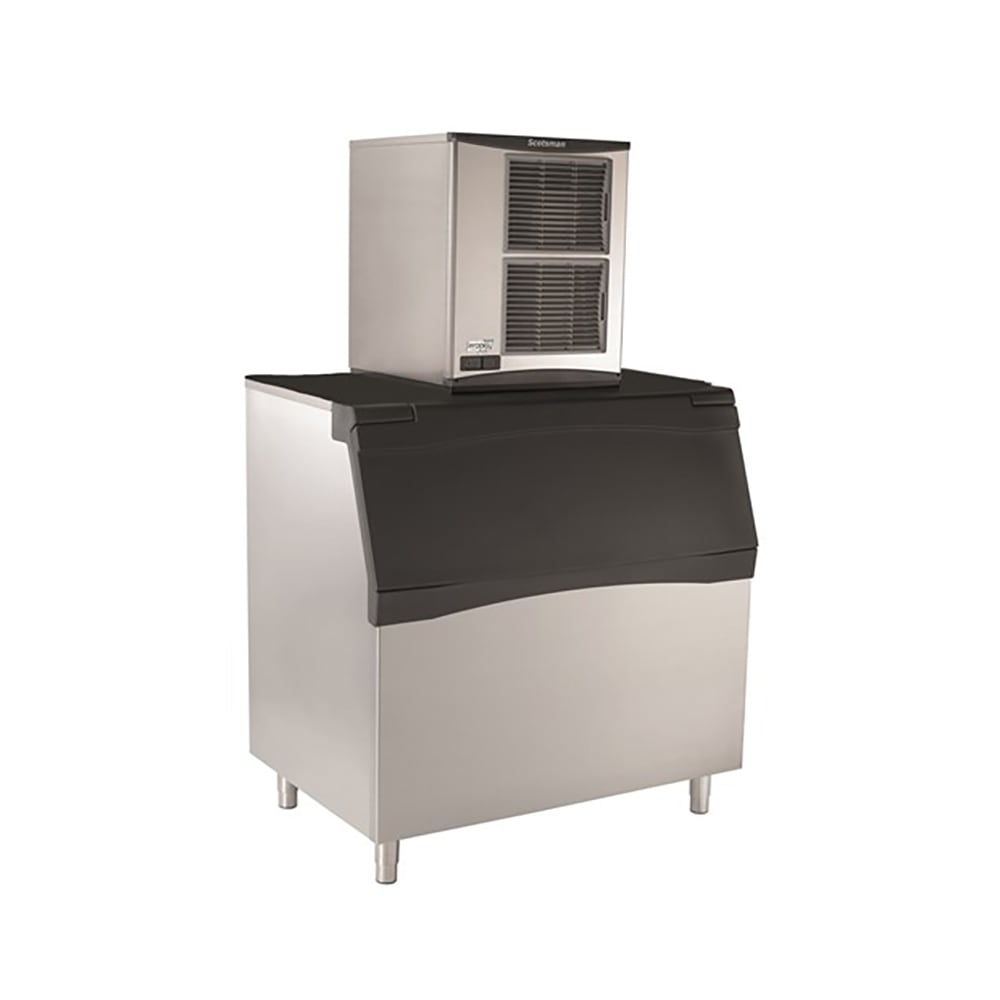

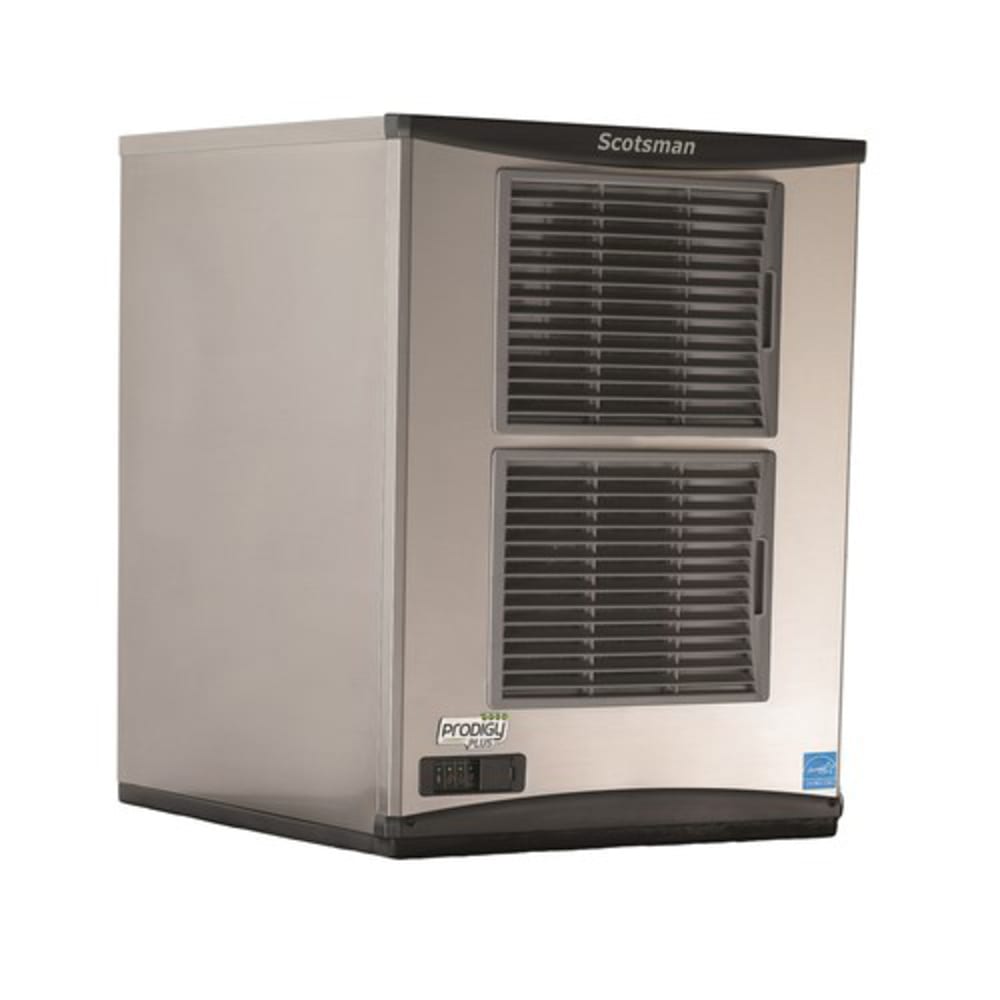

Scotsman FS1222A-32 22" Prodigy Plus® Flake Ice Machine Head - 1100 lb/24 hr, Air Cooled, 208-230v/1ph

Manufactured with a stainless steel exterior, auger, and evaporator, and with sealed bearings, the Scotsman FS1222A-32 Prodigy Plus™ ice machine withstands extended use without rusting or corroding. For simple maintenance, this machine features a removable air filter and unit-specific QR code that enables operators to access owner manuals and the unit's warranty history quickly. From its front, the ice maker breathes and the air filter can be accessed, enabling it to operate safely with no side clearance.

The Scotsman FS1222A-32 ice machine head produces flake ice, suiting it for smoothie bars and grocery stores. Because it can produce a total of 1,100 pounds of ice per day in optimal conditions, this ice maker meets demand in high-volume applications. It has a self-contained refrigeration system that doesn't require any additional coolant lines to operate, and it measures just 22 inches wide for compact use. For quick maintenance, this unit features one-touch cleaning ability.

Product Details

• Air cooled
• Produces flake ice
• Suitable for grocery and seafood shop applications
• 1,100-lb. maximum daily ice production
• 878-lb. AHRI-certified daily ice production
• Self-contained condenser saves space
• Designed for front-breathing operation

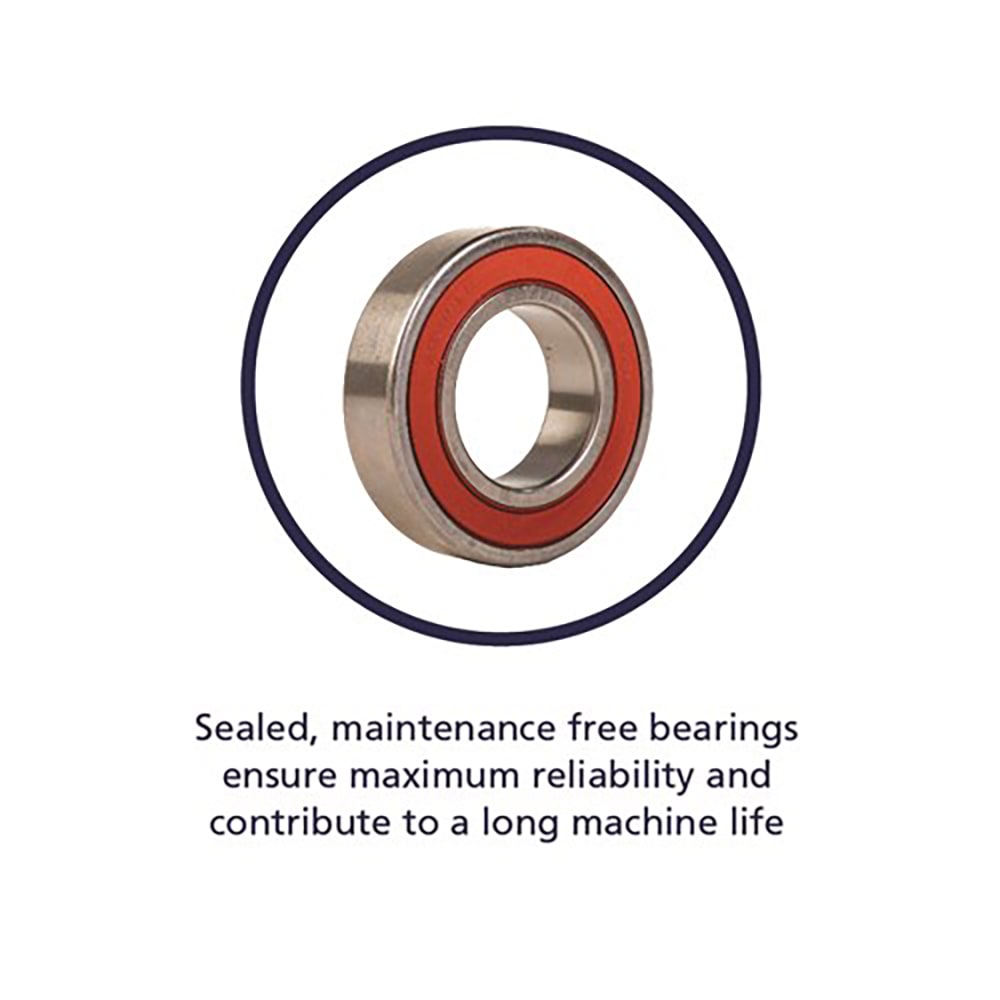

• Sealed bearing for extended use
• AutoAlert™ indicator lights simplify maintenance
• Antimicrobial resistance with AgION™ treatment
• Unit-specific QR code for fast troubleshooting
• Front-accessible air filter can be removed
• Stainless steel auger and evaporator withstand recurrent use
• Labor is minimized by simple, 1-touch cleaning
• Stainless steel finish
• Operates with R404A refrigerant
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSI
• Heat displacement: 10,500 BTU

Product Features

Dimensions & Utilities

• 22 in. W x 24 in. D x 27 in. H
• 11.9 A
• 115 V/60 Hz/1 ph

*Free shipping on Scotsman FS1222A-32 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, flake style, air-cooled, self-contained condenser, production capacity up to 1100 lb/24 hours at 70°/50° (878 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, front facing removable air filter, stainless steel evaporator and auger, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/1-ph, 11.9 amps, NSF, cULus, ENERGY STAR®, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman FS1222A-32 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
