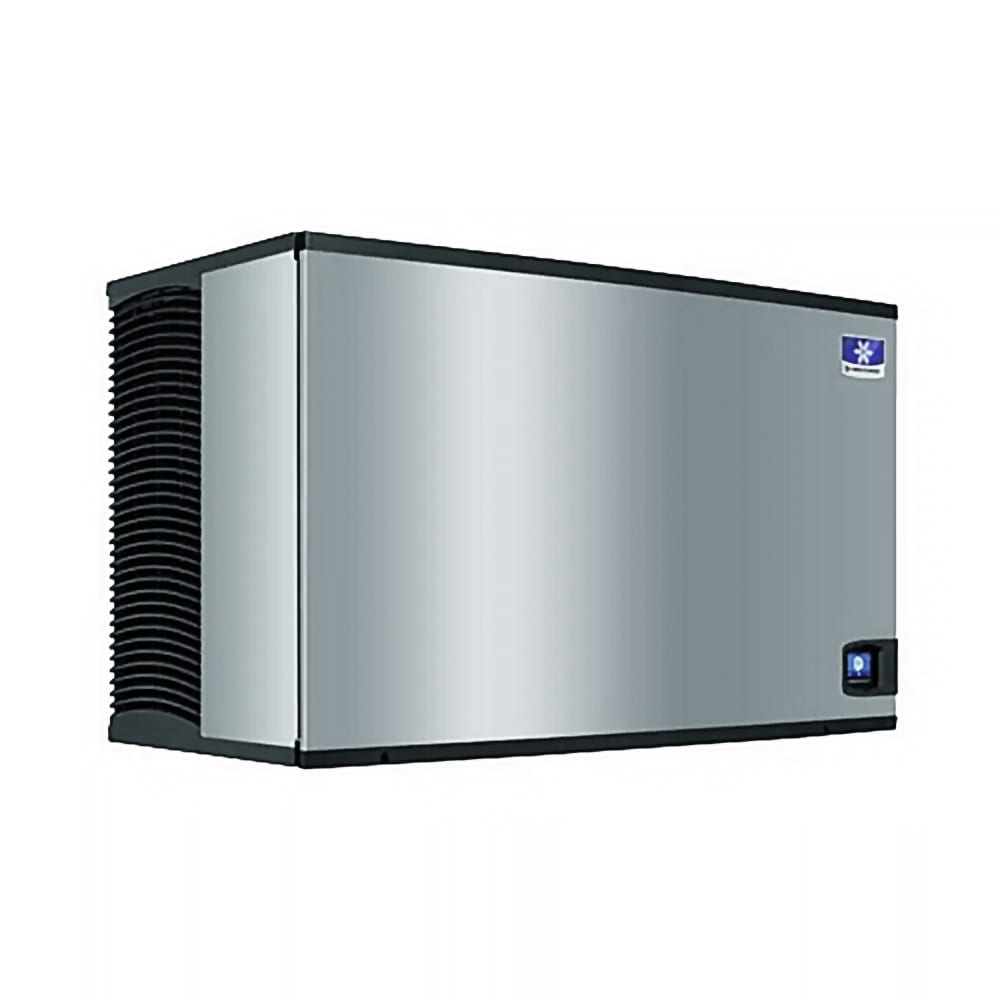

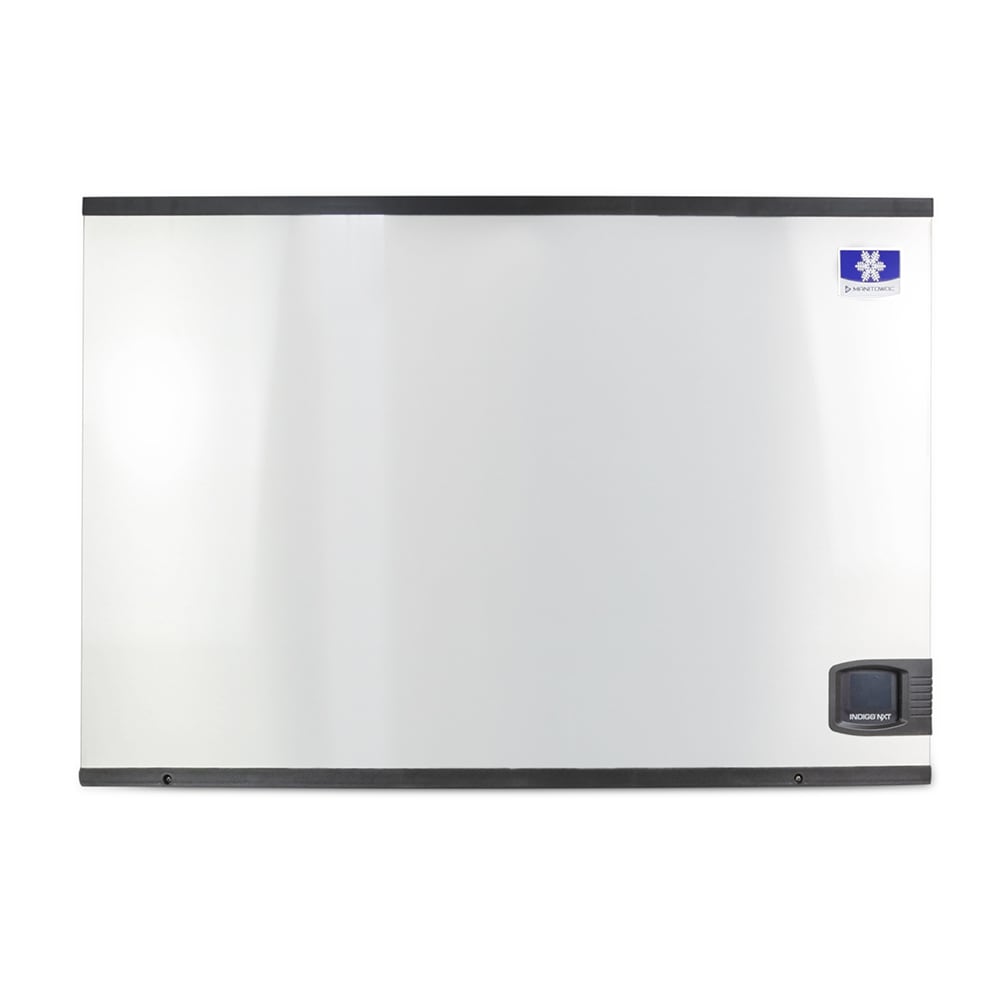

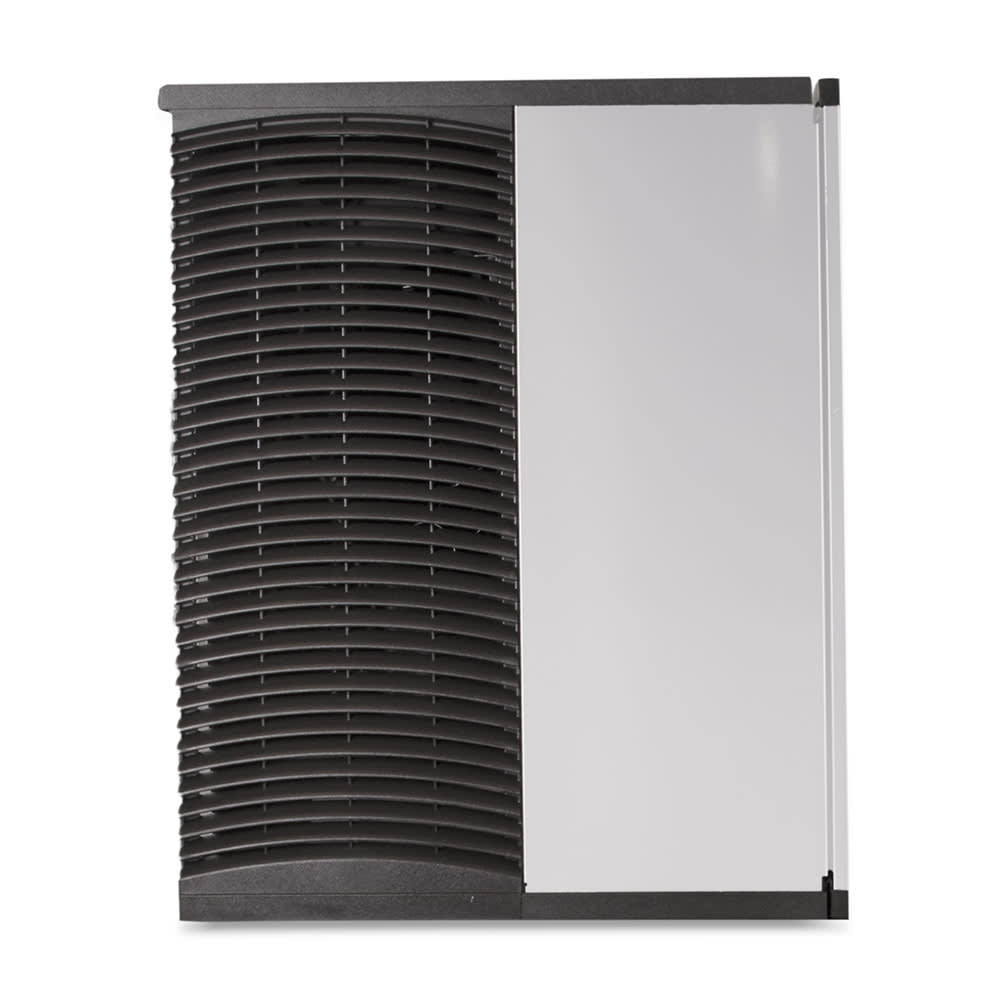

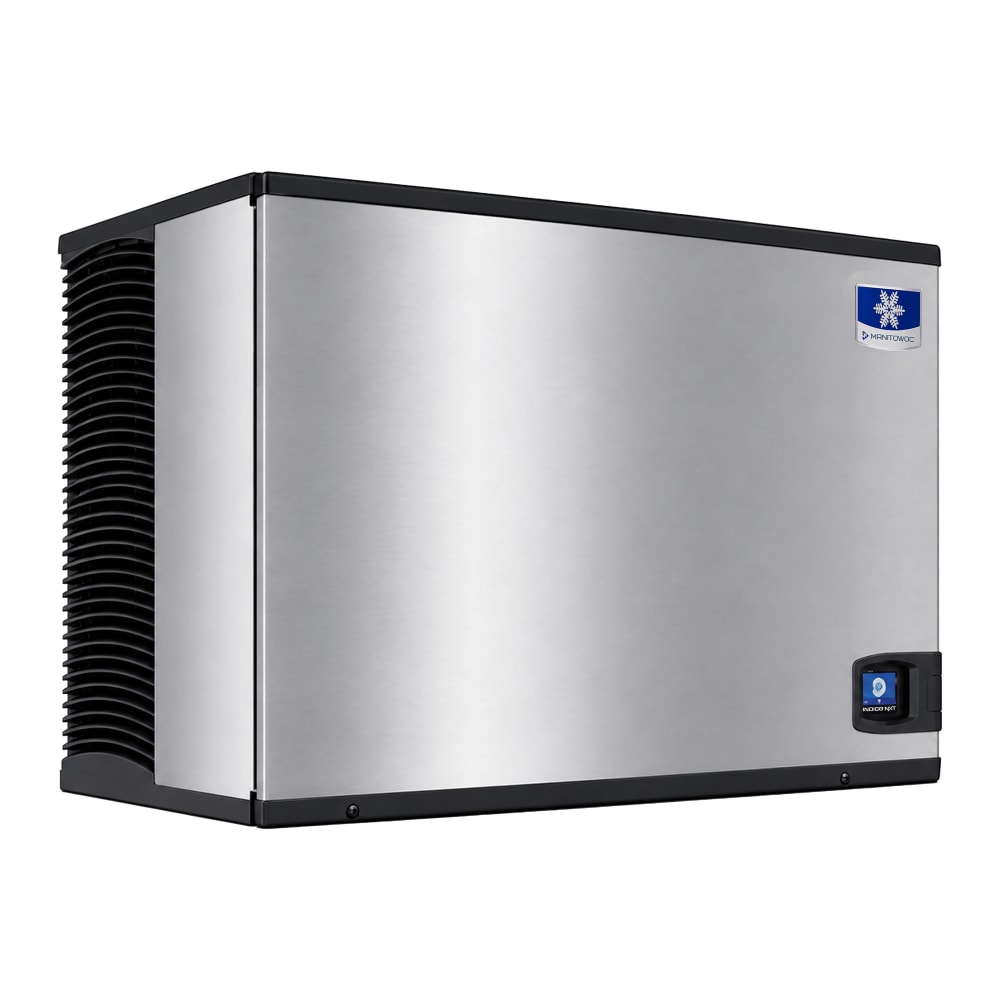

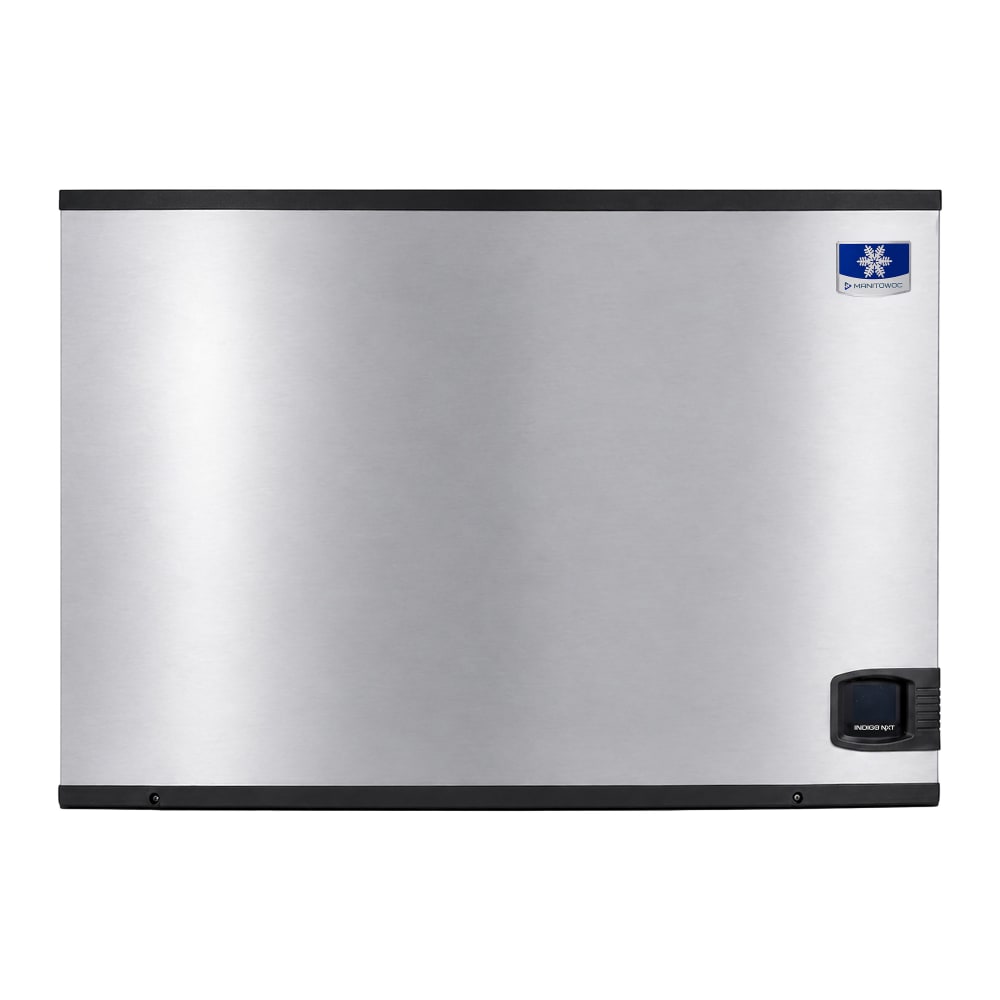

Manitowoc Ice IYT1900N 48" Indigo NXT™ Half Cube Ice Machine Head - 2020 lb/24 hr, Remote Cooled, 208-230v/1ph

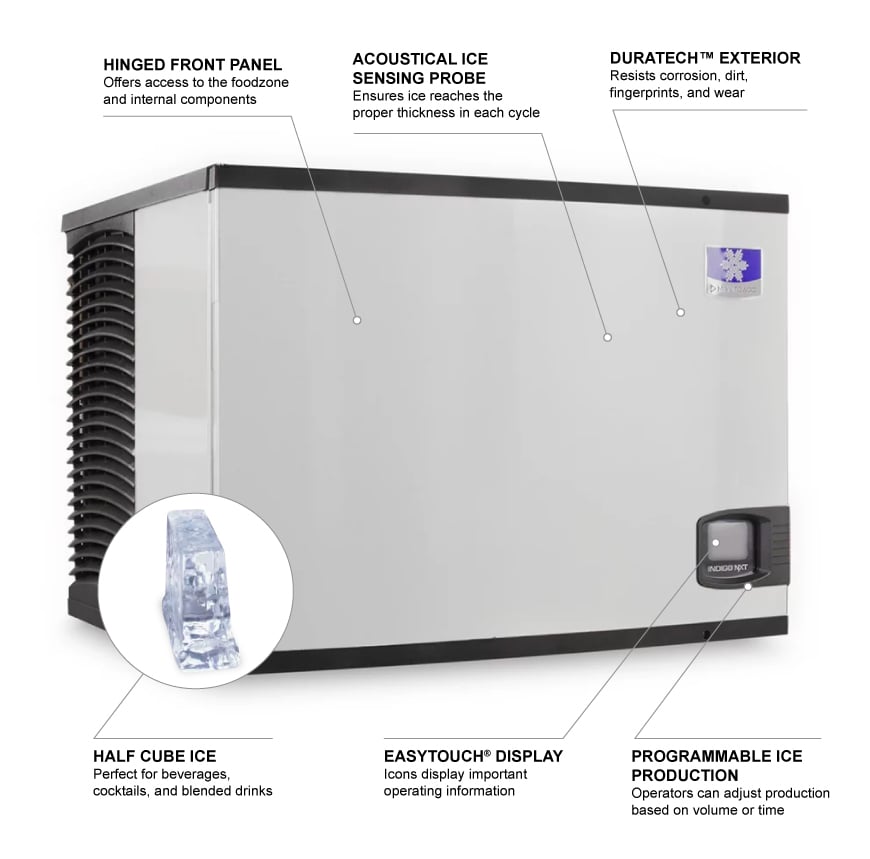

The Manitowoc Ice IYT1900N Indigo NXT™ ice machine head can make 2,020 pounds of ice in 24 hours. On the easyTouch® display, the operator can program the amount of ice produced based on volume or time of day. Cleaning the foodzone is simple because some of the components are removable and others are made with AlphaSan® antimicrobial protection. This machine head has a DuraTech™ exterior that resists corrosion and hides smudges left by fingerprints. A remote compressor and storage bin are required to operate this unit and are sold separately.

To guide ice from the head into a sold-separately bin, the Manitowoc Ice IYT1900N half-cube ice machine head uses an acoustical ice sensing probe. If maintenance is needed, intelligent diagnostics inform employees of the situation, ensuring it can be fixed with no guesswork. The display screen provides readouts in as many as 13 languages, enabling use in various settings. The unit can be cleaned with the touch of a button to ensure fresh, tasty ice.

Product Details

• Part of the Indigo NXT series
• 2,020-lb. maximum daily ice production
• 1,744-lb. AHRI-certified daily ice production
• Makes half-dice ice

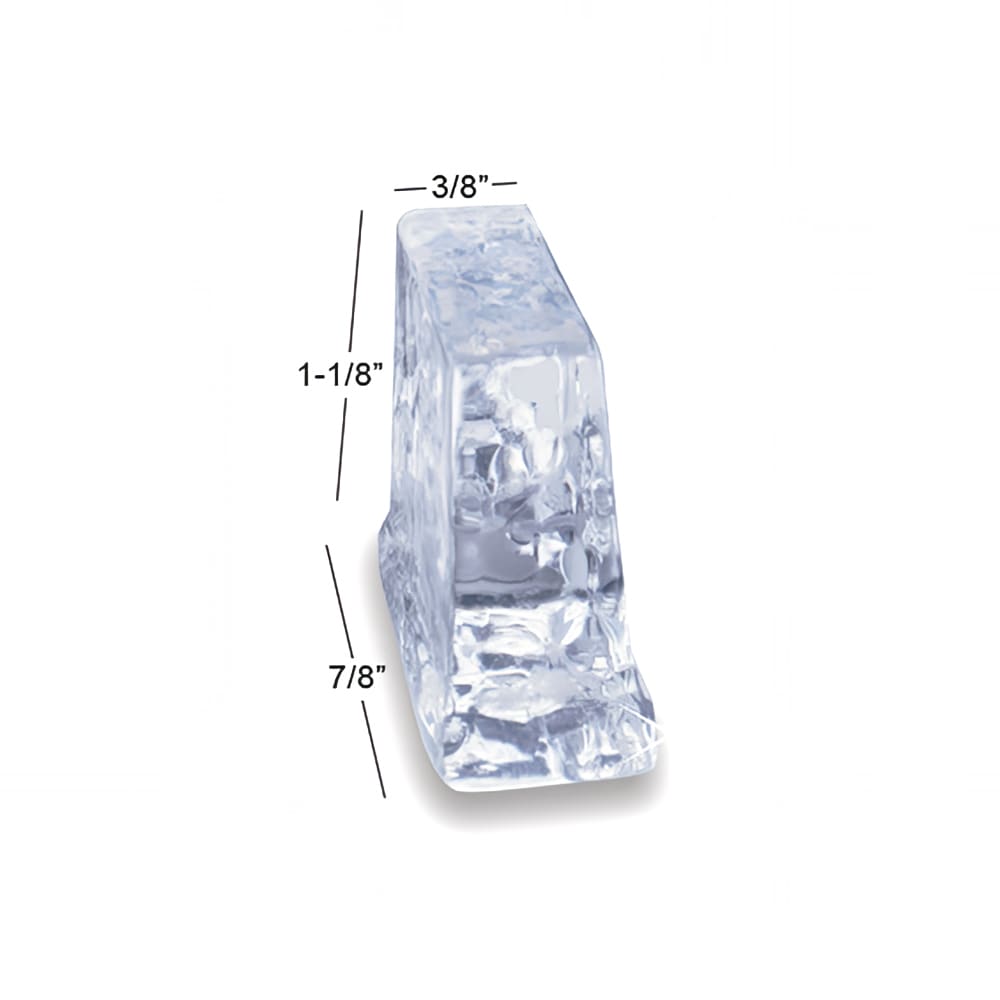

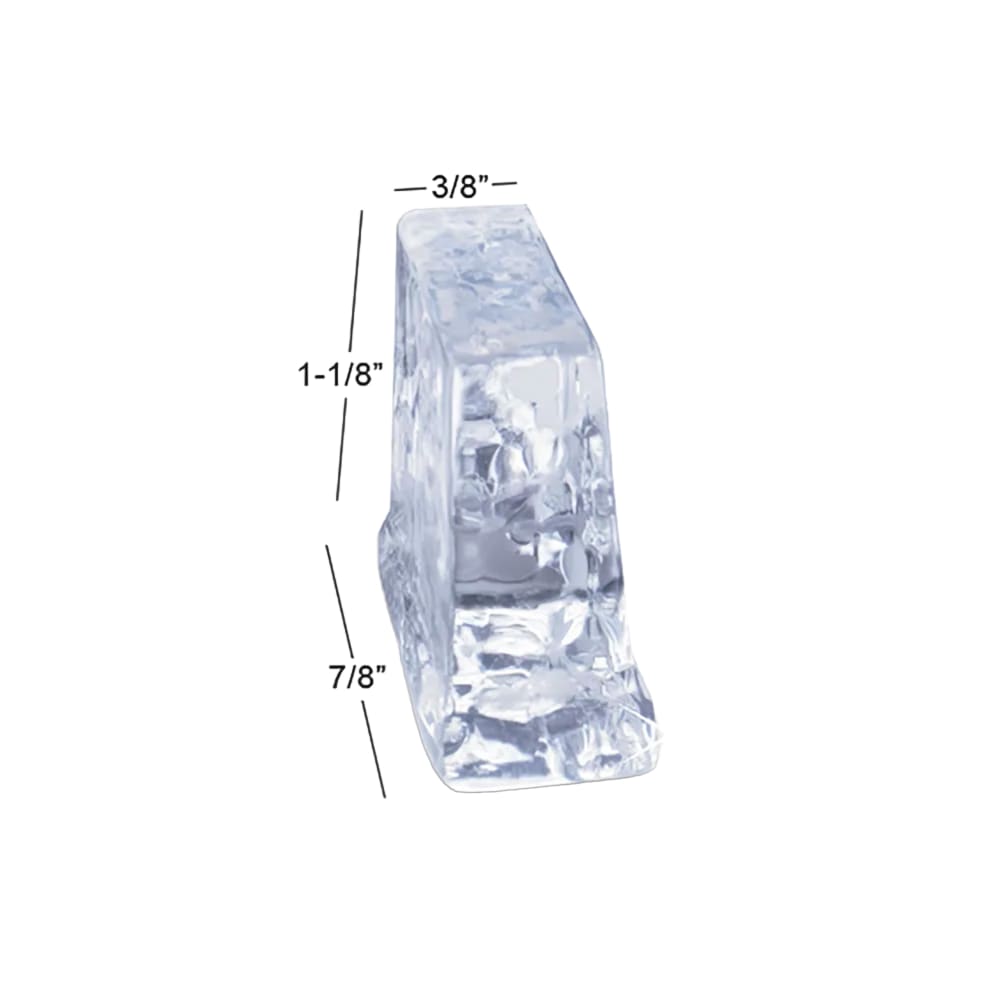

• Ice size: ³⁄₈ in. x 1¹⁄₈ in. x ⁷⁄₈ in.

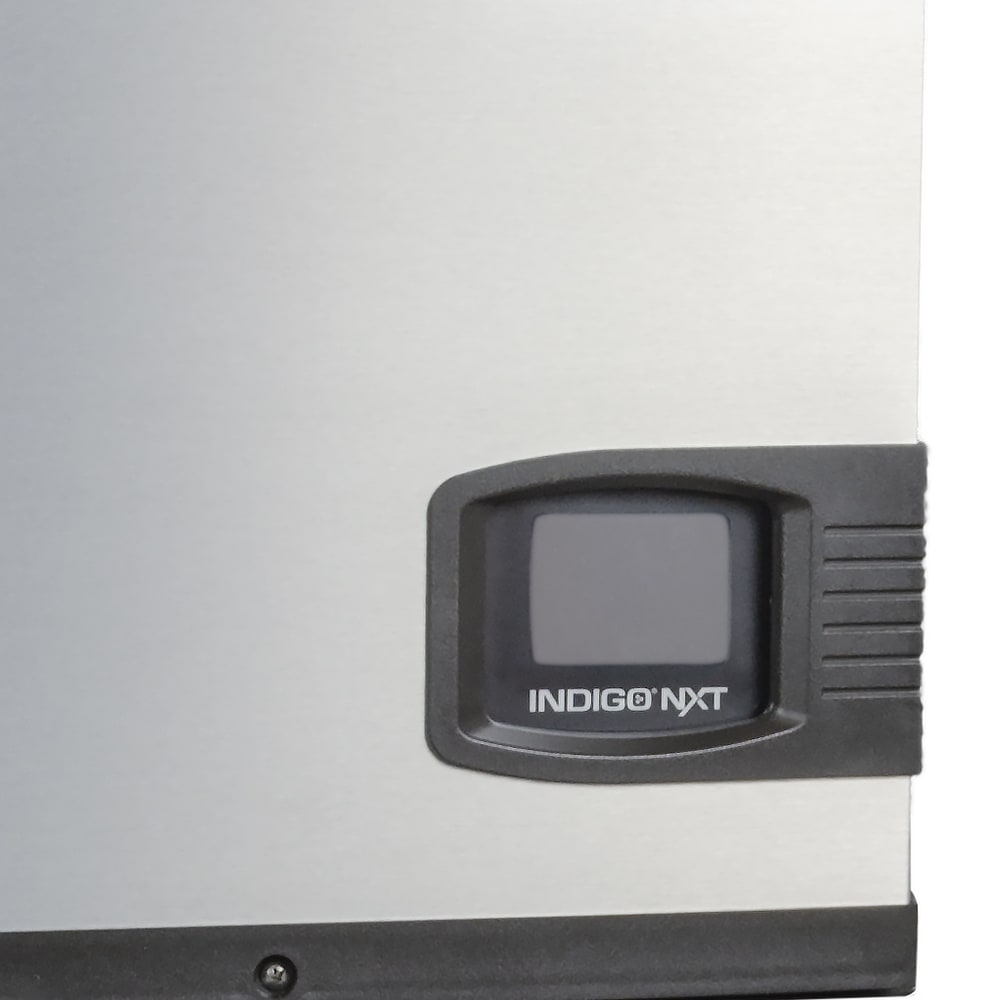

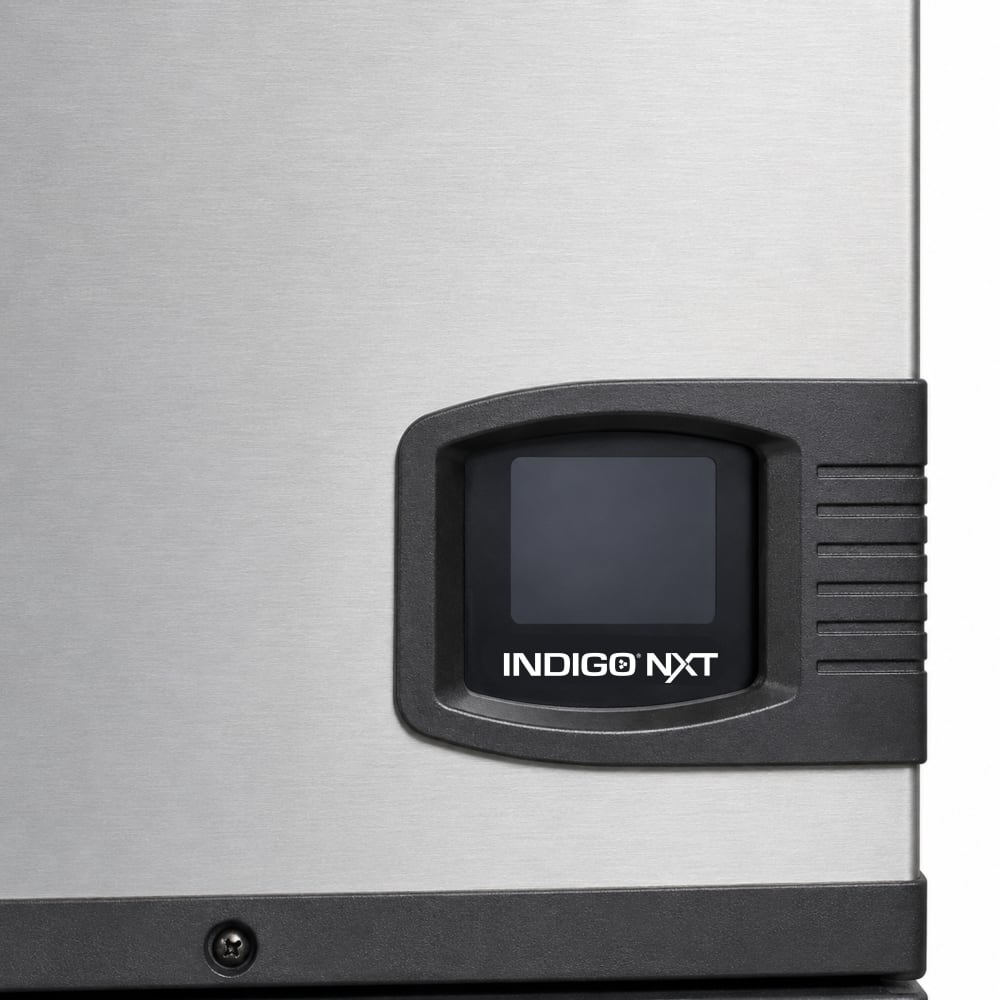

• easyTouch display with 13 language options
• Date and time stamp display
• Automatic reminder and alert icon
• 1-touch asset information
• Automatic accessory detection
• Continuous operating status
• Programmable production options
• 1-touch cleaning
• Protected with AlphaSan antimicrobial
• Acoustical ice sensing probe
• Self-diagnostic technology
• DuraTech exterior
• Uses R410 refrigerant
• Remote condenser must be purchased separately
• No ice bin or dispenser included
• Ideal ambient air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F

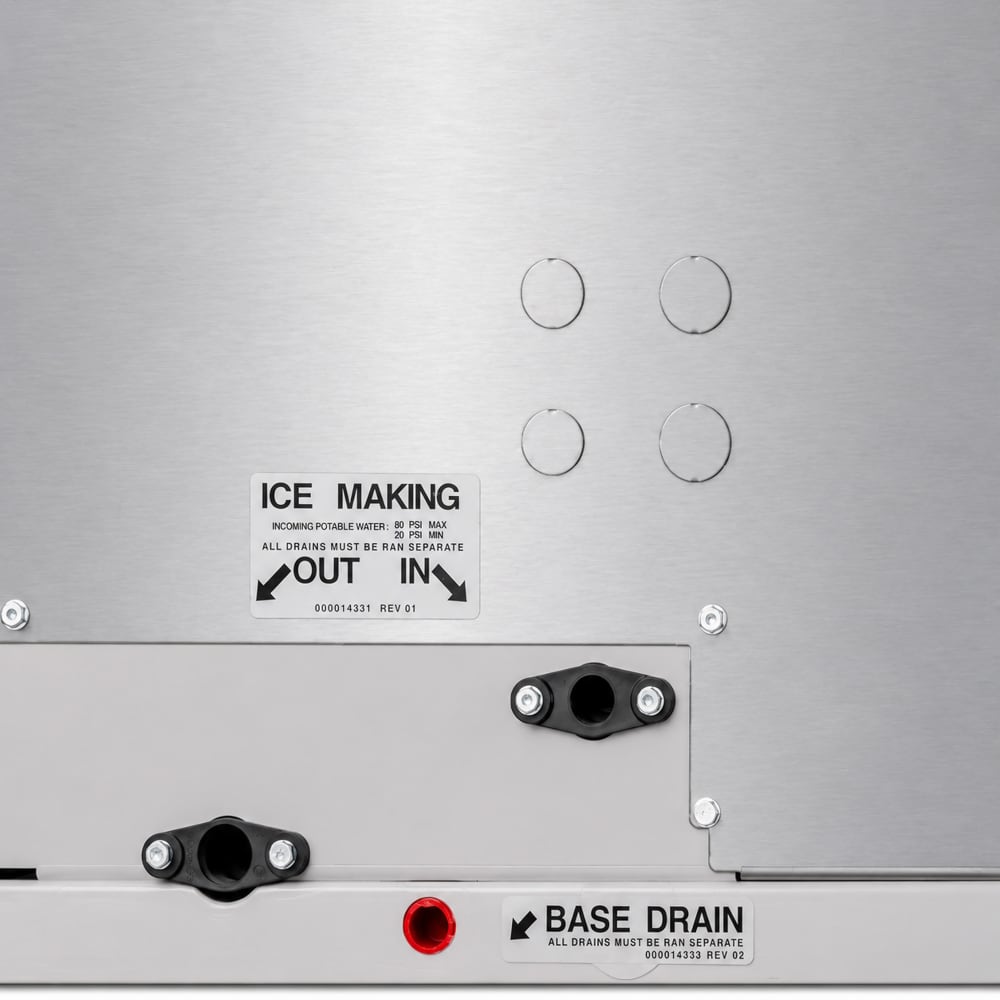

• Ideal incoming water pressure: 20-80 PSI
• 26,100-BTU heat transfer capacity
• Manitowoc will not honor the warranty on a remote unit paired with an existing condenser (must be purchased with condenser)

Dimensions & Utilities

• 48 in. W x 24 in. D x 29.5 in. H
• 19.3 A, 4 kW
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IYT1900N within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, designed for remote refrigeration (vertical condenser and lines sold separately), 48"W x 24"D x 29-1/2"H, production capacity up to 2020 lb at 70°/50° (1744 AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor

Manitowoc Ice IYT1900N Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
