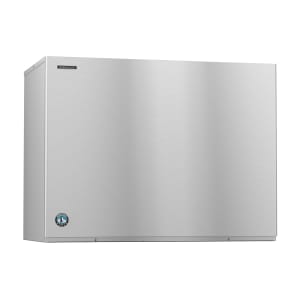

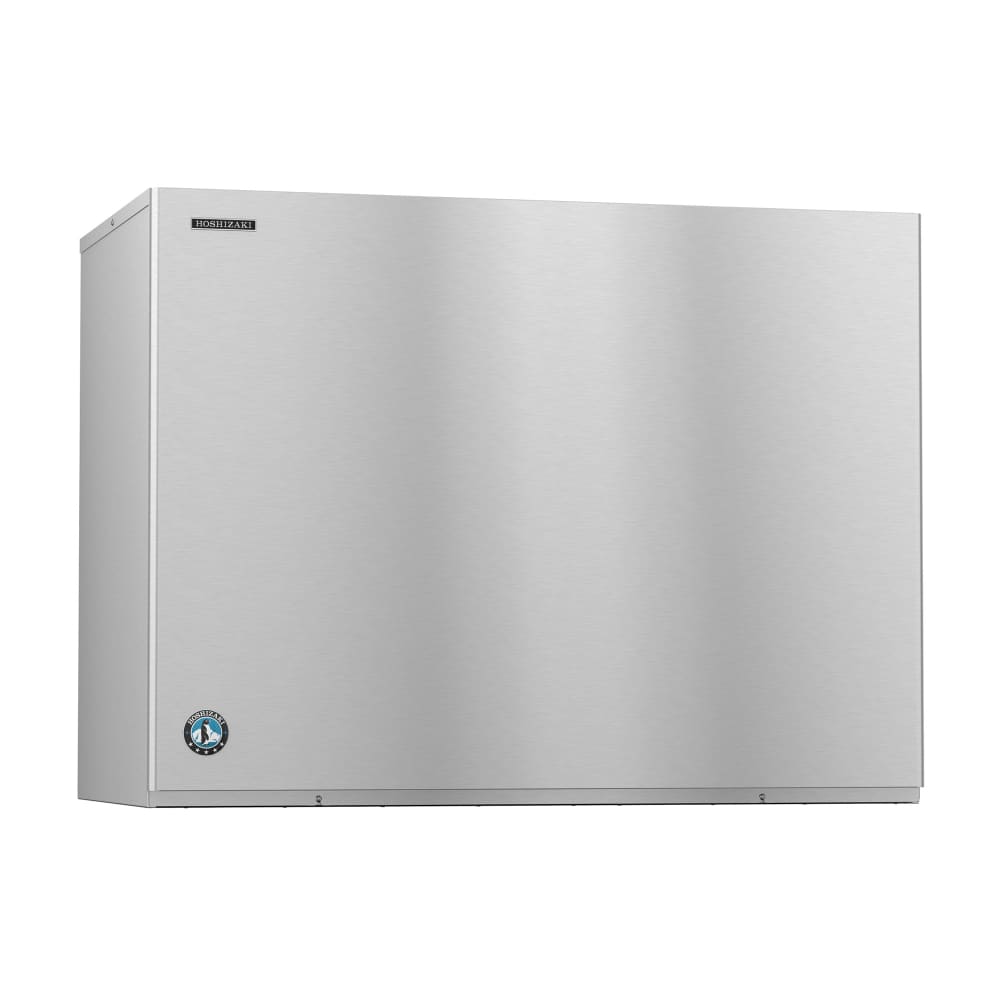

Hoshizaki KM-1900SRJZ 48" Crescent Cube Ice Machine Head - 1933 lb/24 hr, Remote Cooled, 208-230v/1ph

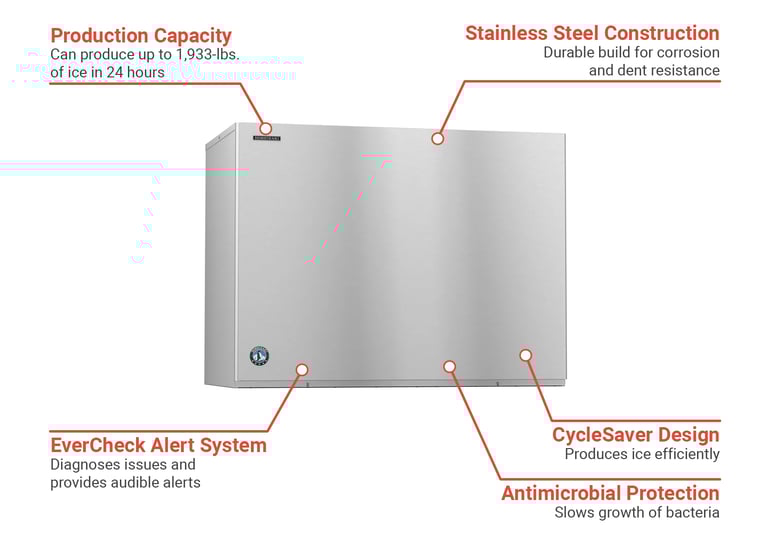

The Hoshizaki KM1900SRJZ ice maker head’s exterior and evaporator are made of stainless steel for durability and resistance to rust and corrosion. This unit uses H-GUARD Plus antimicrobial agent to sanitize the internal components. To facilitate proper air circulation, this unit requires 6 inches of clearance on the top, sides and rear.

The Hoshizaki KM1900SRJZ ice machine head is designed to be air cooled and requires operators to purchase a remote condenser and an ice bin for catching and storing produced ice. Under the proper conditions, this unit can produces 1,933 pounds of crescent cube style ice over a 24-hour period.

Product Details

• KM Series
• Remote air-cooled
• 1,933-lb. production per 24-hrs. at 70 degrees F ambient and 50 degrees F incoming water
• 1,700-lb. production per 24-hrs. at 90 degrees F ambient and 70 degrees F incoming water
• Produces individual crescent ice
• Crescent-cube ice size: 1¹/₈ in. W x ¹/₂ in. D x 1¹/₂ in. H
• Stainless steel exterior
• H-GUARD Plus antimicrobial agent
• EverCheck™ alert system
• CycleSaver™ design
• R404A refrigerant
• Requires remote condenser (sold separately)
• Ice bin sold separately
• 24,200 BTU
• "Z" model ice machine must be paired with "Z" model remote condenser

Optimal Operating Conditions

• Ambient temperature holding range: 45-100 degrees F
• Water temperature holding range: 45-90 degrees F
• Water pressure: 10-113 PSIG
• Clearances: 6-in. on both sides, 6-in. in rear, and 6-in. above
• Water supply requires copper water tubing with a minimum ³/₈-in. inner diameter
• Unit requires hard drain pipe with a minimum ³/₄-in. inner diameter

Dimensions & Utilities

• 48 in. W x 27³/₈ in. D x 36⁷/₁₆ in. H
• 15.9 A, 3.90 kW
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Hoshizaki KM-1900SRJZ within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, air-cooled, remote condenser (priced separately), production capacity up to 1933 lb/24 hours at 70°/50° (1700 lb AHRI certified at 90°/70°), crescent cube style, stainless steel finish, R-404A refrigerant, 208-230v/60/1-ph, 15.9 amps, protected with H-GUARD Plus Antimicrobial Agent, NSF, UL, ENERGY STAR® (always pair “Z” model ice machines with “Z” model remote condenser)

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
