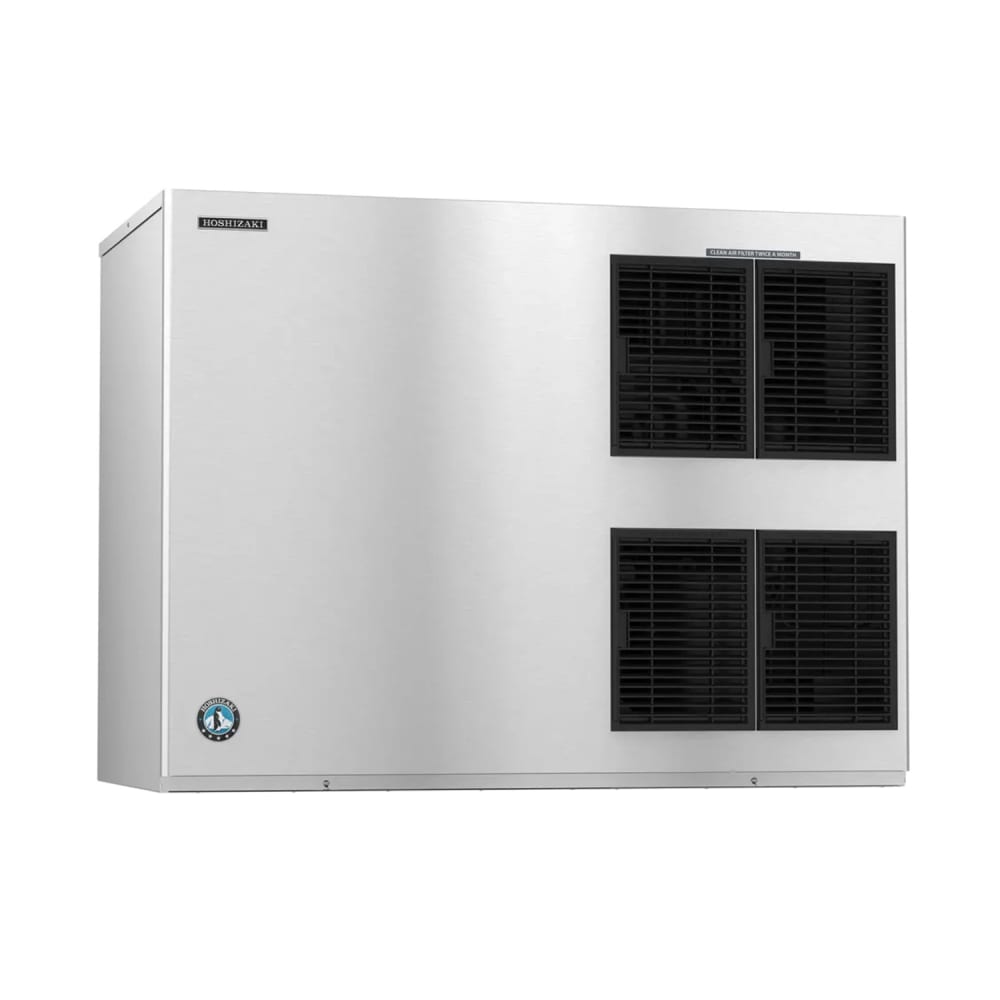

Hoshizaki KM-1900SAJ 48" Crescent Cube Ice Machine Head - 1875 lb/24 hr, Air Cooled, 208/230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 440-KM1900SAJ • MPN: KM-1900SAJ
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $7,080.00

Image may not depict product color, inclusions or accessories.

Hoshizaki KM-1900SAJ Description


The Hoshizaki KM-1900SAJ crescent cube ice machine head has a stainless steel exterior that resists corrosion, scratches, dents, and other minor damage. The panels are removable so maintenance can be performed and internal components can be cleaned. The self-contained condensing system is air cooled, making it easy to install and maintenance. Like the exterior, the evaporator is made of stainless steel to resist corrosion caused by exposure to water and ice.

The interior components are made with H-Guard Plus™ antimicrobial agent to slow bacteria growth between cleanings. An audible alarm sounds when the EverCheck™ feature detects issues, reducing the risk of a system malfunction. The CycleSaver™ technology allows the ice maker to produce the same amount of ice as competitors in half as many cycles, lengthening the life of the machine.

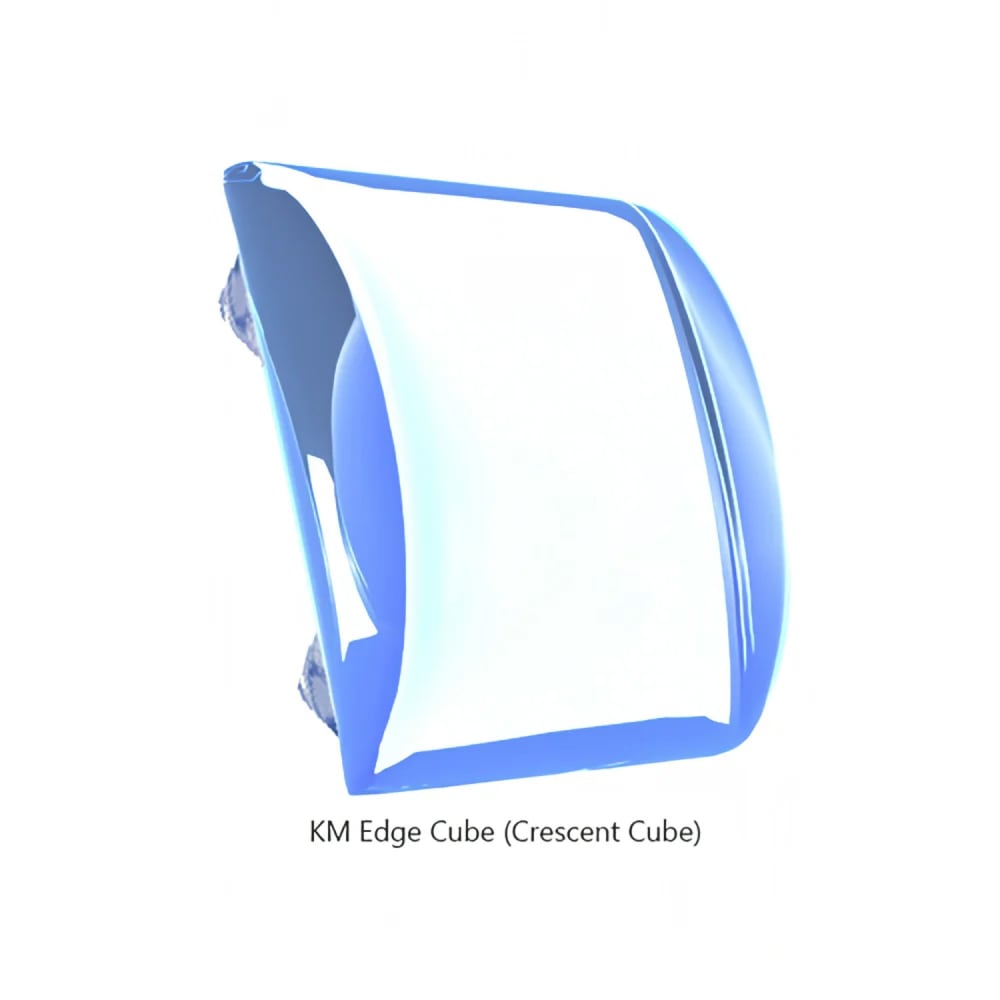

Crescent cube ice is harder than other ice types, will not melt as quickly, and has a unique shape that allows cups to hold more ice when compared to traditional cubes. Depending on the ambient air and water temperatures, the Hoshizaki KM-1900SAJ crescent cube ice machine head can produce between 1,675 and 1,875 pounds of ice in 24 hours.

Product Details

  • Crescent cube ice is harder than other ice types and melts slowly
  • 1,675-1,875 lbs. ice production range in a 24-hr. period
  • Stainless steel exterior is heavy duty and easy to clean
  • Cool temperatures are maintained with R-404A refrigerant
  • Stainless steel evaporator resists corrosion
  • Air-cooled condensing system is self-contained for easy installation
  • Panels are removable for maintenance and cleaning
  • Ice storage bin is sold separately
  • 21,200 BTU
  • 208-230 V/60 Hz/1 ph, 14.5 A
  • Ice Dimensions: 118 in. W x 12 in. D x 112 in. H
  • Overall Dimensions: 4814 in. W x 27716 in. D x 36716 in. H
  • UL listed; AHRI, NSF, and ENERGY STAR certified

Innovative Technology

  • CycleSaver technology produces the same amount of ice in half the cycles when compared to competitors
  • H-Guard Plus antimicrobial agent slows the growth of bacteria between cleanings
  • EverCheck system alerts the operator of issues before they lead to system failures

Product Features

Hoshizaki km1900saj Features

Operation Requirements

  • Can operate in an environment with 45-100 degrees F ambient temperature
  • Can operate in an environment with 45-90 degrees F water temperature
  • Water pressure should be between 10-113 PSIG
  • Requires a 6-in. clearance on the rear, sides, and top for ideal air circulation

Ice Maker, Cube-Style, 48"W, air-cooled, self-contained condenser, production capacity up to 1875 lb/24 hours at 70°/50° (1675 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 14.5 amps, NSF, UL, ENERGY STAR®

Warning Small Important Prop 65 information for California residents.

Hoshizaki KM-1900SAJ Specifications

PDF Spec Sheet
Manufacturer Hoshizaki
24 Hr. Production (lbs) 1875
Height (in) 36.4
Ice Type Crescent Cube
Warranty 3-yr parts & labor; 5-yr parts & labor on evaporator; 5-yr parts on compressor & air-cooled condenser
Voltage 208/230
Compressor Type Air Cooled
Hertz 60
Phase 1
Product Type Ice Makers & Bins
Recommended Bins B-800PF, B-800SF, B-900PF, B-900SF, B-1150SS, B-1300SS, B-1500SS, B-1650SS
Depth (in) 27.4
Width (in) 48
Product Ice Machine Head
Cold Water (in) 1/2
Indirect Waste Size (in) 3/4
Amps 14.5
Production Range (per day) 1500-2099 lb
Width (in) Range 40-49
Special Features CycleSaver™
Weight 415.00
Hoshizaki KM-1900SAJ Certifications
  • UL
  • NSF
  • Energy Star
