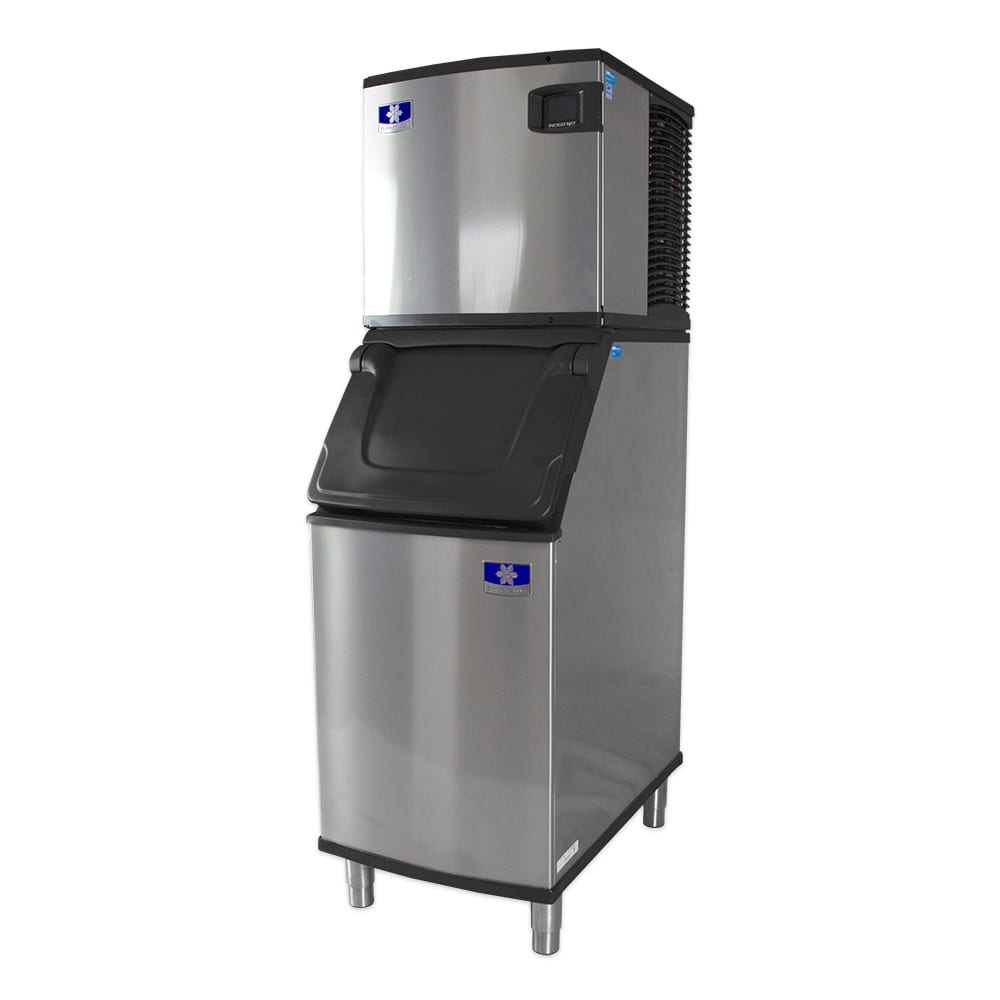

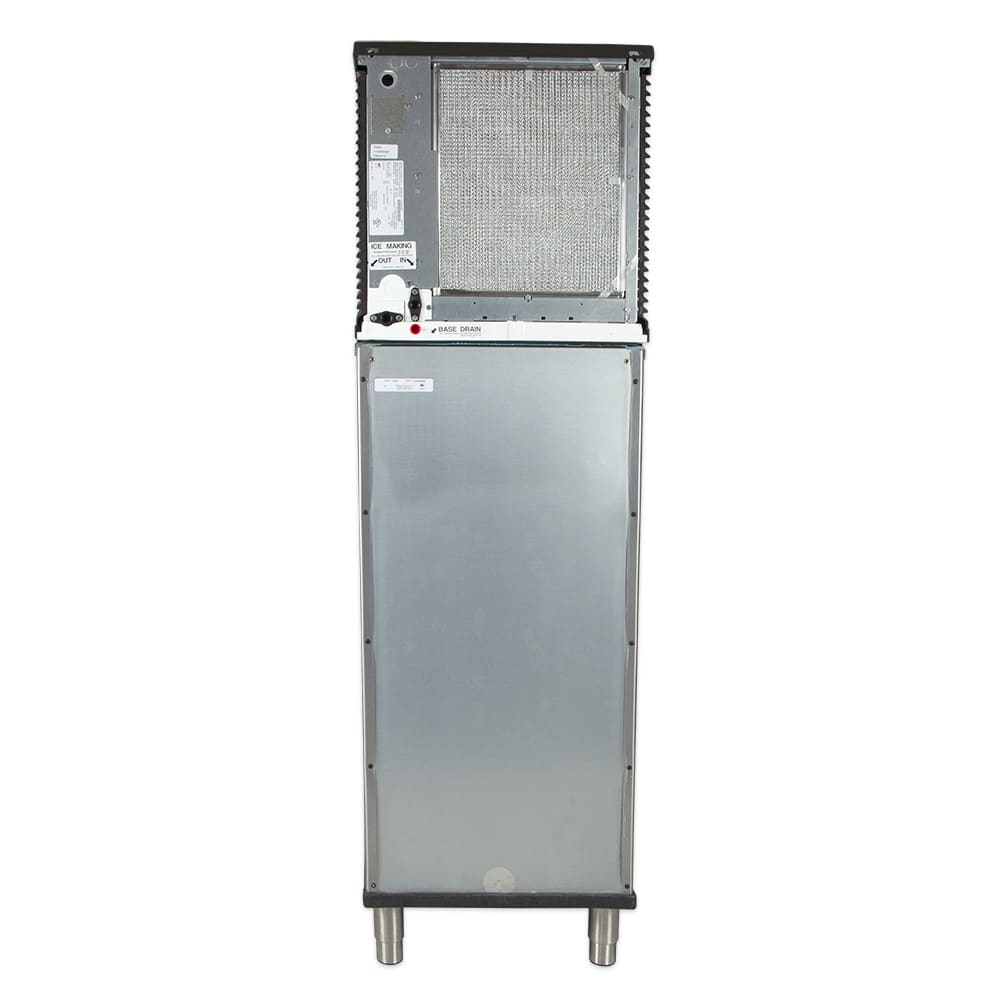

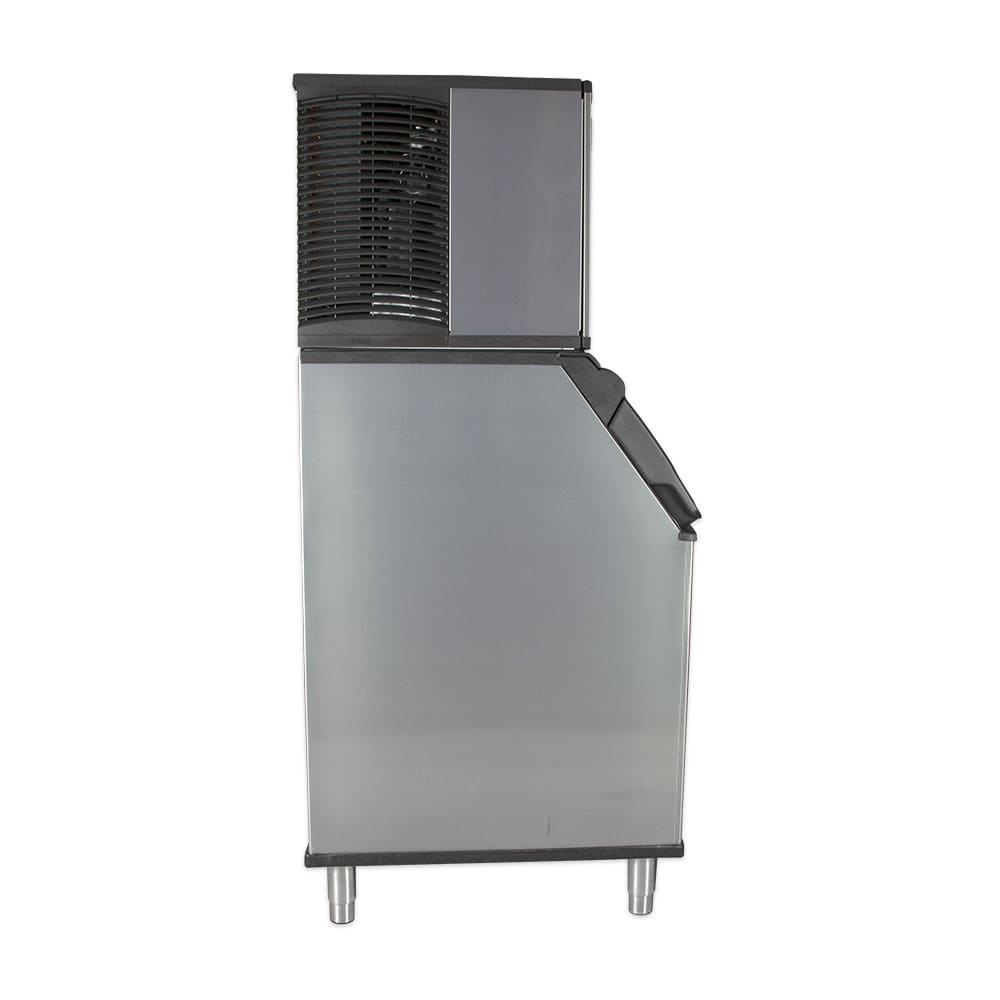

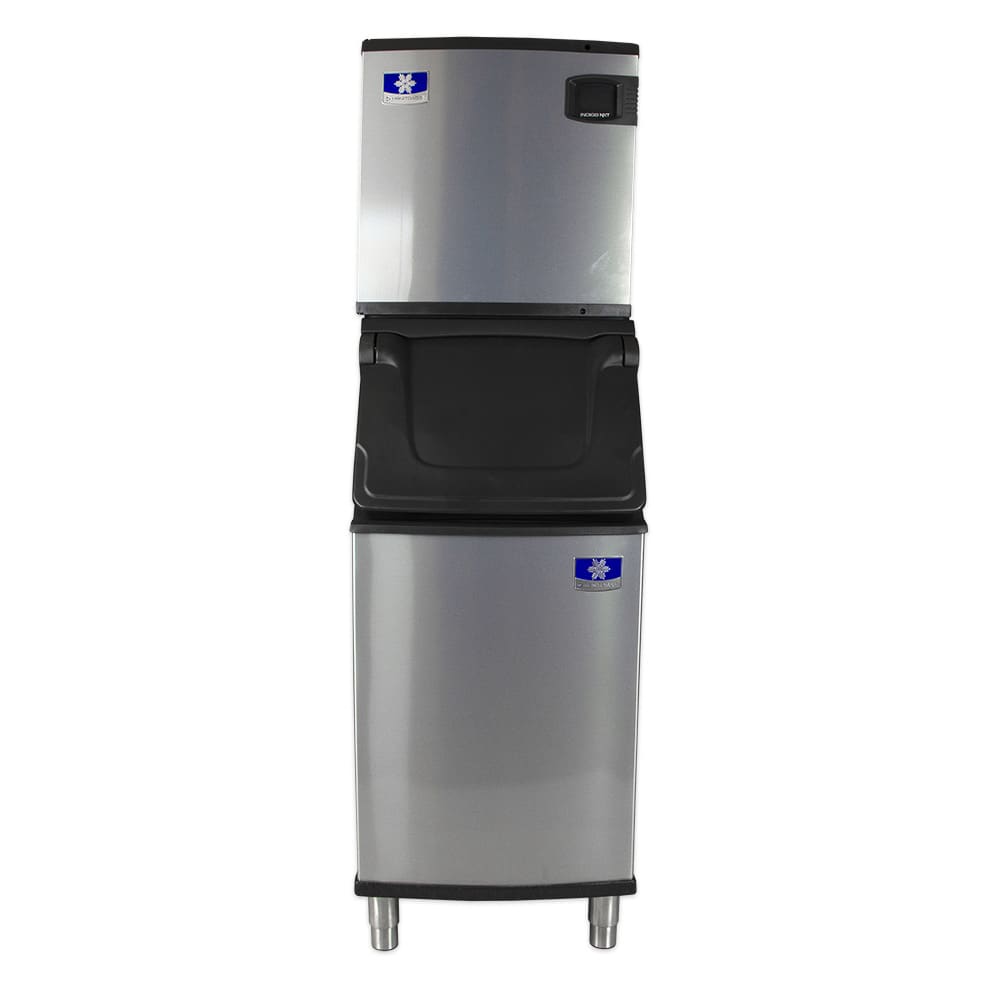

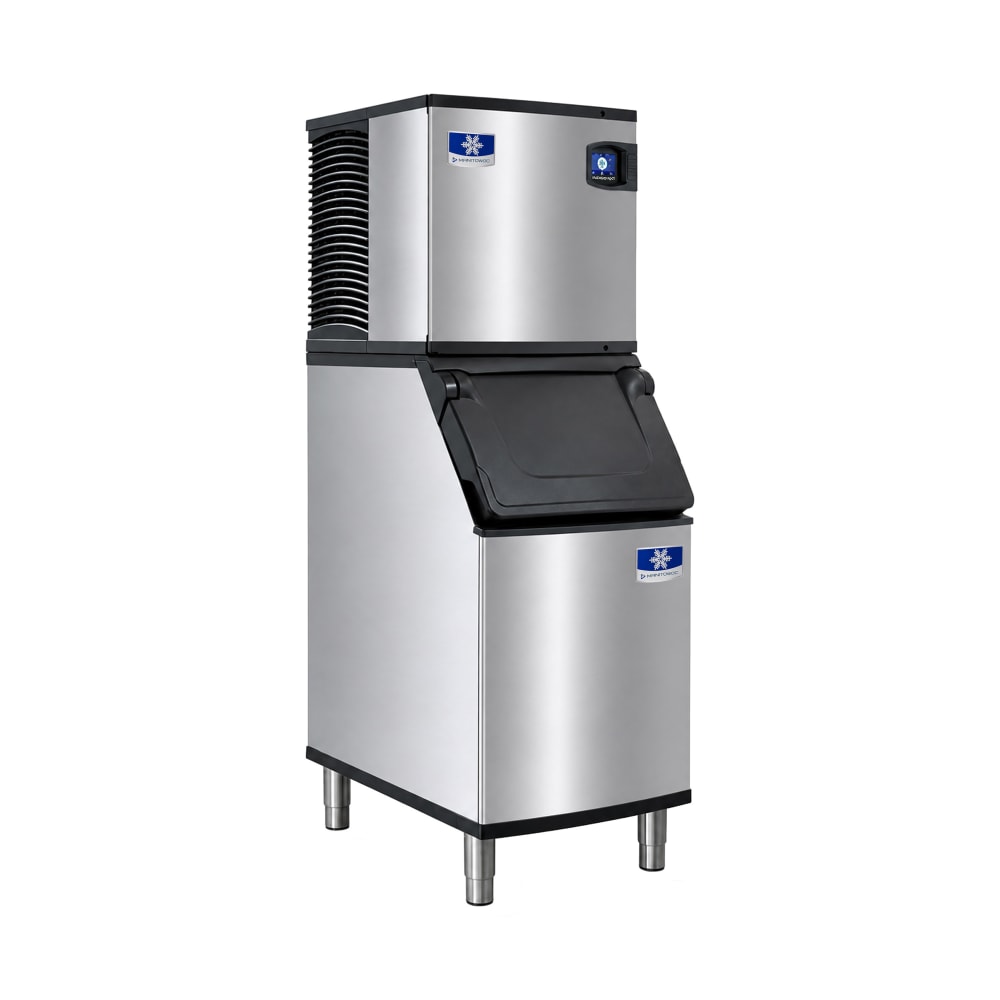

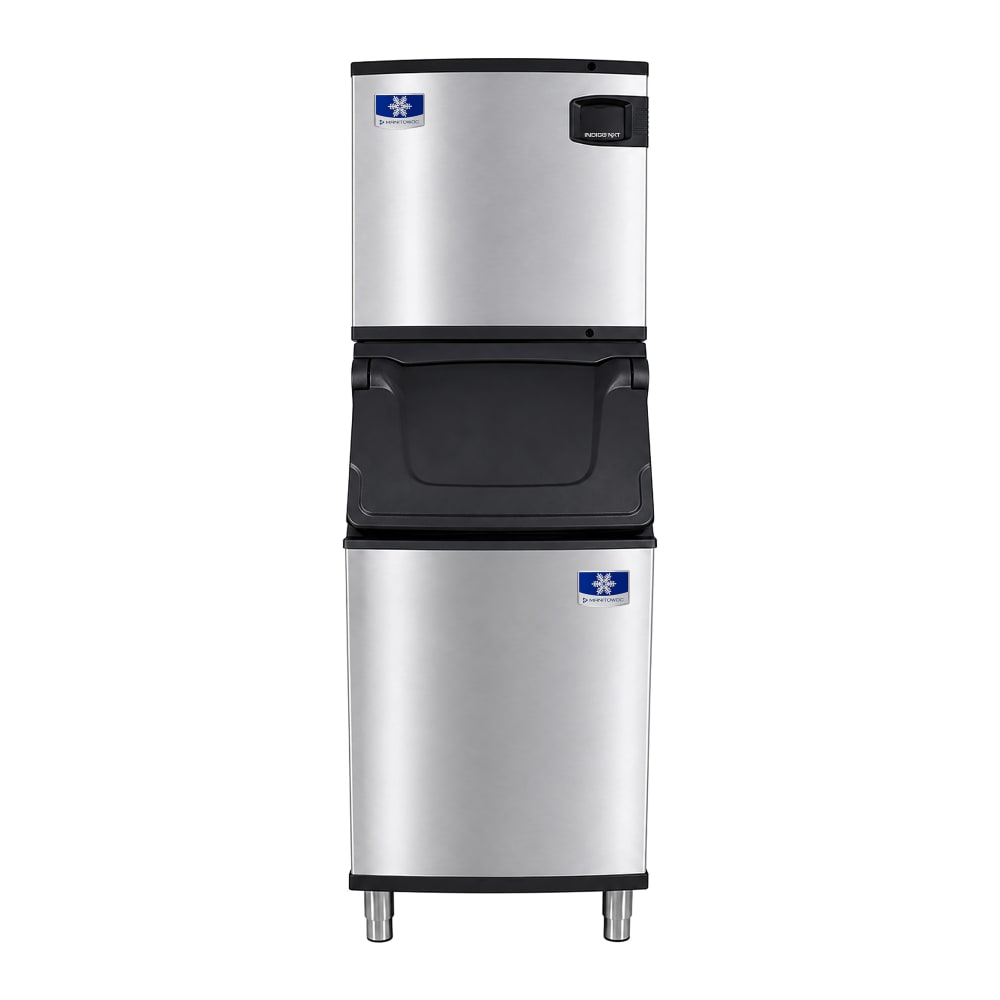

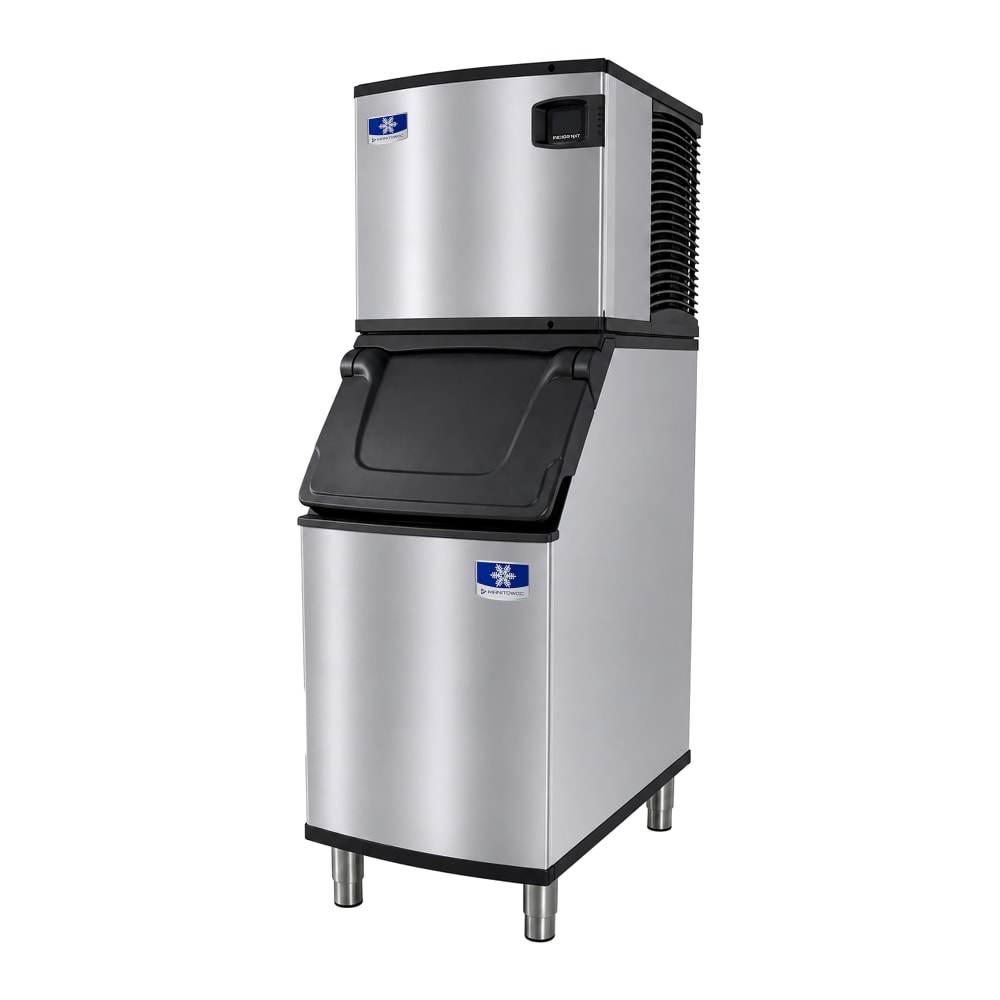

Manitowoc Ice IYT0620A/D420 575 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 383 lb Storage, Air Cooled, 115v

Producing half dice ice, the Manitowoc Ice IYT-0620A-161/D-420 Indigo NXT™ ice maker with bin is perfect for applications that serve soft drinks and blended frozen drinks. Each day, the unit can make as much as 575 pounds of ice, based on time of day or volume. Ice thickness and consistency are measured by the acoustical sensing probe. Preventive maintenance runs to monitor the system, and the unit provides diagnostic feedback.

The ice machine head dispenses into a bin that is AHRI certified to hold 310 pounds of ice. Self-latching, the door stays open when the operator is scooping. The door is set at a 53-degree angle, so it is easy to access the bin bottom. A 5.3-pound-capacity scoop is included with the Manitowoc Ice IYT-0620A-161/D-420 ice maker with bin. Its molded-in retaining lip maximizes the scooping capacity, while the knuckle and thumb guard prevent cross contamination.

Product Details

• Part of the Indigo NXT series
• 575-lb. maximum daily ice production
• 465-lb. AHRI-certified ice production

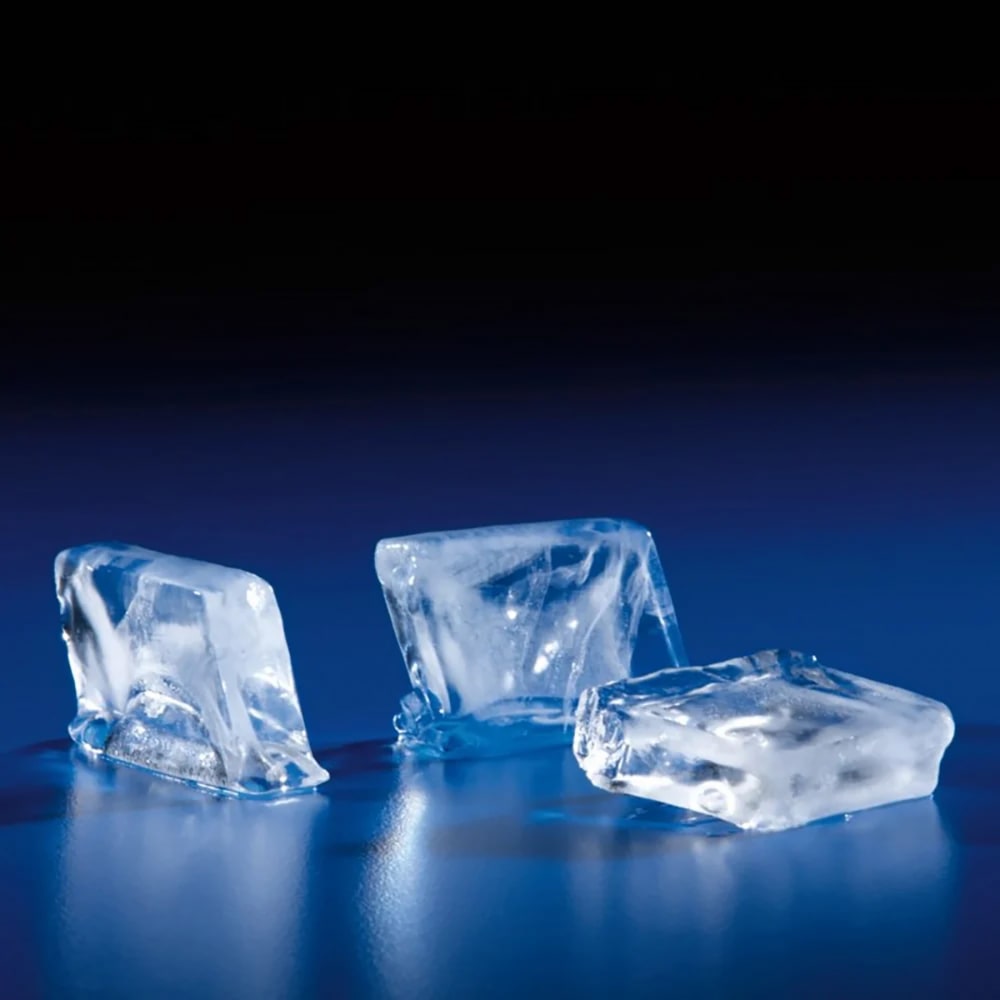

• Makes half cube ice
• easyTouch® display
• Daily ice production is programmable based on time of day or volume
• Acoustical sensing probe monitors thickness in every cycle
• 24-hr. preventive maintenance and diagnostic feedback
• Easy-to-access foodzone with a hinged, swing-out door
• Removable curtain, water probe, distribution tube, water pump, and water trough
• AlphaSan antimicrobial agent slows bacteria growth on some components
• DuraTech™ exterior is corrosion resistant and keeps fingerprints hidden
• Ambient air should be between 40-110 degrees F
• Incoming water should be between 40-90 degrees F
• 5,400-6,300 BTU
• 12.2 A, 5.18 kW
• 115 V/60 Hz/1 ph

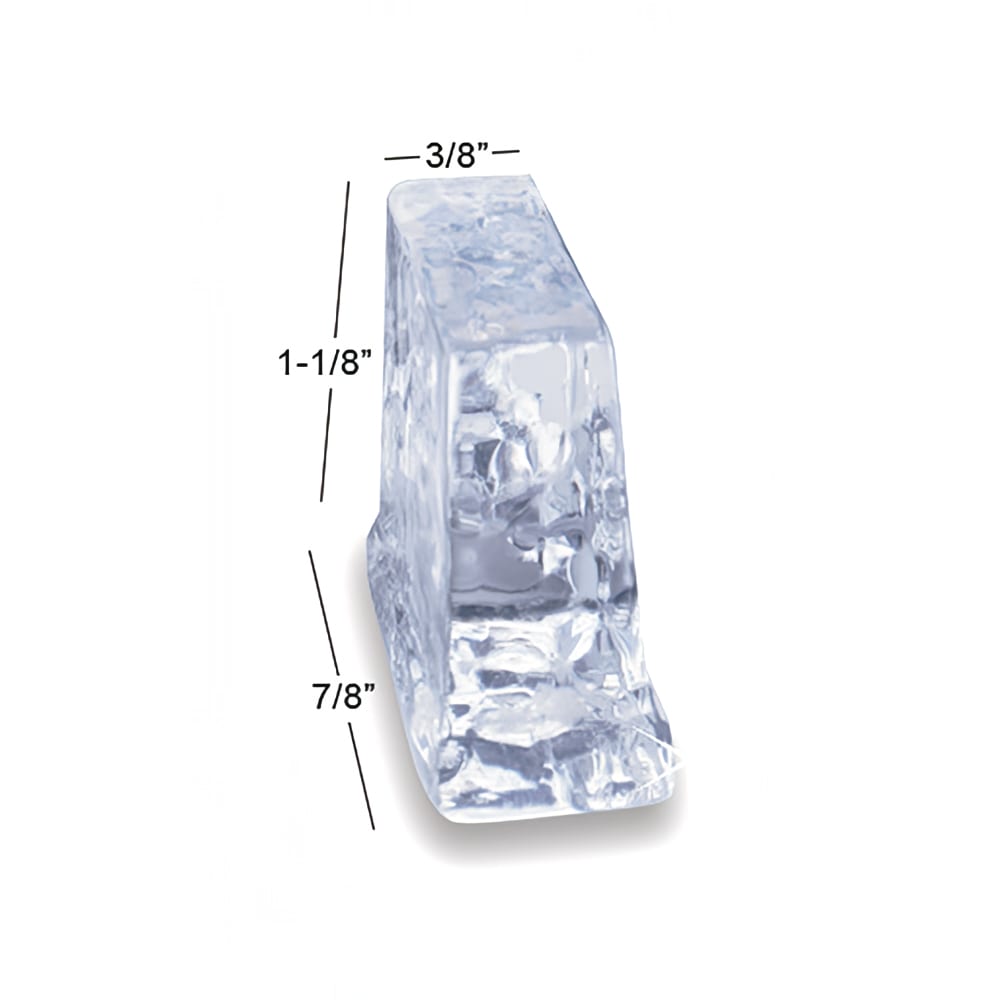

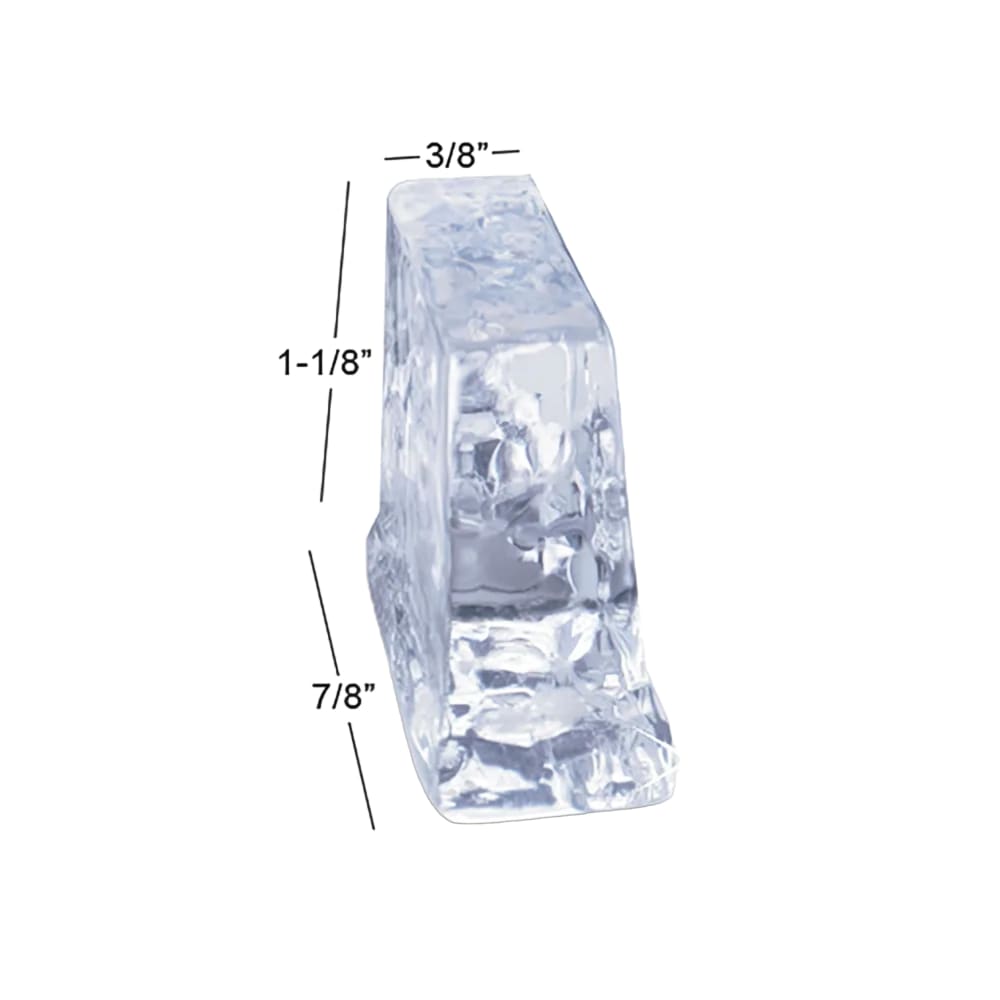

• Ice dimensions: 0.375 in. x 1.125 in. x 0.875 in.
• Overall dimensions: 22 in. W x 34 in. D x 71.5 in. H

Product Features

D-420 Ice Storage Bin

• 383-lb. application capacity
• 310-lb. AHRI-certified capacity
• Arctic blue, polyurethane interior liner
• Right, left, and center grips on the door

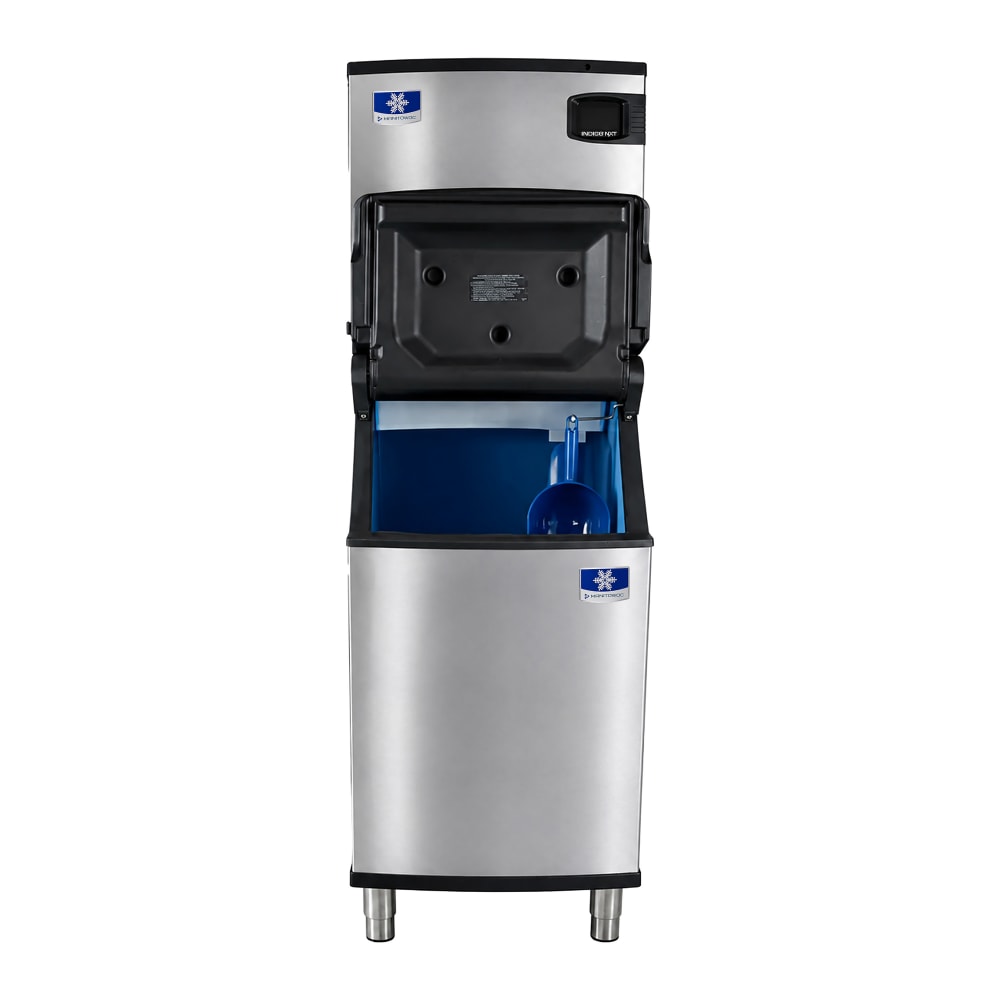

• Door is self-latching, staying open during scooping
• Door has a 53-degree angle that provides bottom of the bin access
• Foam-insulated door reduces condensation on the unit
• Ergonomic, 5.3-lb.-capacity ice scoop
• Scoop's built-in knuckle and thumb guard does not allow hands to touch ice
• Molded-in scoop retaining lip

*Free shipping on Manitowoc Ice IYT0620A/D420 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 575 lb/24 hours at 70°/50° (465 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 22"W, 34"D x 50"H, with side-hinged front-opening door, side grips, 383 lbs. application capacity, AHRI certified 12.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IYT0620A/D420 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
