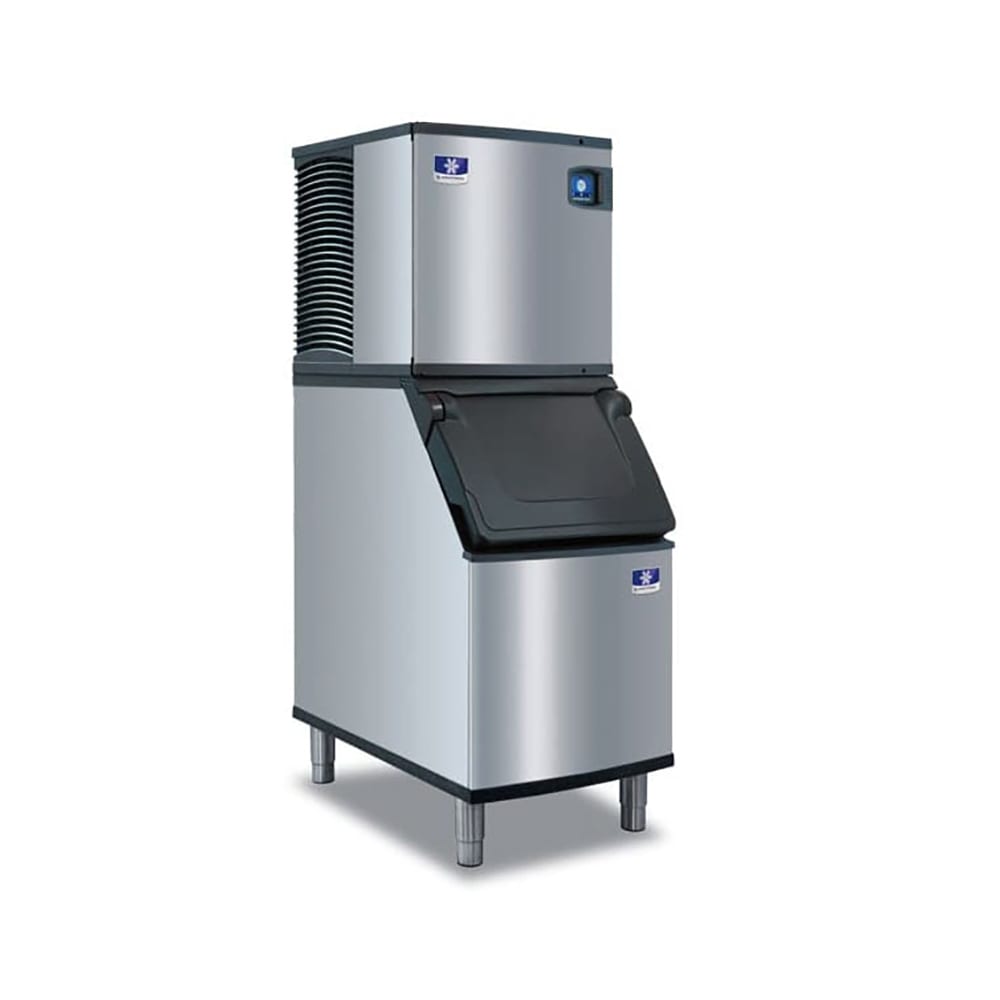

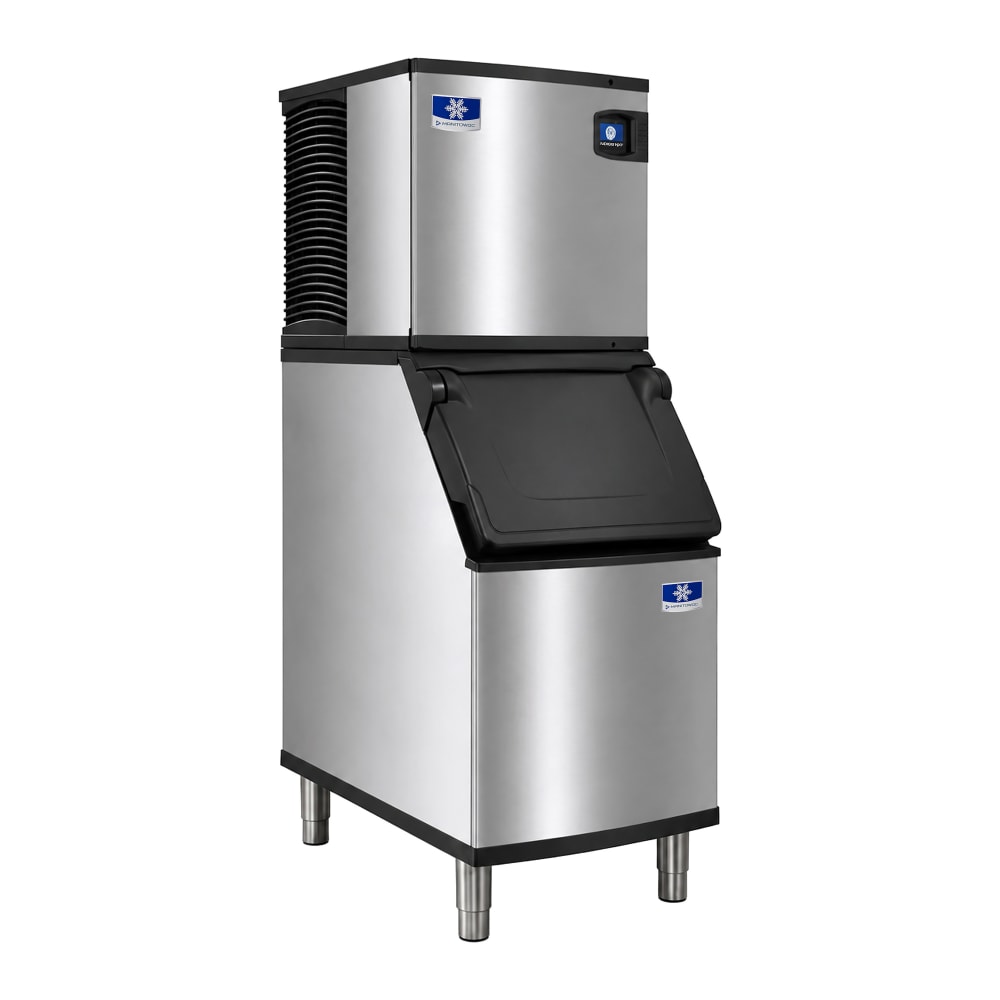

Manitowoc Ice IYP0620W/D420 510 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 383 lb Storage, Water Cooled, 115v
QUICK SHIP: Ships in 1 Business Day
$6,202.00 /Each
Contact us for details!
Selected Ice Type: Half Cube
Selected Compressor Type: Water Cooled
Manitowoc Ice IYP0620W/D420 Description
The Manitowoc Ice IYP0620W-161/D420 Indigo NXT™ ice machine with bin has a 510-pound daily production capacity if it is installed in an area where ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. It makes half-cube ice, which is ideal for drinks since it cools them down quickly. Ice production can be adjusted based on time of day and volume, and an acoustical probe ensures the cycles produce a consistent thickness.
An ice scoop is included with the Manitowoc Ice IYP0620W-161/D420 ice maker with bin, and knuckle and thumb guards are integrated to prevent hands from contaminating the ice. The bin holds 383 pounds of ice, which is insulated by a foam door and protected by a rust-proof liner. Grips in each side of the door enable operators to open it from any side.
- 510-lb. daily ice production capacity
- Ice production is programmable according to volume and time of day
- Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
- Acoustical sensing probe measures ice thickness and consistency
- easyTouch® display with alerts, messages, and operating status are touchscreen
- Hinged door has a swing-out design for internal components
- Removable water pump, water trough, curtain, water probe, and distribution tube
- AlphaSan® antimicrobial protection slows bacteria growth on select components
- Stainless steel exterior is finished with a clear DuraTech™ coat, resisting corrosion and fingerprints
- Uses R290 refrigerant
- Part of the Indigo NXT series
- 5,400 average BTU; 6,300 peak BTU
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- 383-lb. application capacity
- 12.9-cu.-ft. AHRI-certified capacity
- 5.3-lb. ice scoop capacity
- Guard on the scoop keeps users hands out of the ice to prevent contamination
- Foam-insulated door holds cold air inside to slow melting
- Grips on the door's center, right, and left sides facilitate opening from different angles
- Door stays open on its own with a latch to support scooping
- DuraTech exterior
- Ice Maker
- 22 in. W x 24 in. D x 21.5 in. H
- 11.6 A, 3.87 kW
- 115 V/60 Hz/1 ph
- Ice Bin
- 22 in. W x 34 in. D x 50 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Manitowoc Ice IYP0620W/D420 within the 48 contiguous states.
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22"W x 24.5"D x 21.5"H, production capacity up to 510 lb/24 hours at 70°/50° (465 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R290 refrigerant, NSF, cULus, CE
Ice Bin, 22"W, 34"D x 50"H, with side-hinged front-opening door, side grips, 383 lbs. application capacity, AHRI certified 12.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF
Watch a video about this product
Manitowoc Ice IYP0620W/D420 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Manitowoc Ice |
| 24 Hr. Production (lb) | 510 |
| Access | Lift Up Door |
| Also Known As | IYT0620W/D420 |
| Bin Capacity (lb) | 383 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 71.5 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Kitchen Innovations Awards | 2011 |
| Kitchen Innovations Awards | 2019 |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Indigo NXT™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 248.00 |
