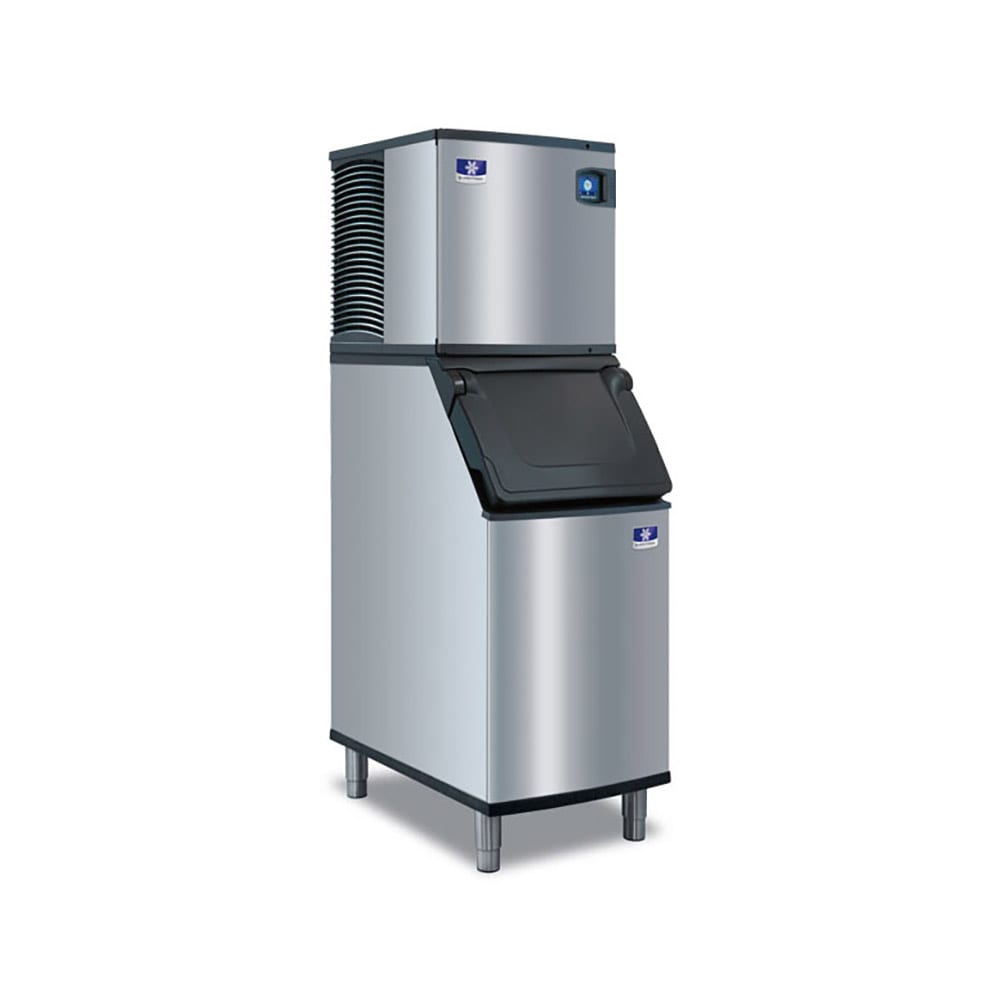

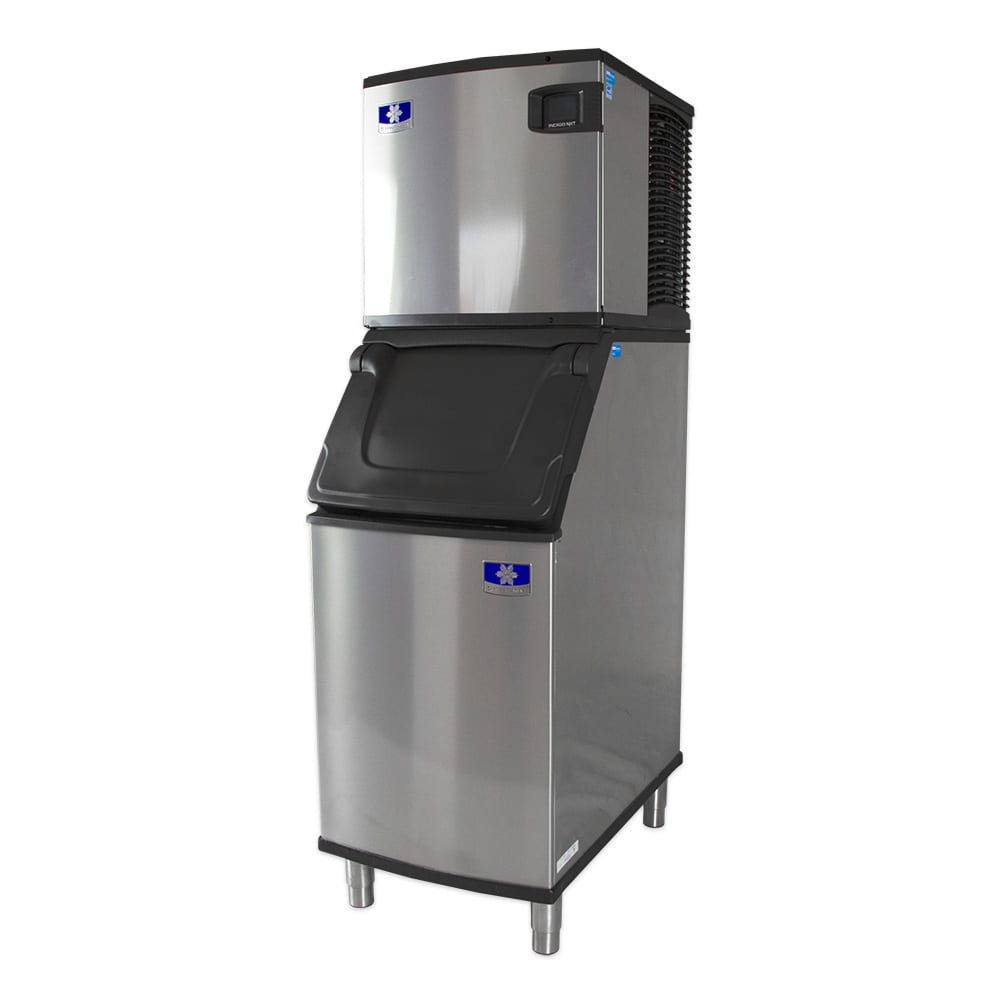

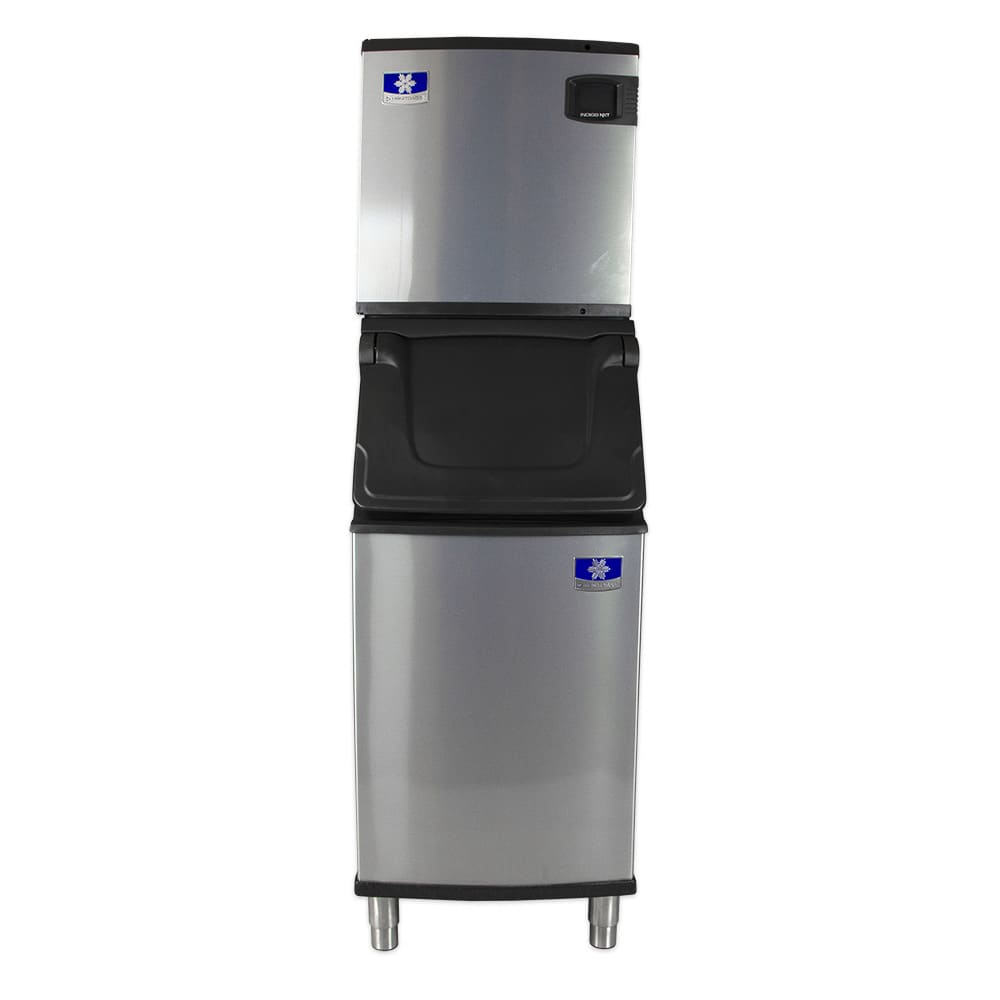

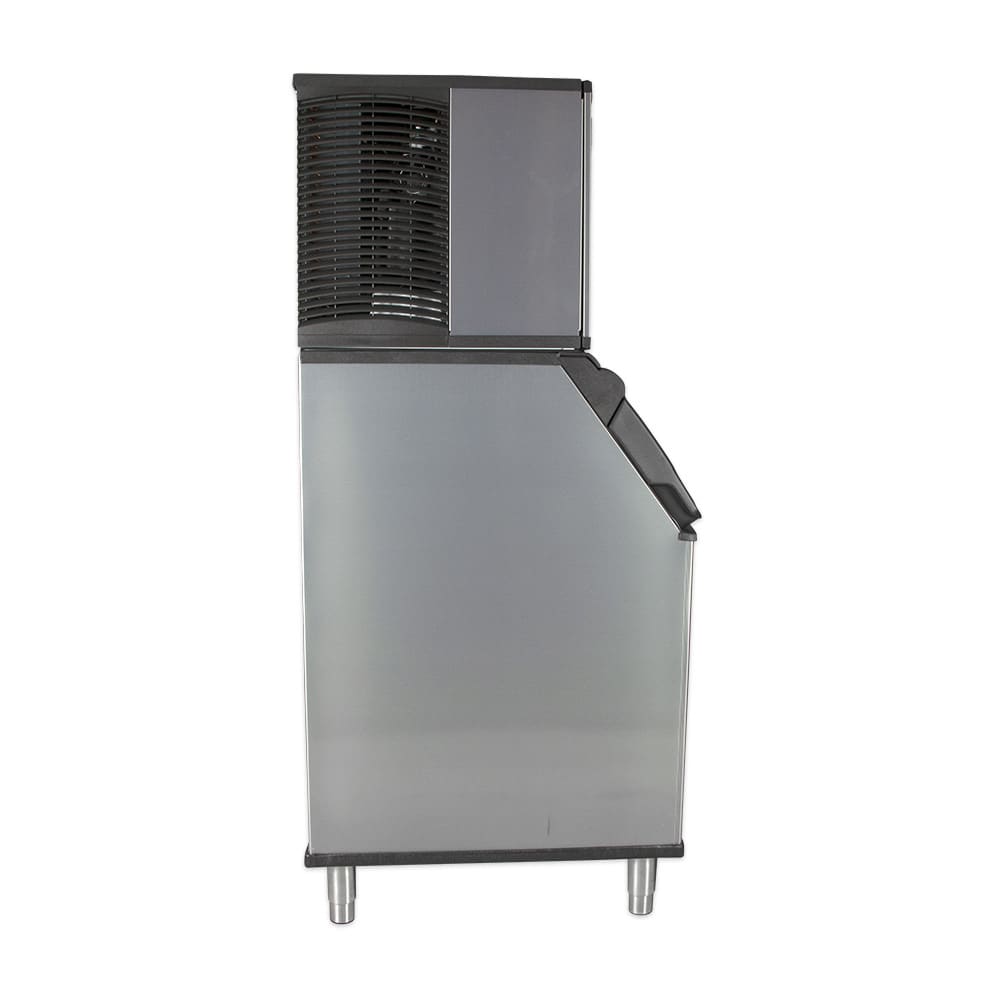

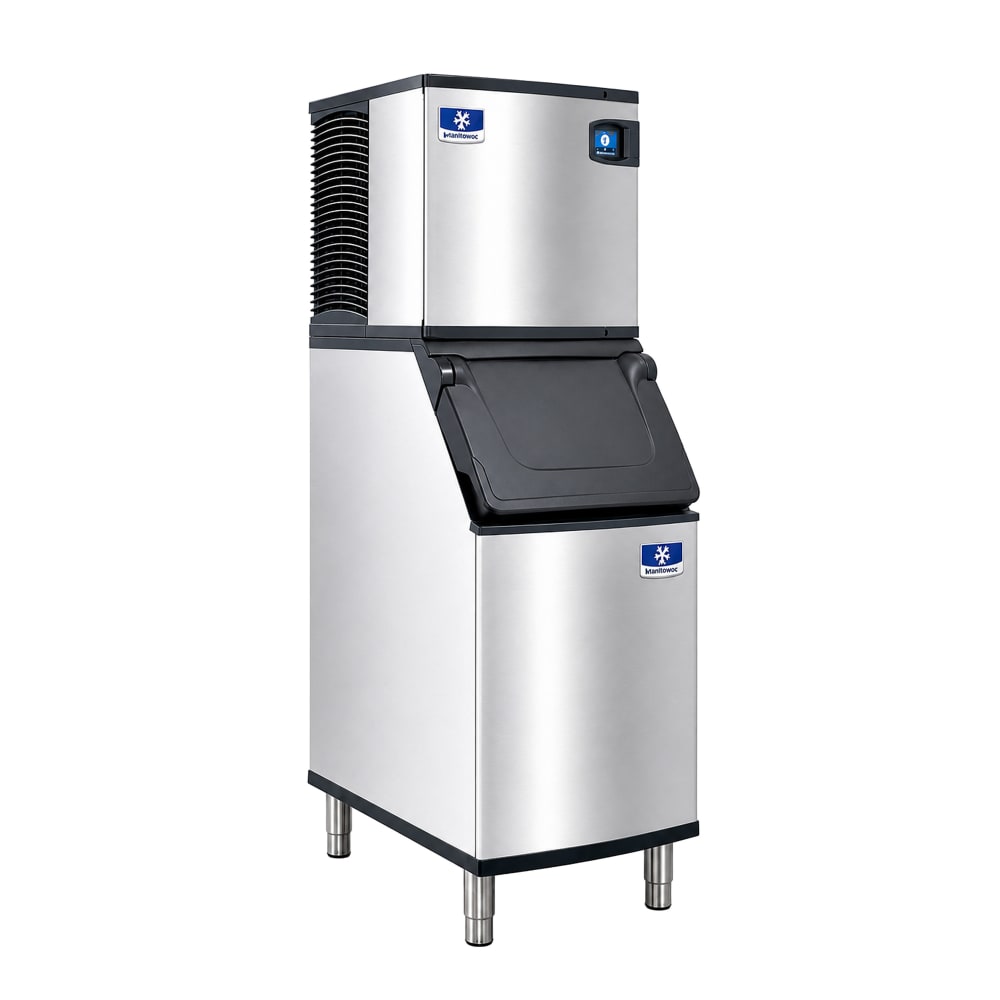

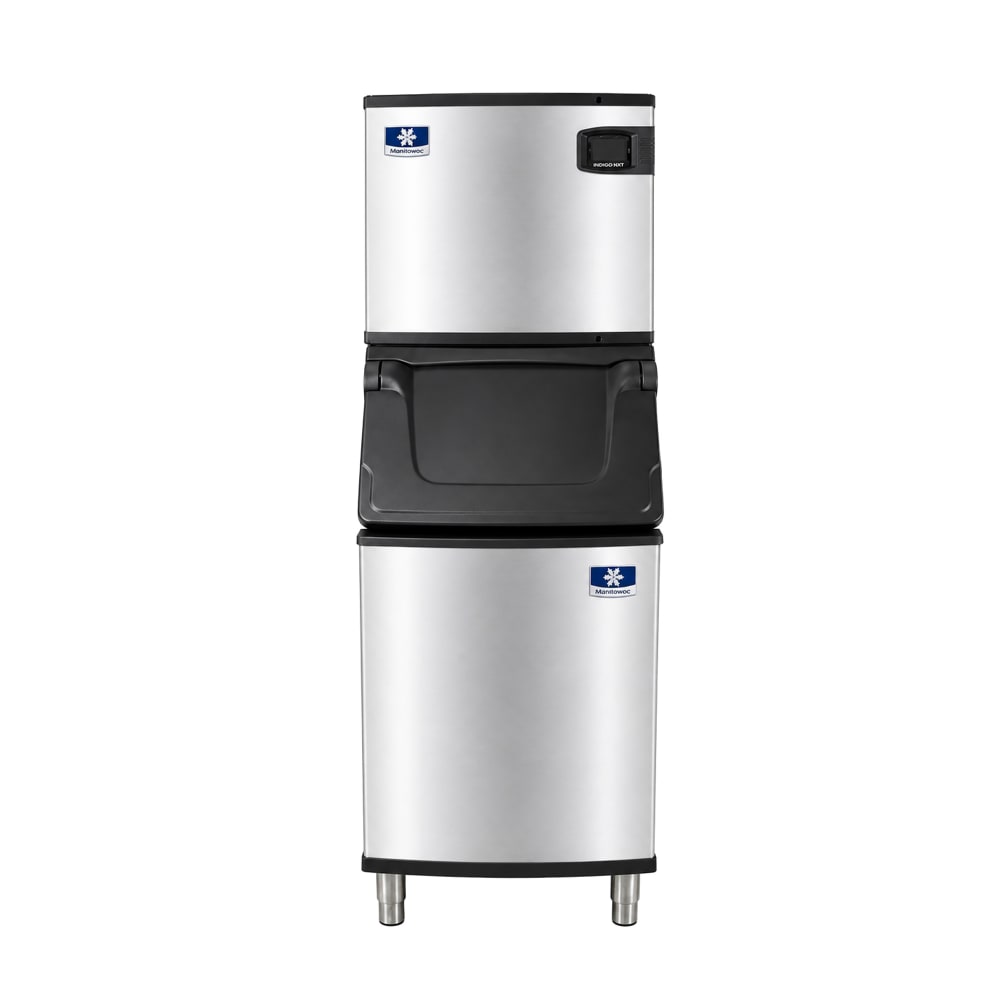

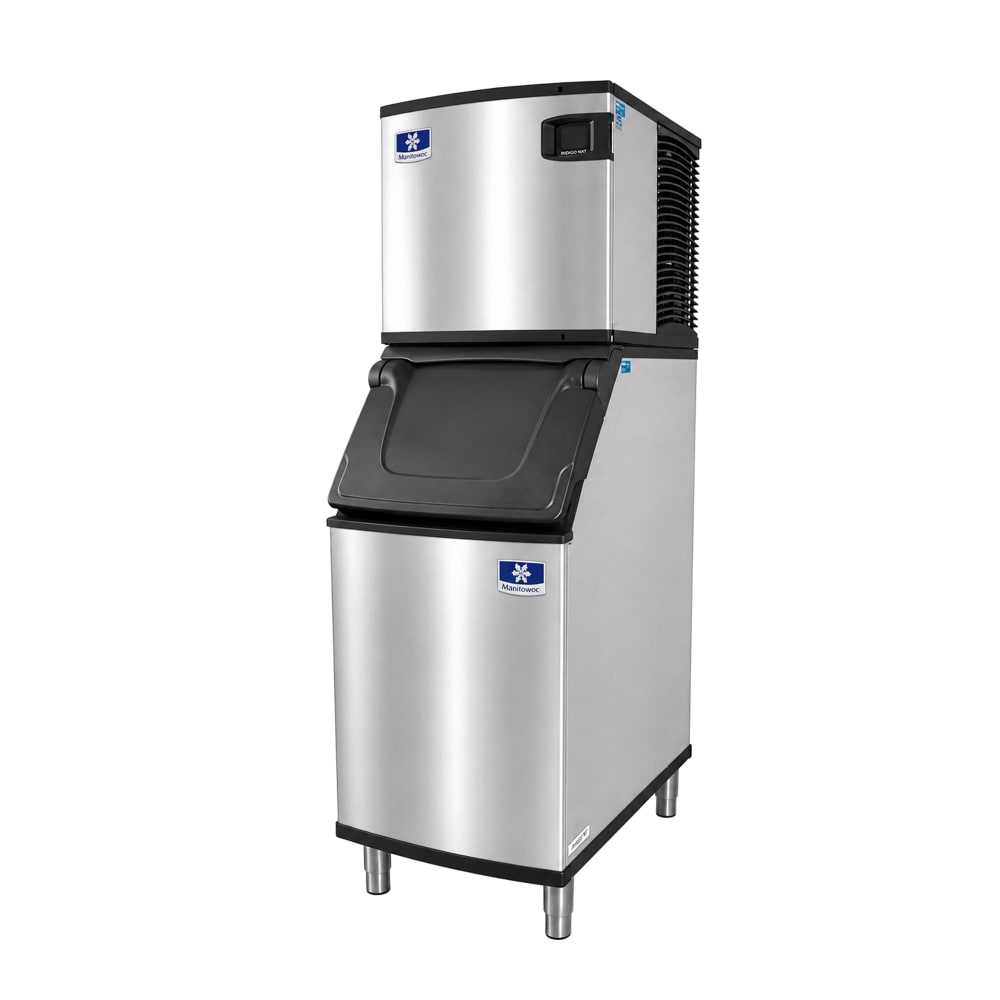

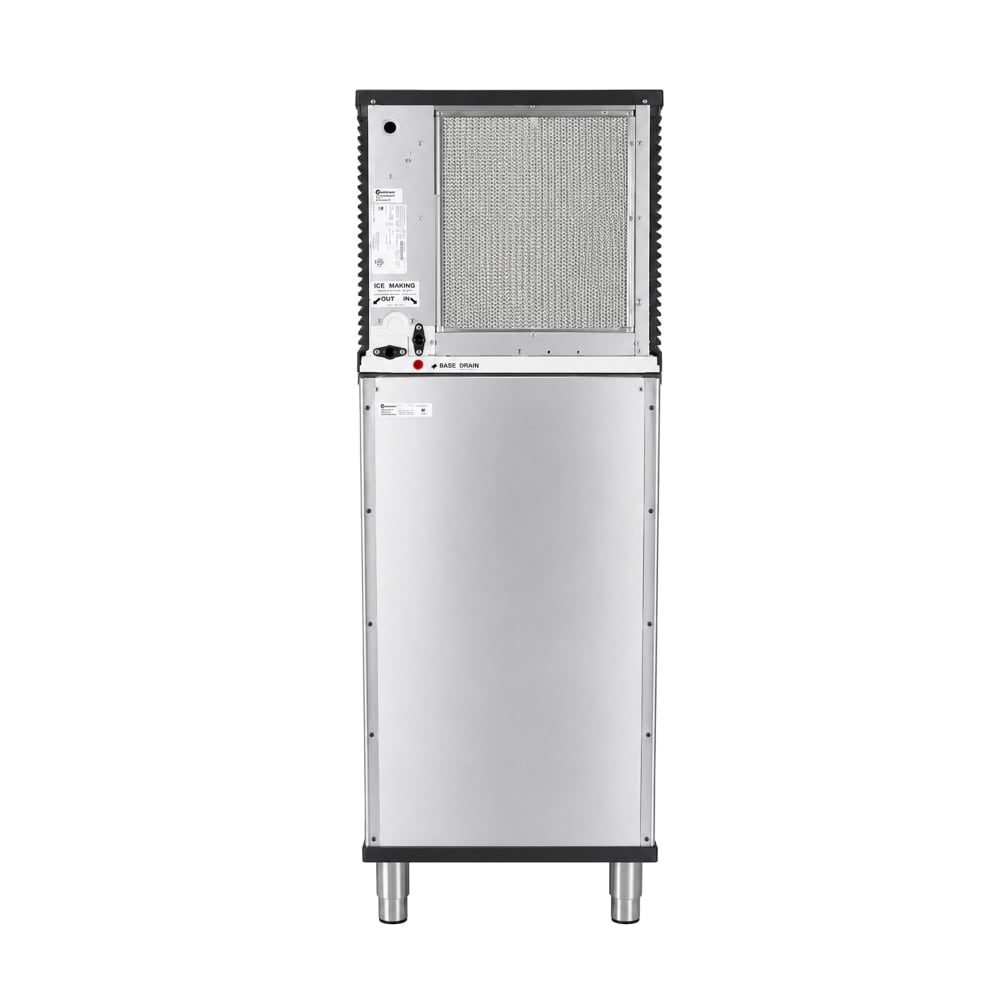

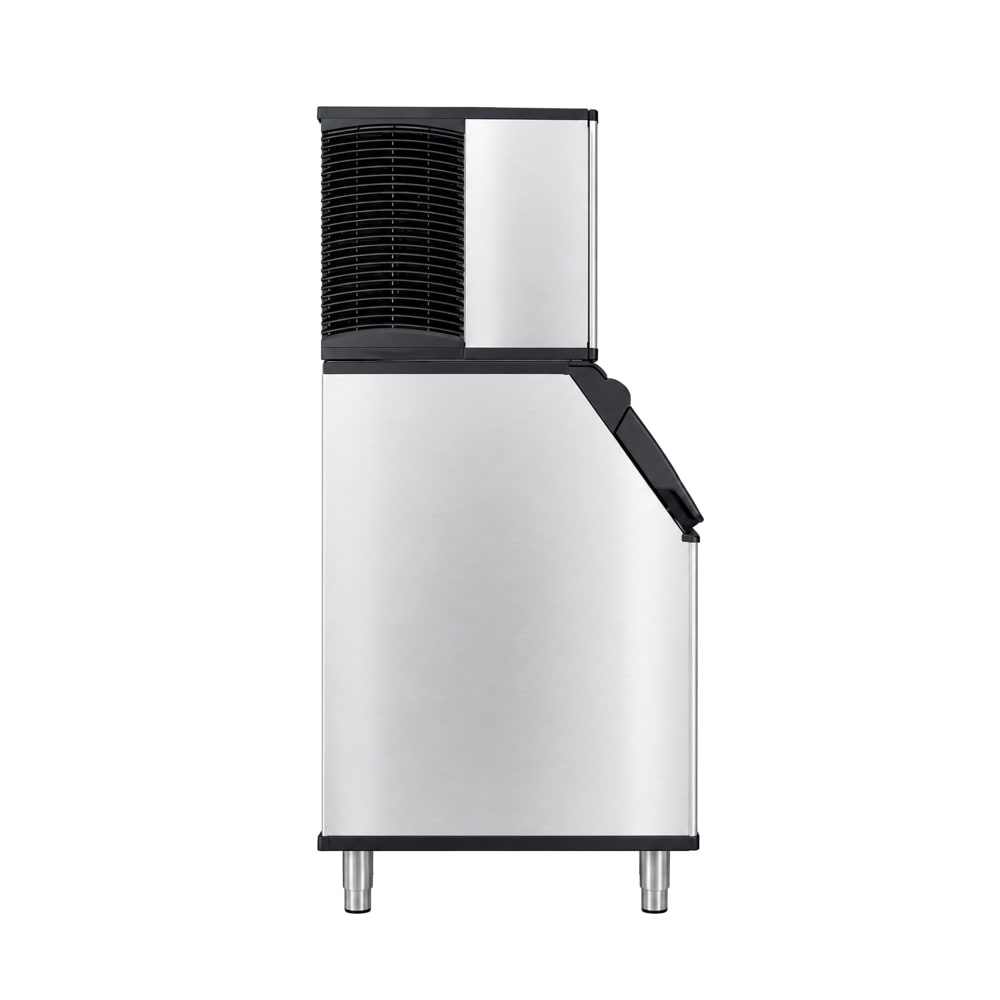

Manitowoc Ice IDT-0620A/D-420 560 lb Full Cube Ice Maker w/ Bin - 383 lb Storage, Air Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 399-IDT0620AD420 • MPN: IDT0620A-161/D-420
Ships Free

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Price: $3,887.00
Login or call us for more info!

Image may not depict product color, inclusions or accessories.

Manitowoc Ice IDT-0620A/D-420 Description

Manitowoc Ice

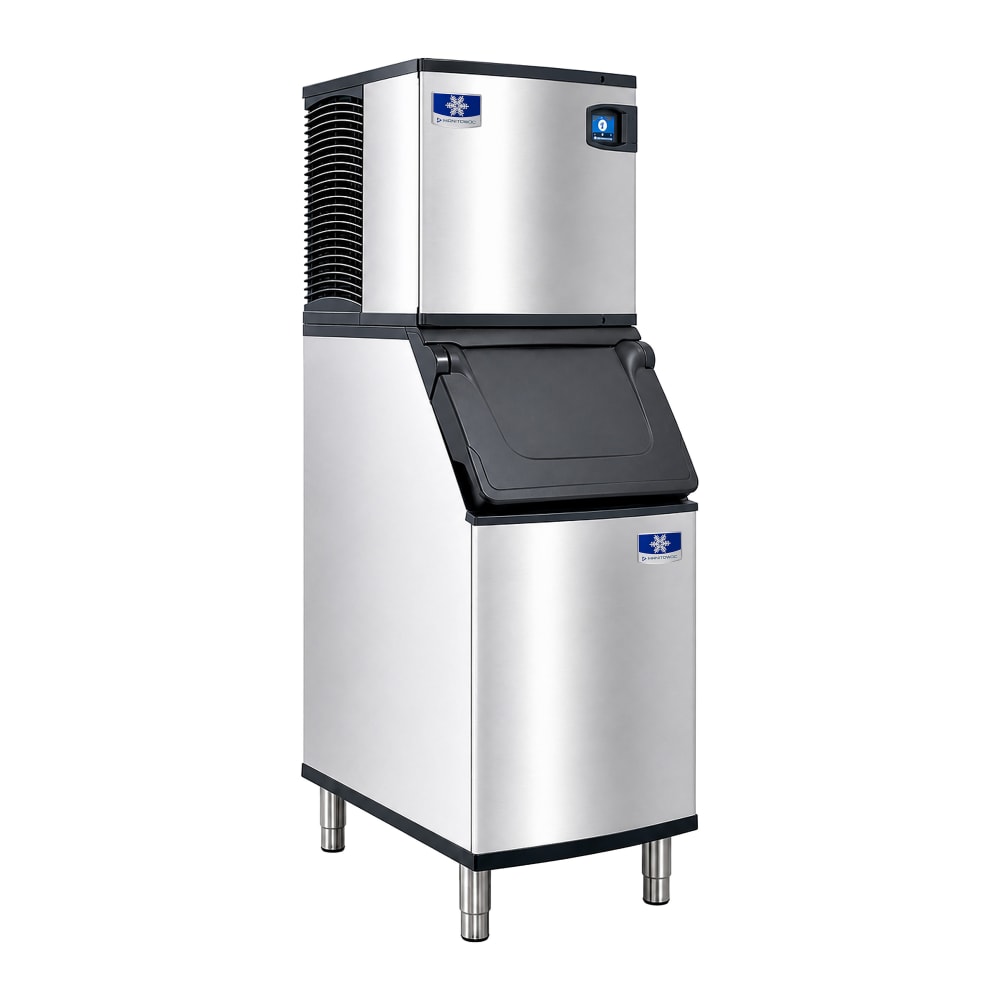

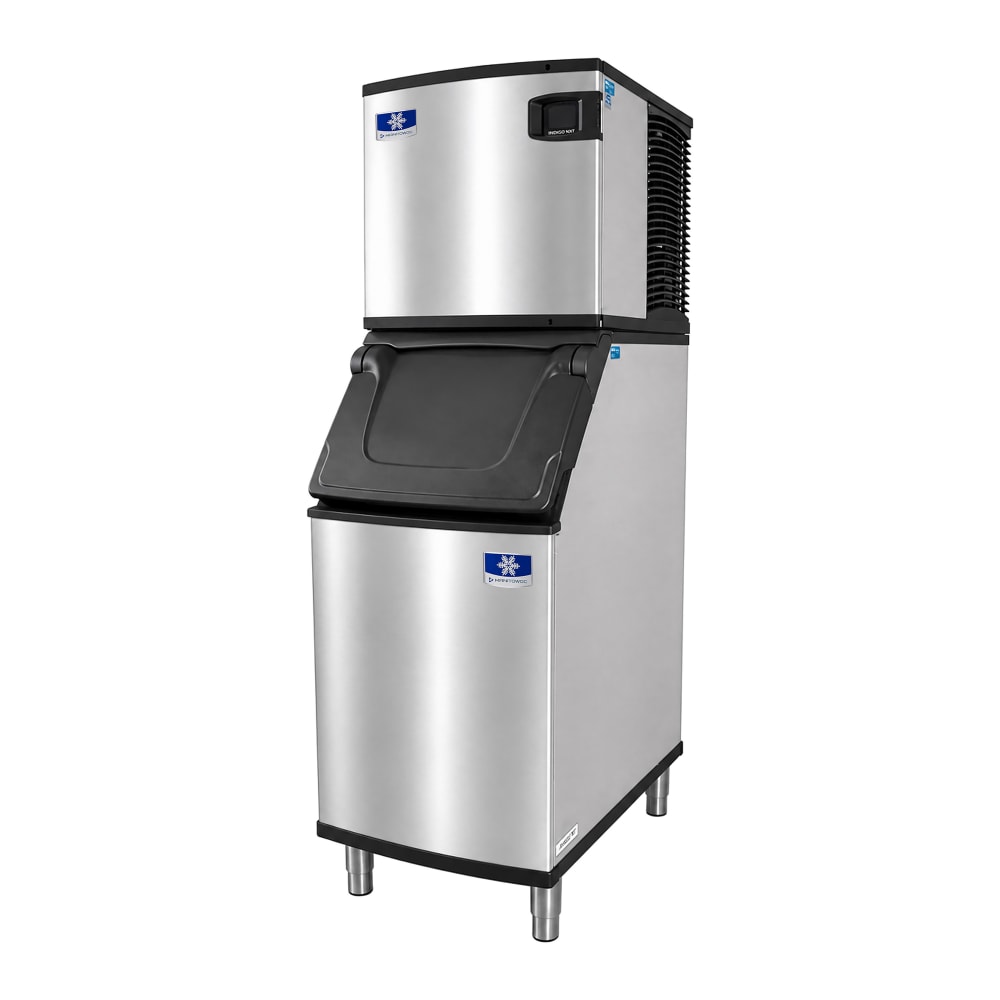

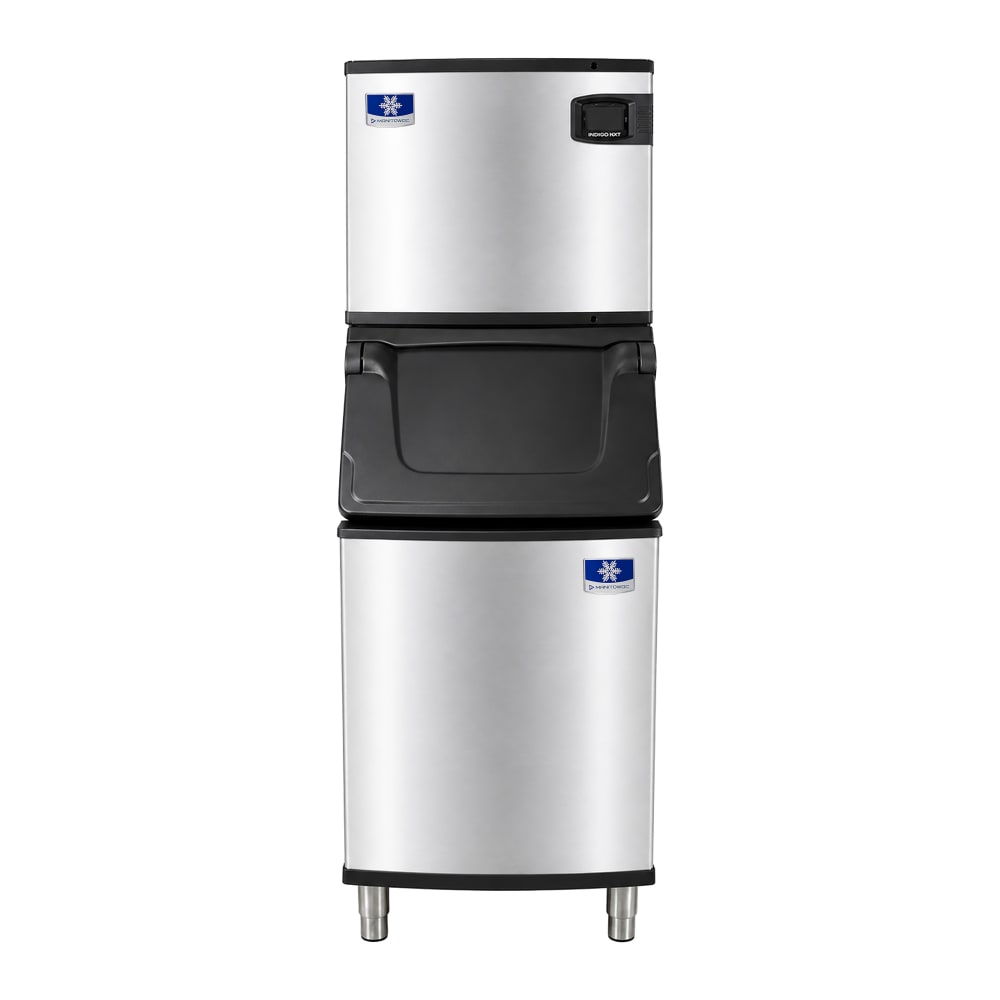

The Manitowoc IDT-0620A-161/D-420 Indigo NXT™ ice maker with bin’s 24-hour preventive diagnostics alert the operator of issues. User-friendly features include an icon-based display system that controls the head and programmable production based on ice volume or time. The machine can produce 560 pounds in 24 hours and has an air-cooled motor. Removable parts and a polyurethane liner ensure the unit stays clean and insulated. Special latches prop the door open and help staff transfer ice from the bin to a bucket. The Manitowoc IDT-0620A-161/D-420 ice maker with bin has a DuraTech™ exterior that resists corrosion.

Product Details

  • 560-lb. ice production capacity
  • 450-lb. AHRI-certified production capacity
  • Icon-based easyTouch® control panel
  • Users can program production based on a timer or volume
  • Foodzone has removable parts for cleanup
  • AlphaSan antimicrobial agent prevents bacteria growth in components
  • Ice is measured by a probe before dropping into the bin
  • 24-hr. preventive maintenance and diagnostic feedback
  • Fingerprints and stains are hidden by the DuraTech exterior coating
  • Air-cooled motor
  • Uses R410A refrigerant
  • Ambient air temperature range for operation: 40-110 degrees F
  • Incoming water temperature range for operation: 40-90 degrees F
  • 5,400-6,300 BTU
  • 12.2 A, 5.18 kW
  • 115 V/60 Hz/1 ph

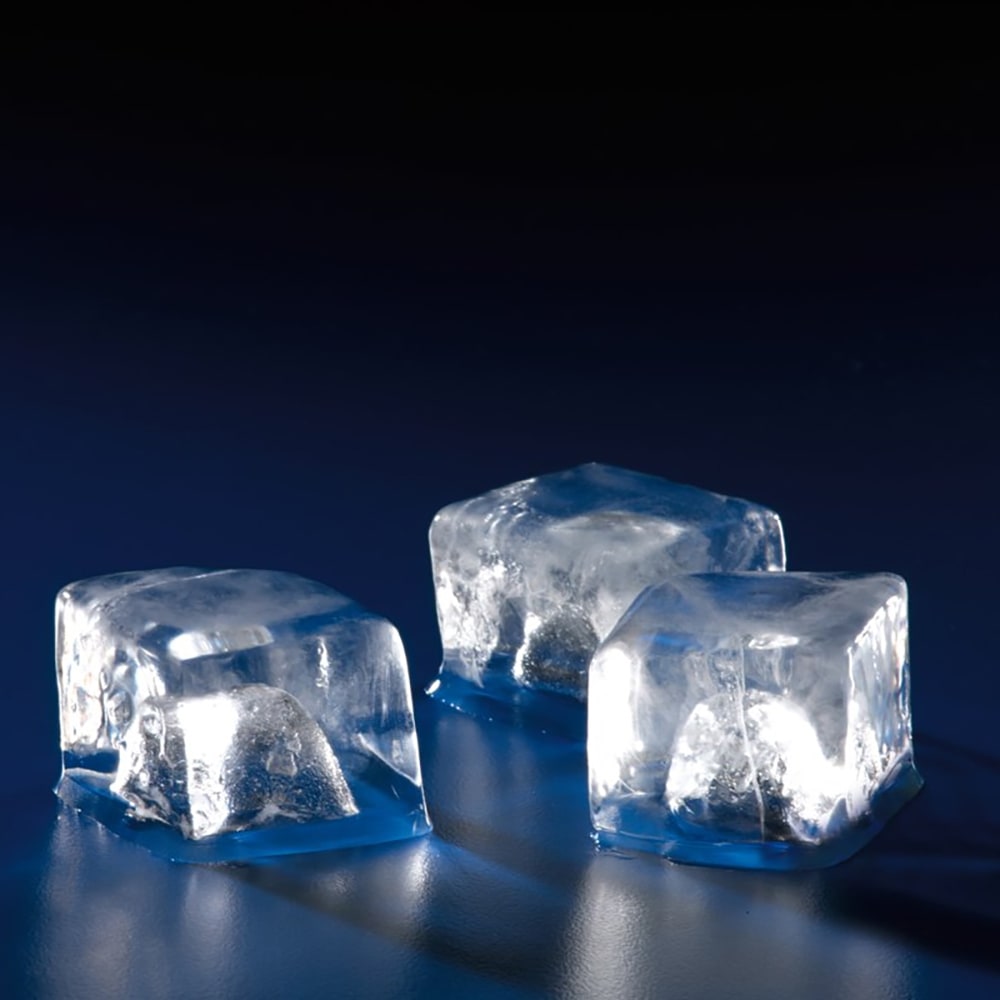

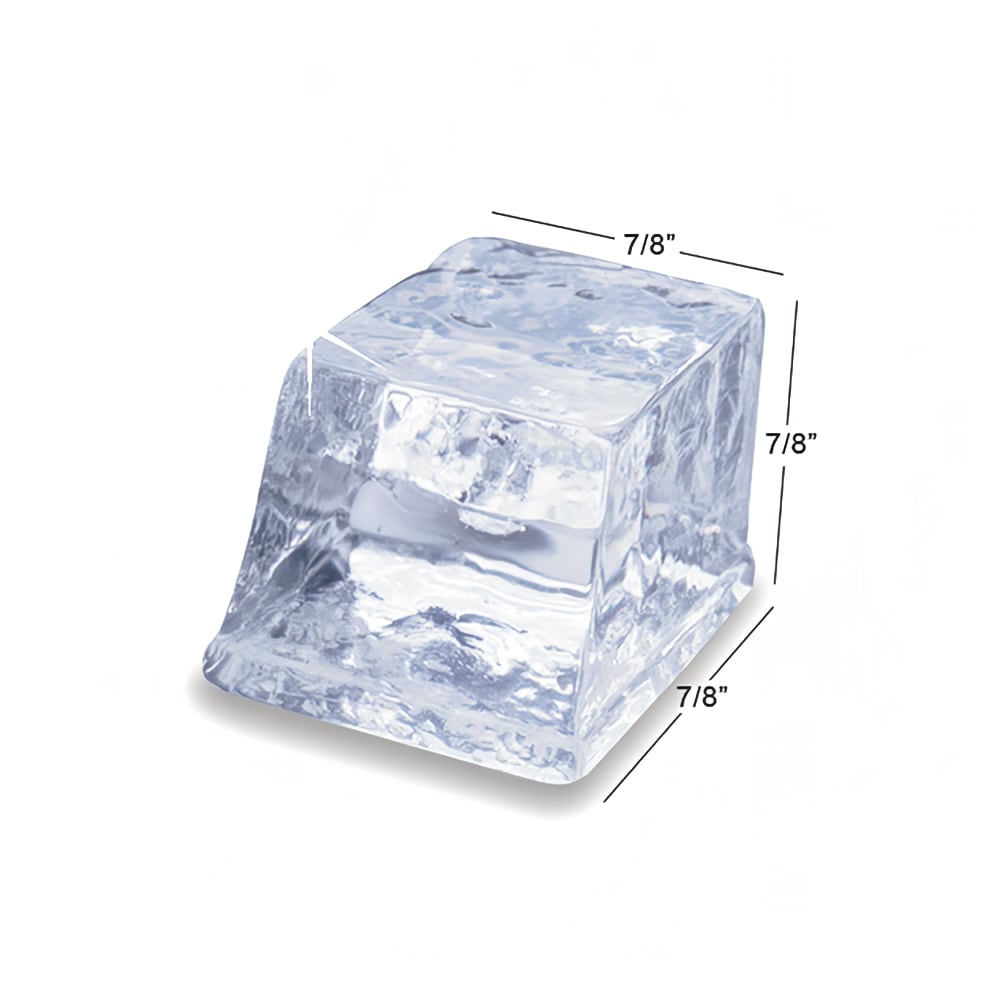

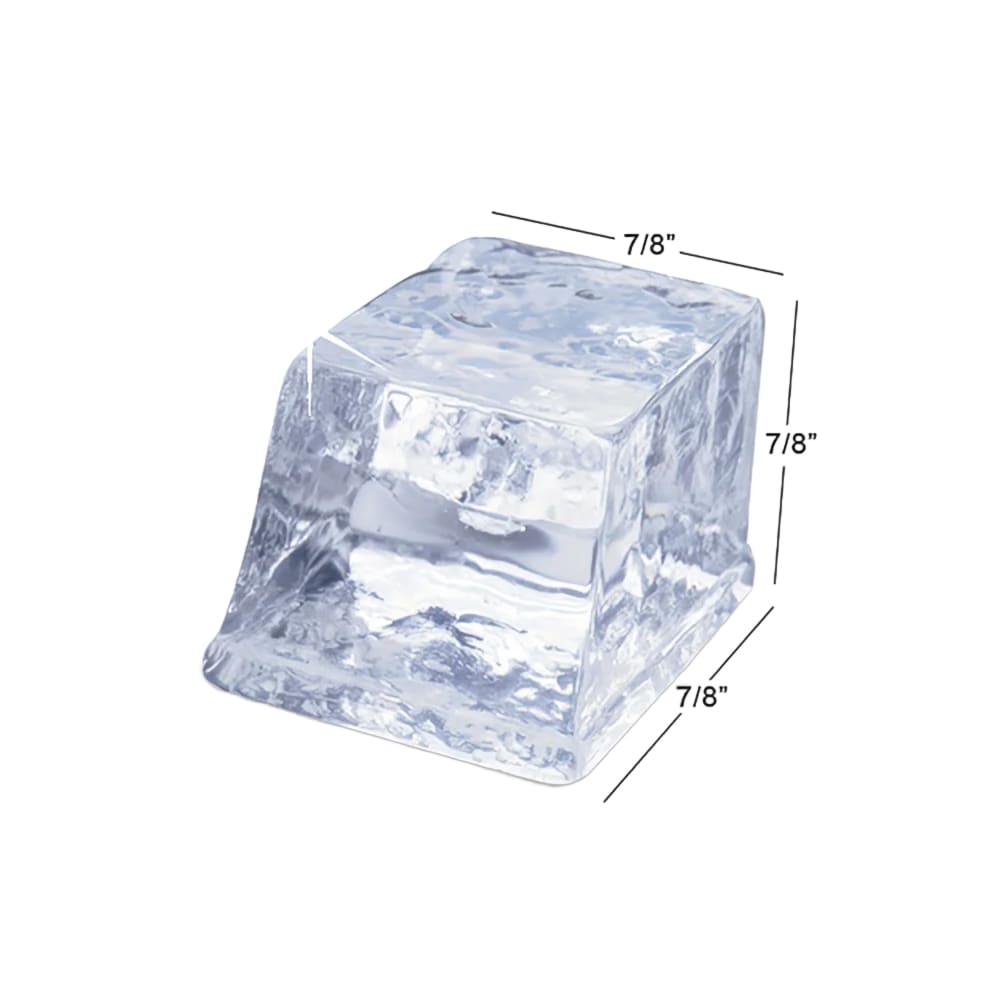

  • Ice cube dimensions: 0.875 in. x 0.875 in. x 0.875 in.
  • Overall dimensions: 22 in. W x 34 in. D x 71.5 in. H
  • CE approved; California Low Lead qualified; cULus listed; AHRI, NSF, and ENERGY STAR certified

Product Features

Manitowoc idt0620ad420 Features

Ice Bin Details

  • 383-lb. application storage capacity
  • 310-lb. AHRI-certified ice storage capacity
  • Built-in side grips on door
  • Door insulation slows melting ice

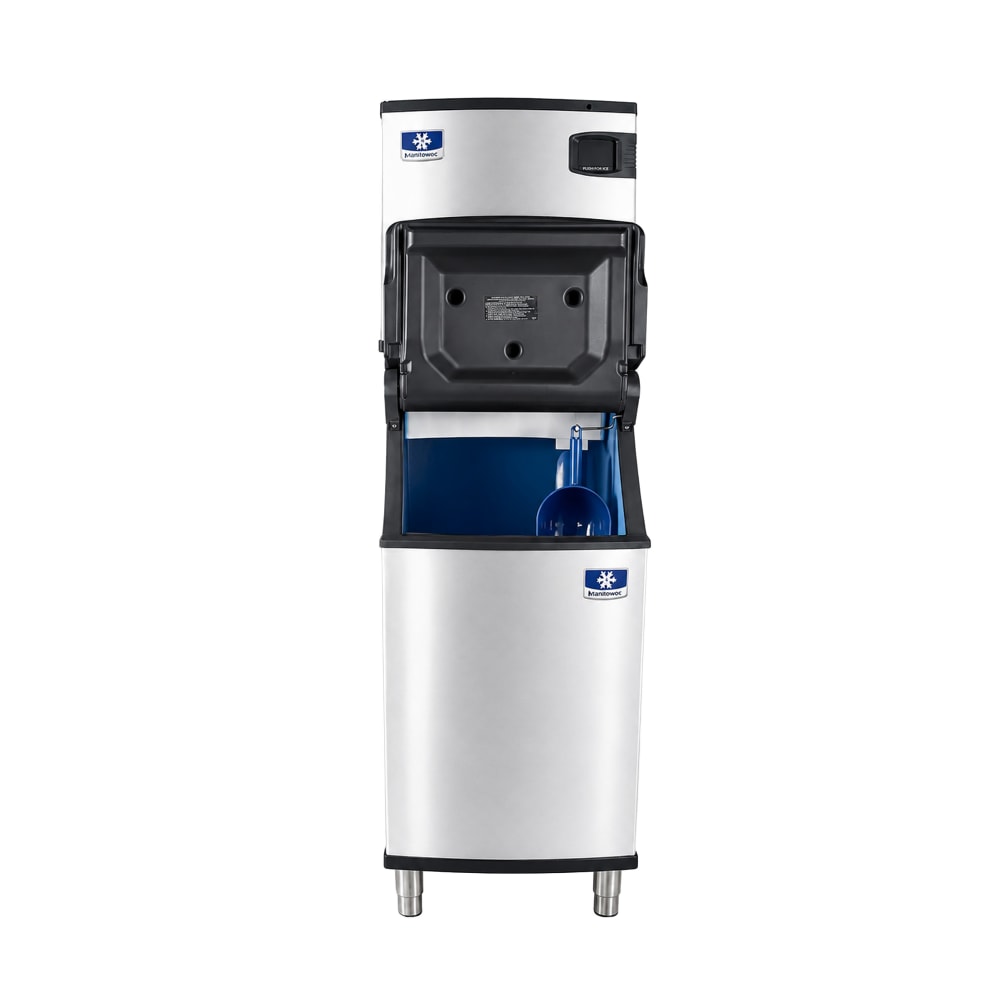

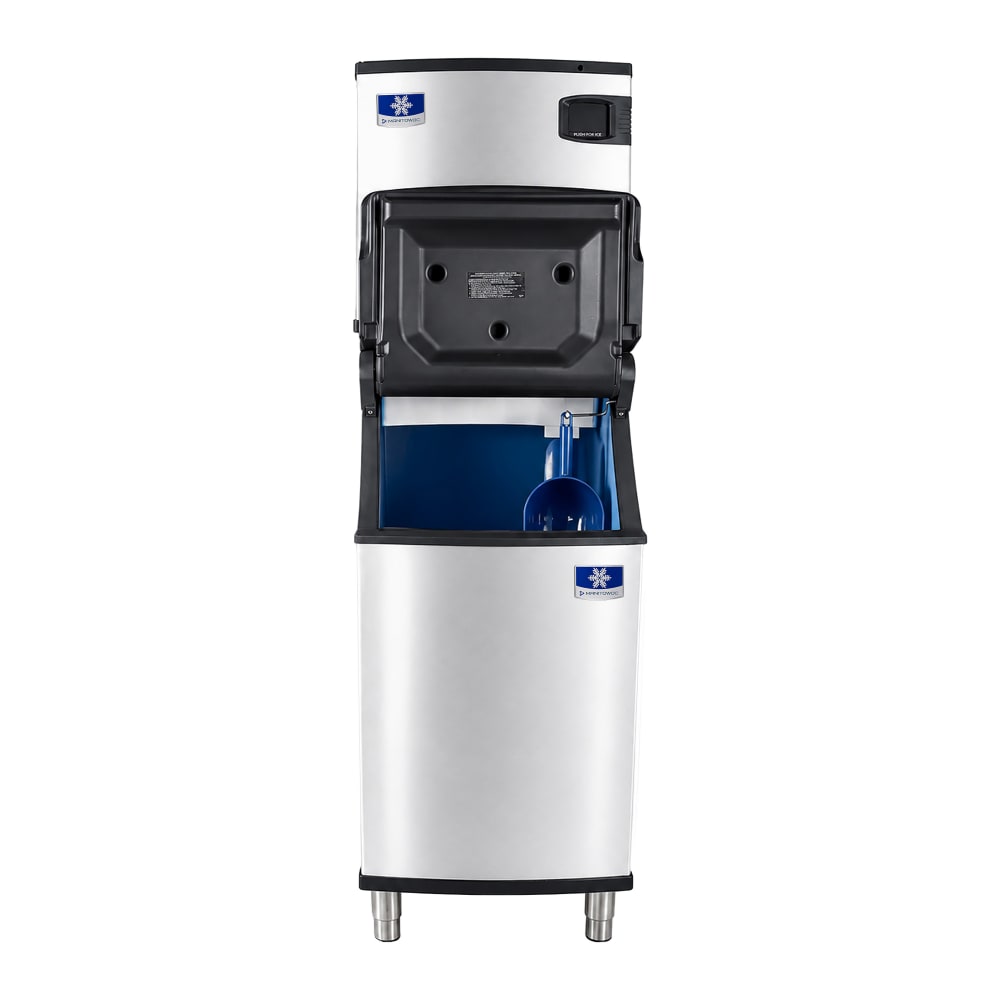

  • Stay-open latches
  • Exterior’s DuraTech coating conceals fingerprints
  • Polyurethane bin liner
  • 5.3-lb. scoop capacity
  • Retaining lip on ice scoop
  • AHRI and NSF certified

The ice machine buyers' guide has in-depth information on the different types of ice machines.

IDT-0620A Ice Maker: Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 560 lb/24 hours at 70°/50° (450 lb AHRI certified at 90°/70°), DuraTech™ exterior, regular dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®, 115v/60/1ph; D-420 Ice Bin: Ice Bin, 22"W, 34"D x 50"H, with side-hinged front-opening door, side grips, AHRI certified 383 lb ice storage capacity (12.9 cu. ft.), for top-mounted ice maker, Duratech exterior, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Manitowoc Ice IDT-0620A/D-420 Specifications

PDF Spec Sheet
Manufacturer Manitowoc Ice
Bin Capacity (lb) 383
Compressor Type Air Cooled
Depth (in) 34
Height (in) 71.5
Ice Type Full Cube
Special Features Antimicrobial System
Width (in) 34
Warranty 3-yr. Parts & Labor, Add'l 2 yrs. Evaporator; Add'l 2 yrs. Parts Compressor
Production Range (lbs/day) 550-899 lb
Width (in) Range 30 - 39
Hertz 60
Voltage 115
Phase 1
Product Ice Maker with Bin
Product Type Ice Makers & Bins
Access Lift Up Door
24 Hr. Production (lbs) 560
Bin Capacity Range (lbs) 200 - 1229
Weight 251.00
Manitowoc Ice IDT-0620A/D-420 Certifications
  • UL
  • NSF
  • Energy Star
