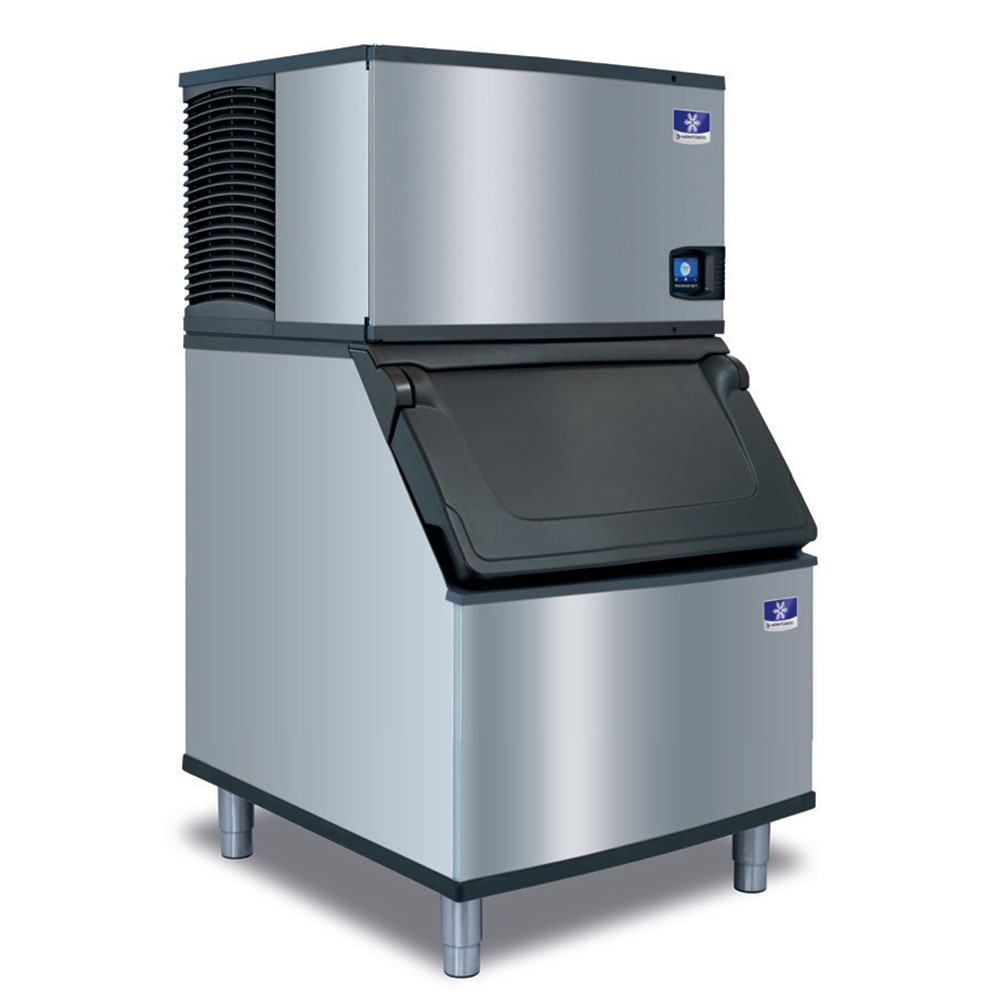

Manitowoc Ice IYP0300A/D570 325 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 115v

KaTom #: 399-IYT0300AD570 • MPN: IYP0300A-161/D570
  • 399-IYT0300AD570 Primary Thumbnail Image

QUICK SHIP: Ships in 1 Business Day

Free Shipping Item

$5,399.00 /Each

Contact us for details!

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $155.25
  • Edit Remove

Selected Compressor Type: Air Cooled

Water CooledWater Cooled

Selected Ice Type: Half Cube

Full CubeFull Cube
Curran Haywood User Image
Ask a Foodservice Equipment Specialist

Attention: Order by 01-01-2027 to save before the price increases!

Manitowoc Ice IYP0300A/D570 Description

The air-cooled condenser in the Manitowoc Ice IYP0300A-161/D570 ice maker with bin is self-contained for simple installation and uses R404a refrigerant. Using an acoustic, ice-sensing probe and active sense harvesting, ice is moved from the head to the bin. Ice production is programmable to accommodate slow and busy periods in a commercial environment. When ambient temperatures are low enough, this unit makes 325 pounds of ice per day.

This Manitowoc Ice IYP0300A-161/D570 ice machine's accompanying bin is insulated with foam for dependable storage, ensuring ice doesn't melt. It holds 532 pounds of ice, which is accessed by opening the side-hinged, stay-open door. To retrieve ice, this unit comes with a scoop that has a 5.3-pound capacity. The scoop's knuckle and thumb guard are for sanitary use, ensuring employees' hands don't contaminate the ice before serving it.

  • Part of the Indigo NXT™ series
  • 325-lb. maximum daily ice production
  • Produces half-dice ice cubes
  • Ice dimensions: 3⁄8 in. x 1 1⁄8 in. x 7⁄8 in.
  • Condenser is self-contained and air cooled
  • Uses R404a refrigerant for cooling
  • Programmable ice control and active sense harvesting
  • Acoustic, ice-sensing probe pushes ice into bin
  • 24-hour maintenance and diagnostics ensure unit runs correctly
  • Germ growth slowed with AlphaSan® antimicrobial
  • Removable foodzone components
  • Strong DuraTech exterior
  • easyTouch® icon-based screen
  • Ideal ambient temperature range: 40-110 degrees F
  • Ideal incoming water temperature: 40-90 degrees F
  • Ideal incoming water pressure: 20-80 PSI
  • 4,600-BTU heat transfer capacity

  • 532-lb. application capacity
  • 17.9-cu.-ft. interior space
  • Includes a 5.3-lb. scoop with a sanitary knuckle and thumb guard
  • Ice accentuated by a polyurethane Artic Blue bin liner
  • Side-hinged door with side grips for opening
  • Door stays open to prevent slamming
  • Foam insulation retains ice to stop melting
  • Corrosion-resistant DuraTech exterior

  • Ice maker: 30 in. W x 24.5 in. D x 16.5 in. H
  • Ice bin: 30 in. W x 34 in. D x 50 in. H
  • 8.8 A
  • 115 V/60 Hz/1 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Manitowoc Ice IYP0300A/D570 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24.5"D x 16.5"H, production capacity up to 325 lb/24 hours at 70°/50° (248 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®

Ice Bin, 30"W x 34"D x 50"H, with top-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

Warranty Icon
Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Watch a video about this product

Manitowoc Ice IYP0300A/D570 Specifications

Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Replacement for the Following Item
  • Manitowoc Ice IYF0300AD570
Equivalent Items












Related Categories

Compare to Similar Items

0 Customer Reviews
  • 5
    0
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0

Review this product!

Relay your experience with this product to help inform other's decisions and help us continue to offer premier foodservice experiences.

The output falls to 248 lb. at 90°F air/70°F water.

— KaTom Foodservice Equipment Specialist

Yes. It has programmable production schedules.

— KaTom Foodservice Equipment Specialist

This easyTouch® system displays one-touch cleaning instructions.

— KaTom Foodservice Equipment Specialist

Yes. The foam insulation retains stored ice.

— KaTom Foodservice Equipment Specialist

The unit needs 40–110°F air and 40–90°F water.

— KaTom Foodservice Equipment Specialist

An incoming 20–80 PSI water supply is required.

— KaTom Foodservice Equipment Specialist

This design uses AlphaSan® protection and removable foodzone components.

— KaTom Foodservice Equipment Specialist

It produces up to 325 lbs. of ice per 24 hours.

— KaTom Foodservice Equipment Specialist

The bin holds up to 532 lbs. of ice.

— KaTom Foodservice Equipment Specialist

It makes half cube ice.

— KaTom Foodservice Equipment Specialist

It measures 30 in. W x 34 in. D x 66 1/2 in. H.

— KaTom Foodservice Equipment Specialist

It uses an air-cooled condensing system.

— KaTom Foodservice Equipment Specialist

It requires 115 V/60 Hz/1 ph.

— KaTom Foodservice Equipment Specialist

It requires a 3/8-in. water inlet connection.

— KaTom Foodservice Equipment Specialist

It uses R290 refrigerant.

— KaTom Foodservice Equipment Specialist

Ice is accessed through a lift-up door.

— KaTom Foodservice Equipment Specialist

Yes, this purchase includes an ice machine head and a storage bin.

— KaTom Foodservice Equipment Specialist

Its listed certifications include AHRI, C-UL US, C-UL-US Listed, CE, ENERGY STAR and NSF.

— KaTom Foodservice Equipment Specialist

Yes, the bin door stays open while you scoop ice.

— KaTom Foodservice Equipment Specialist

Yes, the bin has antimicrobial protection.

— KaTom Foodservice Equipment Specialist
