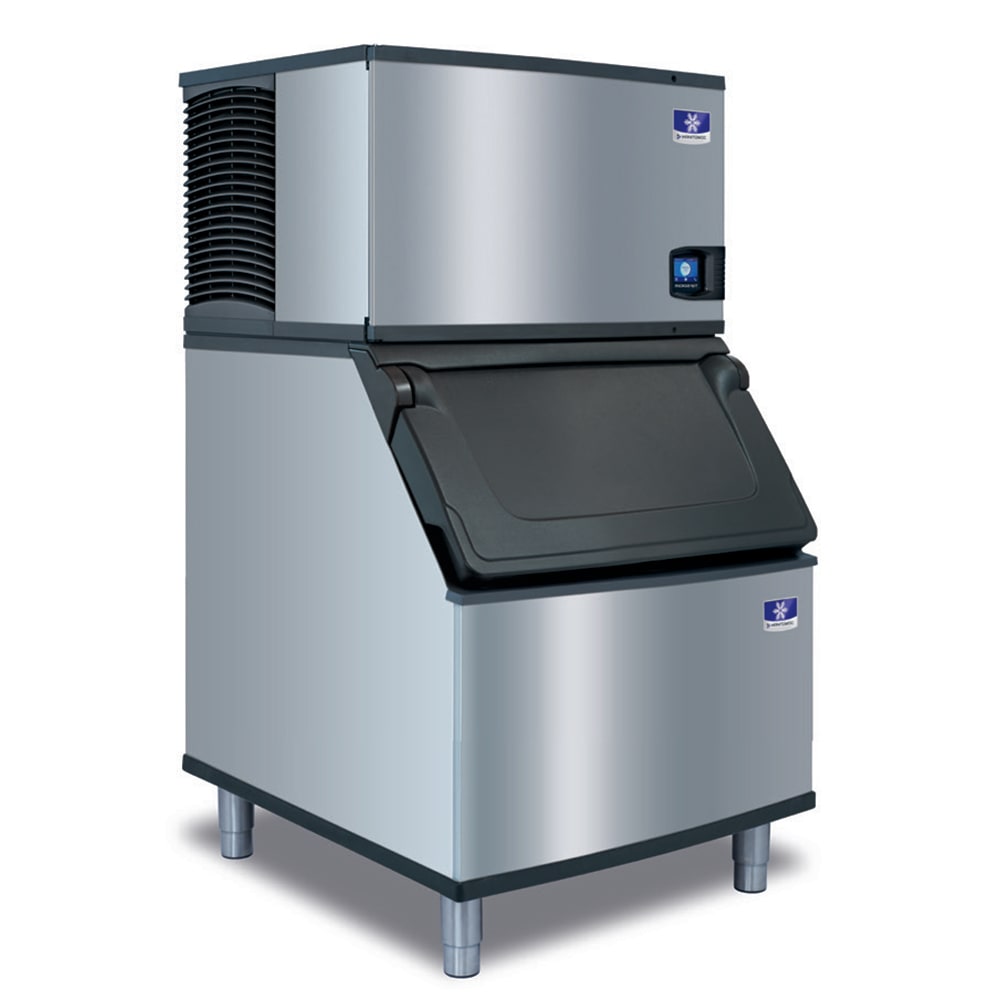

Manitowoc Ice IYT0300W/D570 310 lb Indigo NXT™ Half Cube Ice Machine w/ Bin - 532 lb Storage, Water Cooled, 115v

Built with an added exterior clear coating, the Manitowoc Ice IYT0300W/D570 ice machine with bin is resistant to scratches and fingerprint marks to maintain a neat, clean appearance through heavy use. It can produce as much as 310 pounds of ice daily, if ideal conditions are met, and can store as much as 532 pounds of prepared ice in the bin below. Users can access and dispense stored ice using the bin's side-hinged, front-opening door.

It performs intelligent diagnostics, so the Manitowoc Ice IYT0300W/D570 ice maker with bin keeps users apprised of needed maintenance. It's built with an acoustic, ice-sensing probe and has many removable parts to streamline cleaning. Operating with an antimicrobial substance that's applied to select interior components, the ice machine defends against the growth and spread of microbes such as bacteria, mildew, and fungal spores.

Ice Machine Details

• Indigo NXT™ series
• Water cooled
• Produces half-dice cube ice
• Ice cube size: ³⁄₈ in. W x 1¹⁄₈ in. D x ⁷⁄₈ in. H
• 310-lb. maximum daily ice production
• 260-lb. AHRI-certified daily ice production
• Self-contained condenser
• DuraTech™ exterior resists dirt and smudges
• Fingerprint-resistant clear coat
• Space-saving footprint is 30 in. wide
• Intelligent diagnostics provide 24-hour feedback
• Acoustic probe senses ice with accuracy
• easyTouch® display is icon based for simple use
• Programmable ice production meets variable periods of demand
• Hinged front door provides access to foodzone
• Removable water trough, distribution tube, curtain, and sensing probes
• AlphaSan® antimicrobial is applied to select components
• Operates with R404A refrigerant
• Ideal ambient air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 4,600-BTU heat displacement

Ice Bin Details

• Side-hinged, front-opening door
• Side grips
• 532-lb. storage capacity
• 17.9 cu.-ft. AHRI-certified capacity
• Compatible with top-mounted ice makers
• DuraTech exterior

Dimensions & Utilities

• Ice machine head: 30 in. W x 24¹⁄₂ in. D x 16¹⁄₂ in. H
• Ice bin: 30 in. W x 34 in. D x 50 in. H
• 7.9 A, 4.74 kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IYT0300W/D570 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30"W x 24-1/2"D x 16-1/2"H, production capacity up to 310 lb/24 hours at 70°/50° (260 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R404a refrigerant, NSF, cULus, CE

Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IYT0300W/D570 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
