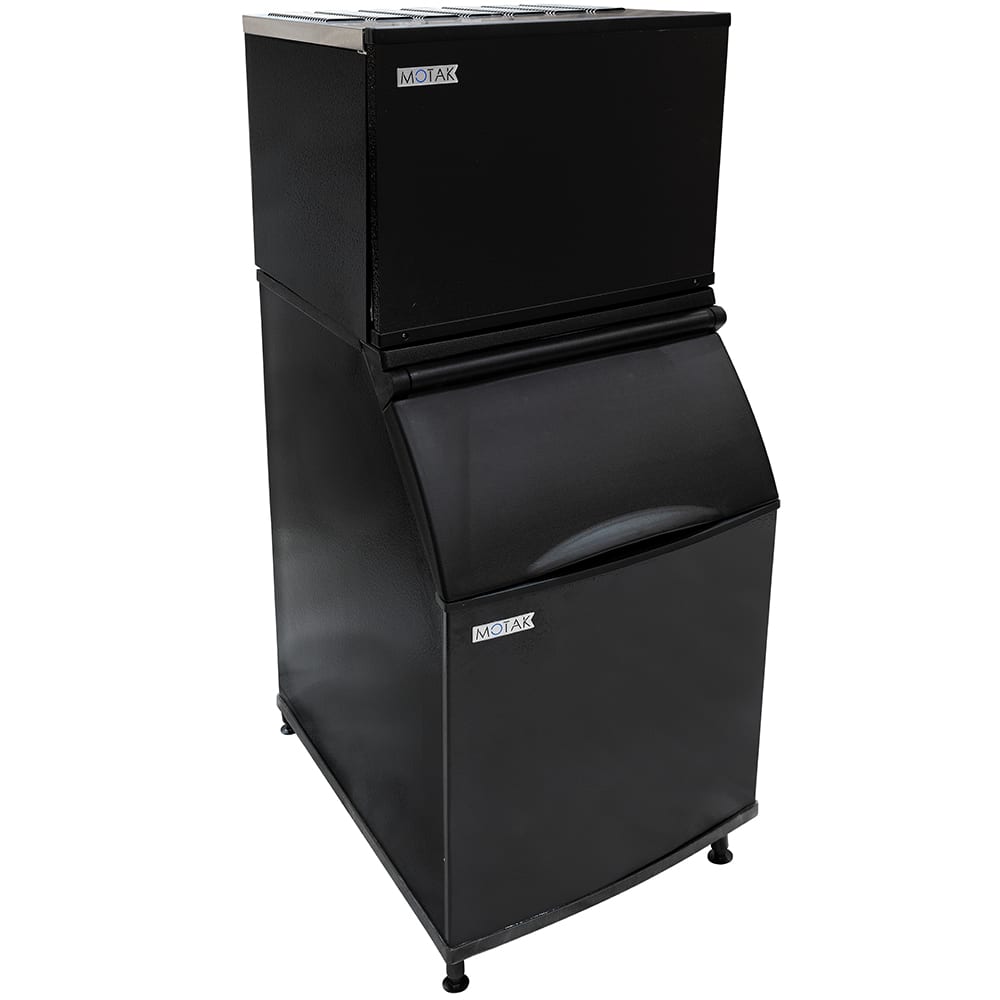

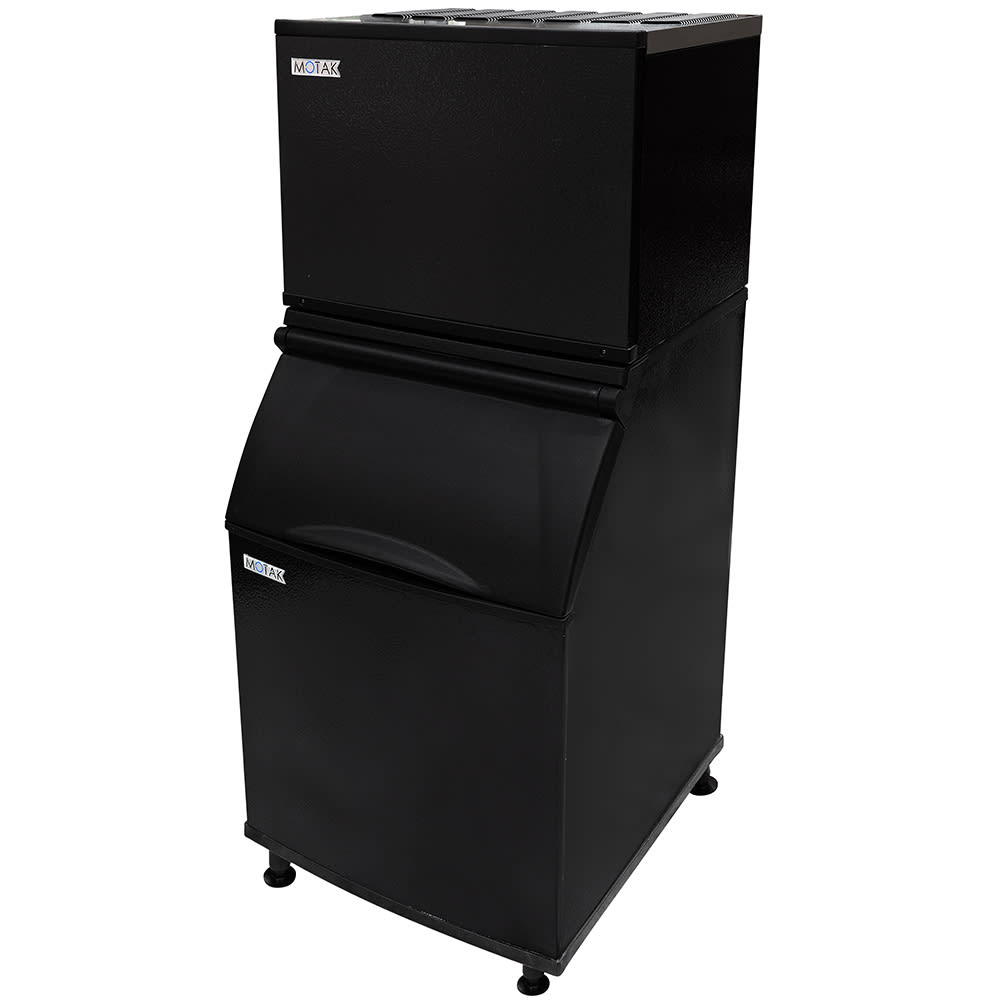

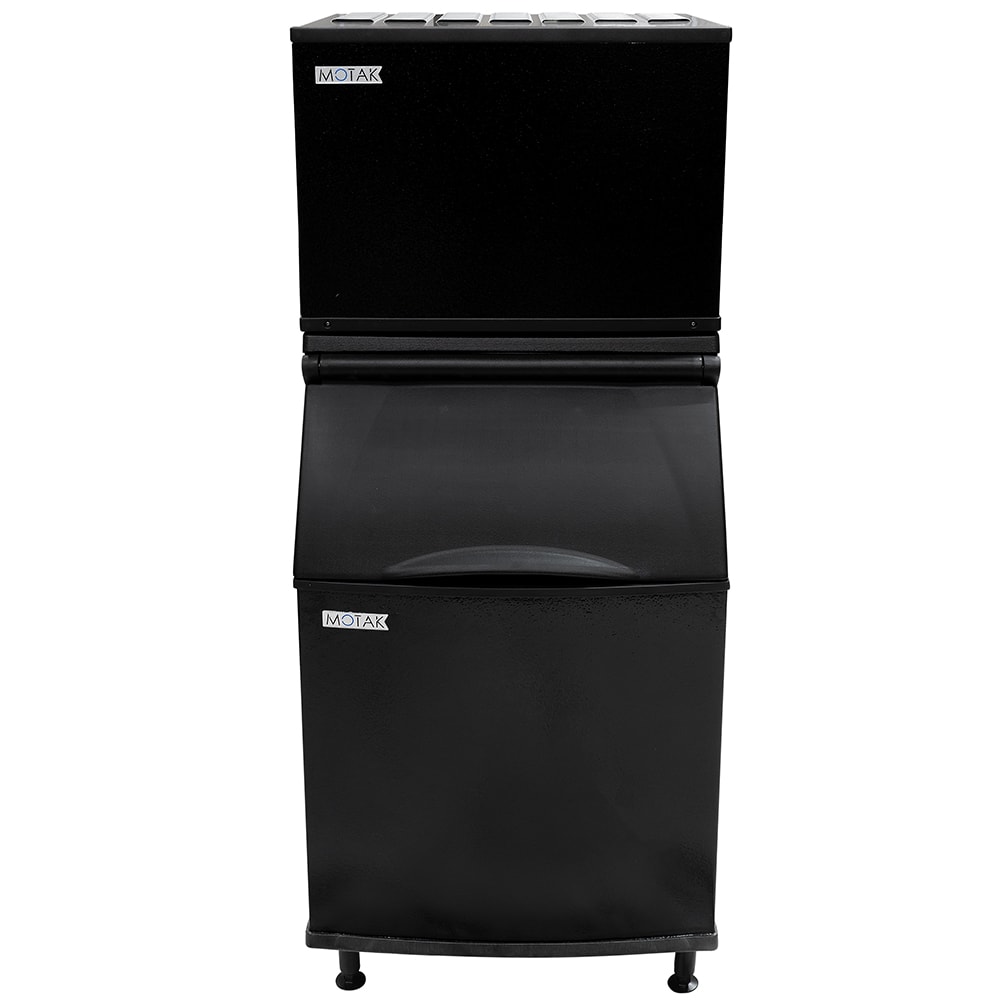

MoTak PKM0335SA-161/PKB0535 325 lb PKM Series Half Cube Ice Machine w/ Bin - 534 lb Storage, Air Cooled, 115v

KaTom #: 999-PKM0335SAPKB0535 • MPN: PKM0335SA-161/PKB0535
  • 999-PKM0335SAPKB0535 Primary Thumbnail Image
  • 999-PKM0335SAPKB0535 Multiple Thumbnail Image #1
  • 999-PKM0335SAPKB0535 Multiple Thumbnail Image #2
  • 999-PKM0335SAPKB0535 Multiple Thumbnail Image #3
  • 999-PKM0335SAPKB0535 Multiple Thumbnail Image #4
  • 999-PKM0335SAPKB0535 Multiple Thumbnail Image #5
  • 999-PKM0335SAPKB0535 Multiple Thumbnail Image #6
  • 999-PKM0335SAPKB0535 Multiple Thumbnail Image #7
  • 999-PKM0335SAPKB0535 Multiple Thumbnail Image #8

QUICK SHIP: Typically ships in 1 - 3 Business Days

Free Shipping Item

Retail Price: $4,990.40

$2,999.00 /Each

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $170.85
  • Edit Remove

Selected Ice Type: Half Cube

Full CubeFull Cube
Justin Brouhard User Image
Ask a Foodservice Equipment Specialist

MoTak PKM0335SA-161/PKB0535 Description

Producing half-sized ice cubes for soft drinks, frozen drinks, or bagged ice, the MoTak PKM0335SA-161/PKB0535 ice cube machine and bin works best in casual restaurants, convenience stores, and smoothie joints. As much as 325 pounds of ice can be produced in a 24-hour period with a 70-degree-Fahrenheit air temperature and 50-degree-Fahrenheit water temperature. Even with less-than-ideal conditions, such as an air temperature of 90 degrees Fahrenheit and water temperature of 70 degrees Fahrenheit, the unit can make 225 pounds of ice in 24 hours. For enhanced circulation, air enters through its back and releases through the top. With a frame measuring 30 inches wide by 24 1⁄2 inches deep by 21 1⁄2 inches high, the unit fits cohesively on top of the ice bin.

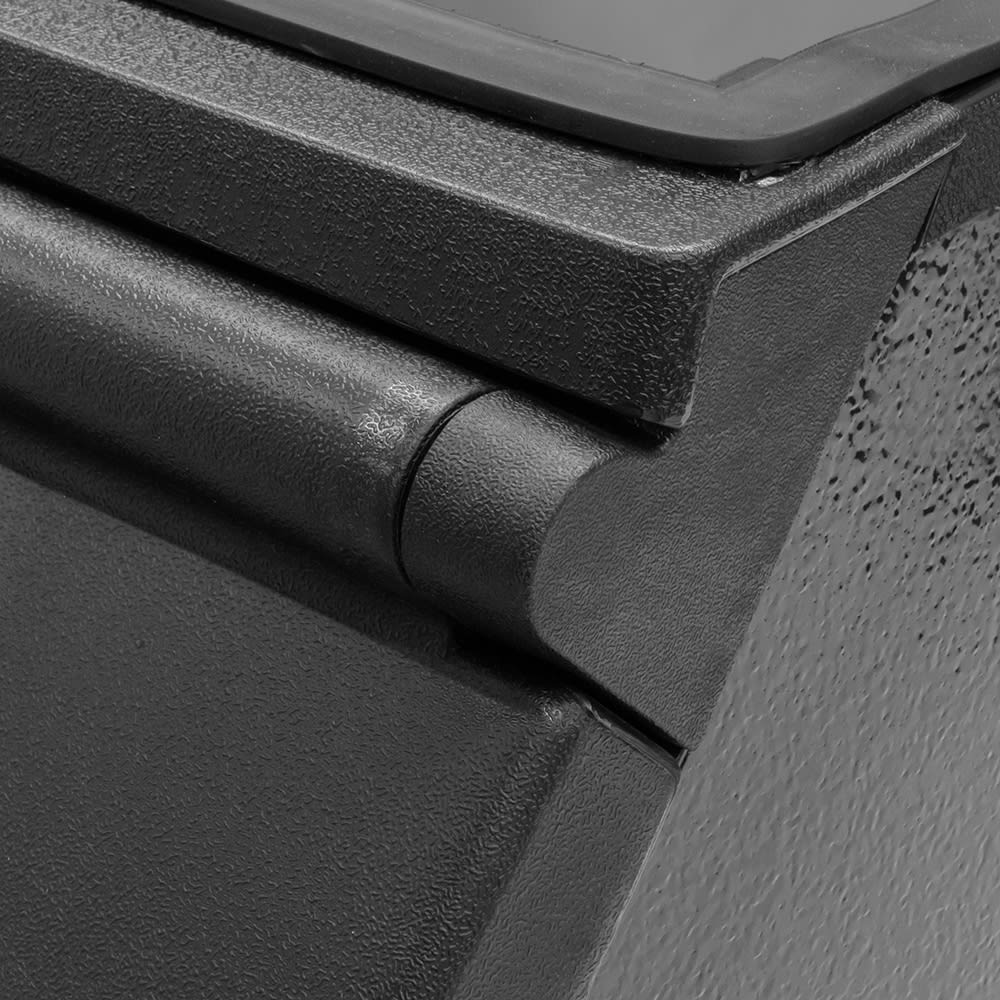

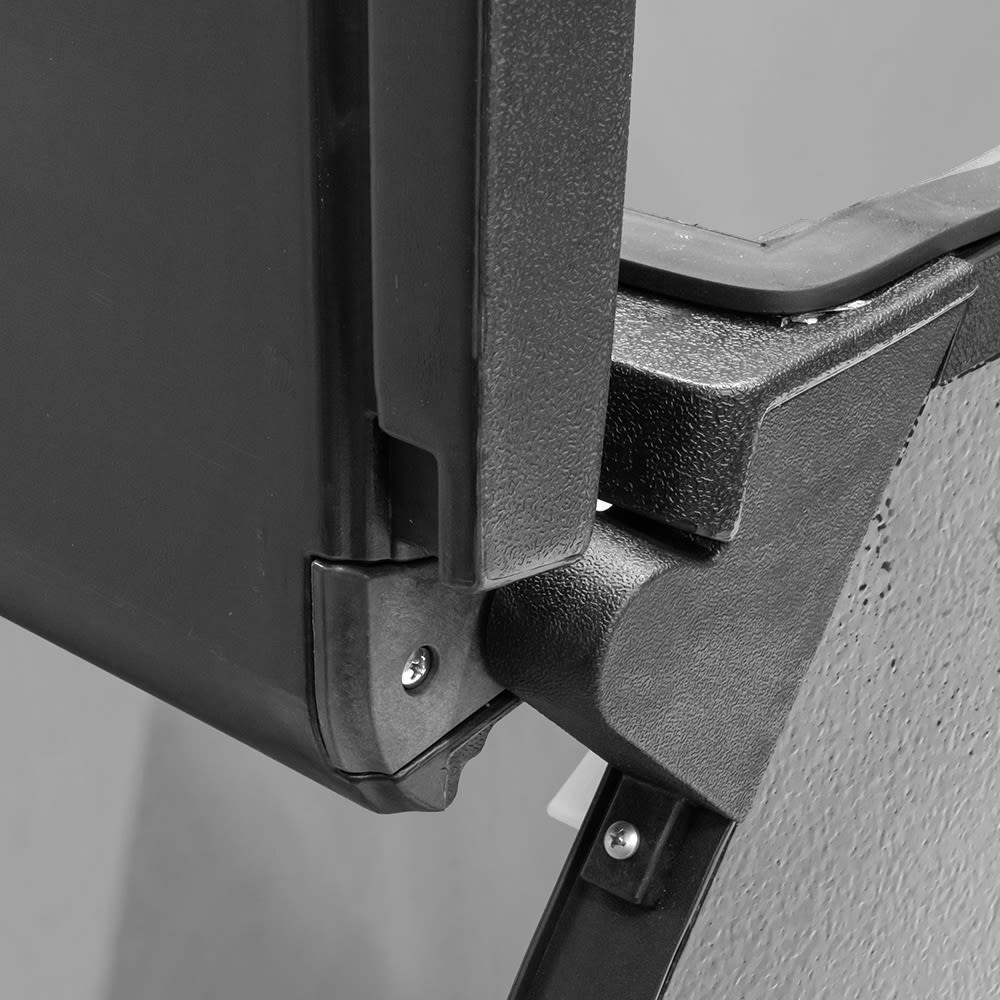

The MoTak PKM0335SA-161/PKB0535 ice cube machine and bin has a smudge- and fingerprint-resistant black exterior to maintain a presentable appearance in kitchen environments. Its built-in insulated door, which hinges on the bin, helps reduce condensation buildup and retain cool temperatures for ice storage. A stay-open door design remains lifted, easing access to the 534-pound capacity bin. With adjustable legs from 6 inches to 7 1⁄2 inches, the bin is designed for versatility in cramped kitchens. It has a 30 inch wide by 34 inch deep by 50 inch tall design that provides sturdy support for the ice maker. For cleaning, a 3⁄4-inch bin drain funnels leftover ice and water to ensure sanitation after cycles, while an 82-ounce ice scoop comes with the bin for sanitary ice retrieval.

High Daily Yield
Produces up to 325 lbs of half-cube ice in a 24-hour cycle under ideal conditions.
Large Storage Bin
Includes a storage bin able to hold approximately 534 lbs of ice, reducing frequent bagging needs.
Half-Cube Format
Delivers half-size cubes that chill beverages quickly and fit well in standard glasses.
Air-Cooled Design
Operates on an air-cooled condenser, simplifying ventilation needs in many kitchens.
115-Volt Operation
Runs on standard 115 V/60 Hz single-phase power for straightforward installation.
Compact Width
Measures 30” wide to fit in moderate commercial spaces without requiring excessive footprint.

  • Maximum daily ice production: 325 lbs.
  • Makes half-sized ice cubes
  • Ice dimensions: 7⁄8 in. W x 3⁄8 in. D x 1 1⁄8 in. H

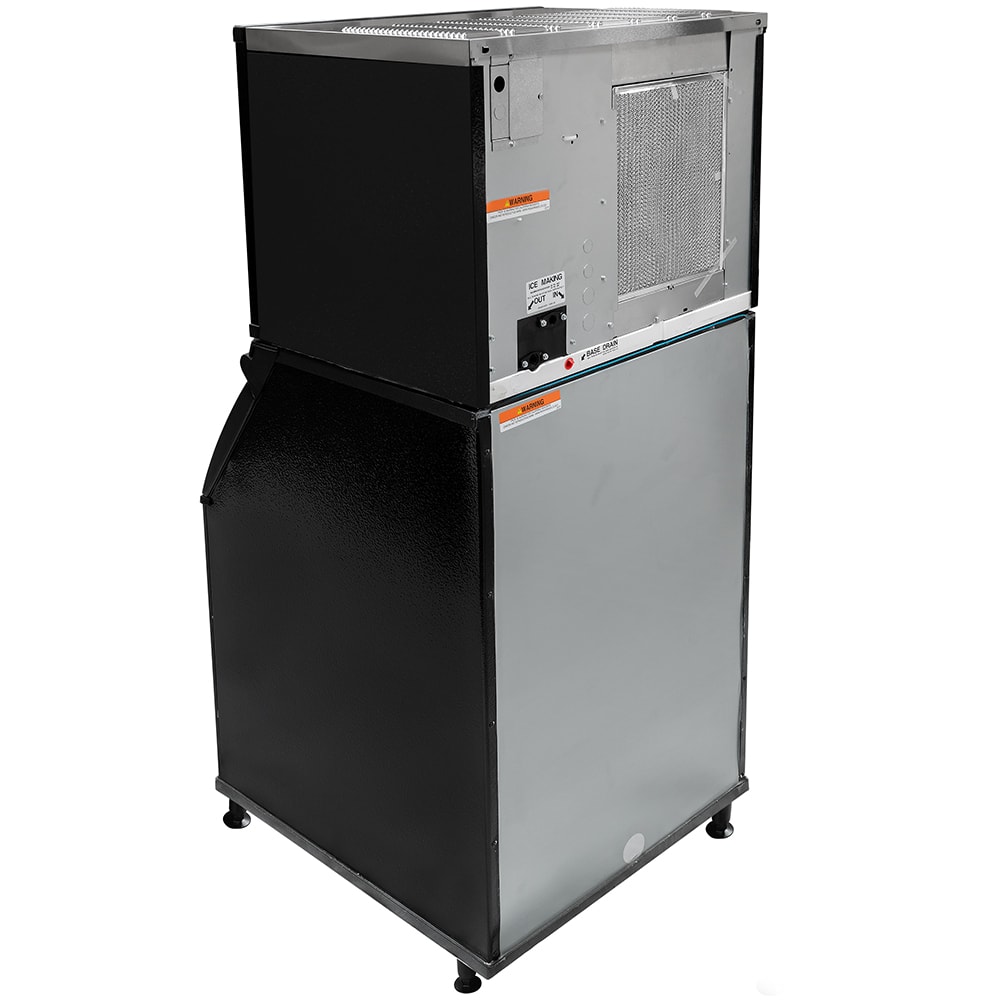

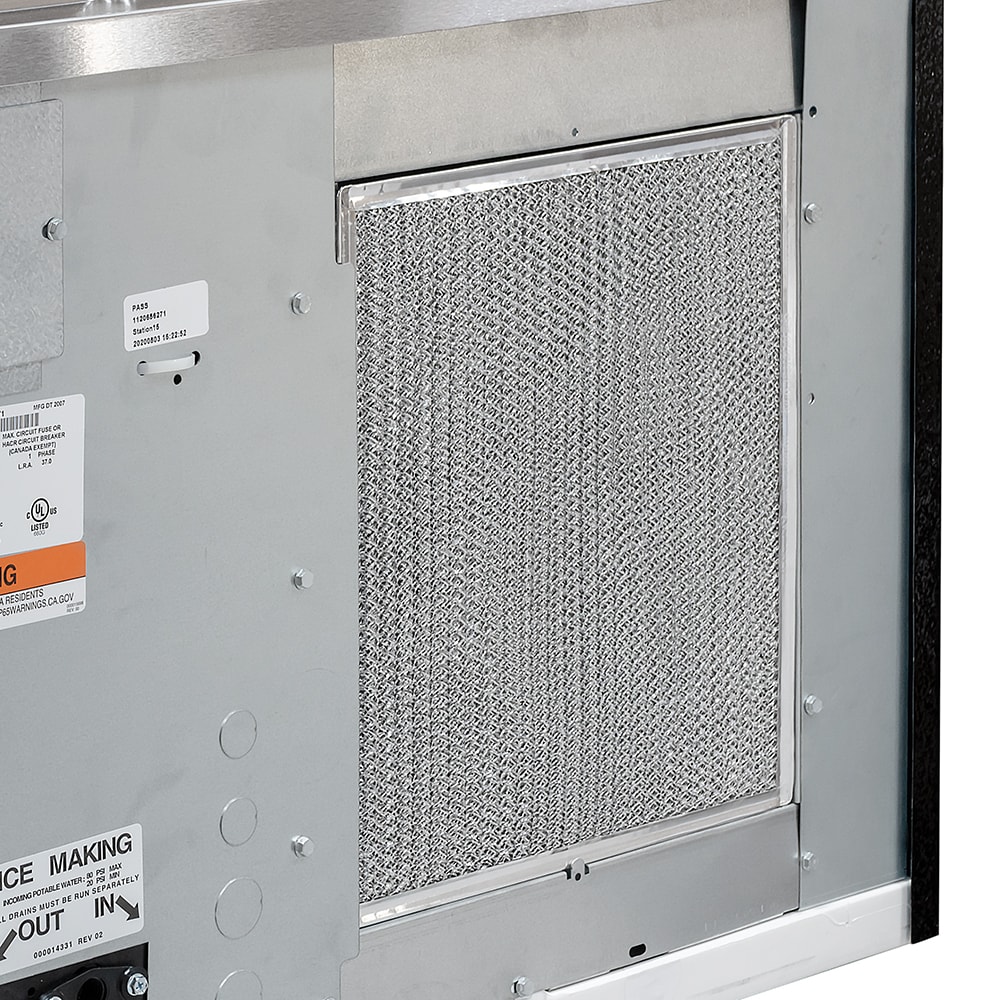

  • Air cooled through back and top
  • Black exterior resists smudges and fingerprints
  • R410a refrigerant
  • Ambient temperature range: 70-90 degrees F
  • Water temperature range: 50-70 degrees F
  • Uses 20 gal. of water per 100 lbs. of ice
  • Average BTU per hour: 4,600
  • Peak BTU per hour: 5,450

  • Storage capacity: 534 lbs.
  • Internal cubic volume: 18 cu. ft.

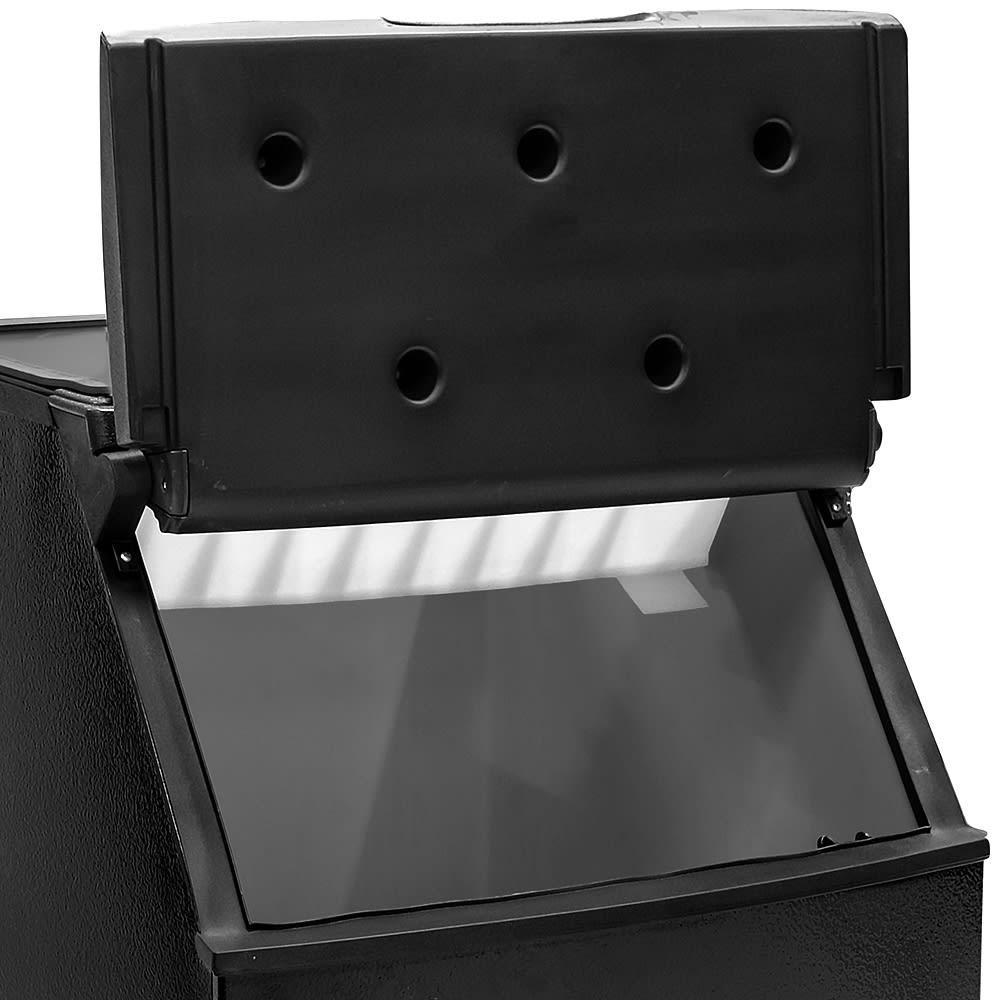

  • Stay-open, insulated front door
  • 0.75-in. bin drain
  • Bin legs adjust from 6-7 1⁄2 in.
  • 82-oz. ice scoop included

  • Ice cube machine: 30 in. W x 24 1⁄2 in. D x 21 1⁄2 in. H
  • Ice bin: 30 in. W x 34 in. D x 50 in. H
  • 9.44-15 A, 6.25 kW
  • 115 V/60 Hz/1 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on MoTak PKM0335SA-161/PKB0535 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

MoTak Ice Cube Machine & Bin, cube style, air cooled, self-contained condenser, 30"W, production capacity up to 325 lb/24 hours at 70°/50° (225 lbs at 90°/70°), 534 lb. storage bin capacity, half-size cube, black exterior, R410A refrigerant, 115v/60/1-ph, 15.0 amps, NSF, cULus

Warranty Icon
1-year Parts & Labor
