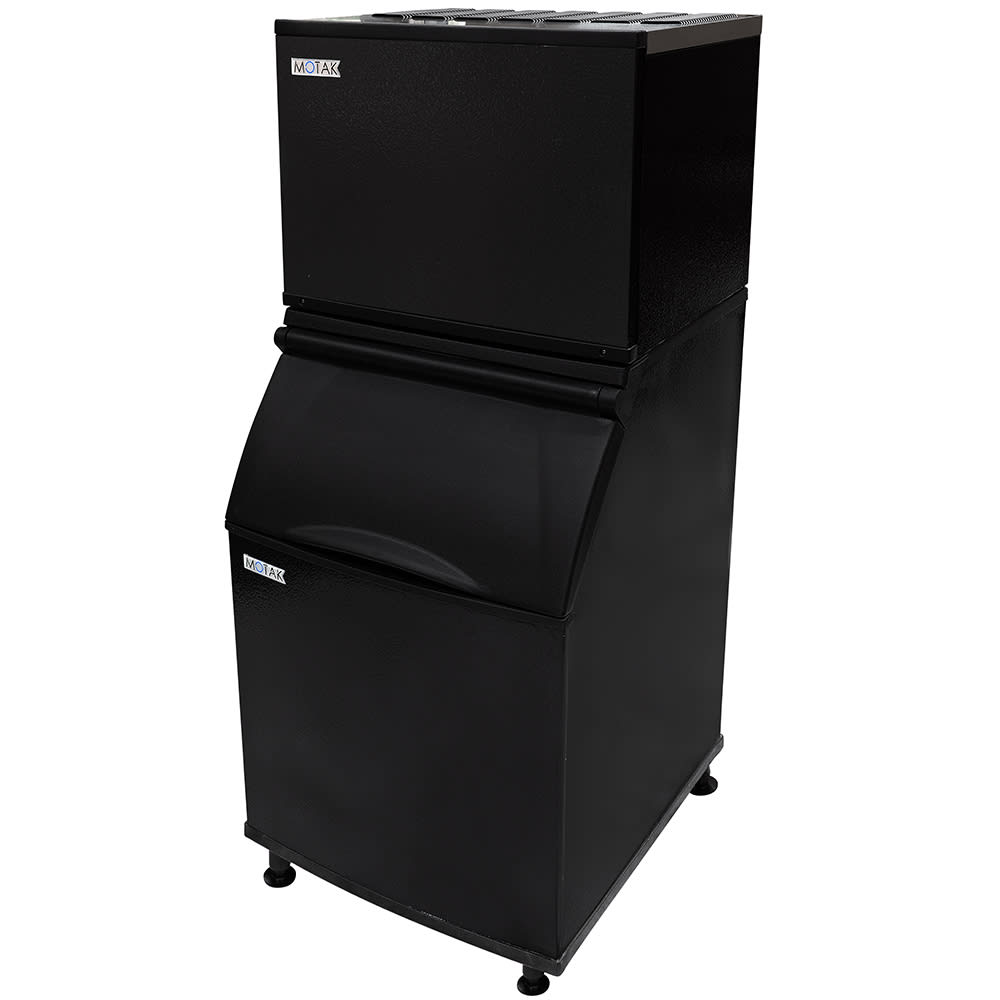

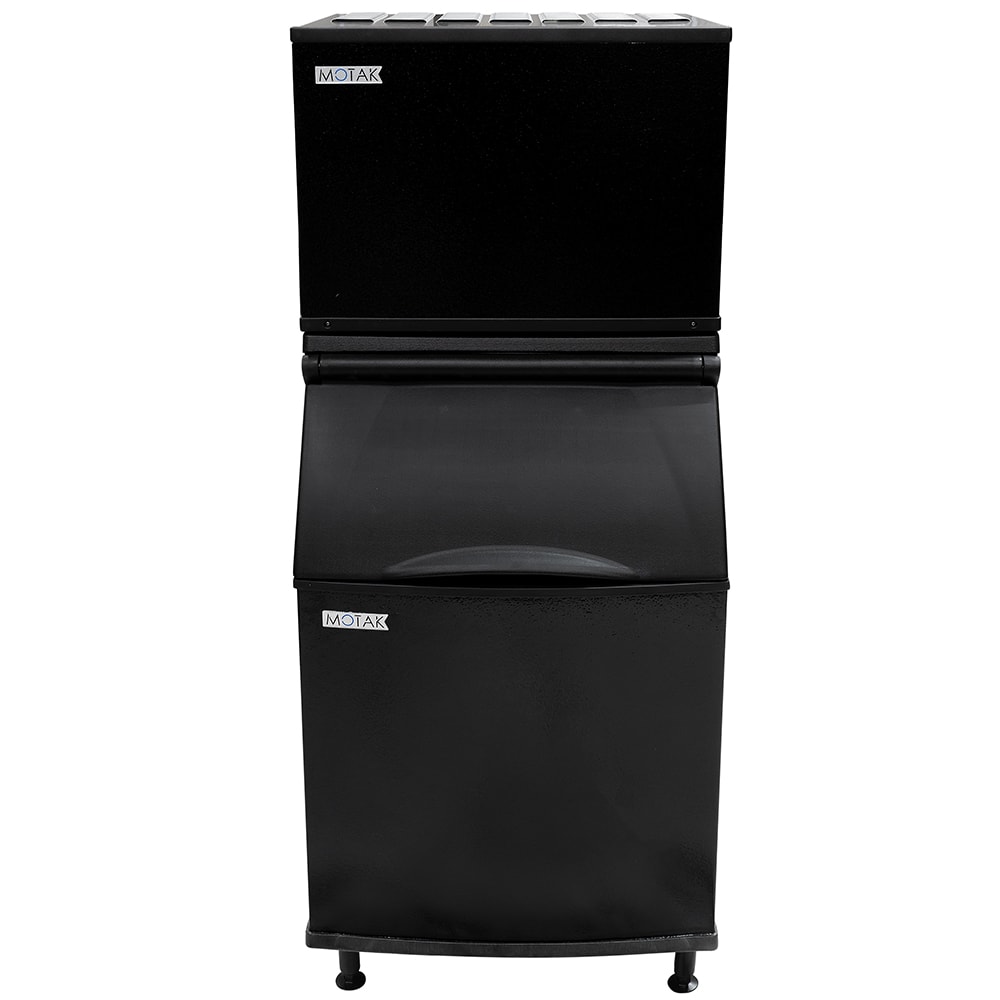

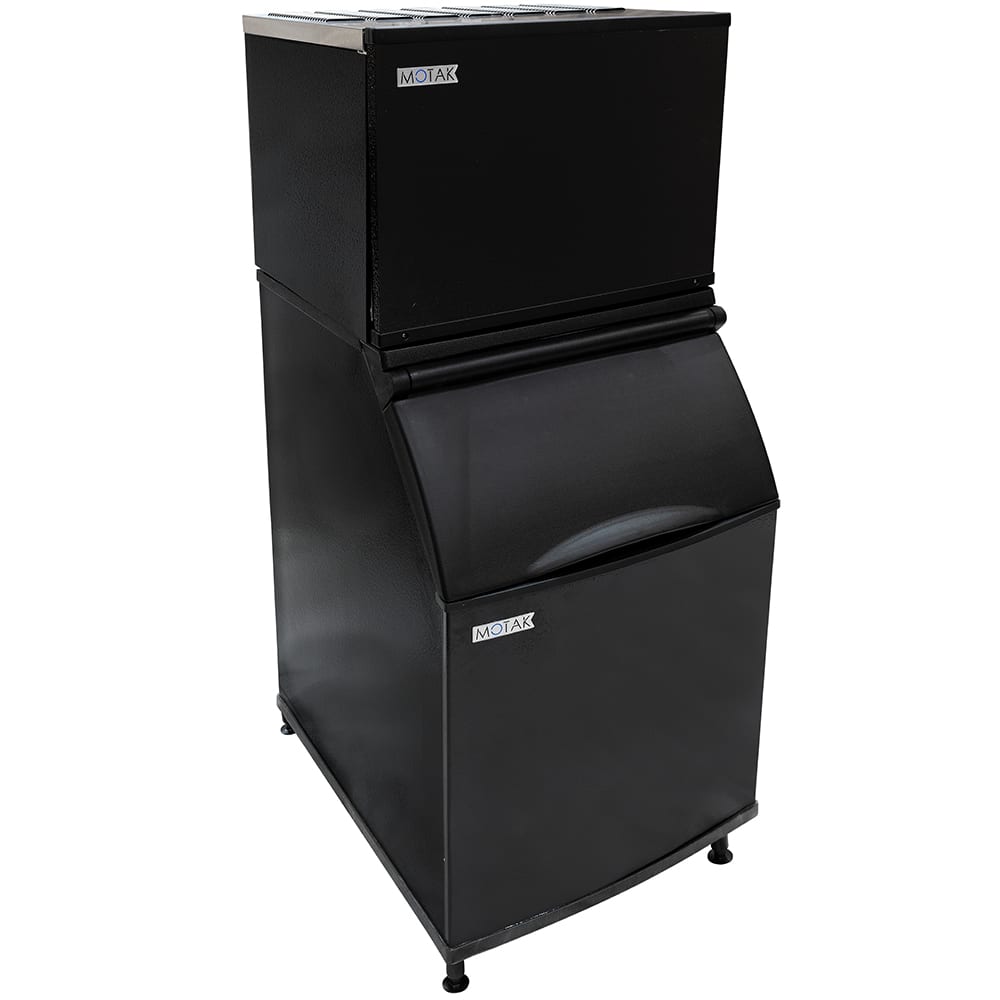

MoTak PKM0335FA-161/PKB0535 325 lb PKM Series Full Cube Ice Machine w/ Bin - 534 lb Storage, Air Cooled, 115v
QUICK SHIP: Ships in 1 Business Day
Retail Price: $4,990.40
$2,999.00 /Each
Selected Ice Type: Full Cube
MoTak PKM0335FA-161/PKB0535 Description
When ambient conditions are ideal, the MoTak PKM0335FA-161/PKB0535 ice maker and bin combo unit can produce a maximum of 325 pounds of ice per day. It produces full-size cubes—a slow-melting type that’s ideal for cocktails or liquor on the rocks. This ice machine head operates with R410 refrigerant and measures 30 inches wide by 24 1⁄2 inches deep by 21 1⁄2 inches high overall.
Measuring 30 inches wide by 34 inches deep by 50 inches high, the MoTak PKM0335FA-161/PKB0535 ice machine’s bin provides 18 cubic feet of interior space. It features a stay-open door that offers unimpeded access to ice, and an 82-ounce scoop is included to facilitate retrieval. To extend the life of stored ice and minimize condensation, the unit's door is insulated. The bin is mounted on legs that can be adjusted from 6 to 7 1⁄2 inches, and it features a smudge-resistant black exterior that matches the accompanying ice maker head.
- 325-lb. maximum daily ice production
- 225-lb. maximum daily production when air is 90 degrees F and incoming water is 70 degrees F
- Produces full-size ice cubes
- Individual ice cube dimensions: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Smudge- and fingerprint-resistant black exterior
- Uses R410A refrigerant
- Ideal ambient temperature range: 70-90 degrees F
- Ideal water temperature range: 50-70 degrees F
- 20-gal. water usage/100-lb. production
- 4,600 BTU/hr. average heat transfer capacity
- 5,450 BTU/hr. peak heat transfer capacity
- 18-cu.-ft. interior space

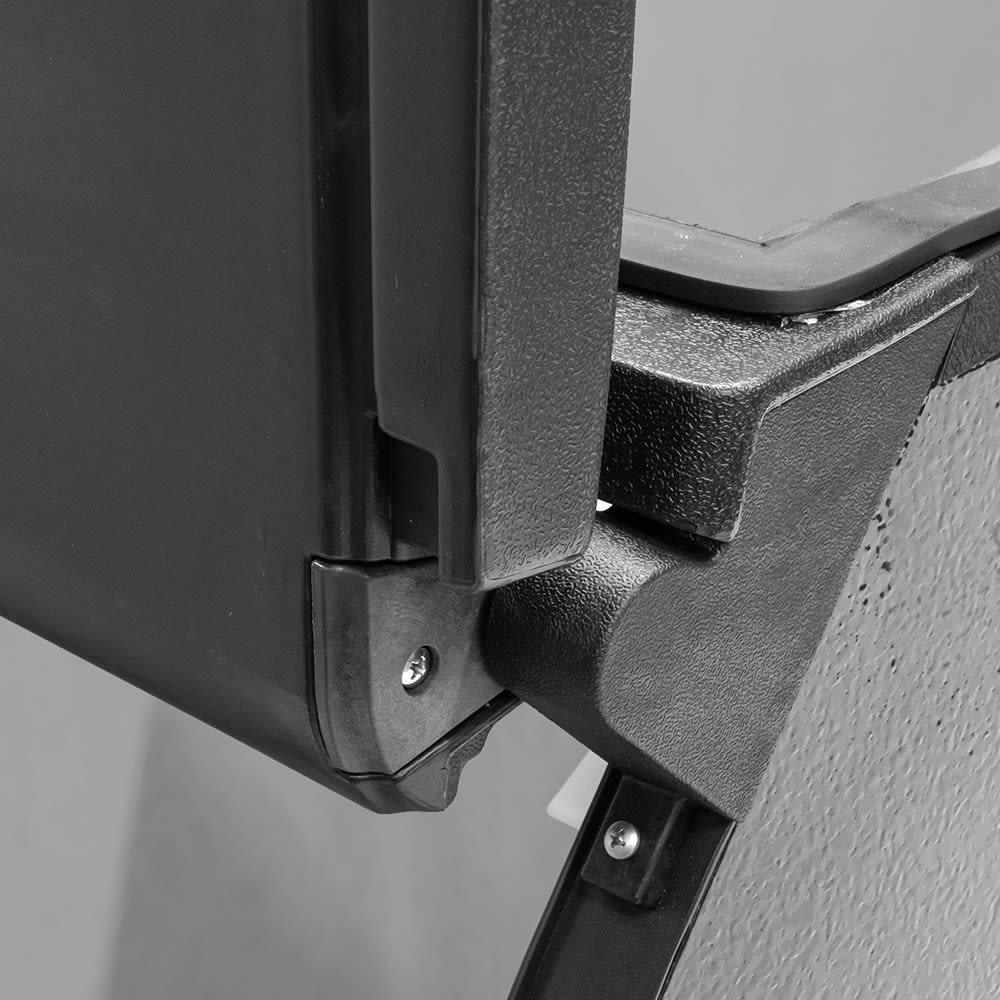

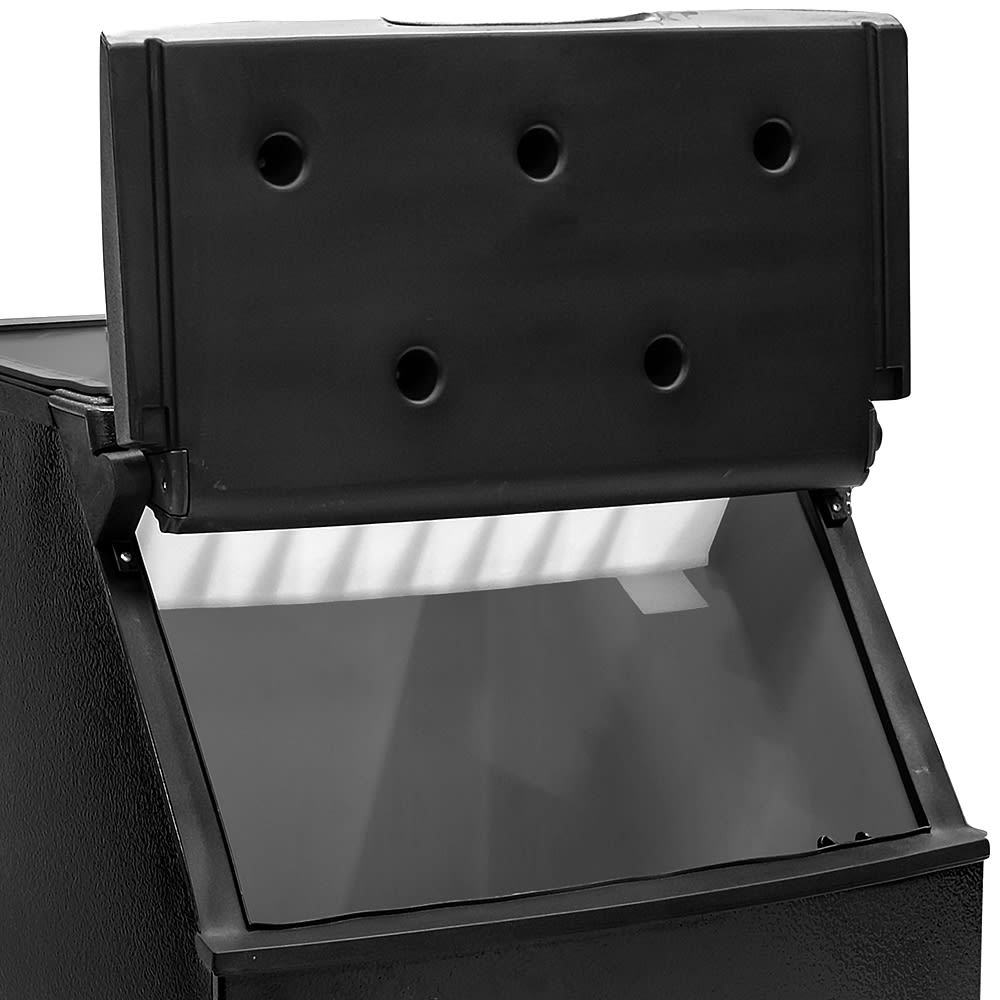

- Stay-open door provides access to ice

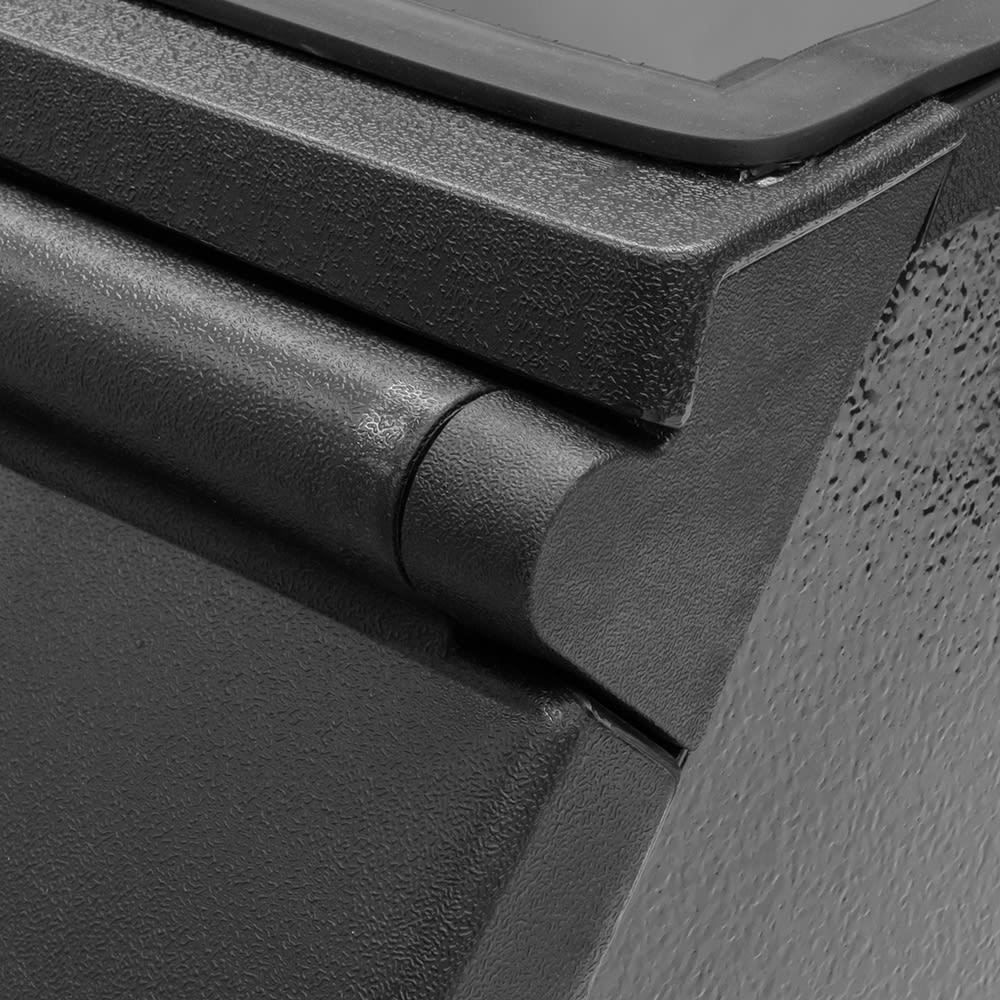

- Door is insulated to preserve life of ice and reduce condensation
- Fingerprint- and smudge-resistant black exterior
- Legs and 82-oz. ice scoop included
- Legs can be adjusted from 6 in. to 7 1⁄2 in.
- Fitted with 0.75-in. drain
- Ice maker: 30 in. W x 24 1⁄2 in. D x 21 1⁄2 in. H
- Bin: 30 in. W x 34 in. D x 50 in. H
- 15 A, 6.25 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on MoTak PKM0335FA-161/PKB0535 within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
MoTak PKM0335FA-161/PKB0535 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | MoTak |
| 24 Hr. Production (lb) | 325 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 534 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 71.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R410A |
| Series | PKM Series |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 260.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
MoTak PKM0335FA-161/PKB0535 MoTak PKM0335FA-161/PKB0535 325 lb PKM Series Full Cube Ice Machine w/ Bin - 534 lb Storage, Air Cooled, 115v Current Item |
Manitowoc Ice IDP0300A/D570 |
|---|---|---|
| Customer Rating |
|
|
| Price | $2,999.00 / Each | $5,399.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Ships in 1 Business Day |
| Ice Type | Full Cube | Full Cube |
| 24 Hr. Production (lb) | 325 | 309 |
| Width (in) | 30 | 30 |
| Bin Capacity (lb) | 534 | 532 |
| Compressor Type | Air Cooled | Air Cooled |
| Rating | Better | Best |
| Height (in) | 71.5 | 66.5 |
| Refrigerant | R410A | R290 (Hydrocarbon) |
| Voltage | 115 | 115 |
| Warranty | 1-year Parts & Labor | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
- 5
- 4
- 3
- 2
- 1
Review this product!
It produces up to 325 lbs per day with 534 lbs of storage.
It needs a ⅜-in. water inlet, ½-in. drain, and water pressure between 20–80 psi.
It uses R-410A refrigerant.
It has a self-cleaning cycle, stay-open bin door, and included scoop.
It operates on 115 V, 60 Hz, single pIt hase power; verify breaker sizing before installation.
It produces up to 325 lbs. of ice per 24 hours.
The bin holds 534 lbs. of ice.
It makes full-cube ice.
It measures 30 in. W x 34 in. D x 71 1/2 in. H.
It uses an air-cooled condensing system.
It requires 115 V, 60 Hz, single-phase power.
It requires a 3/8-in. water inlet connection.
It uses R410A refrigerant.
The bin has a lift-up door for ice access.
Its listed certifications include C-UL US and NSF.
Yes, the bin door stays open during ice retrieval.
Yes, an ice scoop is included.
It requires incoming water from 50°F to 70°F.
Yes, this purchase includes both the ice machine head and storage bin.
