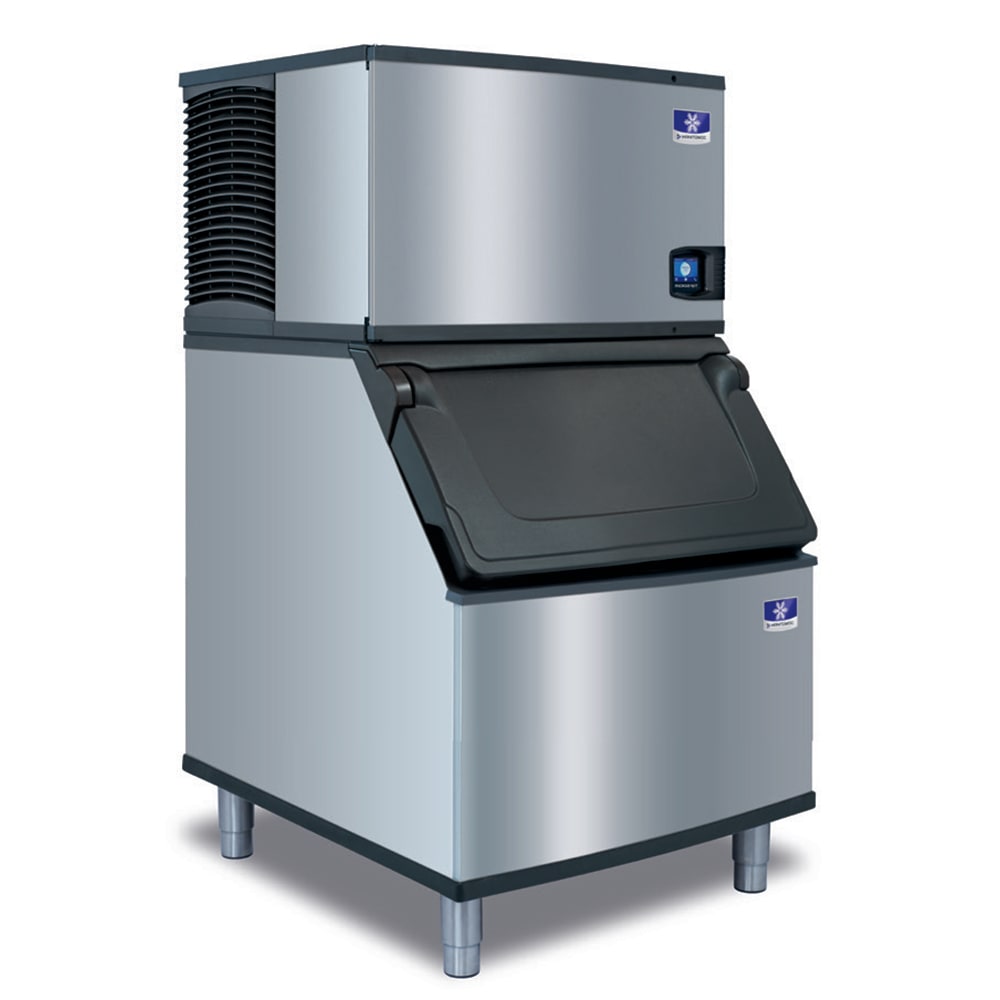

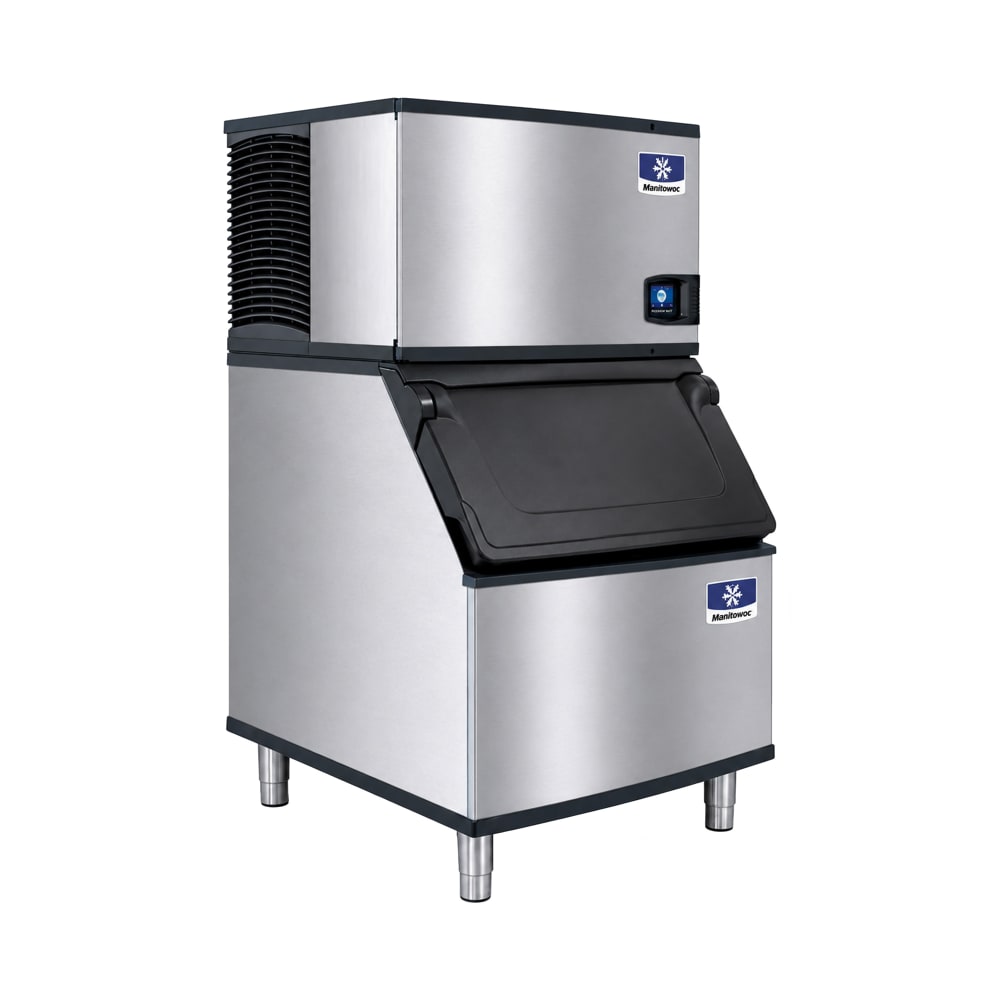

Manitowoc Ice IDT0300A/D570 305 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 115v

Made of DuraTech™, the exterior of the Manitowoc Ice IDT0300A/D570 full-cube ice maker with bin is durable and resistant to corrosion or smudging. It produces dice-size ice cubes and creates as much as 305 pounds of ice daily in ideal conditions. This unit cools with R410a refrigerant, and the air-cooled refrigeration system is self-contained to reduce the risk of cross contamination and streamline installation. For later use, the ice bin stores 532 pounds of ice, which can be retrieved with a 5.3-pound scoop.

The Manitowoc Ice IDT0300A/D570 ice maker with bin has a side-hinged door that stays open so employees can grab ice. The scoop's knuckle and thumb guard prevent users from contaminating the ice with their hands, and the bin is insulated with foam to prevent ice from melting during storage. To slow the growth of bacteria, the ice maker's foodzone is coated with AlphaSan® antimicrobial, and its components are removable for cleaning.

Ice Maker Details

• Part of the Indigo NXT™ series
• 305-lb. maximum daily ice production
• 230-lb. AHRI-certified daily ice production
• Produces dice-size cubes
• Ice dimensions: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Self-contained, air-cooled condenser cools with R410a refrigerant
• Active sense harvesting and programmable ice control
• Acoustic, ice-sensing probe for harvesting into a bin
• 24-hour maintenance and diagnostics
• Bacterial growth is slowed by AlphaSan antimicrobial
• Removable foodzone components
• Smudge- and corrosion-resistant DuraTech exterior
• easyTouch® display with icons for use
• Ideal ambient temperature range: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 4,600-BTU heat transfer capacity

Ice Bin Details

• 532-lb. application capacity
• 17.9-cu.-ft. interior space
• 5.3-lb. scoop with a sanitary knuckle and thumb guard
• Polyurethane Artic Blue bin liner accentuates ice
• Side-hinged door opens from the front and stays open for access
• Grips on the side facilitate opening
• Insulated with foam to preserve ice temperature
• Corrosion-resistant DuraTech exterior doesn't smudge

Dimensions & Utilities

• Ice maker: 30 in. W x 24.5 in. D x 16.5 in. H
• Ice bin: 30 in. W x 34 in. D x 50 in. H
• 8.8 A
• 115 V/60 Hz/1 ph

Product Features

From The Manufacturer

Indigo NXT™ Series Ice Maker w/ Ice Bin, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 16-1/2"H, production capacity up to 305 lb/24 hours at 70°/50° (230 lb AHRI certified at 90°/70°), DuraTech™ exterior, dice size cubes, R410a refrigerant, NSF, cULus, CE, ENERGY STAR®; Ice Bin, 30"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 532 lbs. application capacity, AHRI certified 17.9 cu. ft., for top-mounted ice maker, Duratech exterior, NSF

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Warranty, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor
