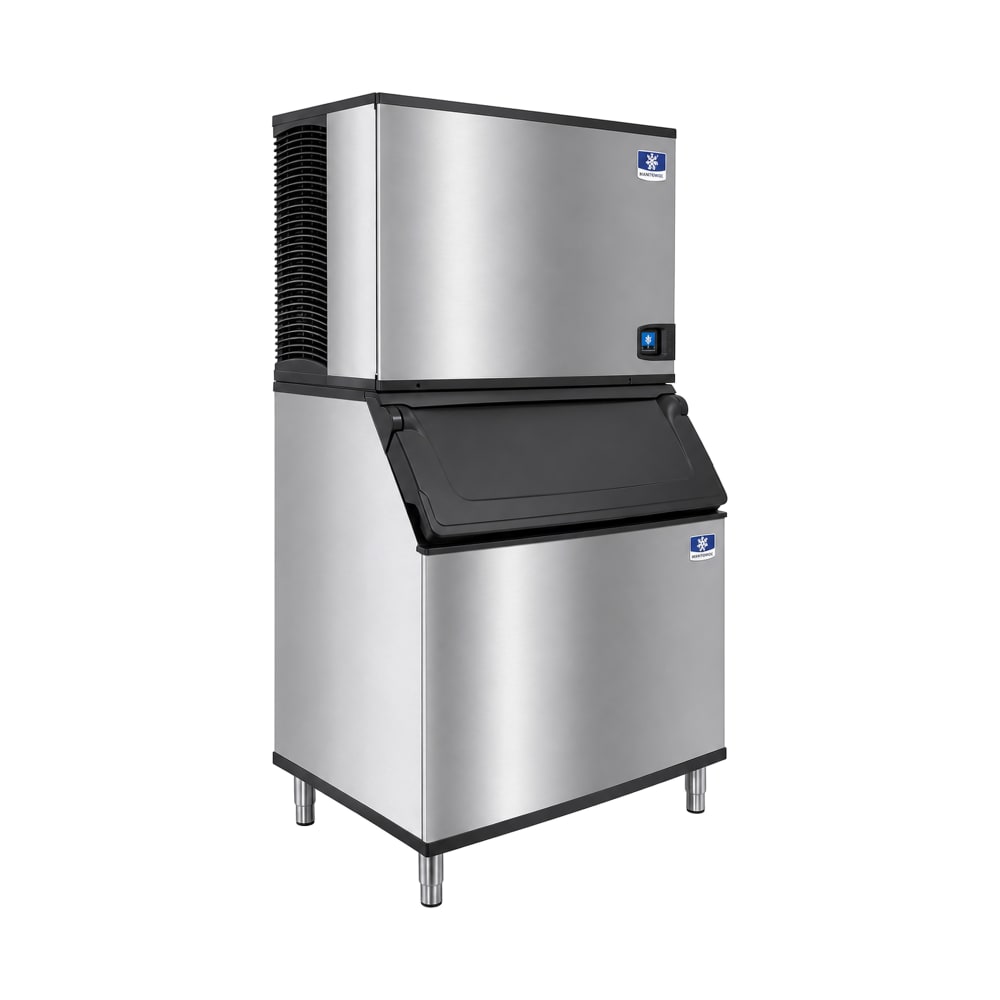

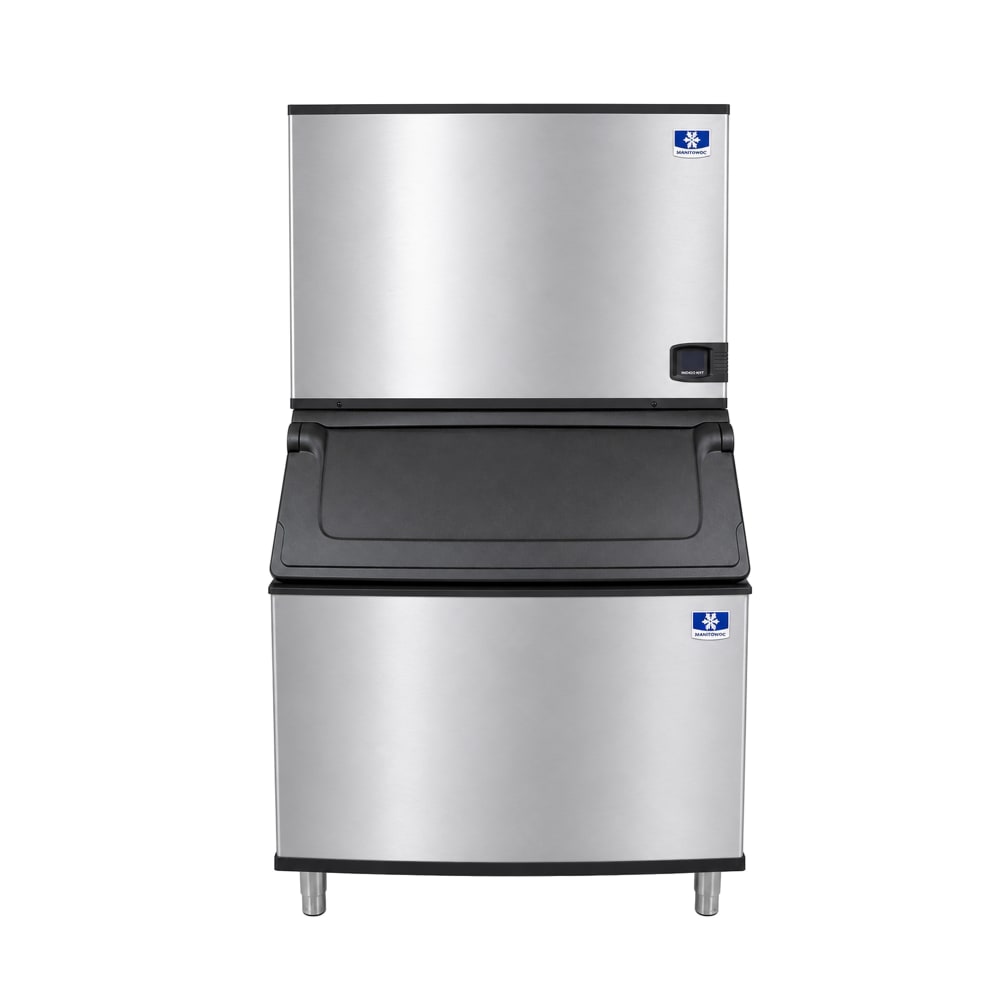

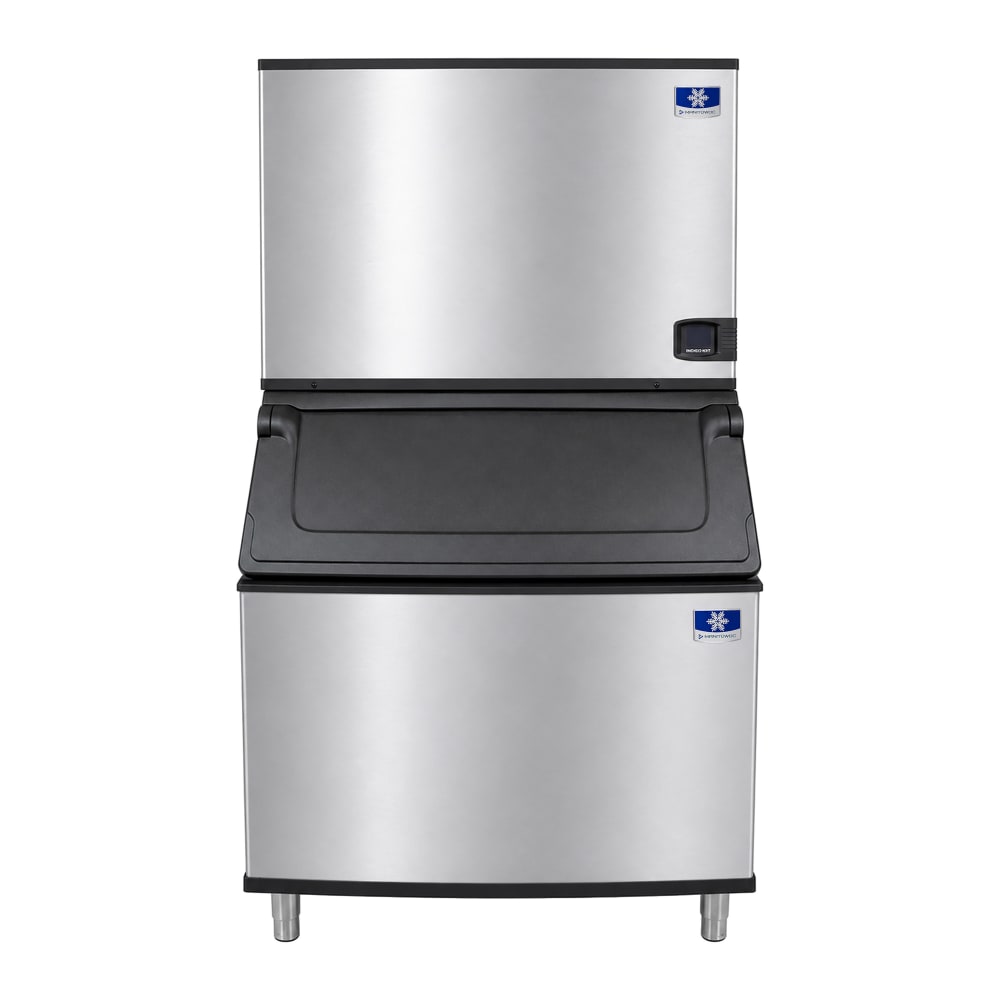

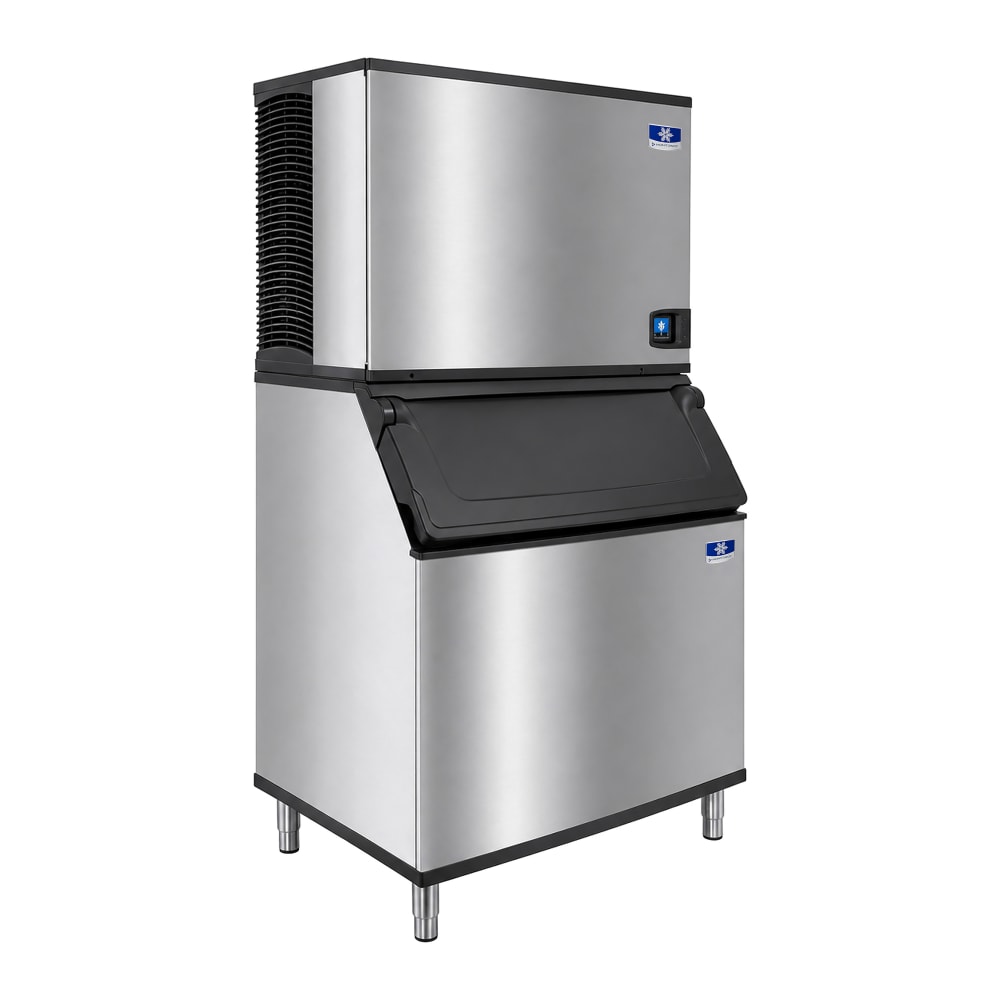

Manitowoc Ice IDT1500A/D970 1688 lb Indigo NXT™ Full Cube Ice Machine w/ Bin - 882 lb Storage, Air Cooled, 208-230v

The Manitowoc Ice IDT1500A/D970 Indigo NXT™ ice machine and bin combo produces as much as 1,320 pounds of ice in 24 hours in ideal conditions. If the ambient air is warmer than 70 degrees Fahrenheit and incoming water is warmer than 50 degrees Fahrenheit, the unit will produce less than its maximum amount. The operator can specify the desired daily production level using the easyTouch® controls. When making ice, water flows over the evaporator plate and freezes into full-size cubes. Then a probe checks the ice before it falls into the bin, ensuring it is the correct thickness.

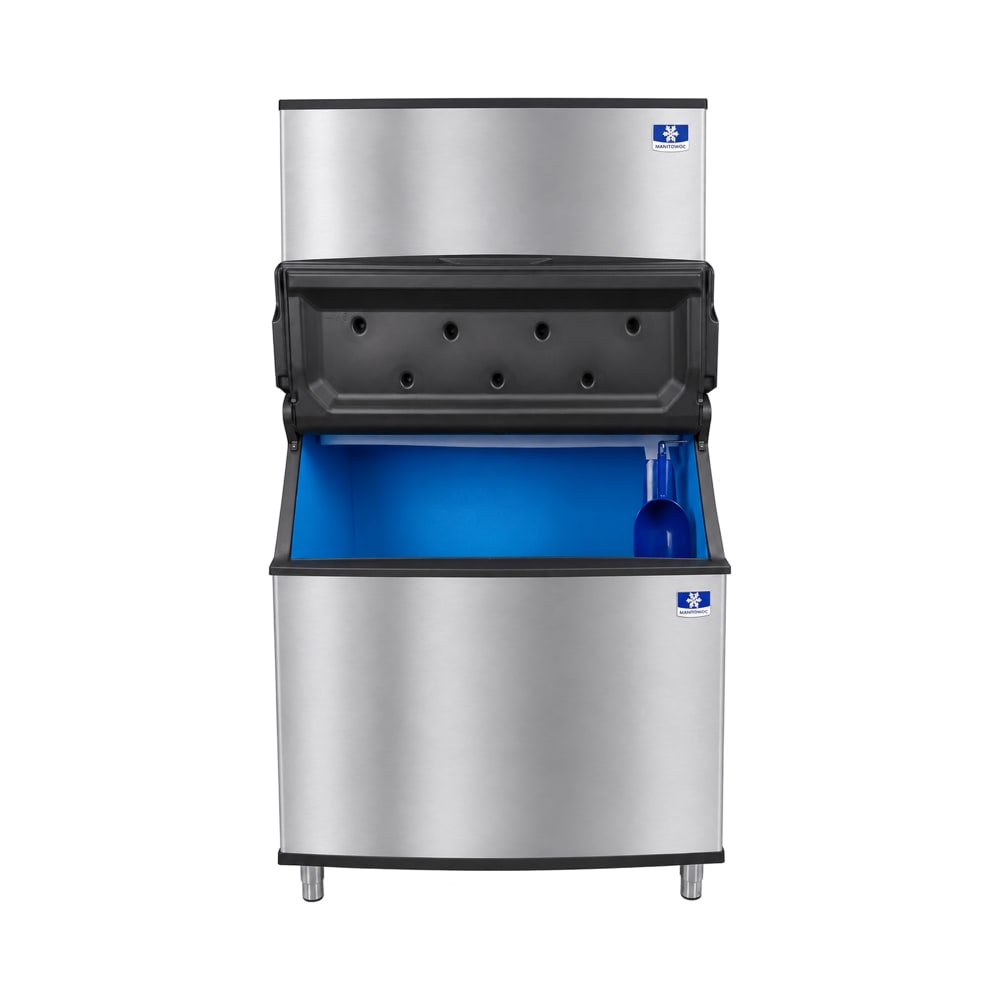

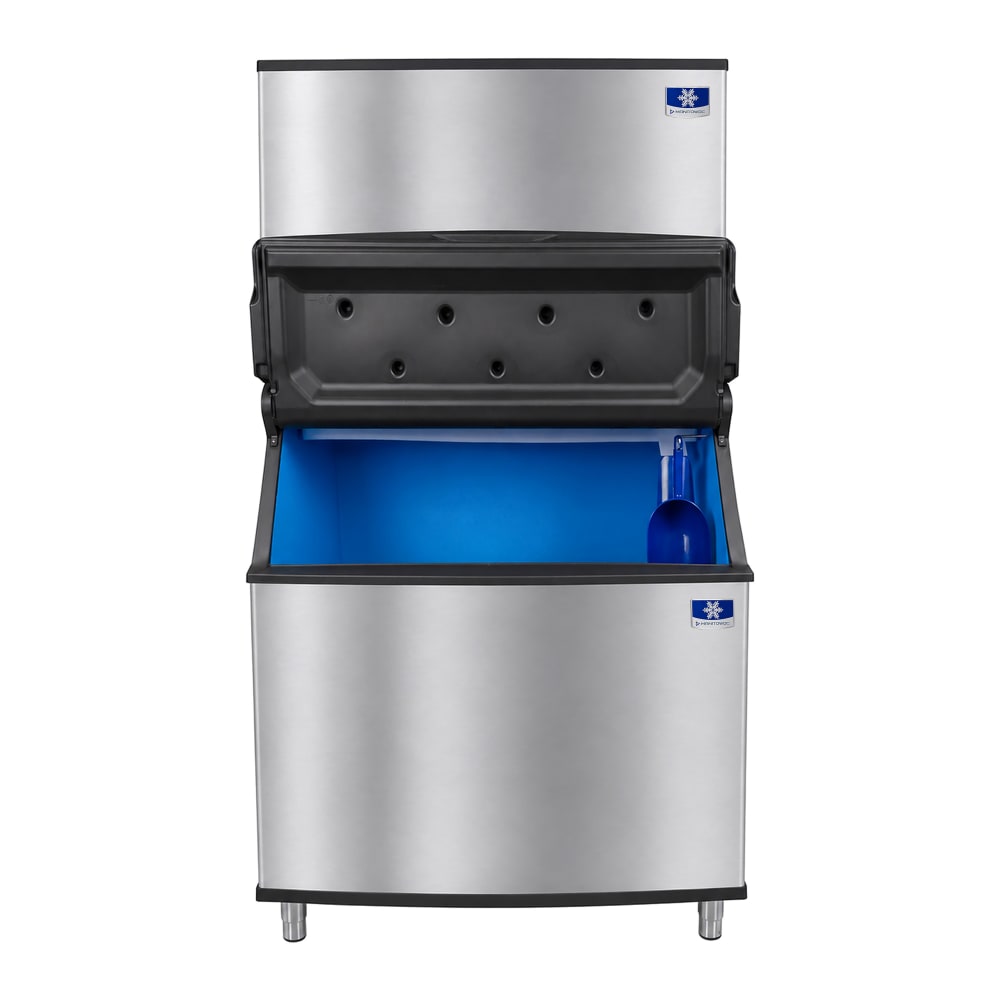

This Manitowoc Ice IDT1500A/D970 ice maker and bin can store 882 pounds of ice, so it is great for large venues. Its polyurethane liner can be wiped clean, and its insulated door prevents ice from melting quickly. The door is angled for comfort and has built-in grips and latches that help staff scoop ice, and because the included ice scoop has a thumb and knuckle guard, ice is protected from cross-contamination. Antimicrobial protection helps prevent mold growth between cleanings, and when it's time to clean the ice machine head, the screen provides a reminder. The food zone can be accessed through the front, and several parts can be removed and cleaned separately.

Ice Machine Details

• Part of the Indigo NXT series
• 1,800-lb. maximum daily ice production
• 1,320-lb. AHRI-certified daily ice production

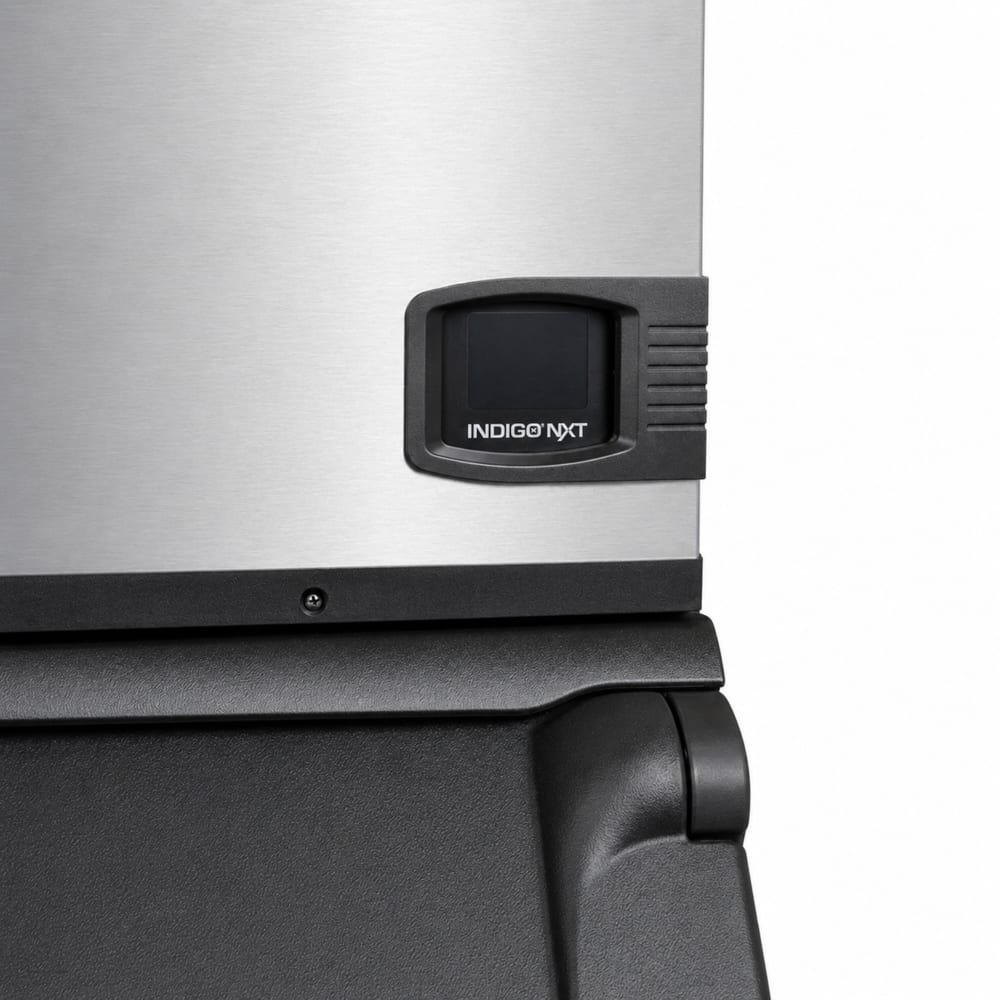

• easyTouch screen features intuitive icon-based controls
• Ice production can be adjusted based on time of day or volume
• Foodzone has removable parts to streamline cleaning
• AlphaSan® antimicrobial agent slows mold and slime growth between cleanings
• Ice thickness is monitored by an acoustical ice probe

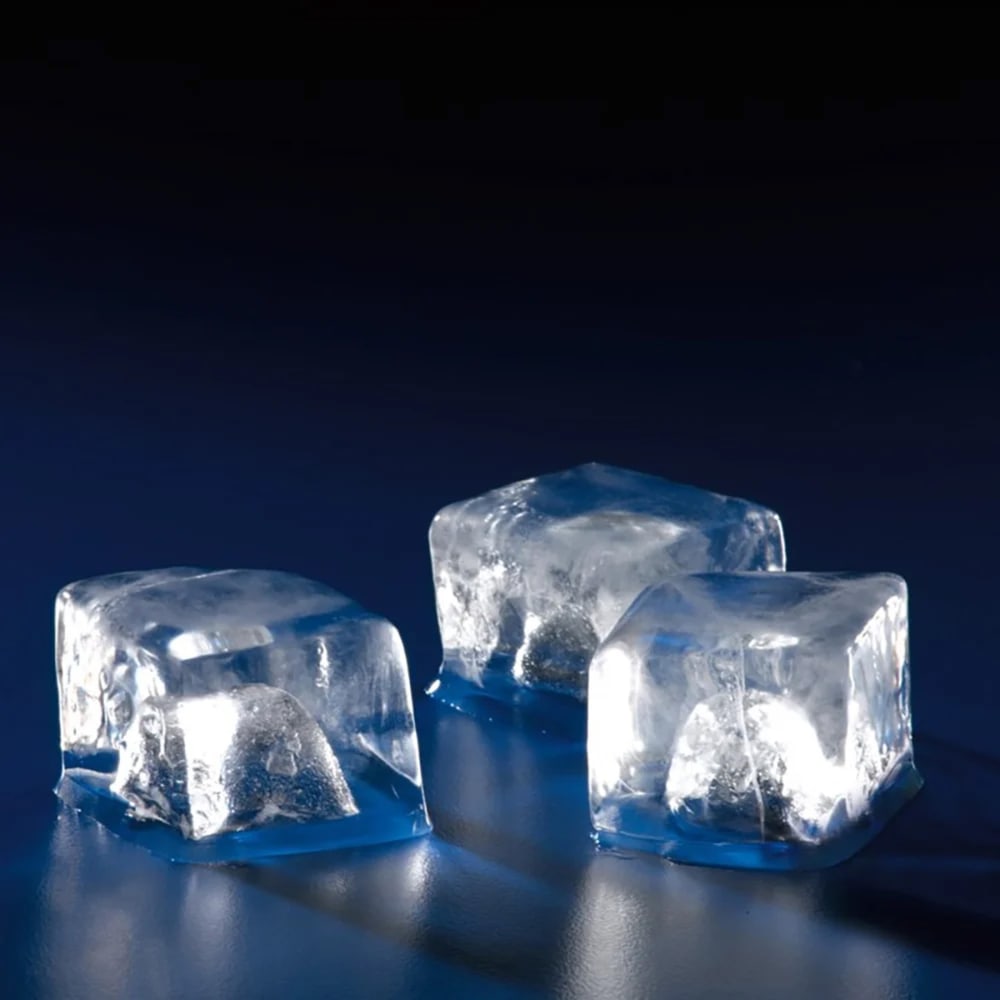

• Makes full-cube ice

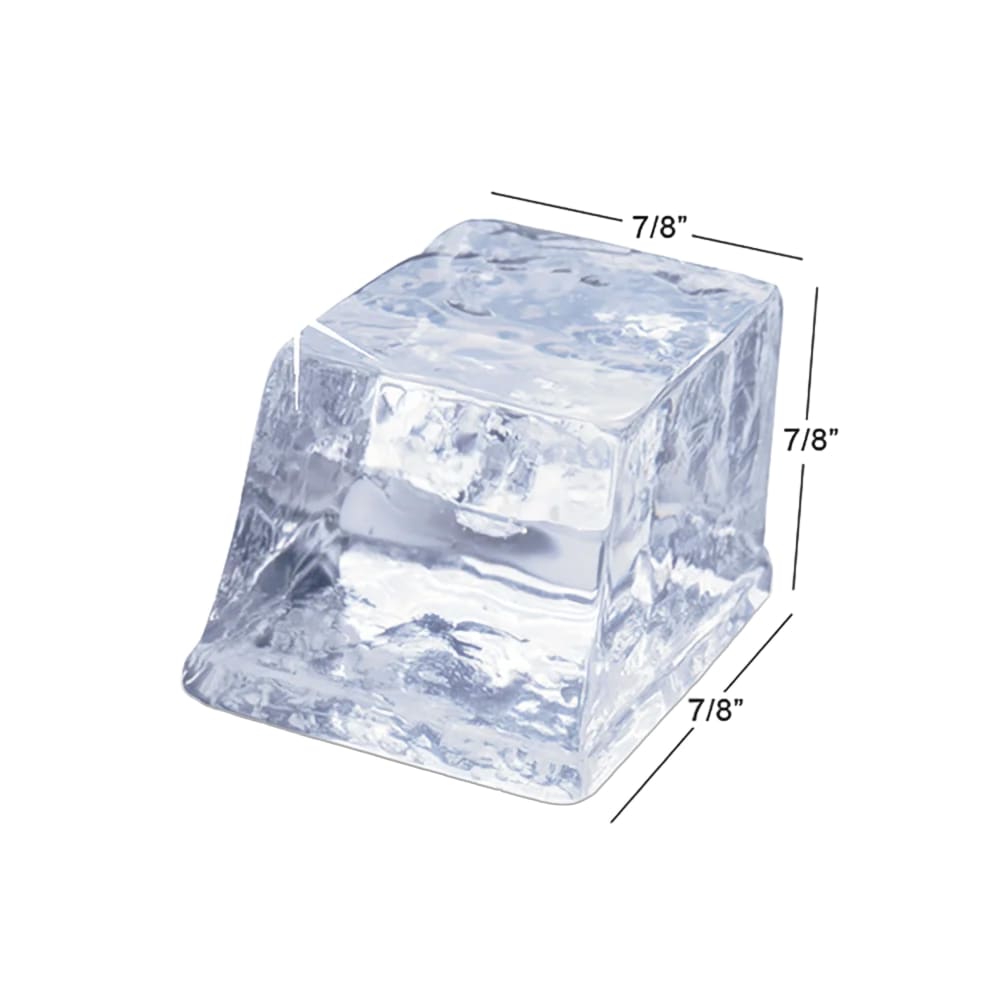

• Full-cube ice size: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• System constantly conducts diagnostics and provides maintenance notifications as needed
• Durable, smudge-hiding DuraTech coating
• R410A refrigerant

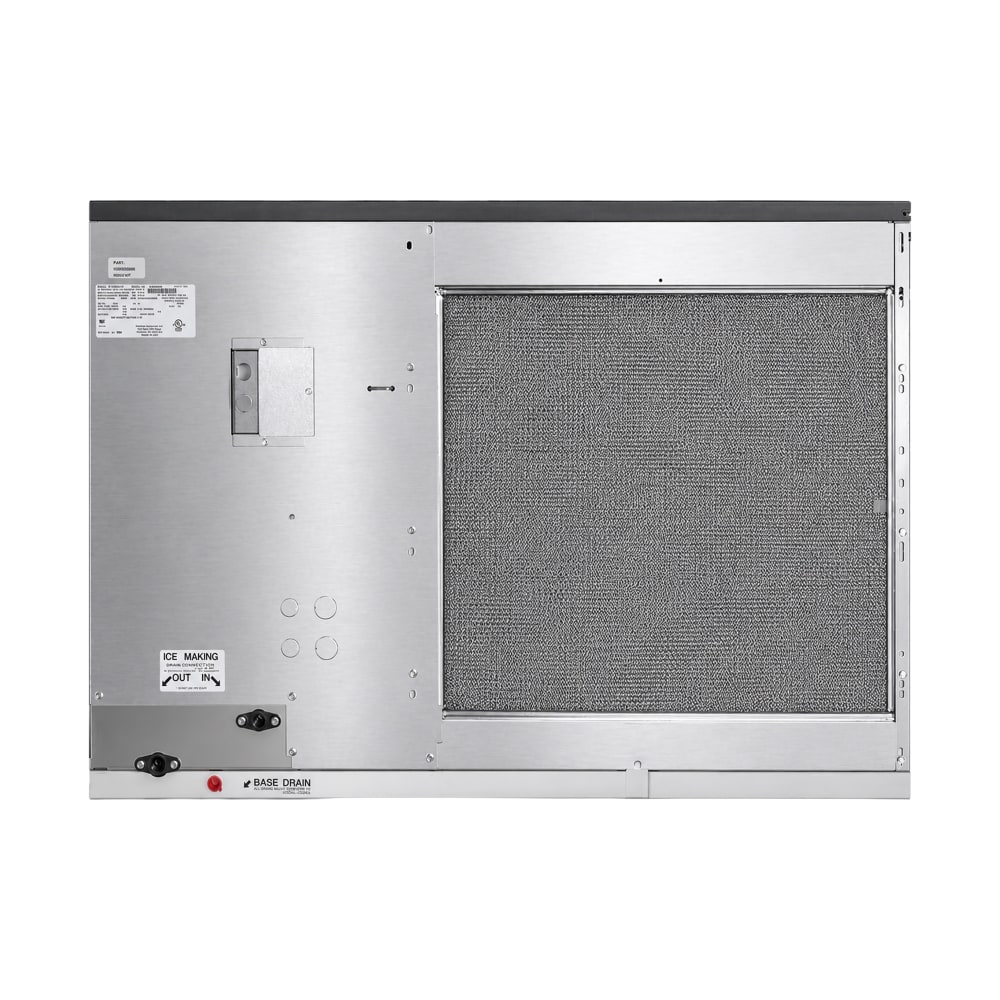

• Air-cooled condenser
• 23,000 average BTU; 27,000 peak BTU

Product Features

Ice Bin Details

• 882-lb. ice storage capacity
• 29.7-cu.-ft. AHRI-certified ice storage capacity

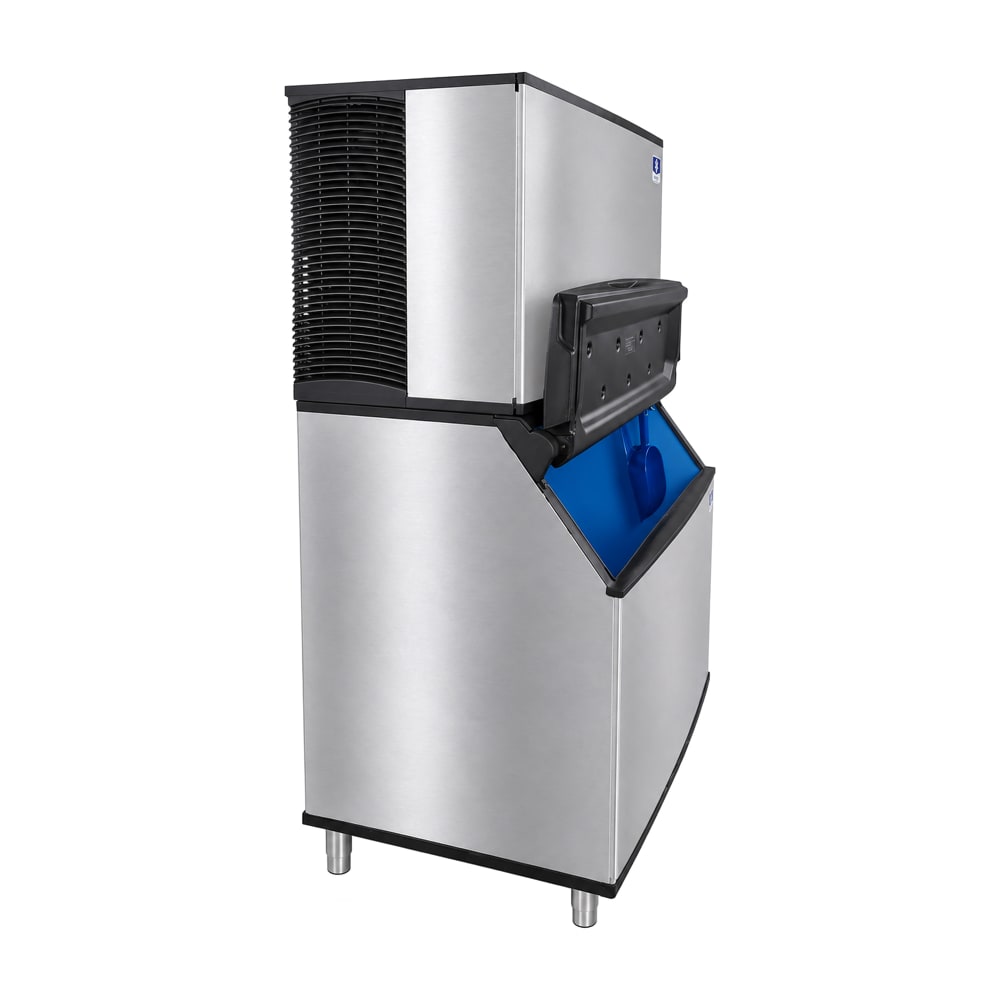

• Foam-insulated door prevents quick melting of ice
• Built-in grips for lifting the door from the side
• Latches secure the door in an open position
• DuraTech exterior coating
• Scratch-resistant polyurethane liner

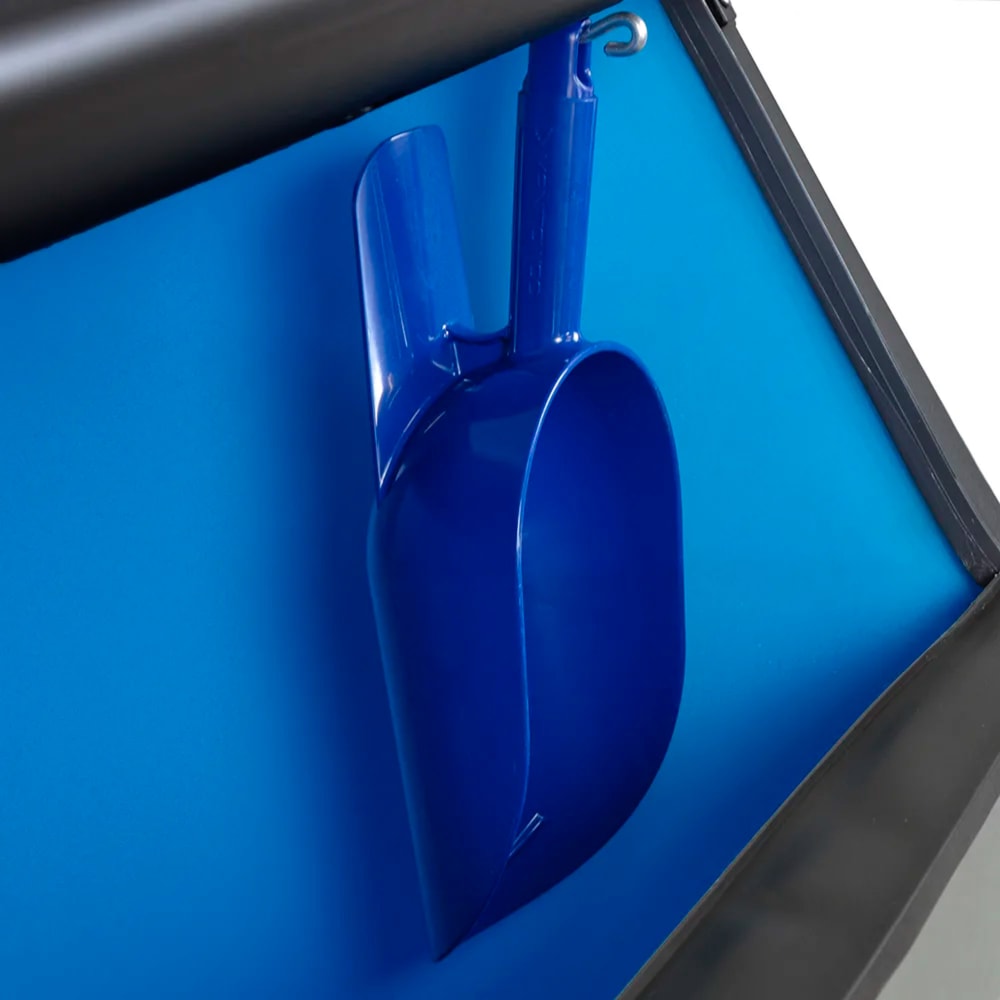

• Includes ice scoop with a 5.3-lb. capacity
• Scoop thumb and knuckle guards keeps hands out of ice
• Built-in scoop holder conveniently holds scoop above the ice

Ideal Operating Conditions

• Incoming water temperature: 40-90 degrees F
• Incoming water pressure: 20-80 PSI
• Surrounding air temperature: 40-110 degrees F
• Clearances: 12 in. on top, 8 in. on sides, 5 in. on back

Dimensions & Utilities

• Bin: 48 in. W x 34 in. D x 50 in. H
• Ice machine: 48 in. W x 24 in. D x 29.5 in. H
• 15.4 A, 4.66 kW
• 208-230 V/60 Hz/1 ph

*Free shipping on Manitowoc Ice IDT1500A/D970 within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 48"W x 24"D x 29-1/2"H, production capacity up to 1688 lb/24 hours at 70°/50° (1350 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE

Ice Bin, 48"W x 34"D x 50"H, with side-hinged front-opening door, side grips, 882 lbs. application capacity, AHRI certified 29.7 cu. ft., for top-mounted ice maker, Duratek exterior, NSF

*Image may not depict product color, inclusions or accessories.

Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor

Manitowoc Ice IDT1500A/D970 Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
