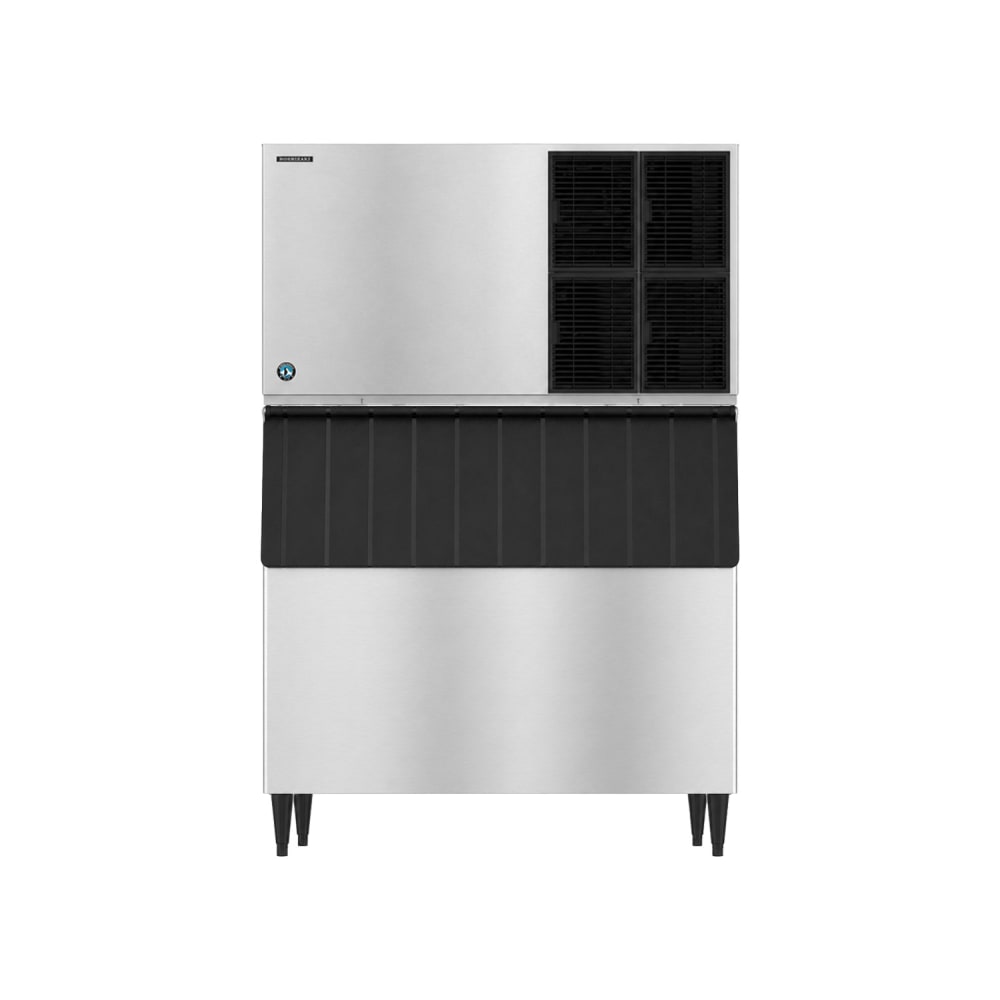

Hoshizaki KM-1601SAJ/B-800SF 1513 lb KM Series Crescent Cube Ice Machine w/ Bin - 800 lb Storage, Air Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$13,200.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Voltage: 208-230V, 1 Phase
| 208-230V, 1 Phase |
| 208-230V, 3 Phase |
Hoshizaki KM-1601SAJ/B-800SF Description
The Hoshizaki KM-1601SAJ/B-800SF ice maker and bin produces and stores large quantities of crescent cube ice, making it ideal for casual restaurants, smoothie establishments, and cocktail bars that need to satisfy high demands. Depending on external conditions, the ice machine can create as much as 1,513 pounds of ice per 24-hour cycle. Its body is made of stainless steel, and its interior mechanism is protected by an antimicrobial agent.
Because its body is made of PVC-coated galvanized steel, the Hoshizaki KM-1601SAJ/B-800SF ice machine and bin is durable and can be wiped clean. It has some sanitary features, including a polyethylene bin liner and a scoop so ice retrieval is clean and safe. Equipped with insulated sides, the bin holds as much as 800 pounds of cold ice.
- 1,513-lb. maximum daily ice production
- 1,433-lb. AHRI-certified daily ice production
- Makes crescent cube ice, which is ideal for use in sodas and blended drinks
- Crescent cube ice size: 1 1⁄8 in. x 1⁄2 in. x 1 1⁄2 in.
- Stainless steel body offers durability
- H-Guard Plus antimicrobial agent slows bacterial growth inside interior parts
- Equipped with the EverCheck™ alert system
- Air-cooled condenser is self-contained
- R404A refrigerant
- Ideal ambient air temperature: 45-100 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- 800-lb. storage capacity
- PVC-coated galvanized steel finish is attractive and durable
- Foamed-in-place polyurethane insulation in walls and bottom preserve ice from external temperatures
- H-Guard Plus antimicrobial agent slows bacterial growth
- Sturdy construction can be stacked for additional capacity
- Polyethylene bin liner provides sanitary conditions for storage
-
Ice Maker
-
48 1⁄4 in. W x 27 7⁄16 in. D x 27 3⁄8 in. H
-
15.9 A
-
208-230 V/60 Hz/1 ph
-
Ice Bin
-
48 in. W x 32 1⁄2 in. D x 46 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SAJ/B-800SF within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1433 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 15.9 amps, NSF, UL
Ice Bin, 48"W, top-hinged front-opening door, 800-lb ice storage capacity, for top-mounted ice makers, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1601SAJ/B-800SF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1513 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 800 |
| Compressor Type | Air Cooled |
| Depth (in) | 32.3 |
| Height (in) | 73.38 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 525.00 |
