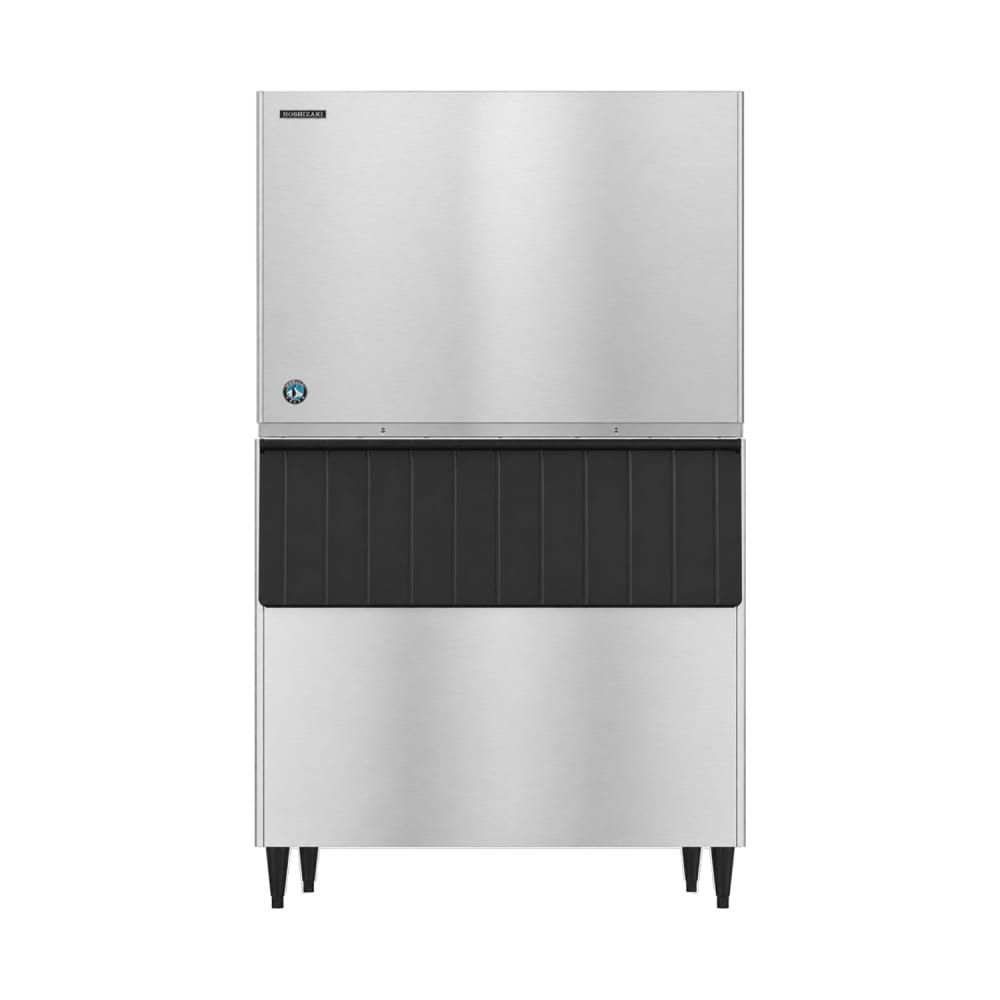

Hoshizaki KM-1601SWJ/B-800SF 1660 lb KM Series Crescent Cube Ice Machine w/ Bin - 800 lb Storage, Water Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$13,230.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Hoshizaki KM-1601SWJ/B-800SF Description
With a storage capacity of 800 pounds, the Hoshizaki KM-1601SWJ/B-800SF ice machine with bin can produce as much as 1,660 pounds of ice in a single day. Because it's constructed of stainless steel, the exterior is resistant to denting and rusting. To keep the unit running smoothly, it features an EverCheck™ system that alerts users of operational problems.
The Hoshizaki KM-1601SWJ/B-800SF ice maker/bin combo produces crescent cube ice, which is great for serving in cocktails, blending smoothies, or selling in bags. It features a self-contained, water-cooled refrigeration system and uses R-404A refrigerant. To maintain optimal ice quality, bacterial growth is inhibited with antimicrobial H-Guard Plus®.
- 1,660-lb. daily ice production
- 1,650-lb. daily AHRI-certified ice production
- Crescent cube ice size: 1 1⁄2 in. x 1 1⁄8 in. x 1⁄2 in.
- CycleSaver™ conserves energy by limiting cycle numbers
- Self-contained, water-cooled refrigeration system
- Exterior is durable stainless steel
- EverCheck alert system indicates improper operating conditions
- H-Guard Plus antimicrobial protection
- Stainless steel evaporator
- Ideal ambient temperature range: 45-100 degrees F
- Ideal incoming water temperature range: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- Uses R-404A refrigerant
- 21,300-BTU heat transfer capacity
- 26.9-cu.-ft. capacity
- 1,605-lb. ice storage capacity
- 82-oz. ice scoop included
- Polyethylene interior liner eliminates crevices that could harbor bacteria
- Stainless steel exterior resists corrosion
- Foamed-in-place polyurethane insulation prevents ice melting
- Sealed door gasket protects ice from airborne contaminants
- Scoop and bin protected with H-Guard Plus antimicrobial agent
- Top view windows provide visibility
- 6-in. adjustable stainless steel legs
- Hinged bottom door

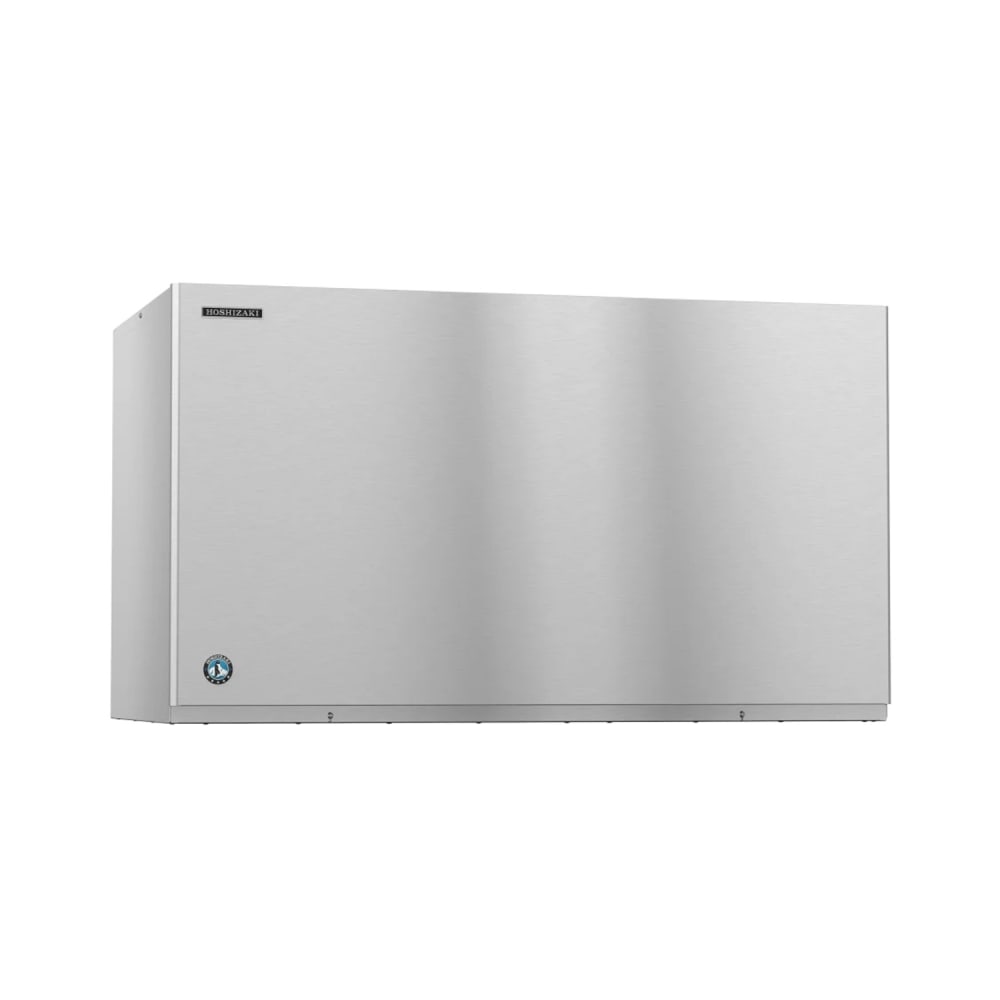

- Ice machine: 48 in. W x 27 3⁄8 in. D x 27 3⁄8 in. H

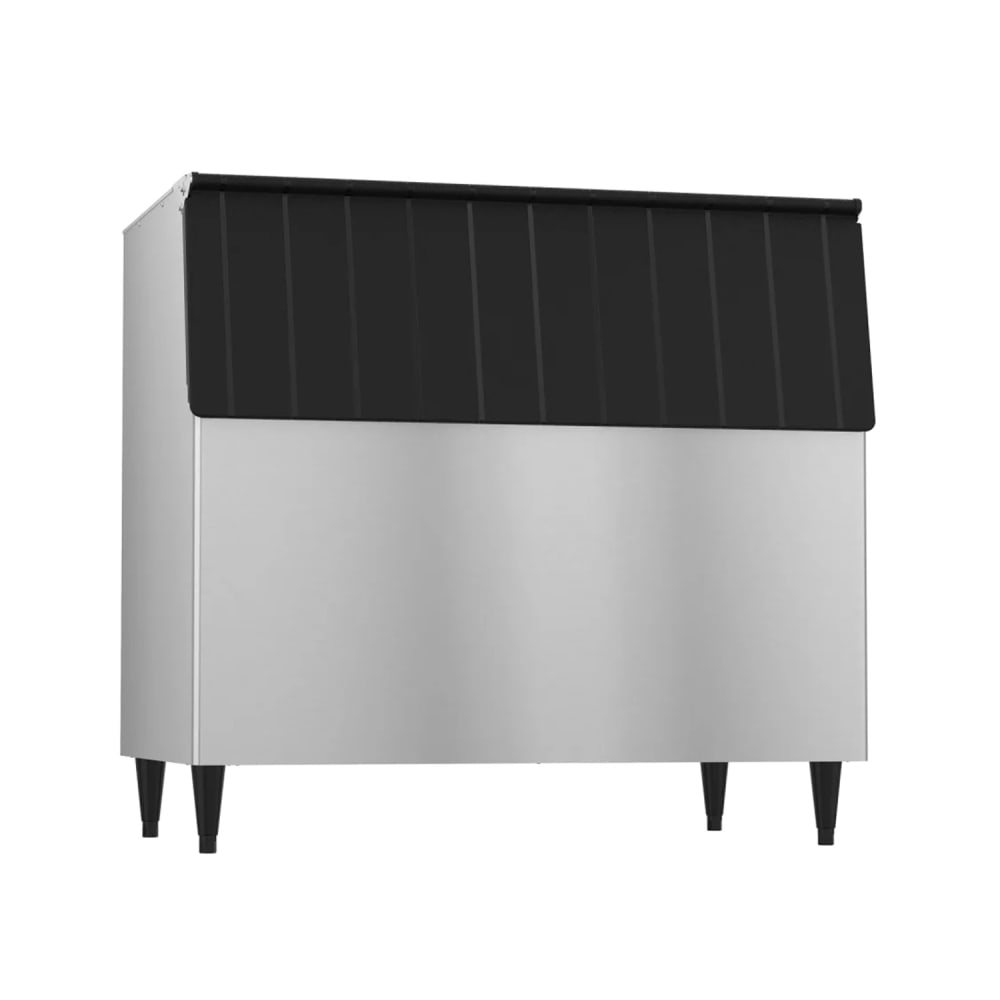

- Ice bin: 48 in. W x 32.3 in. D x 46 in. H
- 13.6 A, 3.3 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SWJ/B-800SF within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, stackable, water-cooled, self-contained condenser, production capacity up to 1660 lb/24 hours at 70°/50° (1650 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 13.6 amps, NSF, UL
Ice Bin, 48"W, top-hinged front-opening door, 800-lb ice storage capacity, for top-mounted ice makers, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1601SWJ/B-800SF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1660 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 800 |
| Compressor Type | Water Cooled |
| Depth (in) | 32.3 |
| Height (in) | 73.38 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 570.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hoshizaki KM-1601SWJ/B-800SF Hoshizaki KM-1601SWJ/B-800SF 1660 lb KM Series Crescent Cube Ice Machine w/ Bin - 800 lb Storage, Water Cooled, 208-230v Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $13,230.00 / Each | $11,834.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | Typically ships in 4 - 8 Business Days |
| Ice Type | Crescent Cube | Full Cube |
| 24 Hr. Production (lb) | 1660 | 1615 |
| Width (in) | 48 | 48 |
| Bin Capacity (lb) | 800 | 882 |
| Compressor Type | Water Cooled | Water Cooled |
| Rating | Best | Best |
| Height (in) | 73.38 | 79.5 |
| Refrigerant | R404A | R410A |
| Voltage | 208/230 | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
