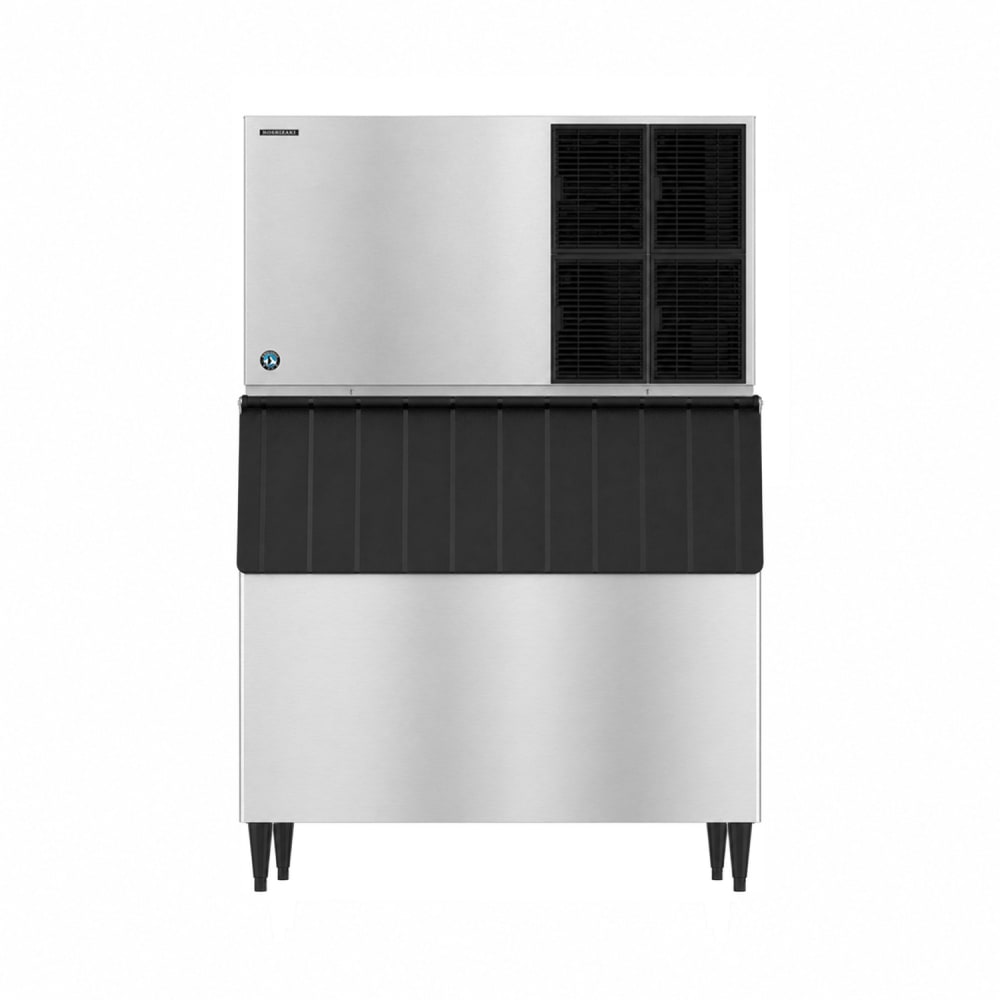

Hoshizaki KM-1601SAJ3/B-800SF 1513 lb KM Series Crescent Cube Ice Machine w/ Bin - 800 lb Storage, Air Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$13,490.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Voltage: 208-230V, 3 Phase
| 208-230V, 3 Phase |
| 208-230V, 1 Phase |
Hoshizaki KM-1601SAJ3/B-800SF Description
The Hoshizaki KM-1601SAJ3/B-800SF crescent ice machine is an air-cooled unit—a common and efficient cooling system that draws air to cool off interior components. Ideal for a restaurant kitchen, it has a stainless steel exterior that holds up well against scraping and denting. A popular cube style good for use in water, pop, and other standard beverage products, the machine makes crescent ice.
The Hoshizaki KM-1601SAJ3/B-800SF stackable ice maker comes with its own ice storage bin, which has a holding capability of 800 pounds. To increase unit sanitation, the bin is protected with a polyethylene liner and H-GUARD Plus® antimicrobial defense. Its polyurethane insulation improves chill retention and strengthens its construction.
- 1,513-lb. maximum daily ice production
- 1,414-lb. AHRI-certified daily ice production
- Air-cooled system
- Makes crescent ice
- Crescent cube size: 1 1⁄8 in. W x 1⁄2 in. D x 1 1⁄2 in. H
- Scratch- and scrape-resistant stainless steel exterior
- EverCheck™ alert system
- Stackable design
- CycleSaver™
- H-GUARD Plus antimicrobial protection
- Stainless steel evaporator resists corrosion and rust
- R404A refrigerant
- 16,400 BTU heat transfer capacity
- Ideal clearances: 9 in. at top, sides, and back
- Ideal incoming water pressure: 10-113 PSI
- Ideal incoming water temperature: 45-90 degrees F
- Ideal ambient air temperature: 45-100 degrees F
- Part of the Ice Storage Bin series
- 26.9-cu.-ft. capacity
- 800-lb. bin capacity
- Polyethylene bin liner optimizes sanitation
- Galvanized steel exterior is PVC-coated for durability
- Comes with scoop protected by H-GUARD Plus antimicrobial agent
- Foamed-in-place polyurethane insulation seals cold in and strengthens bin
- Baffle design streamlines ice accessibility
- H-GUARD Plus bin protection
- 6-in. painted flange legs
- Ice machine: 48 1⁄4 in. W x 27 7⁄16 in. D x 27 3⁄8 in. H
- Ice bin interior: 45 in. W x 27.7 in. D x 37.6 in. H
- Ice bin overall: 48 in. W x 32.3 in. D x 46 in. H
- 12.9 A, 4.4 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SAJ3/B-800SF within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1414 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 12.9 amps, NSF, UL
Ice Bin, 48"W, top-hinged front-opening door, 800-lb ice storage capacity, for top-mounted ice makers, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1601SAJ3/B-800SF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1513 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 800 |
| Compressor Type | Air Cooled |
| Depth (in) | 32.3 |
| Height (in) | 73.38 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 3 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 525.00 |
