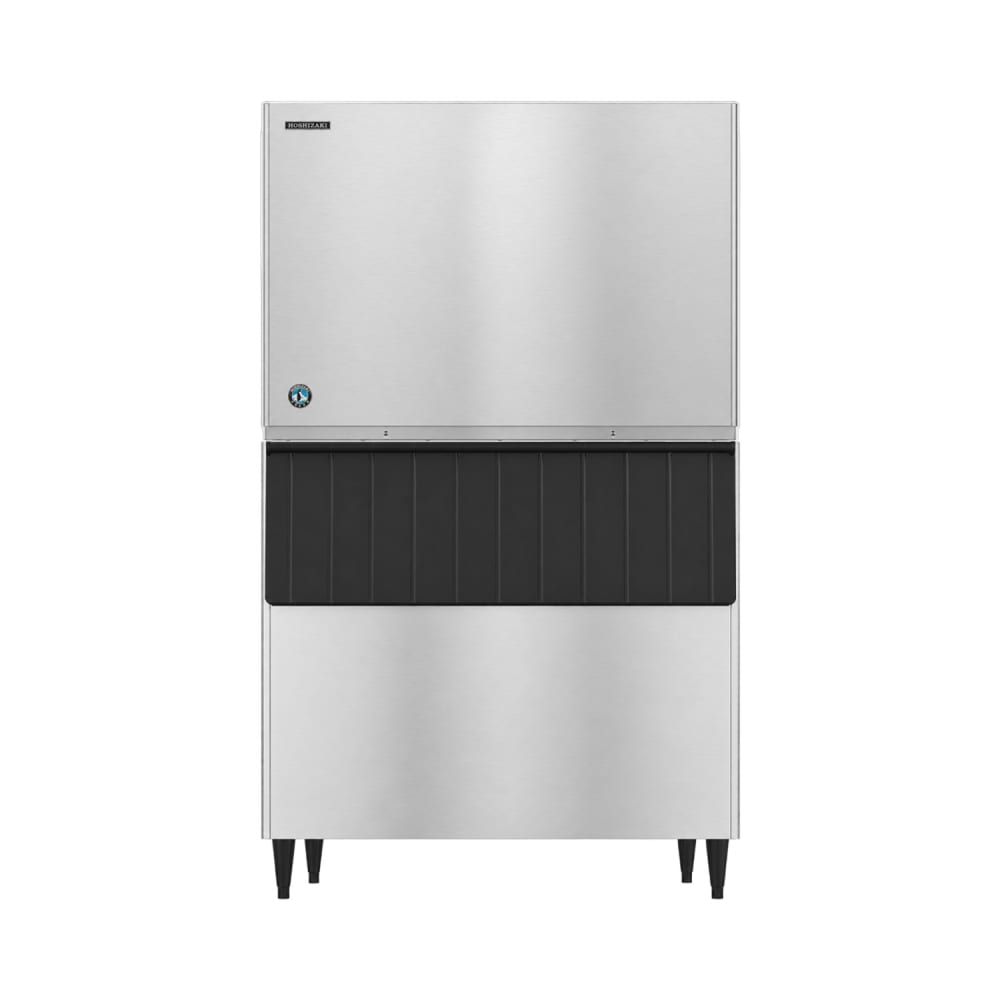

Hoshizaki KM-1601SWJ3/B-800SF 1671 lb KM Series Crescent Cube Ice Machine w/ Bin - 800 lb Storage, Water Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$13,300.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Hoshizaki KM-1601SWJ3/B-800SF Description
With sturdy stainless steel exterior, the Hoshizaki KM-1601SWJ3/B-800SF ice maker and bin can stand up to repeated use. It produces crescent cube ice, which is versatile enough to serve in soft drinks or blend in frozen cocktails. This unit includes a bin with a sizeable storage capacity of 800 pounds.
To inhibit the growth of unsanitary bacteria, the KM-1601SWJ3/B-800SF ice machine/bin combo is protected with antimicrobial H-Guard Plus®. Further optimizing sanitation, its bin is equipped with a seamless polyethylene liner, and it is mounted on four adjustable legs to maintain stability on uneven surfaces.
- 1,671-lb. daily ice production
- 1,660-lb. daily AHRI-certified ice production
- Crescent cube ice size: 1 1⁄2 in. x 1 1⁄8 in. x 1⁄2 in.
- Self-contained, water-cooled refrigeration system
- Durable, scratch-resistant stainless steel exterior
- Antimicrobial H-Guard Plus inhibits growth of bacteria
- Stainless steel evaporator
- Efficient CycleSaver™ system
- EverCheck™ system indicates operational issues
- Ideal ambient temperature range: 45-100 degrees F
- Ideal incoming water temperature range: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- Uses R-404A refrigerant
- 19,900-BTU heat transfer capacity
- 800-lb. ice storage capacity
- Rust-resistant stainless steel exterior
- Sanitary polyethylene interior liner
- Foamed-in-place polyurethane insulation effectively retains cold air
- Top-hinged, front-opening door
- 6-in. adjustable painted legs
- Includes ice scoop
- Scoop and bin protected with H-Guard Plus antimicrobial agent
- Ice machine: 48 in. W x 27 3⁄8 in. D x 27 3⁄8 in. H
- Ice bin: 48 in. W x 32.3 in. D x 46 in. H
- 8.8 A, 3.32 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-1601SWJ3/B-800SF within the 48 contiguous states.
From The Manufacturer

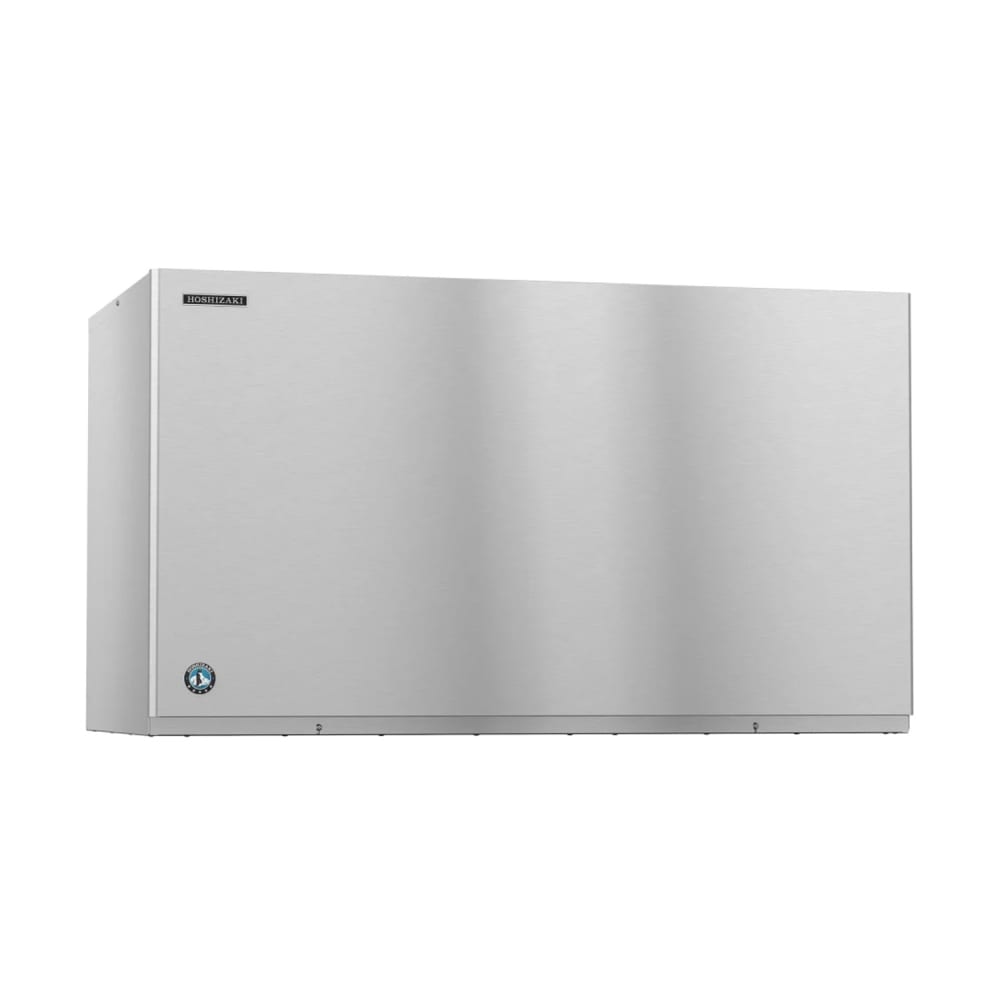

Ice Maker, Cube-Style, 48"W, stackable, water-cooled, self-contained condenser, production capacity up to 1671 lb/24 hours at 70°/50° (1660 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/3-ph, 8.8 amps, NSF, UL

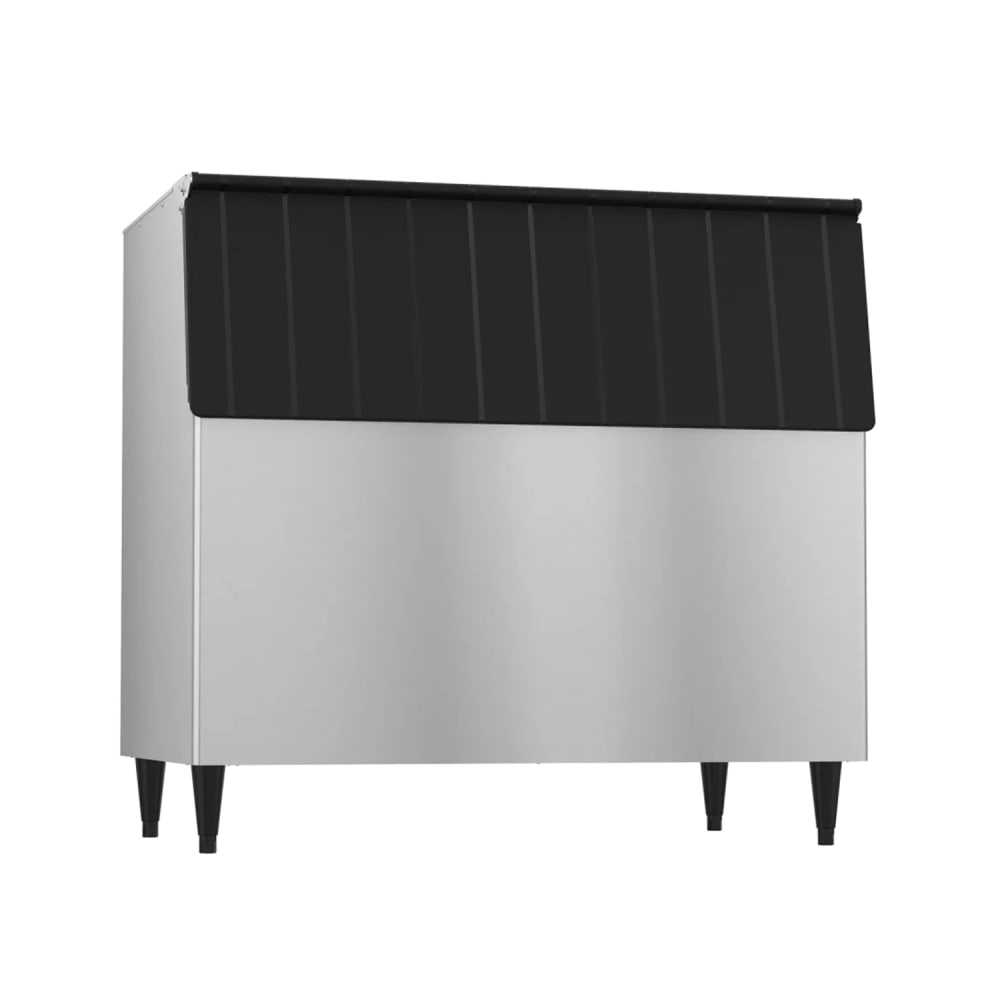

Ice Bin, 48"W, top-hinged front-opening door, 800-lb ice storage capacity, for top-mounted ice makers, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-1601SWJ3/B-800SF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 1671 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 800 |
| Compressor Type | Water Cooled |
| Depth (in) | 32.3 |
| Height (in) | 73.38 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 3 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 570.00 |
