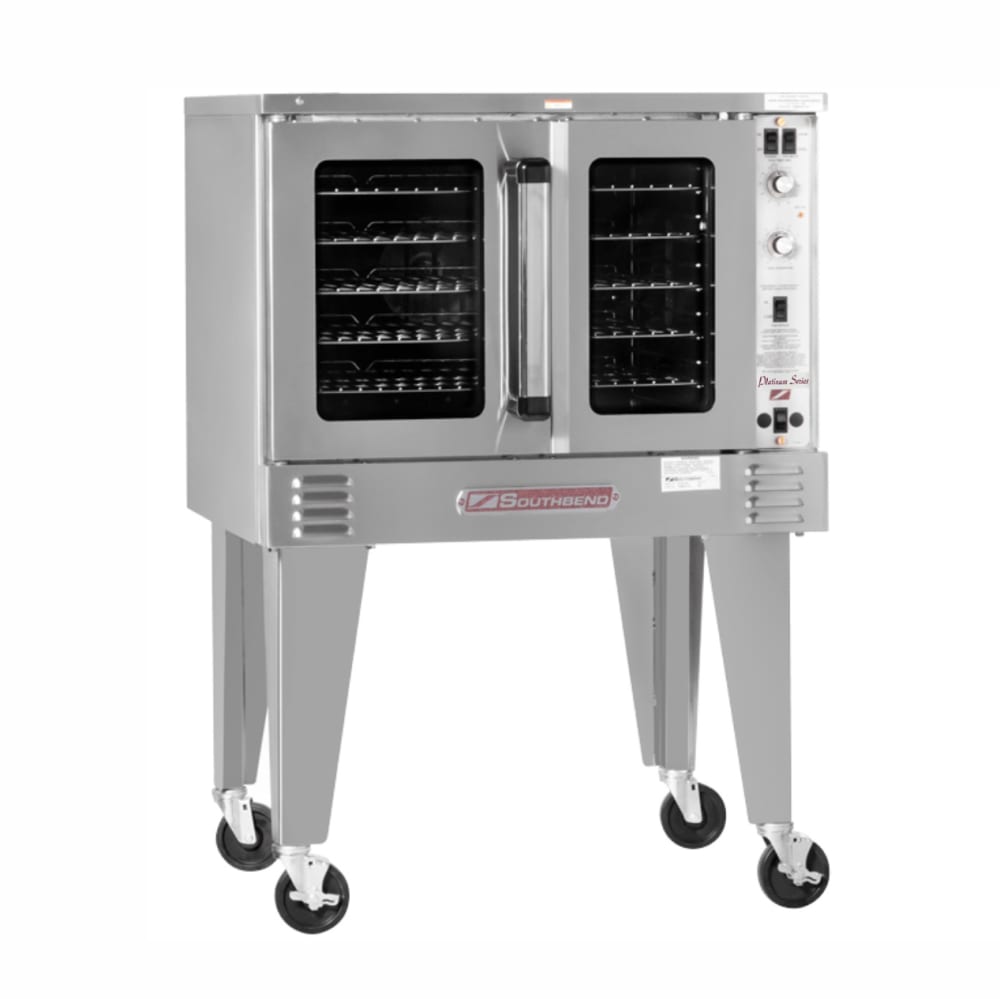

Southbend PCE75B/SD-V Platinum Ventless Bakery Depth Single Full Size Convection Oven - 7.5kW, 208v/3ph
Typically ships in 2 - 3 weeks
$8,785.00 /Each
Call for details!
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Southbend PCE75B/SD-V Description
Part of the Platinum series, the Southbend PCE75B/SD-V single-deck convection oven features a ventless design that enables the unit to be placed throughout the kitchen without taking up valuable hood space. The exterior is constructed of durable stainless steel and is fitted with two doors that act dependently, opening and closing together. Additionally, these doors are windowed to provide a view of the food cooking inside.
To manipulate the heat settings, the Southbend PCE75B/SD-V ventless convection oven is endowed with solid-state controls where operators can set the temperature between 140 and 500 degrees Fahrenheit and set the 60-minute timer. Additional rocker switches are provided for simple power control, cool-down mode and interior lighting. To retain heat and prevent debris buildup, the interior is made of enamel-coated porcelain with coved inside corners.
- Part of the Platinum series
- Bakery depth
- Ventless
- Stainless steel exterior construction
- 2 dependent glass doors with stay-cool handle
- Porcelain interior with enamel finish
- Coved interior corners
- 5 adjustable wire racks
- 2 recessed interior lights
- Solid-state thermostat on slide-out panel
- 60-minute timer
- Forced cool-down mode
- Temperature range: 140-500 degrees F
- 2-speed motorized fan
- 6-in. stainless steel legs
- Interior: 29 in. W x 29 in. D x 20 in. H
- Overall: 38 in. W x 36 1⁄2 in. D x 55 in. H
- 20.9 A, 7.5 kW
- 208 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend PCE75B/SD-V within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Electric 7.5kW, Bakery Depth, Standard Controls, Dependent Doors, Ventless
Southbend PCE75B/SD-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 43.5 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 55 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Deep Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Deep Depth |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 680.00 |
