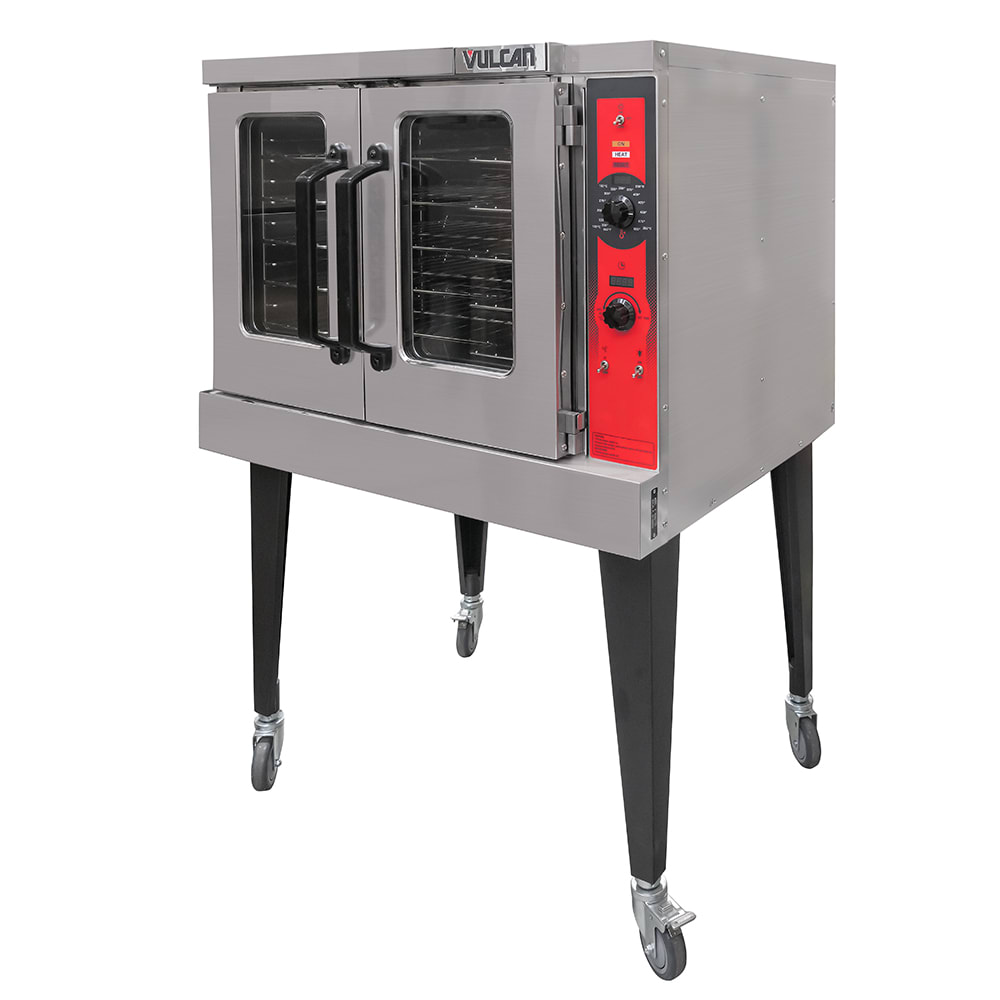

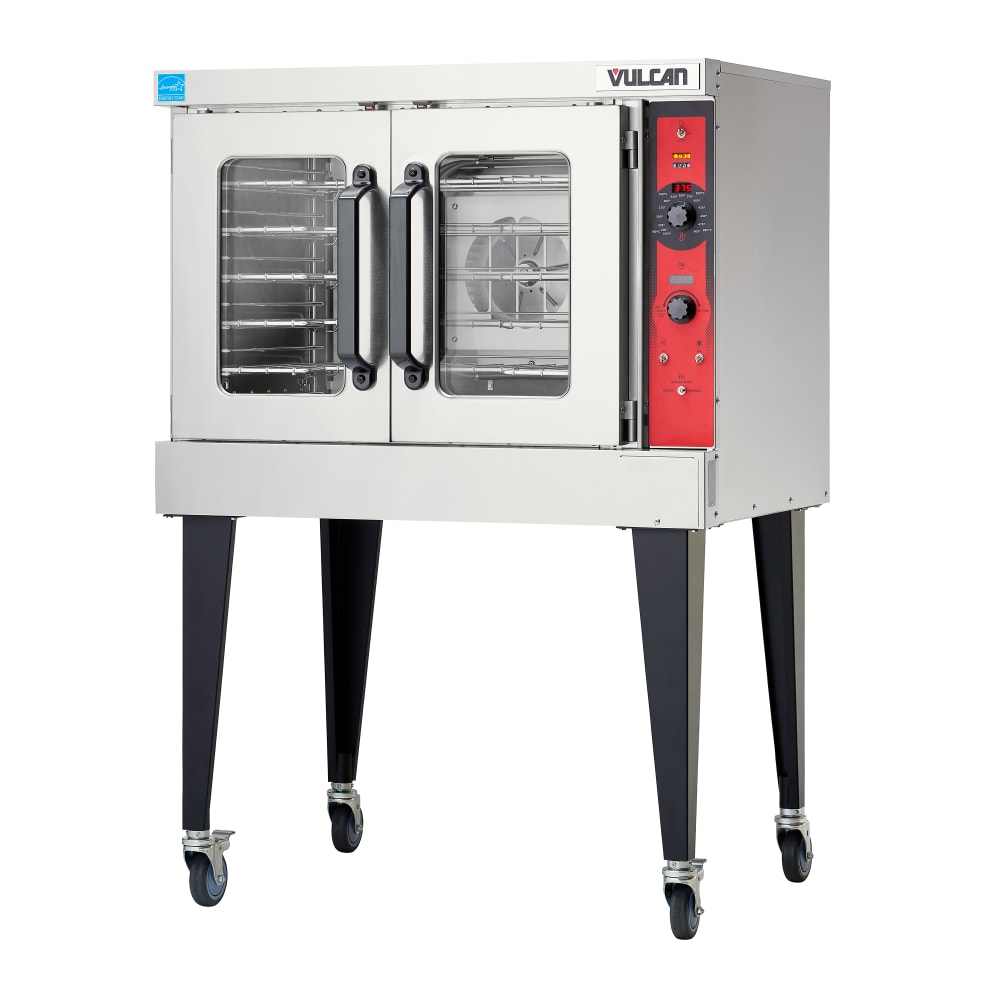

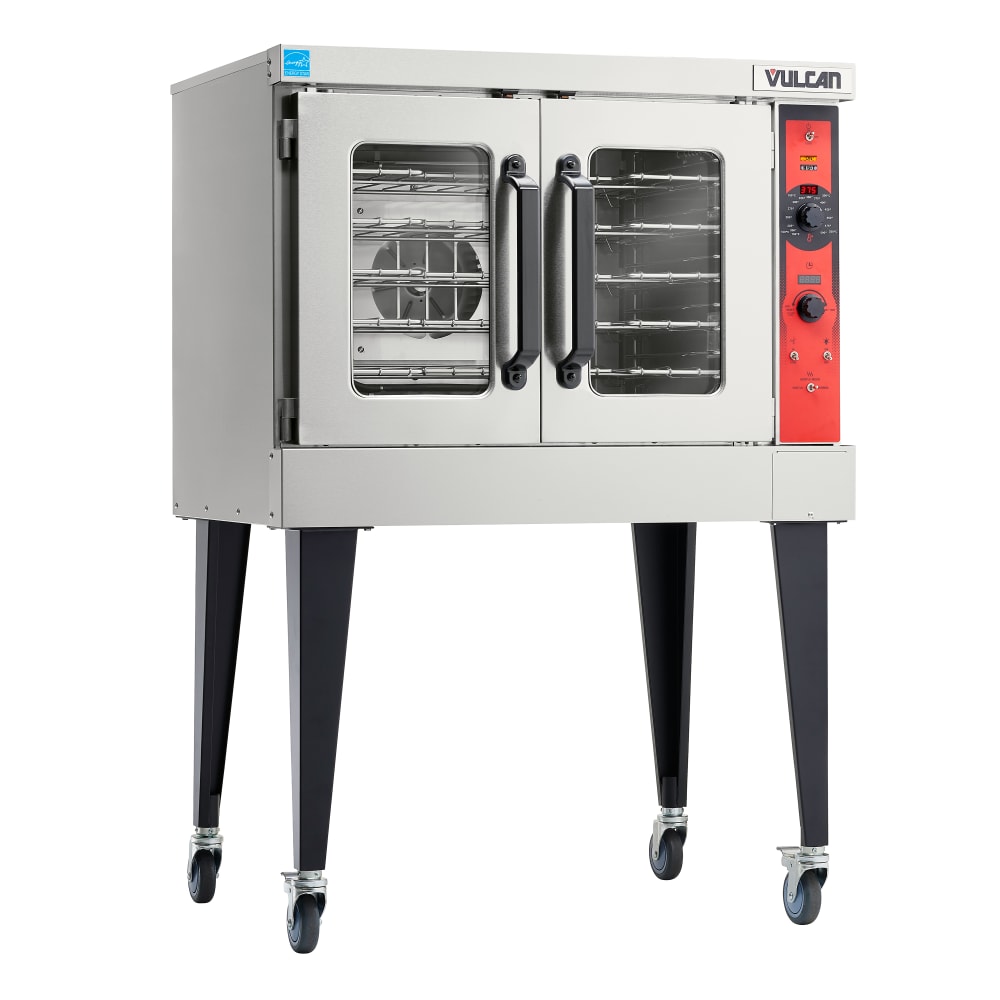

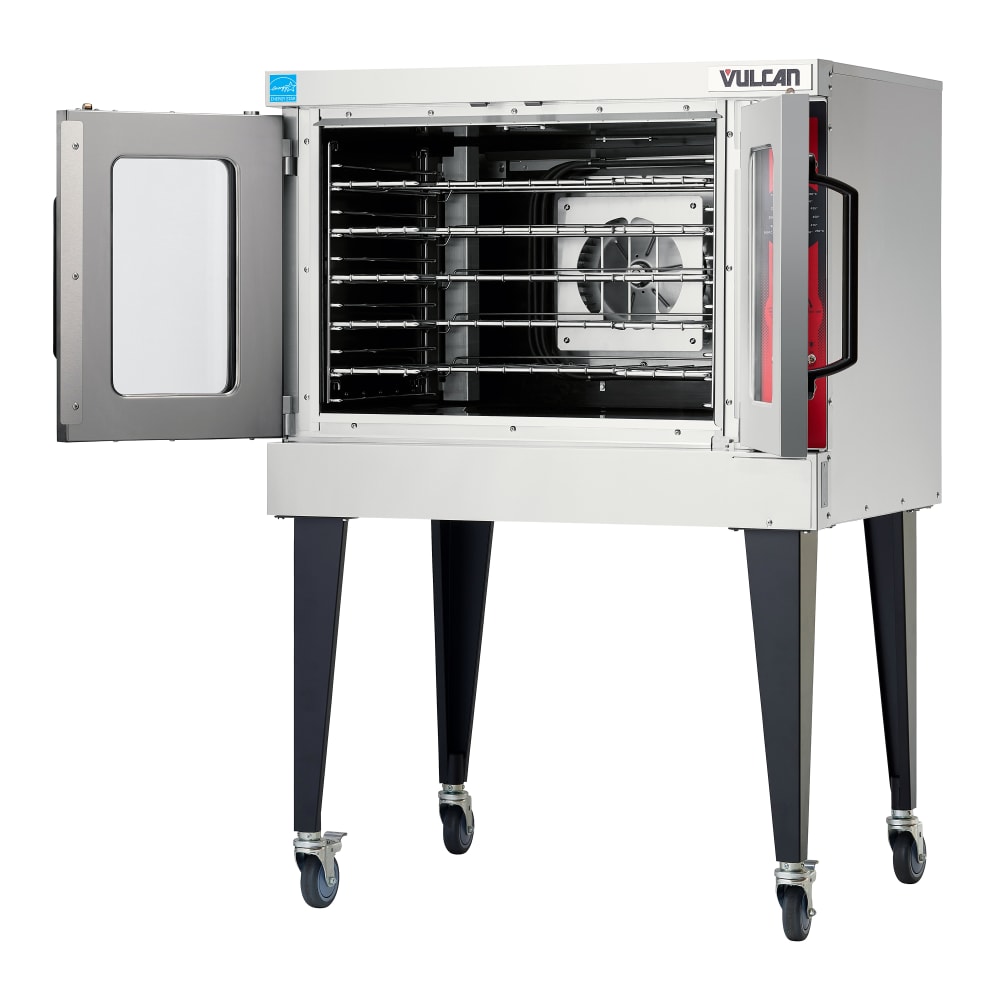

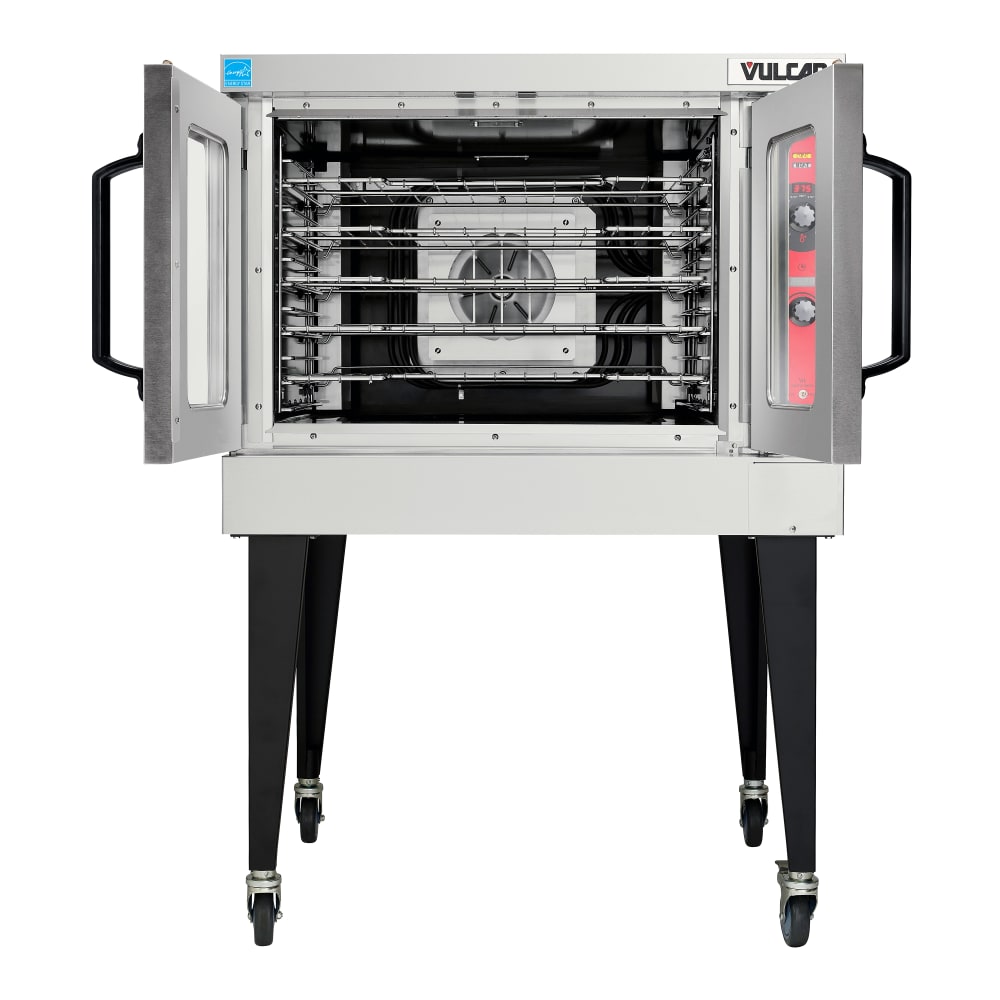

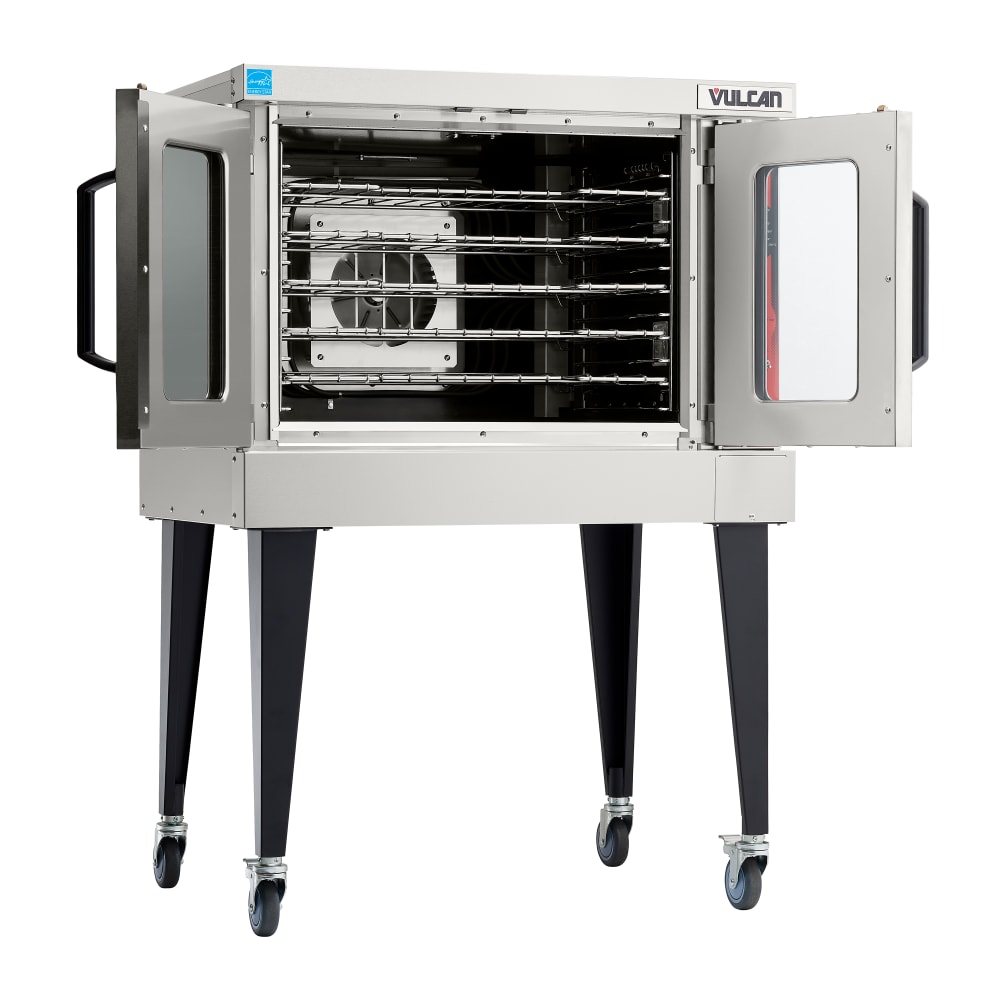

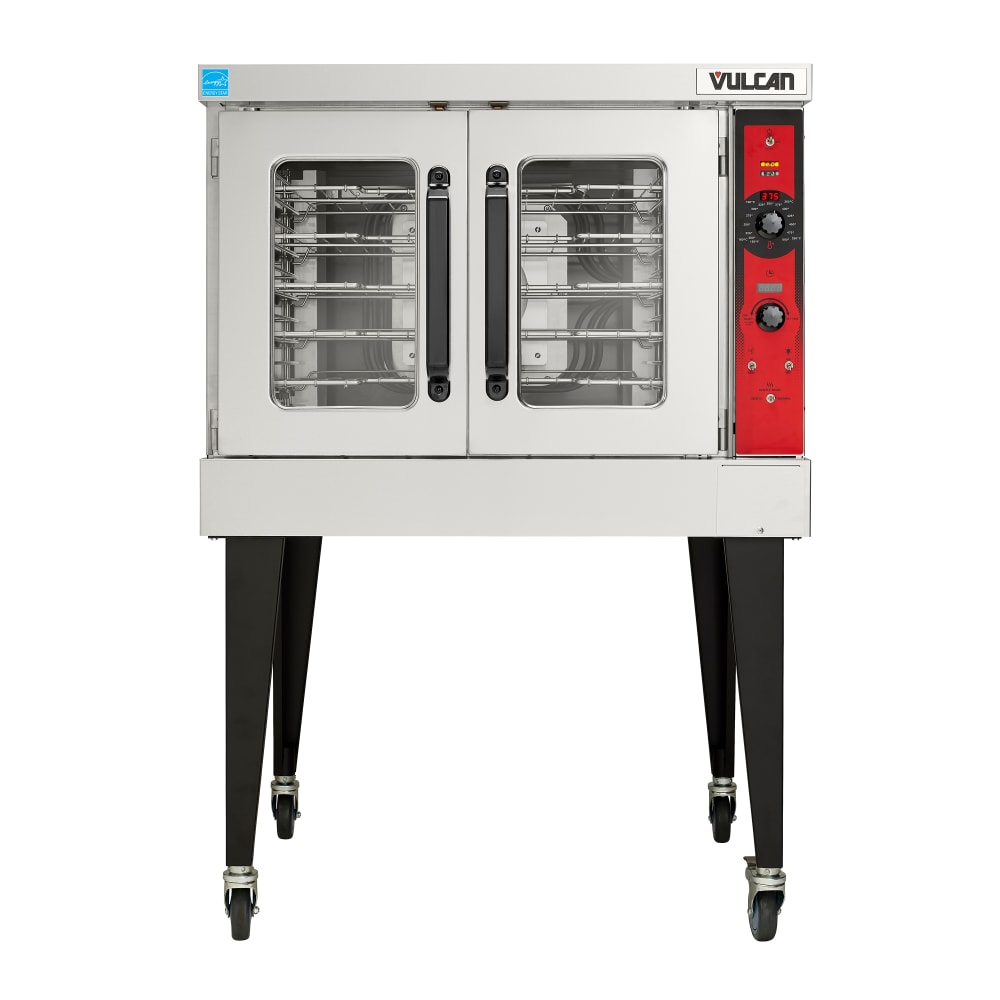

Vulcan VC5GD Single Full Size Natural Gas Convection Oven - 50,000 BTU

The Vulcan VC5GD natural gas convection oven has two independent doors with cool-to-the-touch handles to prevent burns. Because the five oven racks are adjustable with 11 position guides, various foods can be cooked in this unit. Using a solid-state dial control, the temperature can be adjusted between 150 and 500 degrees Fahrenheit depending on user need.

To keep the unit up-to-date with maintenance, the Vulcan VC5GD single convection oven performs self-diagnostics throughout the day. It operates on a five-hour timer, which can be controlled with a knob and monitored on the front digital display. This oven includes a switch that quickly cools the unit at the end of the day for cleaning. For clear interior access, the doors can be removed, and for brisk cleaning, the exterior is made of stainless steel.

Product Details

• Temperature range: 150-500 degrees F

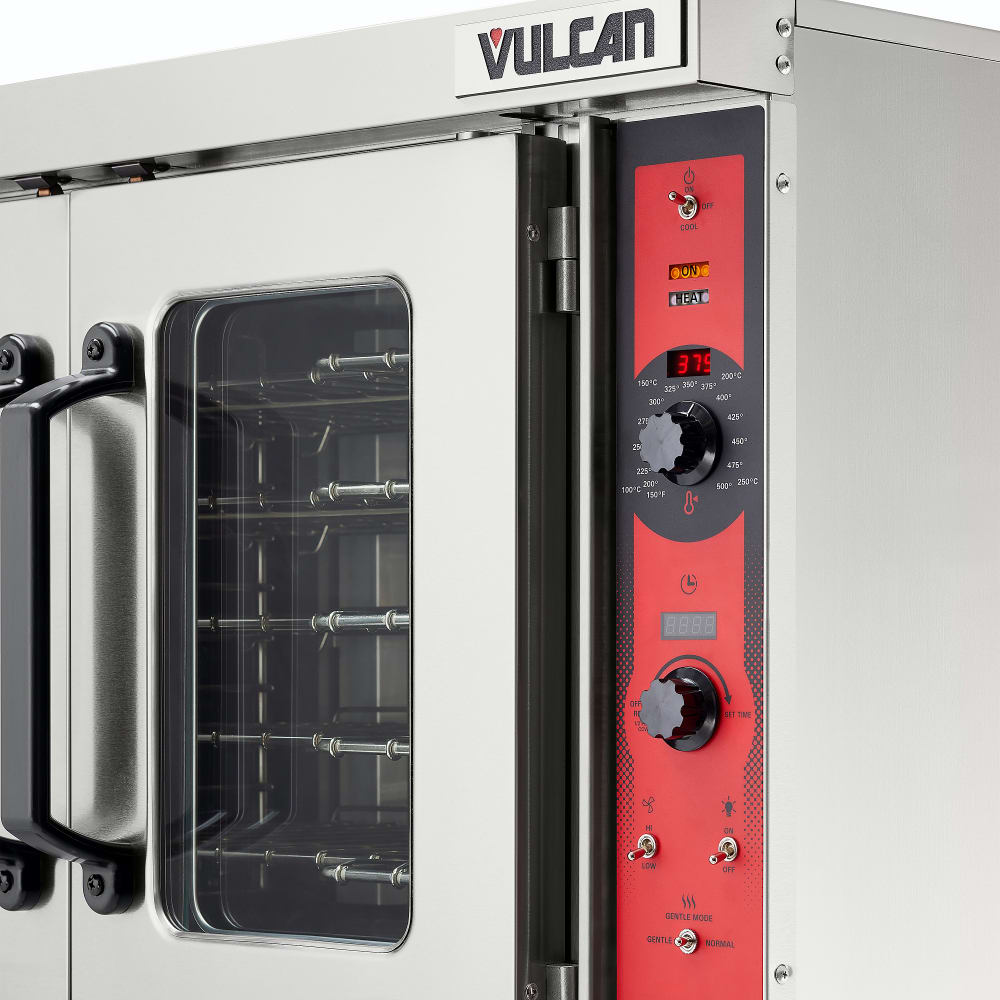

• Solid-state dial controls
• 5 nickel-plated oven racks with 11 positions
• Handles remain cool to the touch to prevent burns
• Independent doors for opening one side at a time
• Double-pane windows offer interior view
• Interior lights improve visibility
• Self-diagnostics for prompt servicing
• Electronic spark igniter
• 5-hr. timer with an alarm and a digital display
• 2-speed oven blower prevents overheating
• Switch for cooling the oven rapidly
• Stainless steel exterior and a porcelain steel interior
• 23³⁄₄-in. painted legs
• Requires a hood ventilation system
• For elevations over 2,000 ft. call customer care at (800) 541-8683

Product Features

Dimensions & Utilities

• Racks: 28¹⁄₄ in. W x 20¹⁄₂ in. D
• Interior: 29 in. W x 22¹⁄₈ in. D x 20 in. H
• Overall Dimensions: 39⁹⁷/₁₀₀ in. W x 40¹/₁₀ in. D x 54¹/₁₆ in. H
• 7.7 A, ¹⁄₂ HP
• 120 V/60 Hz/1 ph, 6-ft. cord with plug
• Heated by natural gas
• ³⁄₄-in. NPT gas connection
• Includes pressure regulator and safety solenoid system

*Free shipping on Vulcan VC5GD within the 48 contiguous states.

From The Manufacturer

Convection Oven, gas, single-deck, standard depth, solid state controls, electronic spark igniter, 5-hour timer with digital display enhancement, 150° to 500°F temperature range, (5) oven racks per deck, independently operated removable door with window, porcelain on steel interior, interior light, stainless steel front, top, sides & 23-3/4" legs, 1/2 HP blower motor, 50,000 BTU, NSF, NSF, CSA Star, CSA Flame, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan VC5GD Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
