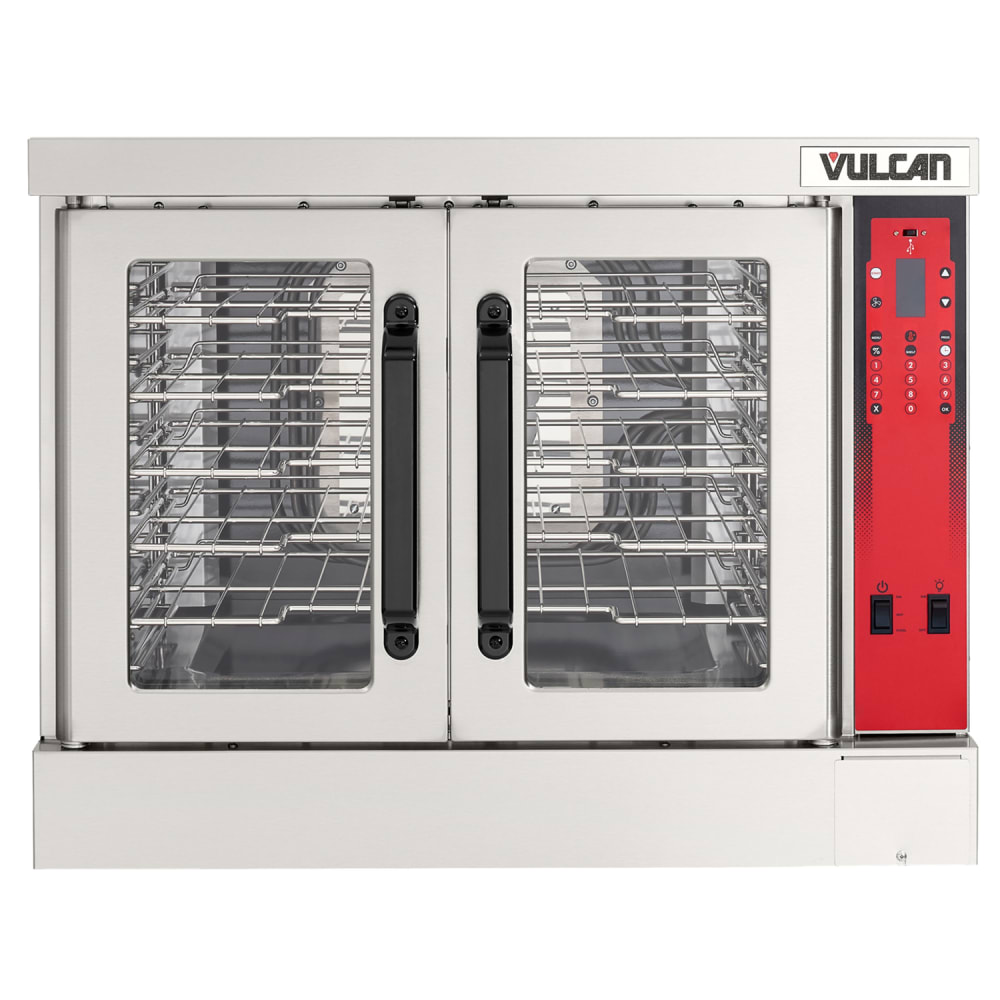

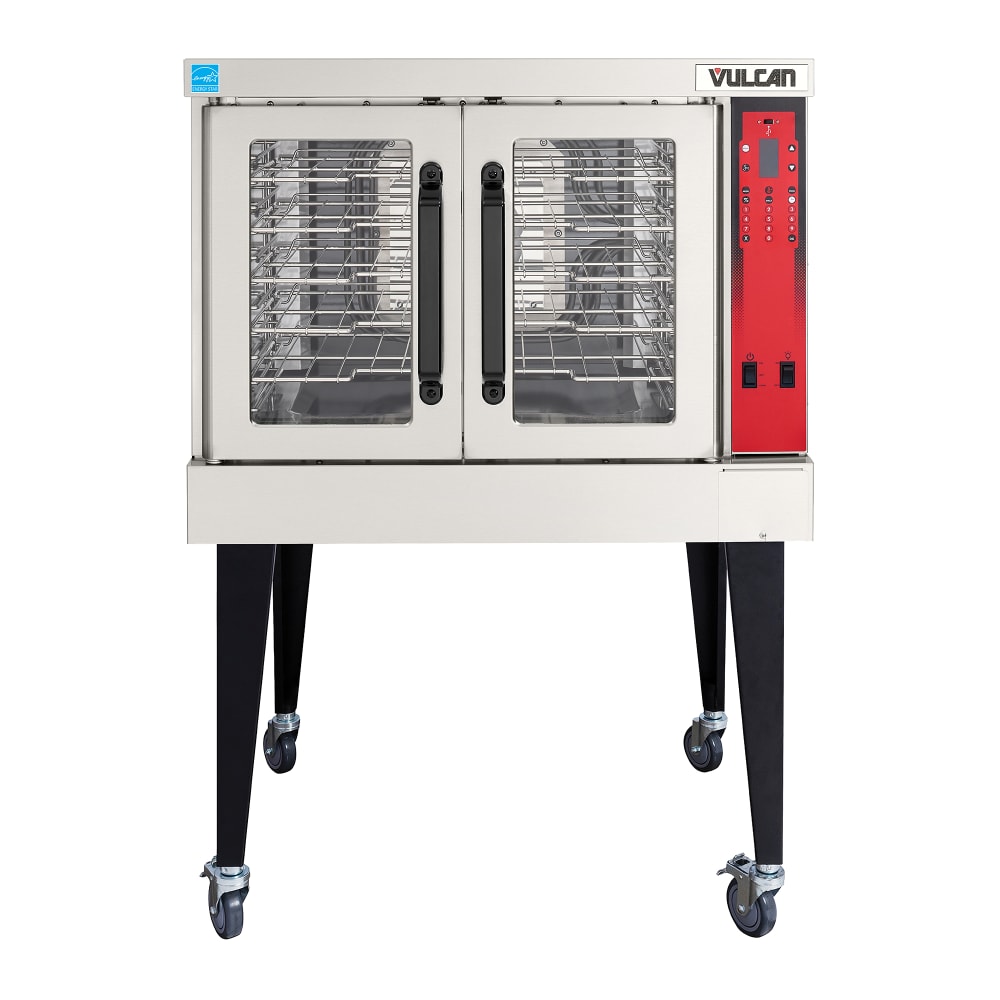

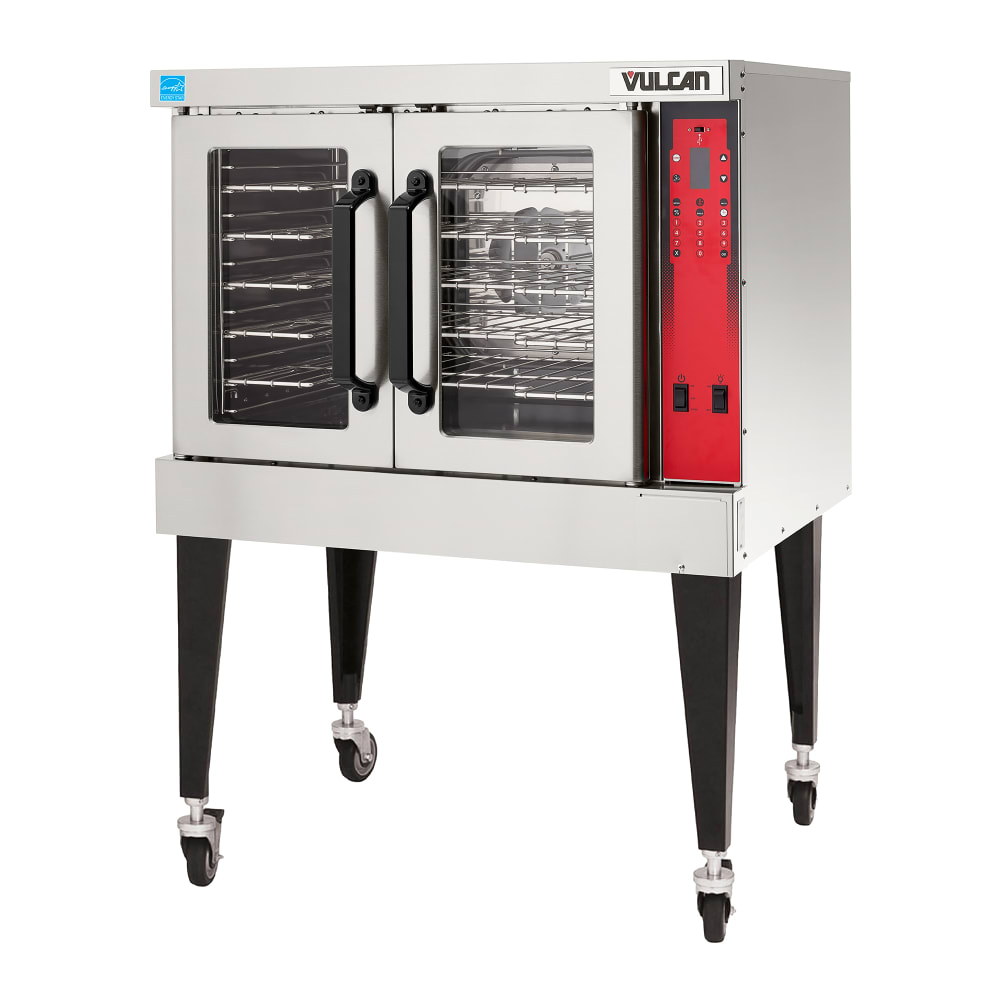

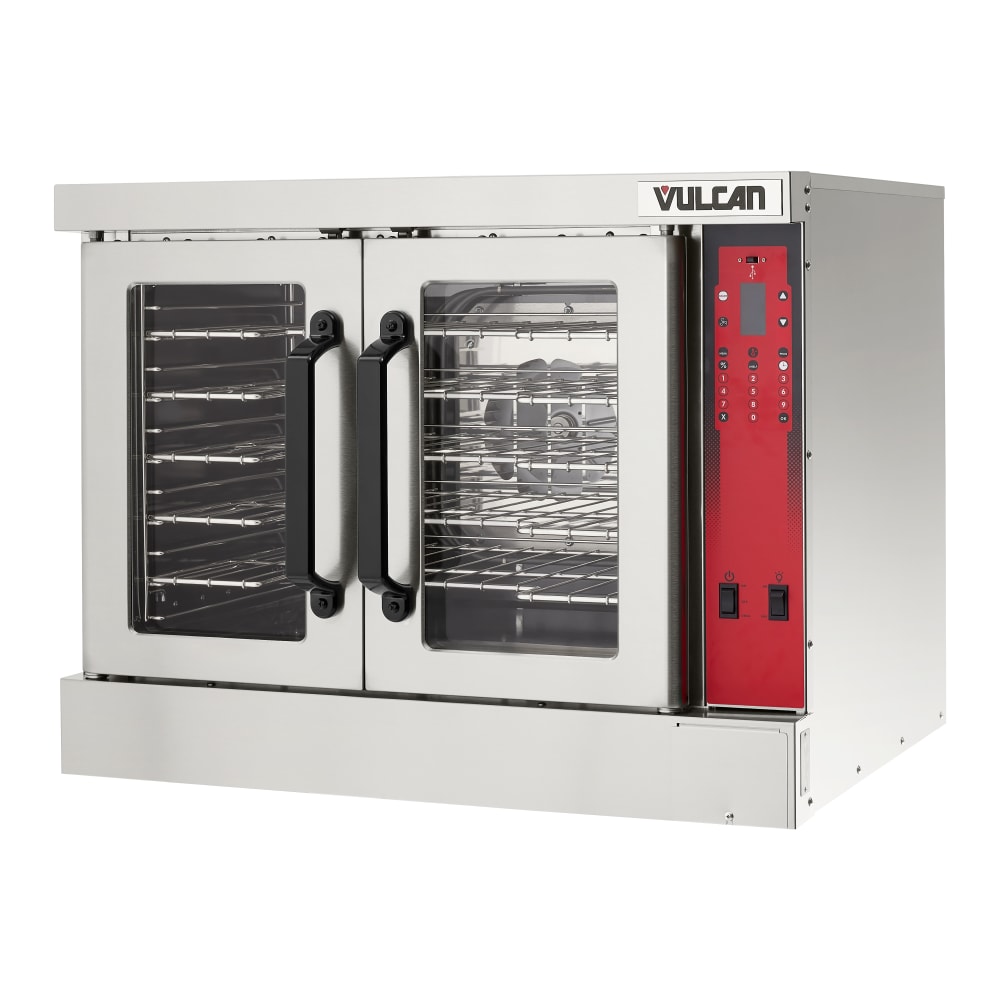

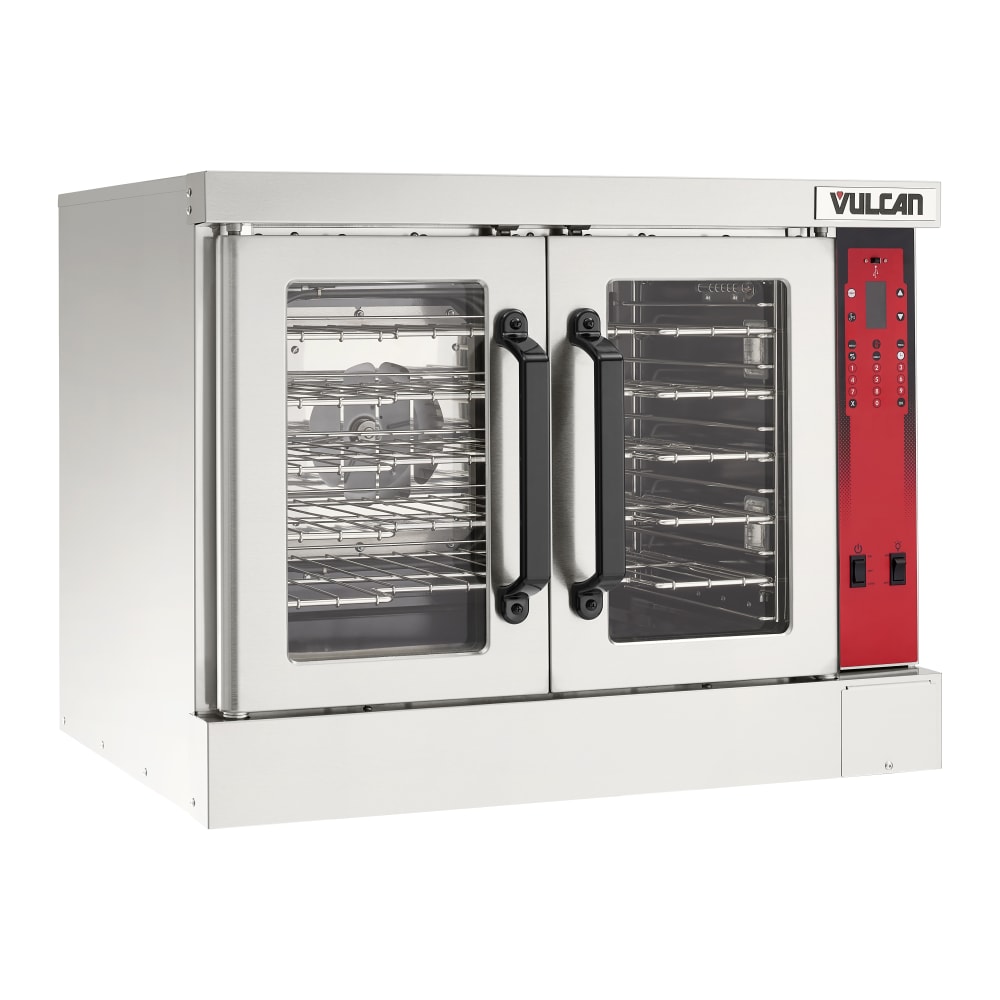

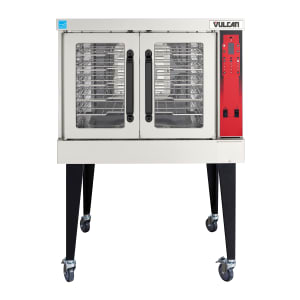

Vulcan VC4EC Single Full Size Electric Convection Oven - 12.5 kW, 240v/1ph

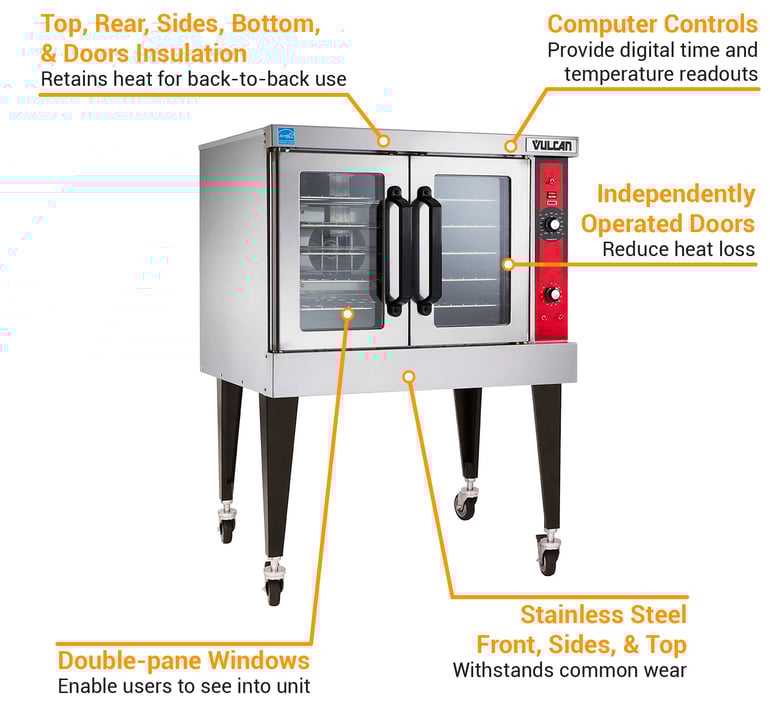

Engineered for heavy use, the Vulcan VC4EC single-deck electric convection oven has five nickel-plated racks, each of which measures 28¹⁄₄ inches wide by 20¹⁄₂ inches deep. Its porcelain-enameled steel oven has a 29-inch-wide by 22¹⁄₈-inch-deep by 20-inch-high structure, and it's heated by electric, solid-sheath elements. The unit's top, rear, sides, bottom, and doors are insulated to prevent heat from escaping the unit, and a two-speed oven blower-motor moves air around product. When the unit should be cooled, users can flip the oven cool switch, which rapidly decreases the temperatures.

To streamline operation, the Vulcan VC4EC electric convection oven has built-in computer controls, which include digital time and temperature readouts, a 99-hour timer with an audible alarm, a roast-and-hold cycle, and 100 programmable menu selections. Its stainless steel front, sides, and top are resilient to endure common wear from routine use; its two independently operated stainless steel doors provide users direct access to product. Double-pane windows integrated into the doors enable users to manage cooking foods that are highlighted by two interior lights. This 40-inch-wide by 42¹/₄-inch-deep by 54³/₄-inch-high unit sits atop 23³⁄₄-inch-high painted legs.

Product Details

• Part of the VC4EC series
• Oven includes 5 nickel-plated racks
• Electric, solid-sheath heating elements
• Stainless steel front, top, and sides
• Computer controls offer digital time and temperature readouts
• 99-hour timer has an audible alarm
• Roast-and-hold cycle
• 100 programmable menu selections to streamline operation
• 2-speed, ¹⁄₂-horsepower oven blower-motor
• Integrated oven cool-down switch
• Moisture vent
• Oven has porcelain-enameled interior
• 2 independently operating steel doors
• 2 double-pane windows
• 2 interior oven lights
• 23³⁄₄-in. legs
• Rear clearance: 2 in.
• Right side clearance: 4 in.
• Left side clearance: 1 in.

Dimensions & Utilities

• Oven interior: 29 in. W x 22¹⁄₈ in. D x 20 in. H
• Oven racks: (5) 28¹⁄₄ in. W x 20¹⁄₂ in. D
• Overall: 40 in. W x 42¹/₄ in. D x 54³/₄ in. H
• 12.5 kW, ¹⁄₂ HP
• 240 V/60 Hz/1 ph

Product Features

*Free shipping on Vulcan VC4EC within the 48 contiguous states.

From The Manufacturer

Convection Oven, electric, single-deck, standard depth, computer controls, 99-hour timer, (5) nickel plated racks, 23-3/4"H legs with foot, stainless steel front, top & sides, stainless steel door with window, 1/2 HP, 12.5kW, NSF, cUL, UL, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan VC4EC Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
