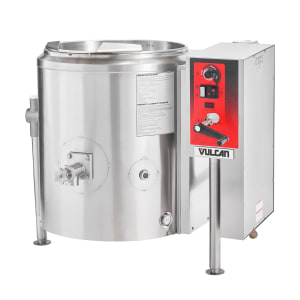

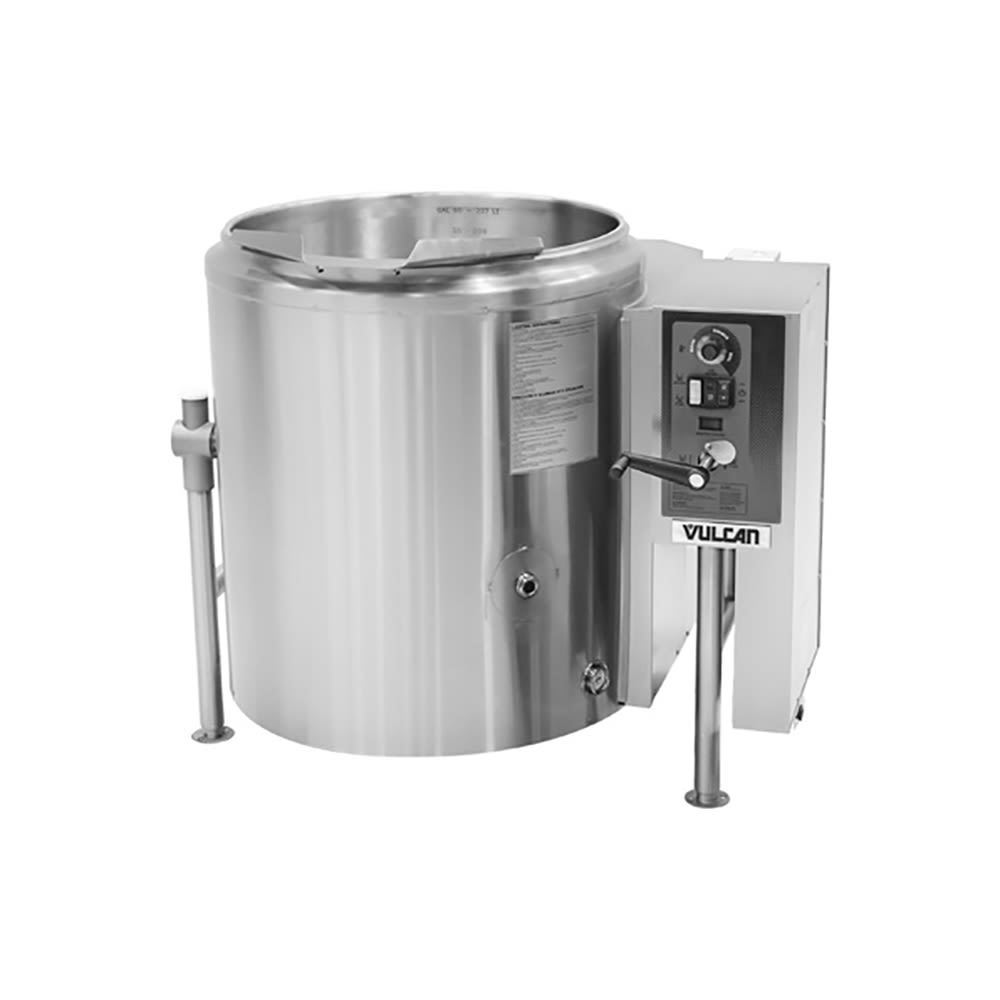

Vulcan K40GLT 40 gal Steam Kettle - Manual Tilt, 2/3 Jacket, Liquid Propane

The Vulcan K40GLT tilting kettle has a 40-gallon capacity, perfect for cooking soups, stews, and sauces in large batches. Because it uses steam cooking with a self-contained source, it does not require a hookup to an external boiler or steam generator. The unit's jacket surrounds the bottom two thirds of the kettle body and comes filled with water that turns into steam when heated.

Made of 316 stainless steel, the interior liner is more corrosion resistant than 304 stainless steel, so it can be used for acidic products. Because the kettle liner is ellipsoidal, it has a larger capacity than standard models. Markings in gallons and liters are embossed in the kettle, ensuring cooks can measure ingredients when prepping recipes.

After food is cooked in the Vulcan K40GLT steam kettle, it can be emptied into a separate pan or container by manually tilting the unit as much as 95 degrees. The rim is heavy duty, preventing it from bending or denting. A faucet bracket on this kettle enables operators to connect to a constant flow of water for recipes or cleaning.

Product Details

• 40-gal. capacity
• Self-contained steam source eliminates requirements for boiler or generator
• Two-third jacketed around the kettle body and filled with water
• Maximum steam pressure: 50 PSI
• 316 stainless steel interior liner is more corrosion resistant than 304 series
• Ellipsoidal kettle bottom provides more capacity than standard interiors
• Embossed gallon and liter markings ensure users can measure ingredients for precise recipes
• Manual tilt conveniently empties the contents
• Can be tilted 95 degrees to completely drain the interior
• Heavy-duty rim is bend and dent resistant
• Durable 304 stainless steel exterior
• Tri-leg base with tubular legs and flanged feet that secure to the floor
• Faucet bracket included
• 100,000 BTU

Kettle Controls

• Power switch
• Amber power-on indicator light
• Solid-state temperature control uses thermostat to regulate heat
• Vacuum/pressure gauge shows readings for the jacket
• Pressure-relief valve releases steam from the jacket if pressure is too high
• Red low-water indicator light
• Red low-water shut-off feature interrupts power supply when water level in the jacket is insufficient
• Controls, tilt mechanism, and faucet bracket are enclosed in water-resistant stainless steel

Dimensions & Utilities

• 46.8 in. W x 46.96 in. D x 39.9 in. H (H measured to the rim)
• Heated by LP gas
• 5 A
• 110-120 V/50-60 Hz/1 ph, 6-ft. cord with a 3-prong plug

From The Manufacturer

Tilting Kettle, Gas, 40-gallon true working capacity, 2/3 jacketed, 316 series stainless steel liner with ellipsoidal bottom, manual tilt, faucet bracket on tilting console, stainless steel construction, tri-leg base, 100,000 BTU

*Image may not depict product color, inclusions or accessories.

Vulcan K40GLT Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Base	Tri Leg
Capacity (gallons)	40
Design	2/3 Jacket
Gas Type	LP
Heat	Gas
Type	Floor Model
Warranty	1-year Limited Parts & Labor
Series	KGLT Series
No. of Kettles	1
Tilt Mechanism	Stationary
Weight	930.00
