Vulcan HEG36E 36" Electric Griddle w/ Thermostatic Controls - 1/2" Steel Plate, 240v/3ph

Users can cook several foods at once on this Vulcan HEG36E HEG-E Series heavy-duty electric griddle because its three snap-action thermostatic controls individually heat 12-inch sections of the plate at a time. The thermostat has a temperature range from 200 to 450 degrees Fahrenheit, so the griddle works well for thorough cooking or simple reheating prior to plating. Two sheathed, tubular incoloy heating elements warm the ¹/₂-inch-thick steel griddle plate for high-contact heating results. Small- and medium-sized establishments would benefit from the griddle's 36-inch-wide by 24-inch-deep griddle plate.

The Vulcan HEG36E commercial electric griddle is made of stainless steel for durability, and its smooth surfaces are simple to wipe down. This unit's silver material exterior disguises common kitchen wear, such as scrapes, to maintain a sleek appearance over time. Designed to fit on a countertop, the griddle is only 15³/₁₀ inches tall, and this height can be adjusted to any kitchen environment with its four modifiable legs. Its front grease trough and drawer help ease cleanup and maintenance, while side and back splash guards keep hot oil and grease from spilling onto the counter when foods are cooking.

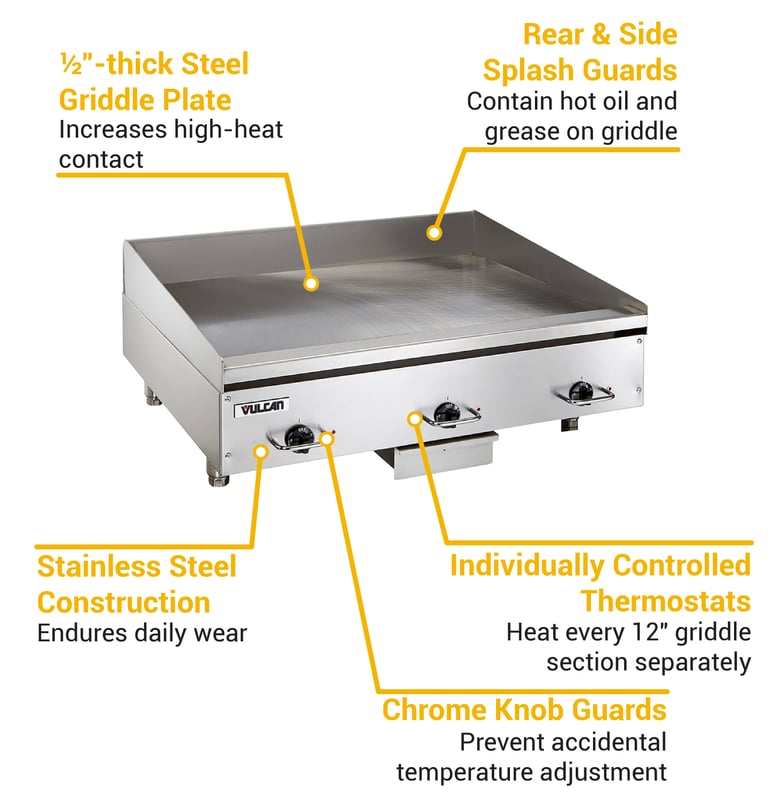

Product Details

• Part of the HEG-E series
• Temperature range: 200-450 degrees F
• Stainless steel construction
• ¹/₂-in.-thick steel griddle plate
• Uses 2 sheathed, tubular incoloy heating elements
• 3 snap-action thermostats and cycling lights
• 12-in. sections warmed separately
• 4-in.-high rear splash guards and 2 tapered side splash guards
• (4) 4-in.-high adjustable legs
• 3¹/₂-in.-wide grease trough
• 1.5-gal. grease drawer
• 3 chrome thermostat knob guards
• Side and rear clearance: 1 in.
• Bottom clearance: 4 in.

Product Features

Dimensions & Utilities

• Griddle plate: 36 in. W x 24 in. D
• Overall: 36 in. W x 31¹/₂ in. D x 15³/₁₀ in. H
• 39 A, 16.2 kW
• 240 V/50-60 Hz/3 ph

*Free shipping on Vulcan HEG36E within the 48 contiguous states.

From The Manufacturer

Heavy Duty Griddle, electric, countertop, 36" W x 24" D cooking surface, 1/2" thick polished steel griddle plate, bottom mounted snap action thermostat every 12", low profile, stainless steel front, sides, front top ledge with "Cool Bullnose", front grease trough, 4" back & tapered side splashes, 4" adjustable legs, UL, cUL, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan HEG36E Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Catalog
