Vulcan HEG36E 36" Electric Griddle w/ Thermostatic Controls - 1/2" Steel Plate, 240v/1ph

This Vulcan HEG36E HEG-E Series heavy-duty electric griddle boasts a 36-inch-wide by 24-inch-deep griddle plate, making it a good choice for low- to medium-traffic kitchens. By using three snap-action thermostats and cycling lights—one for each 12-inch griddle section—operators can control portions of the griddle plate for best cooking results. After setting the temperature on the thermostats, which adjust from 200 to 450 degrees Fahrenheit, two sheathed, tubular incoloy heating elements warm the griddle as directed. Chrome heavy-duty knob guards protect thermostat controls from tampering or accidental adjustments.

Designed for low maintenance, the Vulcan HEG36E heavy-duty electric griddle has a stainless steel front, sides, and adjustable legs that wipe down quickly, and its durable structure withstands common kitchen wear, such as scuffs. A 4-inch-tall rear splash guard and tapered side splash guards line the edges of the griddle plate to protect countertops from splashing oil. This design streamlines cleanup and helps move the grease down the grease trough and into the removable 1.5-gallon grease drawer. The griddle's countertop design and four adjustable legs increase convenience, making it an evolving piece of equipment that meets changing kitchen needs.

Product Details

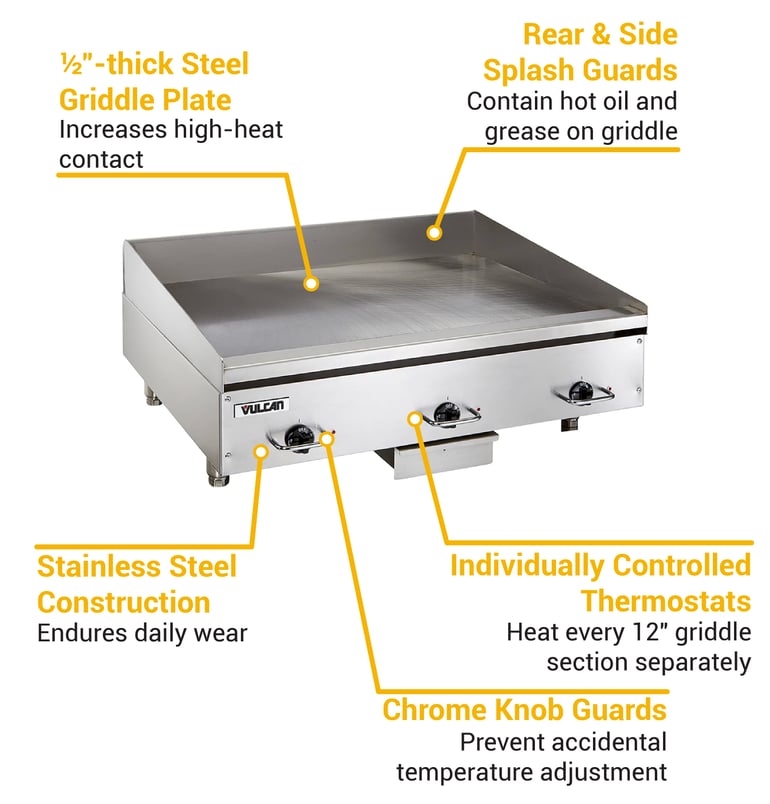

• Part of the HEG-E series
• Front, sides, and legs made of stainless steel
• ¹/₂-in.-thick steel plate
• Temperature range: 200-450 degrees F
• Heated by 2 incoloy heating elements
• 3 snap-action thermostats and cycling lights
• Chrome thermostat knob guards
• Independent heating of 12-in. sections
• 4-in.-high rear splash guard
• 2 tapered splash guards
• 3¹/₂-in.-wide front grease trough
• 1.5-gal. grease drawer
• (4) 4-in.-high adjustable legs
• Side and rear clearance: 1 in.
• Bottom clearance: 4 in.

Product Features

Dimensions & Utilities

• Griddle plate: 36 in. W x 24 in. D
• Overall: 36 in. W x 31¹/₂ in. D x 15³/₁₀ in. H
• 67.5 A, 16.2 kW
• 240 V/50-60 Hz/1 ph

*Free shipping on Vulcan HEG36E within the 48 contiguous states.

From The Manufacturer

Heavy Duty Griddle, electric, countertop, 36" W x 24" D cooking surface, 1/2" thick polished steel griddle plate, bottom mounted snap action thermostat every 12", low profile, stainless steel front, sides, front top ledge with "Cool Bullnose", front grease trough, 4" back & tapered side splashes, 4" adjustable legs, UL, cUL, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan HEG36E Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
