Vulcan HEG36E Description

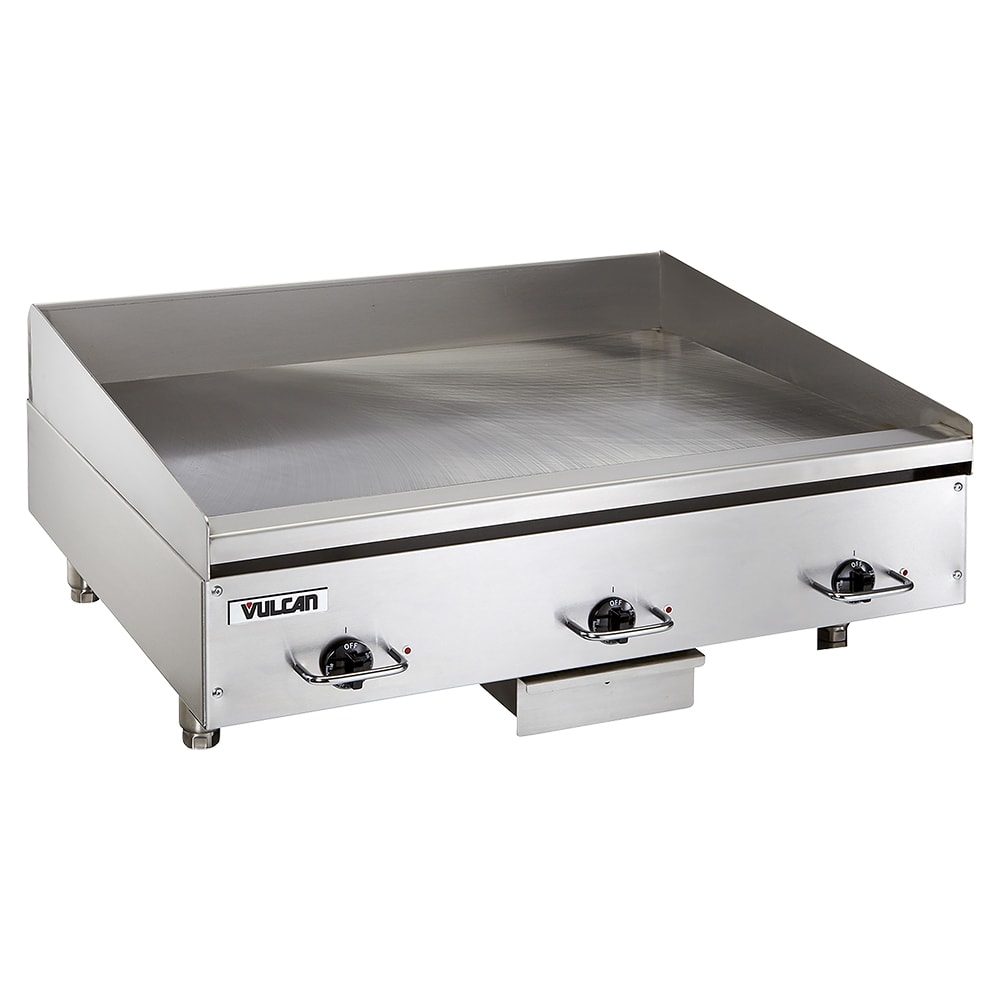

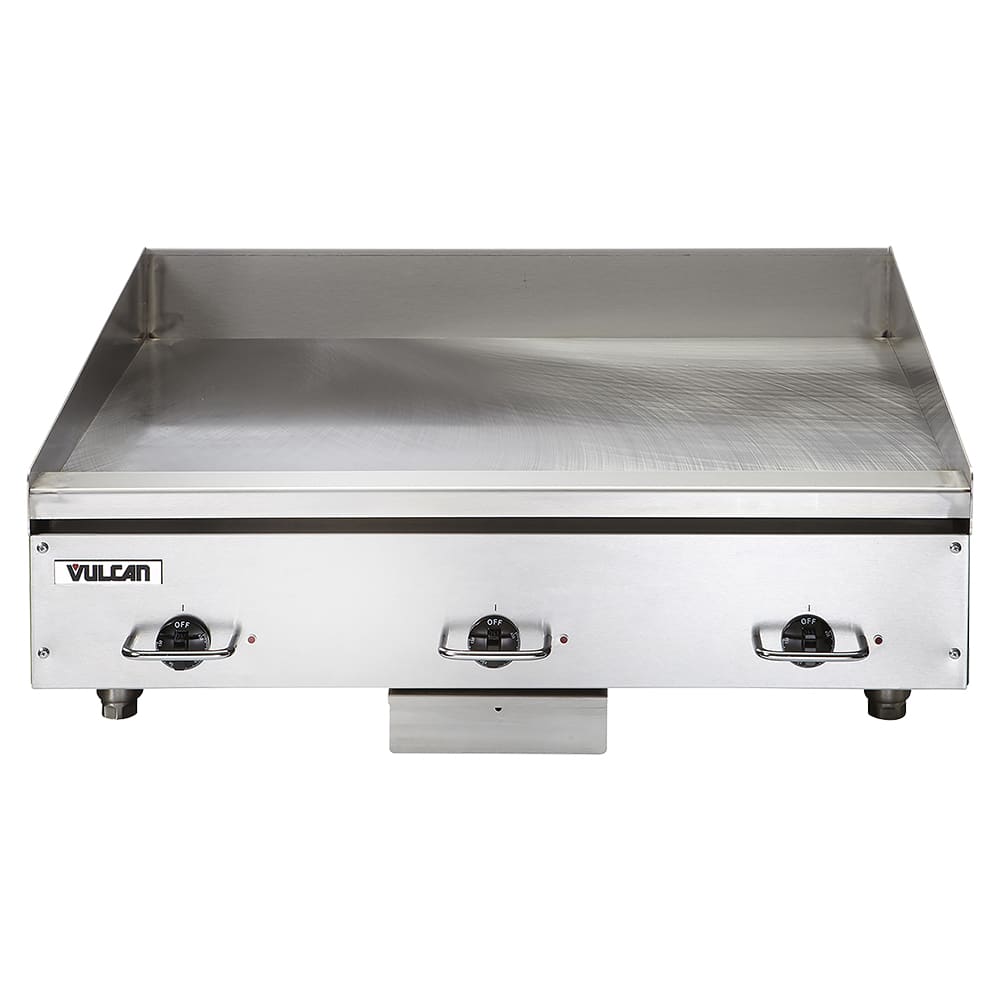

Easing cleaning and resisting corrosion, the cooking surface and exterior of the Vulcan HEG36E electric griddle are made of durable stainless steel. So operators can cook at precise temperatures, this griddle is equipped with thermostatic controls, while its back and side splashes capture grease splatter and runoff to streamline cleanup.
The Vulcan HEG36E commercial griddle has two solid-sheathed, tubular incoloy heating elements to provide efficient and even cooking. Preventing accidental temperature changes, the controls are protected by heavy-duty chromed thermostat knob guards. The front grease trough empties into a large-capacity drawer.
Product Details
- Made of durable, corrosion-resistant stainless steel
- Heated with two solid-sheathed tubular incoloy elements
- Thermostatic controls enable precise temperature settings
- Temperature range: 200-450 degrees F
- 4-in. back and tapered side splashes catch grease runoff
- Chromed knob guards protect thermostatic controls
- 31⁄2 in. wide trough collects grease and empties into drawer
Dimensions & Utilities
- Cooking surface: 36 in. W x 24 in. D
- Overall: 36 in. W x 311/2 in. D x 153/10 in. H
- 208 V/60 Hz/1 ph
*Free shipping on Vulcan HEG36E within the 48 contiguous states.
From The Manufacturer
Heavy Duty Griddle, electric, countertop, 36" W x 24" D cooking surface, 1/2" thick polished steel griddle plate, bottom mounted snap action thermostat every 12", low profile, stainless steel front, sides, front top ledge with "Cool Bullnose", front grease trough, 4" back & tapered side splashes, 4" adjustable legs, UL, cUL, NSF
*Image may not depict product color, inclusions or accessories.
Resources
1-year Limited Parts & Labor
Vulcan HEG36E Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 36 |
| Heat | Electric |
| Hertz | 60 |
| kW | 16.2 |
| Overall Width (in) | 36 |
| Phase | 1 |
| Plate Material | Steel |
| Plate Thickness (in) | 1/2 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | HEG-E Series |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 310.00 |
Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
