Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
Vulcan HEG36E 36" Electric Griddle w/ Thermostatic Controls - 1/2" Steel Plate, 208v/3ph
Typically ships in 8 - 10 weeks
Free Shipping Item
Retail Price: $16,752.40
$6,896.00 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan HEG36E Description

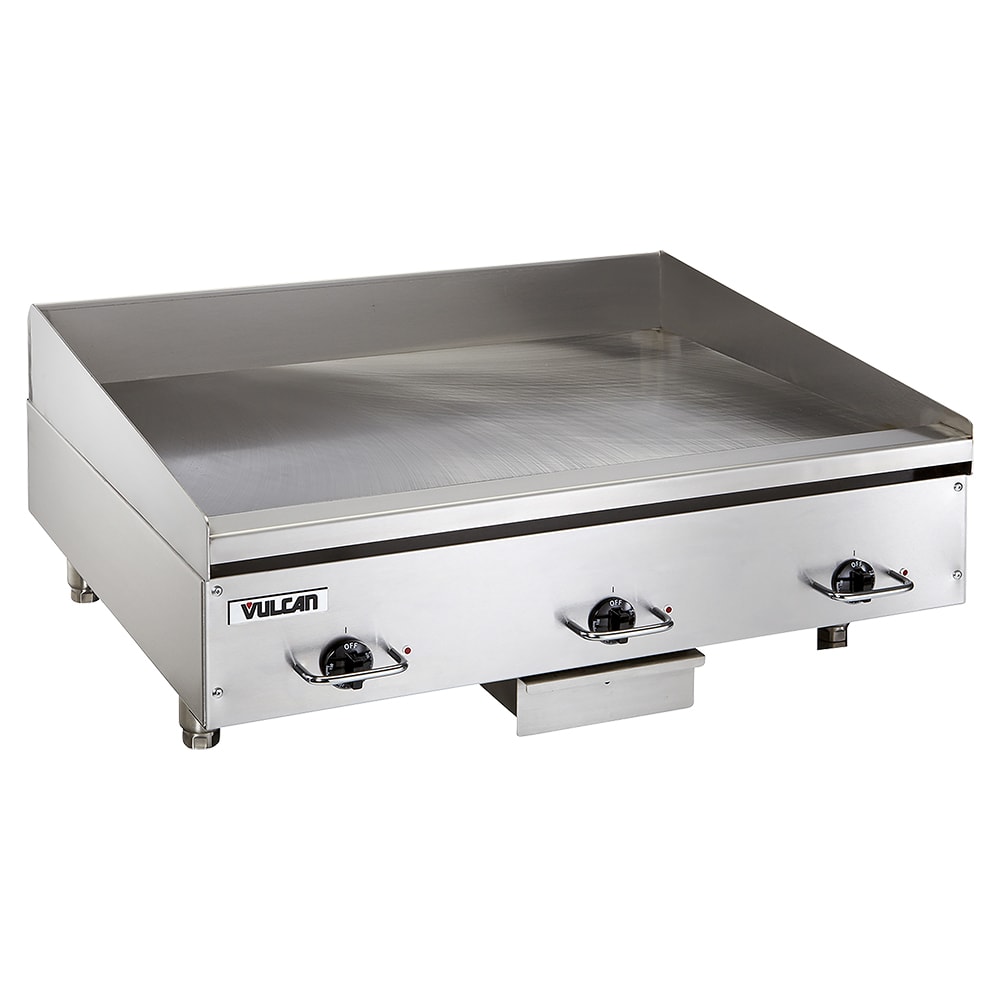

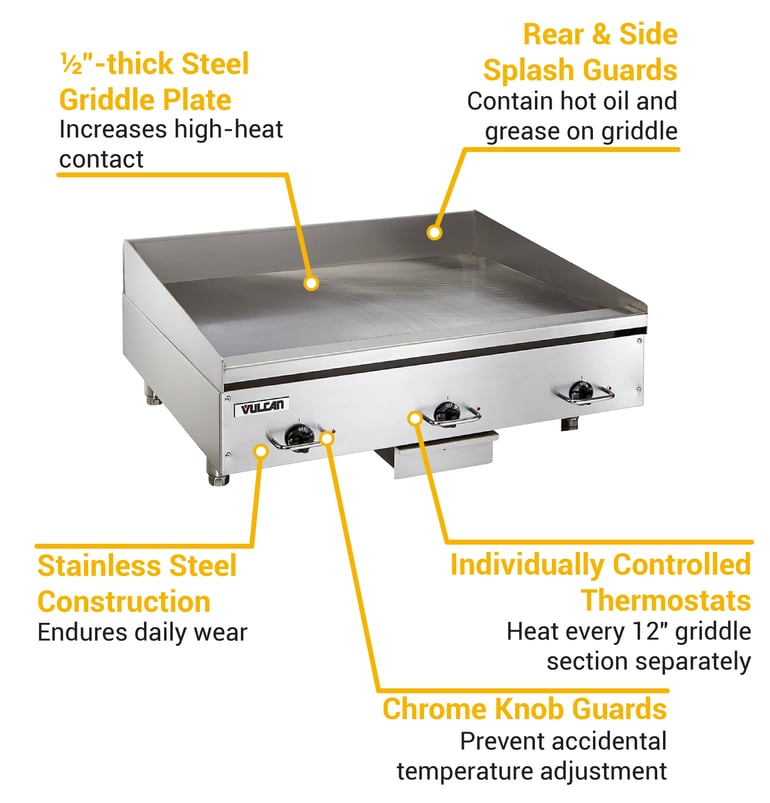

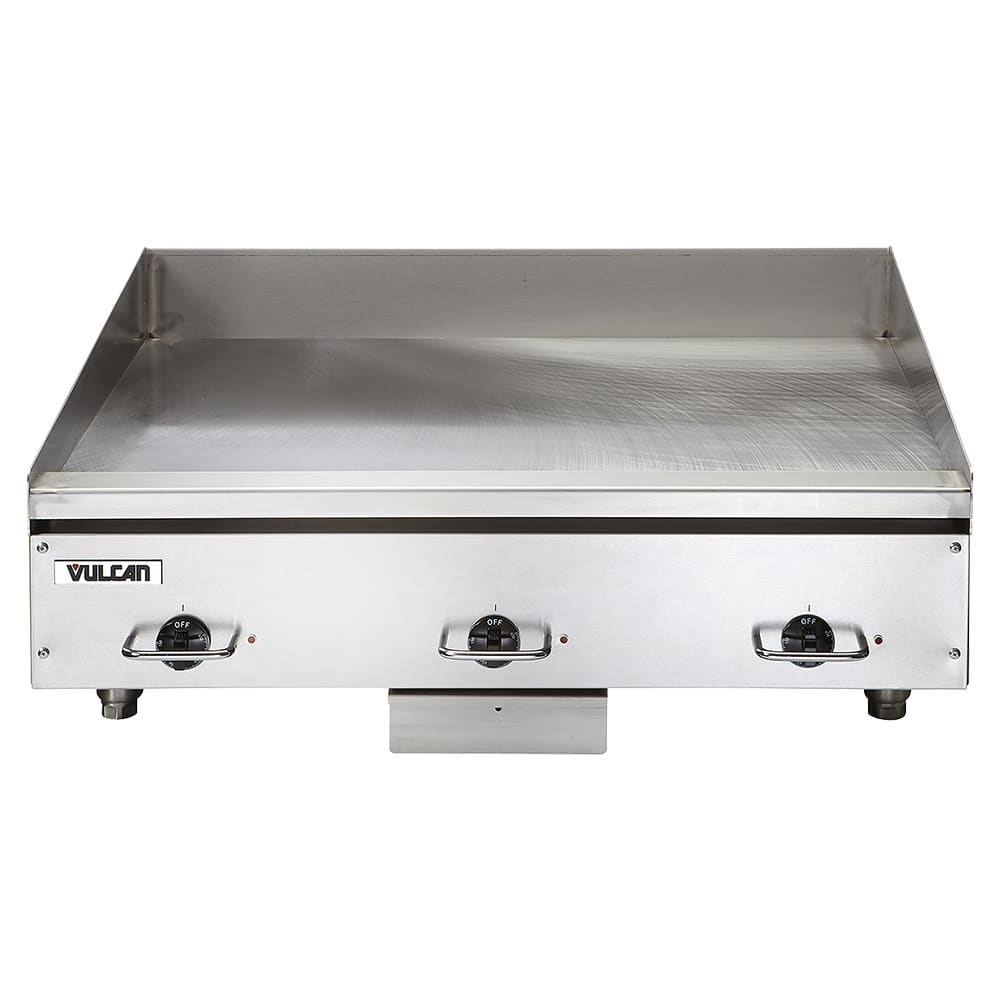

Ideal for high-volume grilling, the Vulcan HEG36E HEG-E Series heavy-duty electric griddle uses incoloy heating elements to heat its flat stainless steel surface between 200 and 450 degrees Fahrenheit. Its 1/2-inch-thick steel plate construction increases high-heat contact for quick recovery times on its 36-inch-wide by 24-inch-deep griddle plate. Equipped with a snap-action thermostat and a cycling light for every 12 inches of griddle width, this unit enables different foods to be cooked at one time on the same surface. Chrome thermostat knob guards help protect against accidental temperature adjustments. To change temperatures, users simply reach around the guards.
The Vulcan HEG36E heavy-duty electric griddle is designed to sit on countertops. It has four adjustable legs and an 11-inch-tall cooking height overall. Rear and side splash guards line the perimeter of the griddle plate, containing hot oil and grease from spilling over the sides. Instead, grease is directed toward a 31/2-inch-wide grease trough, which empties into a 1.5-gallon removable grease drawer for quick cleanup. This griddle's front, sides, and legs are made of durable stainless steel designed to withstand common kitchen wear, making it a long-lasting piece of equipment.
Product Details
- Part of the HEG-E series
- Stainless steel construction
- Thermostat range: 200-450 degrees F
- 1/2-in.-thick steel griddle plate
- Heated with 2 solid, sheathed, tubular incoloy heating elements
- Warms 12-in. sections separately
- 3 snap-action thermostats with cycling lights spaced 12 in. apart
- Chrome thermostat knob guards
- 4-in.-high rear splash
- 2 tapered side splash guards
- 31/2-in.-wide front grease trough
- 1.5-gal. grease drawer
- (4) 4-in.-high, adjustable legs
- Side and rear clearance: 1 in.
- Bottom clearance: 4 in.
Product Features
Dimensions & Utilities
- Griddle plate: 36 in. W x 24 in. D
- Overall: 36 in. W x 311/2 in. D x 15.3 in. H
- 45 A, 16.2 kW
- 208 V/60 Hz/3 ph
*Free shipping on Vulcan HEG36E within the 48 contiguous states.
From The Manufacturer
Heavy Duty Griddle, electric, countertop, 36" W x 24" D cooking surface, 1/2" thick polished steel griddle plate, bottom mounted snap action thermostat every 12", low profile, stainless steel front, sides, front top ledge with "Cool Bullnose", front grease trough, 4" back & tapered side splashes, 4" adjustable legs, UL, cUL, NSF
*Image may not depict product color, inclusions or accessories.
Resources
1-year Limited Parts & Labor
Vulcan HEG36E Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 36 |
| Heat | Electric |
| Hertz | 60 |
| kW | 16.2 |
| Overall Width (in) | 36 |
| Phase | 3 |
| Plate Material | Steel |
| Plate Thickness (in) | 1/2 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | HEG-E Series |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 310.00 |
Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
