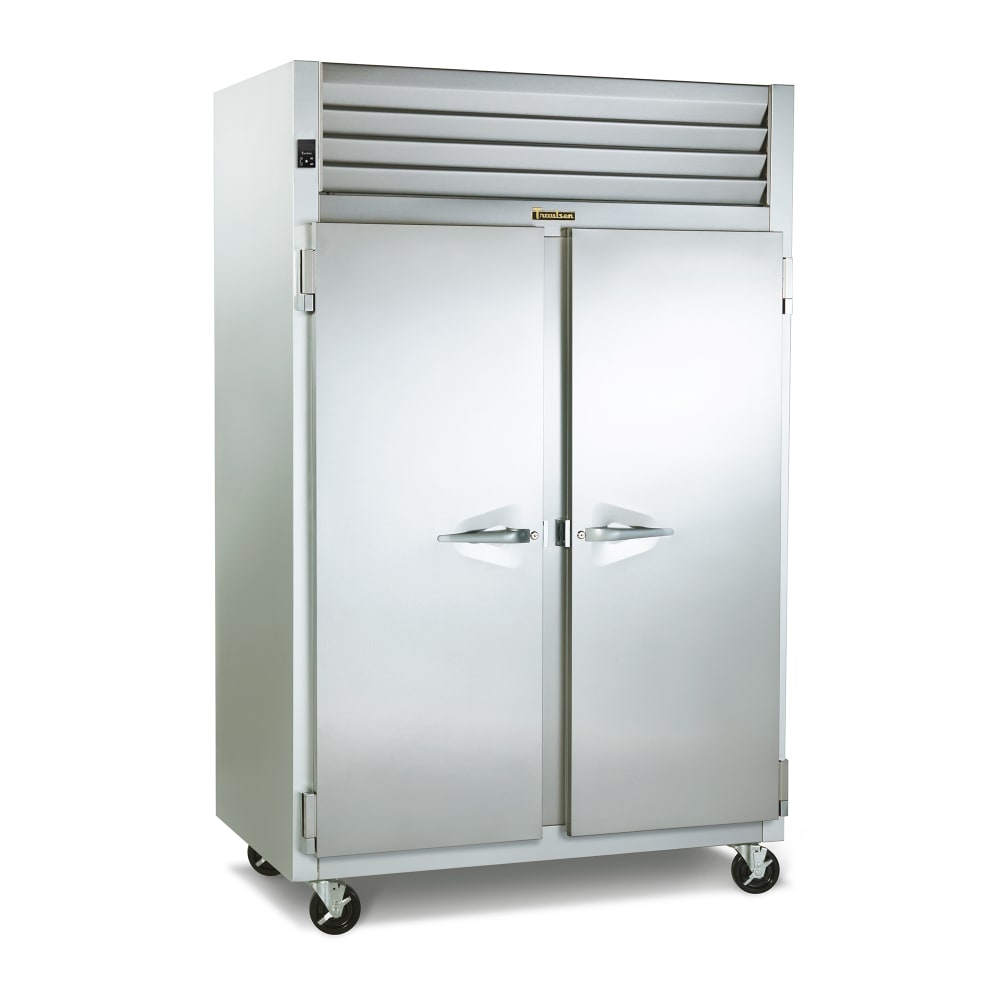

Traulsen G24300 Full Height Insulated Mobile Heated Cabinet w/ (6) Pan Capacity, 208v/1ph

The serpentine-style heater in the Traulsen G24300 full-height mobile heated cabinet has a large surface area and, when air is forced over it, the heat is pushed into the distribution duct. From there, the heat moves into the cabinet, where product is evenly heated without drying out. Operators can adjust the temperature in the unit to a level between 140 and 180 degrees Fahrenheit—which displays on the LED screen—using the microprocessor controller. To regulate the humidity, operators can control the vent in the top of the cabinet.

Inside this Traulsen G24300 insulated heated cabinet, six shelves hold the product as it is warmed. The interior and exterior are both made of anodized aluminum, while the exterior is also made of stainless steel. The doors are half-height, separating the cabinet into smaller sections to reduce the amount of escaping heat. At 120 degrees the doors stay open for convenient product loading, but below that degree mark the doors self-close to retain heat.

Product Details

• 44-cu.-ft. interior space
• 6 shelves
• Load-Sure Guard prevents users from storing product too close to the wall, disrupting airflow
• Half-height doors self-close to prevent large amounts of heat from escaping
• Doors can stay open at a 120-degree angle
• Door handles are mounted over a recessed section in the doors, saving aisle space
• EZ Clean door gaskets create a seal to prevent heat from leaking out
• 2-in.-thick, foamed-in-place polyurethane insulation
• Anodized aluminum interior
• Stainless steel exterior front and doors
• Anodized aluminum exterior sides
• 4 locking, 6-in. casters

Heating System

• Temperature range: 140-180 degrees F
• Microprocessor controller
• 3-digit LED temperature display
• Low-watt, serpentine-style heater
• Low-velocity air is forced across the heater's large surface, efficiently moving heat down the distribution duct and into the cabinet
• Cabinet heat is evenly distributed without drying out food
• Vent in the top is used to control the humidity level

Dimensions & Utilities

• 52 1⁄8 in. W x 35 in. D x 83 7⁄16 in. H
• 20 A
• 115, 208-230 V/60 Hz/1 ph
