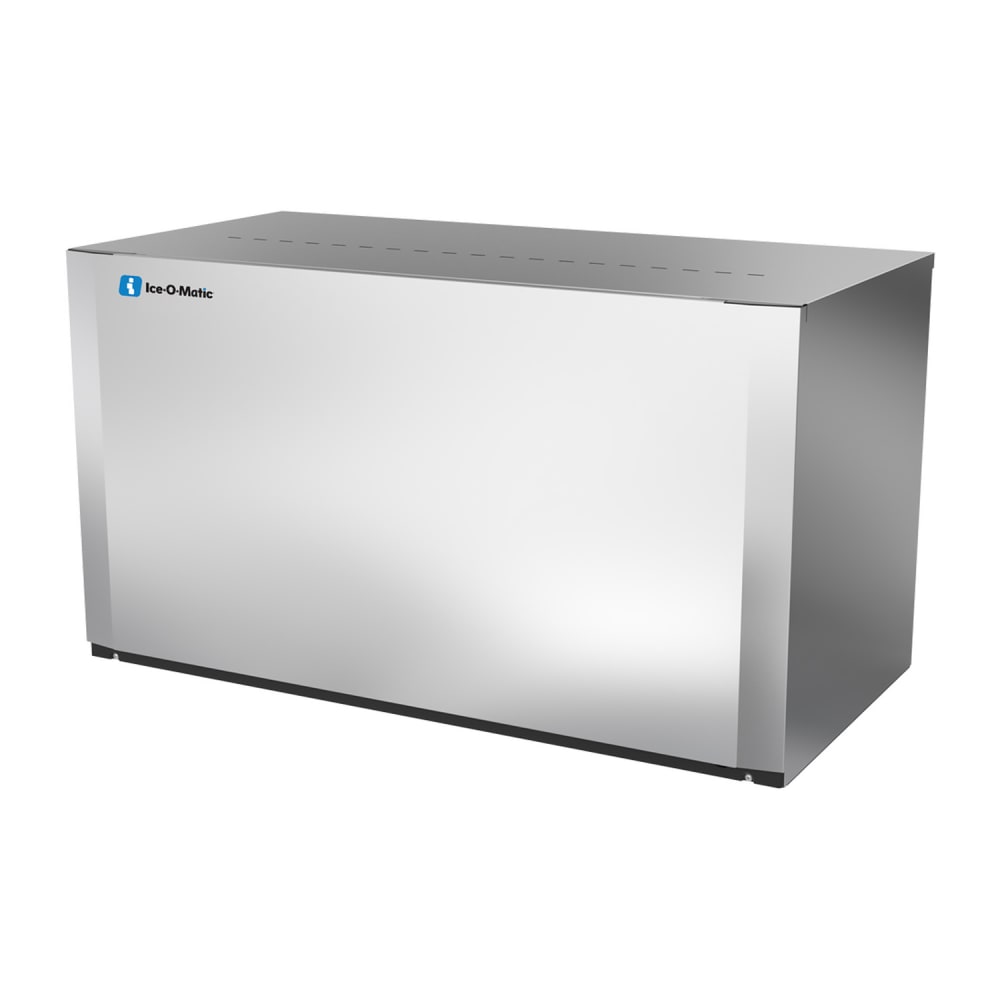

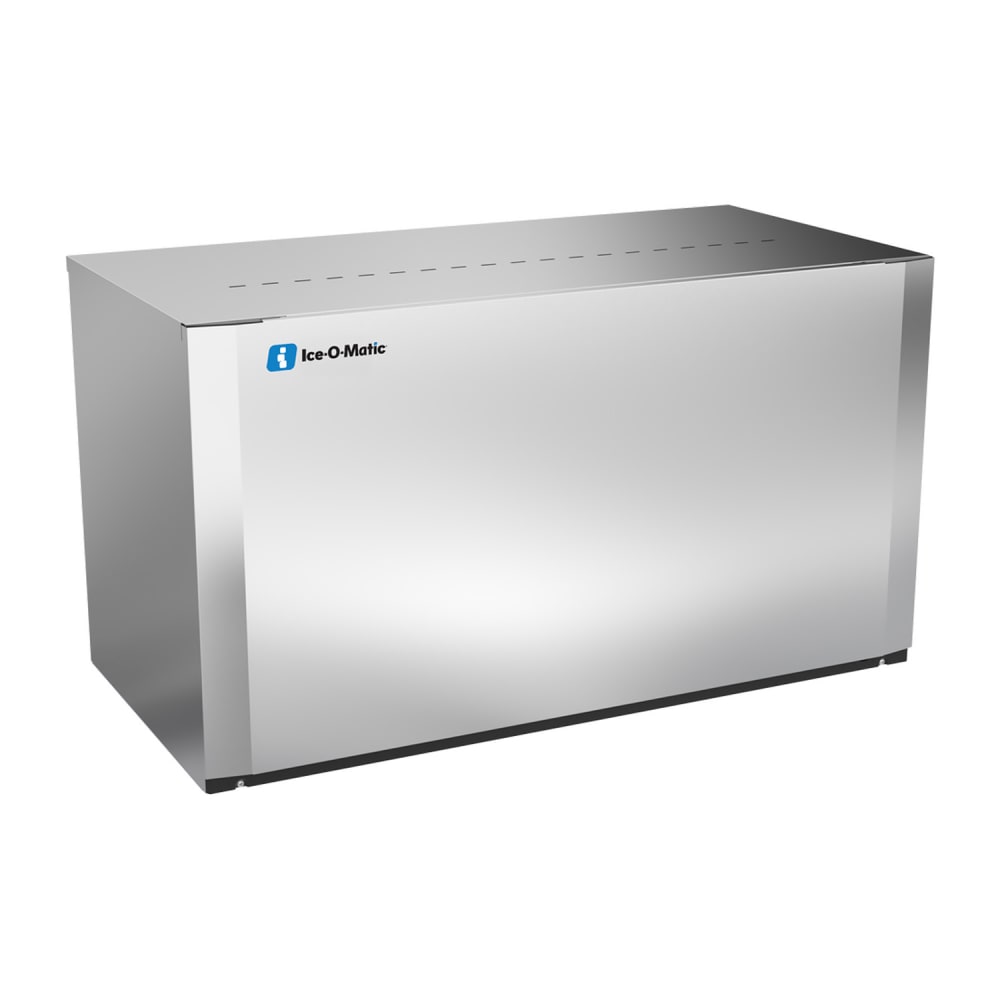

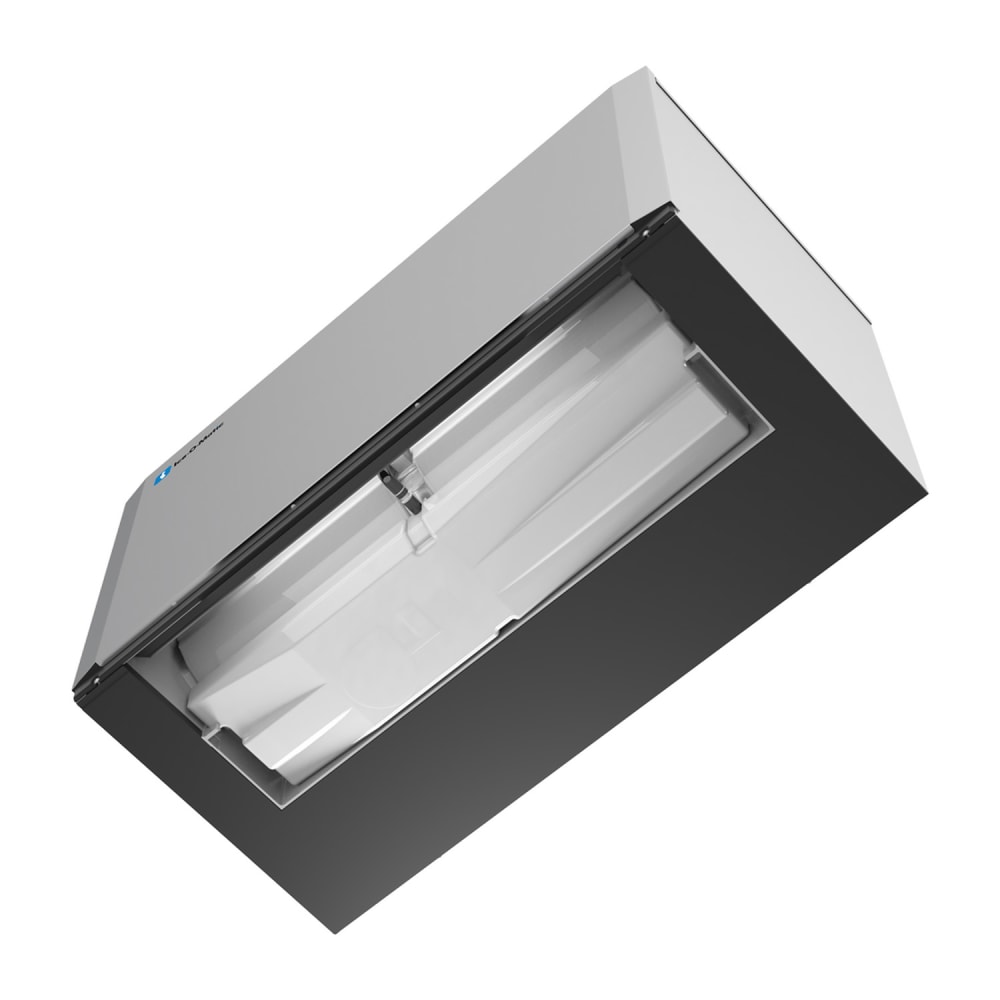

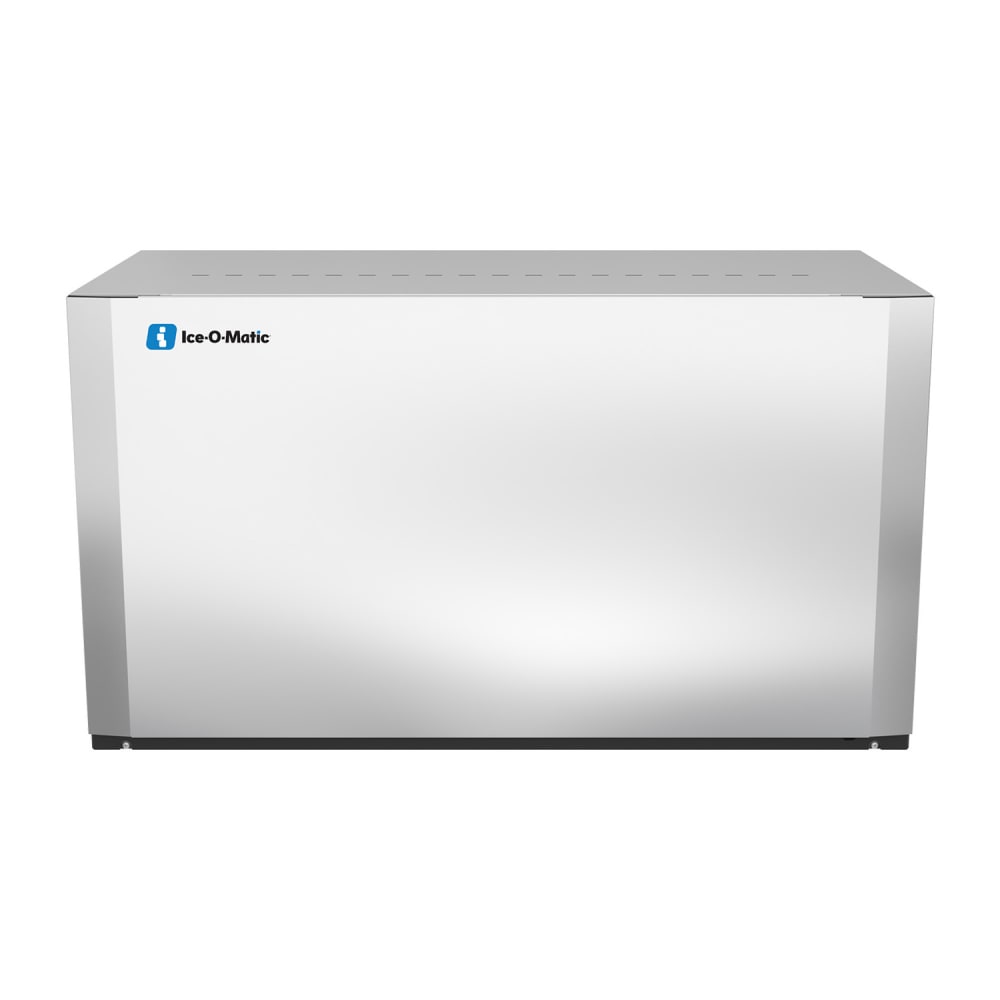

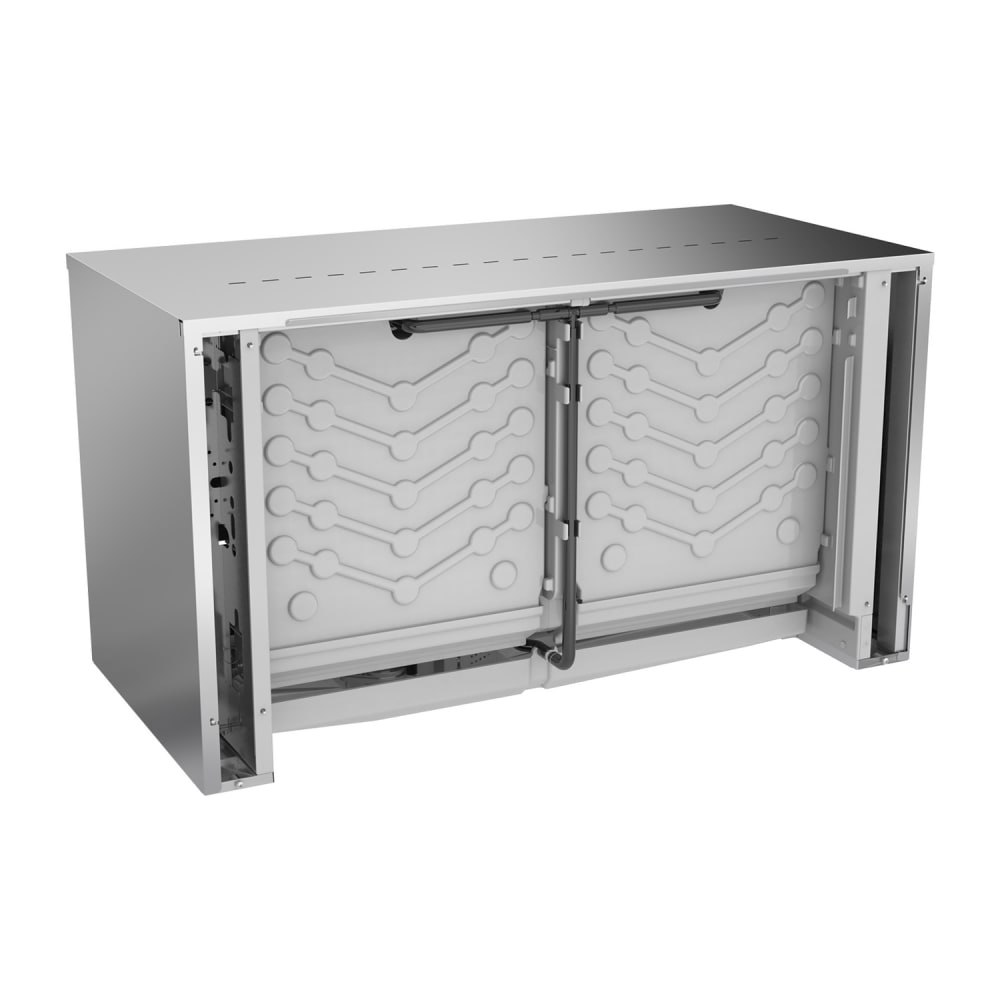

Ice-O-Matic CIM2046FW 48 1/4" Elevation Series™ Full Cube Ice Machine Head - 1860 lb/24 hr, Water Cooled, 208 230v/1ph
Typically ships in 2 - 3 weeks
$9,570.00 /Each
Selected Ice Type: Full Cube
Half CubeShip times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
Ice-O-Matic CIM2046FW Description
The Ice-O-Matic CIM2046FW ice machine makes full-cube ice, which is great for gourmet drinks because of its large size and visual appeal. It can produce as much as 1,860 pounds of ice in a day under ideal conditions, and it’s well-suited for pubs, bars, and other drinking applications. Utilizing it to cool the unit and prepare ice, the ice maker head is installed into an establishment’s existing water supply.
The Ice-O-Matic CIM2046FW ice maker releases heated air using a dual exhaust system with top and side ports in order to split airflow and reduce the potential for exhaust obstruction. Increasing the cleanliness of produced ice, antimicrobial defense adds sanitation value to the head. The head also features one-touch descaling and sanitization as well as dishwasher-safe food zone components.
Product Details
- Part of the Elevation Series™
- Replaces ICE1806FW and ICE2106FW
- 1,860-lb. maximum daily ice production
- 1,690-lb. daily ice production at 90 degrees F air and 70 degrees F water
- Water-cooled system
- Produces full-cube ice
- Full-cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Compact design uses available space efficiently
- Dual exhaust system vents heated air from top and side to reduce blockage
- LED status display
- PURE ICE® antimicrobial agent slows bacterial and mold growth
- 1-touch sanitization/descaling
- Dishmachine-safe food zone components
- Harvest Assist
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-60 PSI
- 27,500-BTU heat transfer capacity
Product Features
Dimensions & Utilities
- 48.25 in. W x 24.25 in. D x 26.8 in. H
- 24.1 A, 3.52 kW
- 208-230 V/60 Hz/1 ph
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, water cooled, self-contained condenser, dual exhaust top/side discharge, 48"W, approximately 1860 lb production/24 hours at 70°/50° (1690 lb at 90°70°), full size cube, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE (Replaces ICE1806FW / ICE2106FW)
*Image may not depict product color, inclusions or accessories.
Ice-O-Matic CIM2046FW Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Ice-O-Matic |
24 Hr. Production (lb) | 1860 |
Amps | 24.1 |
Compressor Type | Water Cooled |
Depth (in) | 24.25 |
Height (in) | 26.8 |
Hertz | 60 |
Ice Type | Full Cube |
Special Features | Dual Exhaust |
Voltage | 208/230 |
Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
Width (in) | 48.25 |
Series | Elevation Series™ |
Phase | 1 |
Rating | Better |
Product | Ice Machine Heads |
Product Type | Ice Makers & Bins |
Cold Water (in) | 3/8 |
Indirect Waste Size (in) | 3/4 |
Weight | 335.00 |
Important Prop 65 information for California residents.
Ice-O-Matic CIM2046FW Accessories
Other Products From This Line
Compare to Similar Items
Attributes |
Current Item: Ice-O-Matic CIM2046FW 48 1/4" Elevation Series™ Full Cube Ice Machine Head - 1860 lb/24 hr, Water Cooled, 208 230v/1ph |
Hoshizaki KM-1601SWJ 48" Crescent Cube Ice Machine Head - 1660 lb/24 hr, Water Cooled, 208/230v/1ph |
Hoshizaki KM-1900SWJ 48" Crescent Cube Ice Machine Head - 1880 lb/24 hr, Water Cooled, 208/230v/1ph |
Manitowoc Ice IYT1900W 48" Indigo NXT™ Half Cube Ice Machine Head - 1960 lb/24 hr, Water Cooled, 208/230v/1ph |
---|---|---|---|---|
Customer Rating |
|
|
|
|
Price | $9,570.00 | $9,685.00 | $10,525.00 | $9,466.00 |
Shipping | Ships Free | Ships Free | Ships Free | Ships Free |
Lead Time | Typically ships in 2 - 3 weeks | Typically ships in 4 - 8 Business Days | Typically ships in 4 - 8 Business Days | Typically ships in 6 - 8 weeks |
Ice Type | Full Cube | Crescent Cube | Crescent Cube | Half Cube |
Compressor Type | Water Cooled | Water Cooled | Water Cooled | Water Cooled |
Rating | Better | Best | Best | Best |
Voltage | 208/230 | 208/230 | 208/230 | 208/230 |
Series | Elevation Series™ | KM Series | KM Series | Indigo NXT™ |
Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Warranty, 5-year Compressor Parts |
