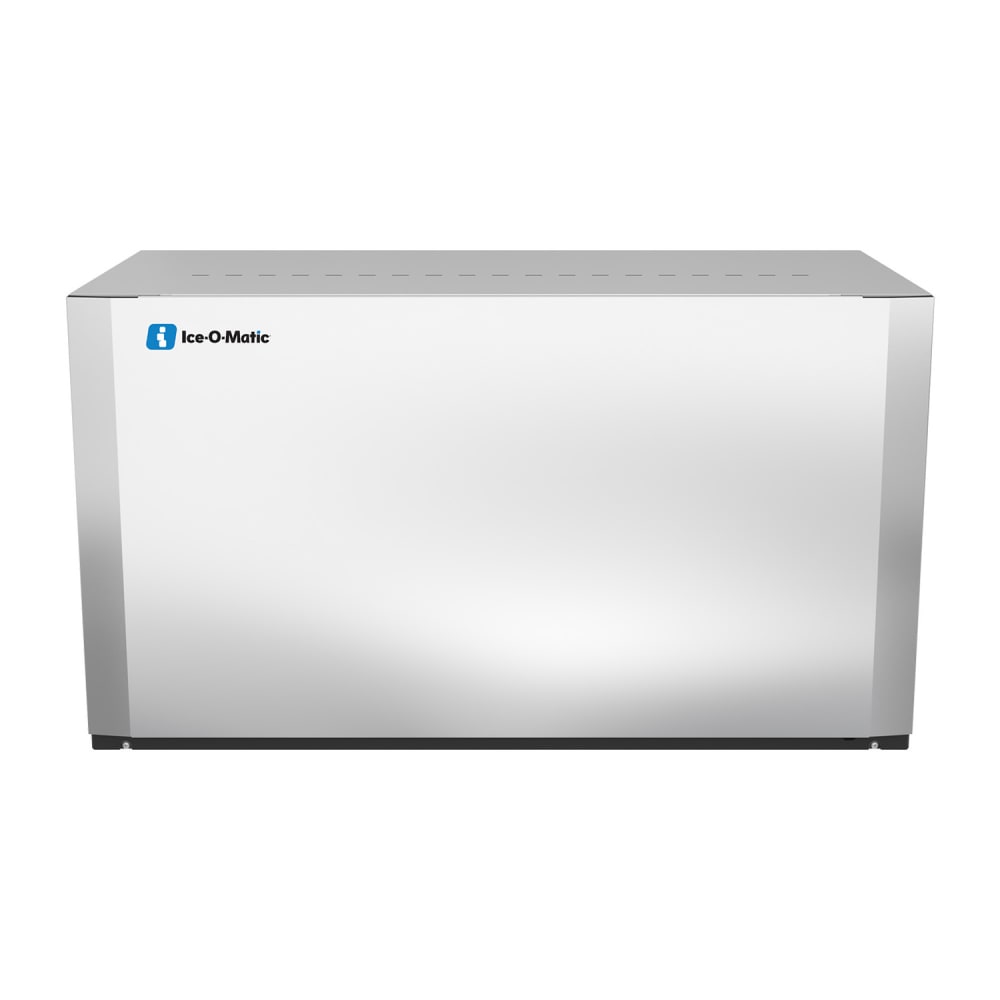

Ice-O-Matic CIM2046HW 48 1/4" Elevation Series™ Half Cube Ice Machine Head - 1860 lb/24 hr, Water Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$9,637.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Ice-O-Matic CIM2046HW Description
The Ice-O-Matic CIM2046HW Elevation Series™ modular cube ice maker features a water-cooled, self-contained condenser, making it ideal for environments with high ambient temperatures. This unit can produce approximately 1,860 pounds of half-cube ice per day at 70-degree air and 50-degree water temperatures. With a dual exhaust system, it supports flexible installation by supporting both top and side discharge options.
To maintain hygiene, the Ice-O-Matic CIM2046HW ice machine incorporates PURE ICE® antimicrobial protection, preventing bacterial growth on internal surfaces. One-touch sanitizing and descaling controls simplify upkeep, while dishwasher-safe food zone components streamline cleaning. The Harvest Assist feature enhances efficiency by ensuring consistent ice production with reduced energy consumption. Additionally, the electroless nickel plating on all evaporator plates improves reliability and extends the unit’s operational lifespan.
- From the Elevation series
- Approximately 1,860-lb. ice production per 24 hours
- Produces half-cube ice
- Durable aluminum construction
- Plastic exterior
- PURE ICE antimicrobial protection
- Water-cooled, self-contained condenser
- Harvest Assist technology
- 1-touch sanitize and descaling controls
- LED status display
- Dishwasher-safe food zone

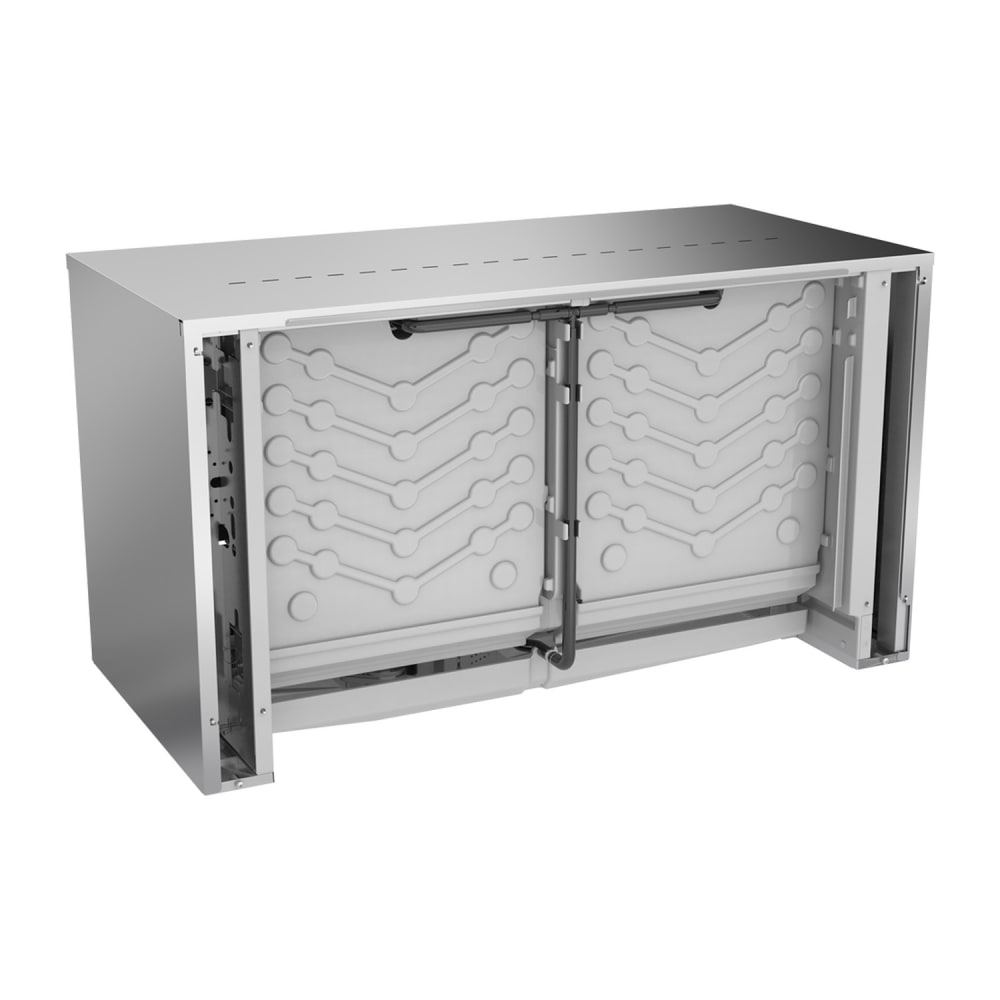

- Electroless nickel plating on all evaporator plates
- 48 1⁄4 in. W x 24 1⁄4 in. D x 26 4⁄8 in. H
- 24.1 A, 3.9 kW
- 208-230 V/60 Hz/1 ph (hardwired)
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM2046HW within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, water cooled, self-contained condenser, dual exhaust top/side discharge, 48"W, approximately 1860 lb production/24 hours at 70°/50° (1690 lb at 90°70°), half size cube, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE (Replaces ICE1806HW / ICE2106HW)
Ice-O-Matic CIM2046HW Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 1860 |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 26.8 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 48.25 |
| Weight | 335.00 |
