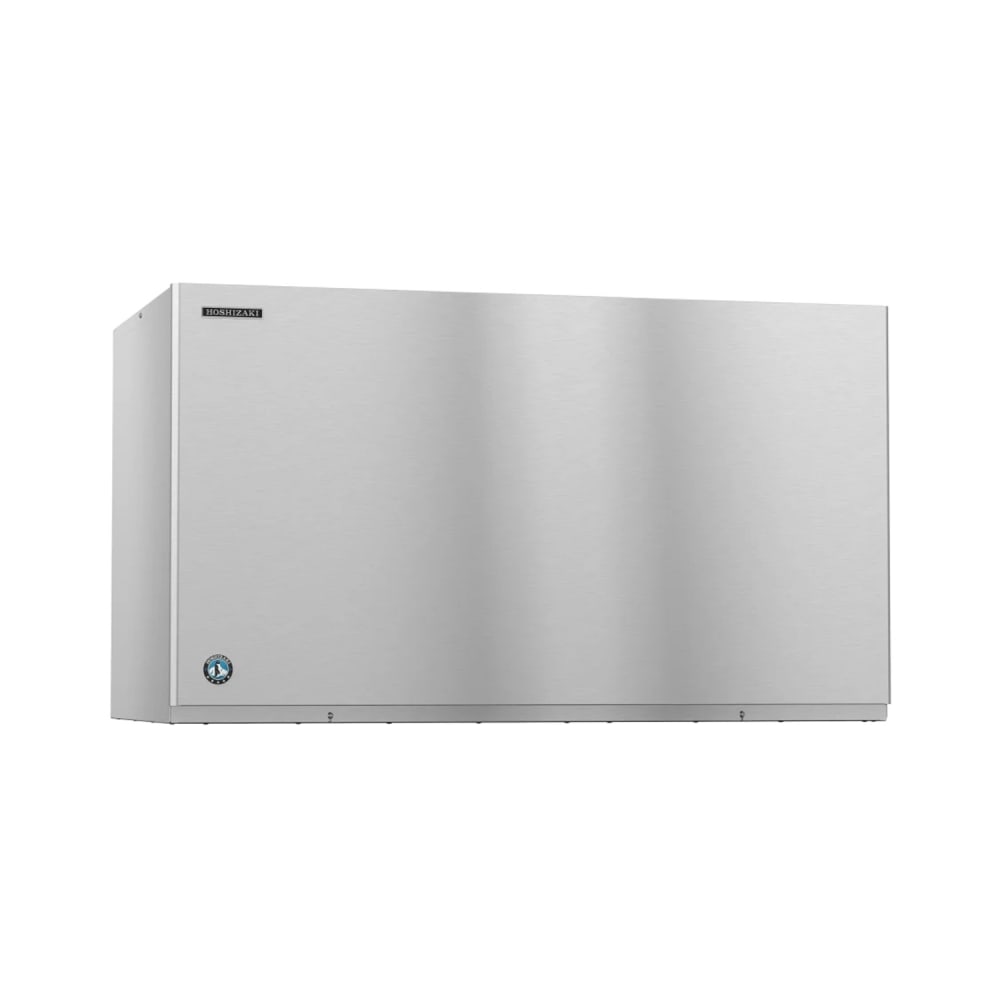

Hoshizaki KM-1601SWJ 48" Crescent Cube Ice Machine Head - 1660 lb/24 hr, Water Cooled, 208-230v/1ph

KaTom #: 440-KM1601SWJ • MPN: KM-1601SWJ
  • 440-KM1601SWJ Primary Thumbnail Image
  • 440-KM1601SWJ Multiple Thumbnail Image #1
  • 440-KM1601SWJ Multiple Thumbnail Image #2
Free Shipping Item

$10,920.00 /Each

Contact us for details!

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $155.25
  • Edit Remove

Selected Compressor Type: Water Cooled

Air CooledAir Cooled Remote CooledRemote Cooled
Justin France User Image
Ask a Foodservice Equipment Specialist

Attention: Order by 12-01-2026 to save before the price increases!

Hoshizaki KM-1601SWJ Description

The Hoshizaki KM-1601SWJ crescent cube ice machine head is ideal for establishments that require ice for soda, mixed drinks, bagging operations, and more. Hoshizaki's proprietary ice shape melts more slowly than traditional cube ice and is harder. Within a 24-hour period, the unit can produce 1,650 to 1,660 pounds of ice depending on operating air and water temperatures. The CycleSaver™ feature allows the unit to produce the same amount of ice as competitors in fewer cycles by freezing water on a two-sided evaporator. To ensure the unit runs properly, EverCheck™ technology sounds an audible alarm when problems are detected, so operators can service the machine before a malfunction occurs. Bacteria growth is slowed between cleanings thanks to the built-in H-Guard Plus™ antimicrobial agent.

The Hoshizaki KM-1601SWJ crescent cube ice machine head is cooled with water, which operates more quietly. The exterior and evaporator are constructed of stainless steel for durability, and removable panels provides accessibility to internal components for maintenance.

Note: This unit must be paired with an ice maker bin or ice dispenser.

  • Makes crescent cube ice for soda, mixed beverages, bagged ice, and dispensing
  • 1,650-1,660 lbs. ice is produced in a 24-hr. period
  • Heavy-duty, corrosion-resistant exterior is made of stainless steel
  • System uses R-404A refrigerant
  • Stainless steel evaporator resists corrosion
  • Refrigeration components are cooled with water to help prevent overheating
  • Unit is easy to clean and service thanks to the removable panels
  • Bin is sold separately
  • 21,300 BTU
  • 208-230 V/60 Hz/1 ph, 13.6 A
  • Ice Dimensions: 1 1⁄8 in. W x 1⁄2 in. D x 1 1⁄2 in. H
  • Overall Dimensions: 48 1⁄4 in. W x 27 7⁄16 in. D x 27 in. H

  • Requires fewer cycles to produce the same amount of ice as competitors with CycleSaver technology
  • Built-in antimicrobial agent called H-Guard Plus slows bacteria growth
  • EverCheck alert system helps prevent malfunctions since it sounds an alarm to inform the operator of issues

  • Requires 45-100 degrees F ambient temperature
  • Requires 45-90 degrees F water temperature
  • Requires 10-113 PSIG water pressure
  • 9-in. clearance is required on rear, sides, and top for air circulation and service access

*Image may not depict product color, inclusions or accessories.

*Free shipping on Hoshizaki KM-1601SWJ within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, water-cooled, self-contained condenser, production capacity up to 1660 lb/24 hours at 70°/50° (1650 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 13.6 amps, NSF, UL
Warranty Icon
3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Watch a video about this product

Hoshizaki KM-1601SWJ Specifications

Warning Small Important Prop 65 information for California residents.

Replacement for the Following Item
  • Hoshizaki KM1601SWH
Equivalent Items












Related Categories

Compare to Similar Items

0 Customer Reviews
  • 5
    0
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0

Review this product!

Relay your experience with this product to help inform other's decisions and help us continue to offer premier foodservice experiences.

The EverCheck™ system sounds alerts when issues occur.

— KaTom Foodservice Equipment Specialist

The H-Guard Plus™ agent slows bacteria growth.

— KaTom Foodservice Equipment Specialist

The CLEANASSIST process completes cleaning in one hour.

— KaTom Foodservice Equipment Specialist

Yes, the water-cooled system reduces operating noise.

— KaTom Foodservice Equipment Specialist

A stainless steel evaporator resists corrosion.

— KaTom Foodservice Equipment Specialist

This unit requires 45 to 100°F ambient conditions.

— KaTom Foodservice Equipment Specialist

The unit requires 9 in. on all sides.

— KaTom Foodservice Equipment Specialist

It can produce up to 1,660 lb. of ice per 24 hours.

— KaTom Foodservice Equipment Specialist

It makes crescent cube ice.

— KaTom Foodservice Equipment Specialist

It measures 48 1/4 in. W x 27 7/16 in. D x 27 in. H.

— KaTom Foodservice Equipment Specialist

It uses a water-cooled condensing system.

— KaTom Foodservice Equipment Specialist

It requires 208/230 V electrical service.

— KaTom Foodservice Equipment Specialist

It uses single-phase power.

— KaTom Foodservice Equipment Specialist

It uses R404A refrigerant.

— KaTom Foodservice Equipment Specialist

It requires a hardwired electrical connection.

— KaTom Foodservice Equipment Specialist

Its listed certifications include AHRI, NSF, and UL.

— KaTom Foodservice Equipment Specialist

Its exterior is made of stainless steel.

— KaTom Foodservice Equipment Specialist

It requires a 1/2-in. water inlet connection.

— KaTom Foodservice Equipment Specialist

No, this ice machine head is sold without an ice bin.

— KaTom Foodservice Equipment Specialist

It must be paired with a separately purchased ice bin or dispenser.

— KaTom Foodservice Equipment Specialist

It must be paired with a separately purchased ice bin or dispenser.

— KaTom Foodservice Equipment Specialist

Yes, this ice machine head supports stacking.

— KaTom Foodservice Equipment Specialist

Yes, it has an alert system.

— KaTom Foodservice Equipment Specialist
