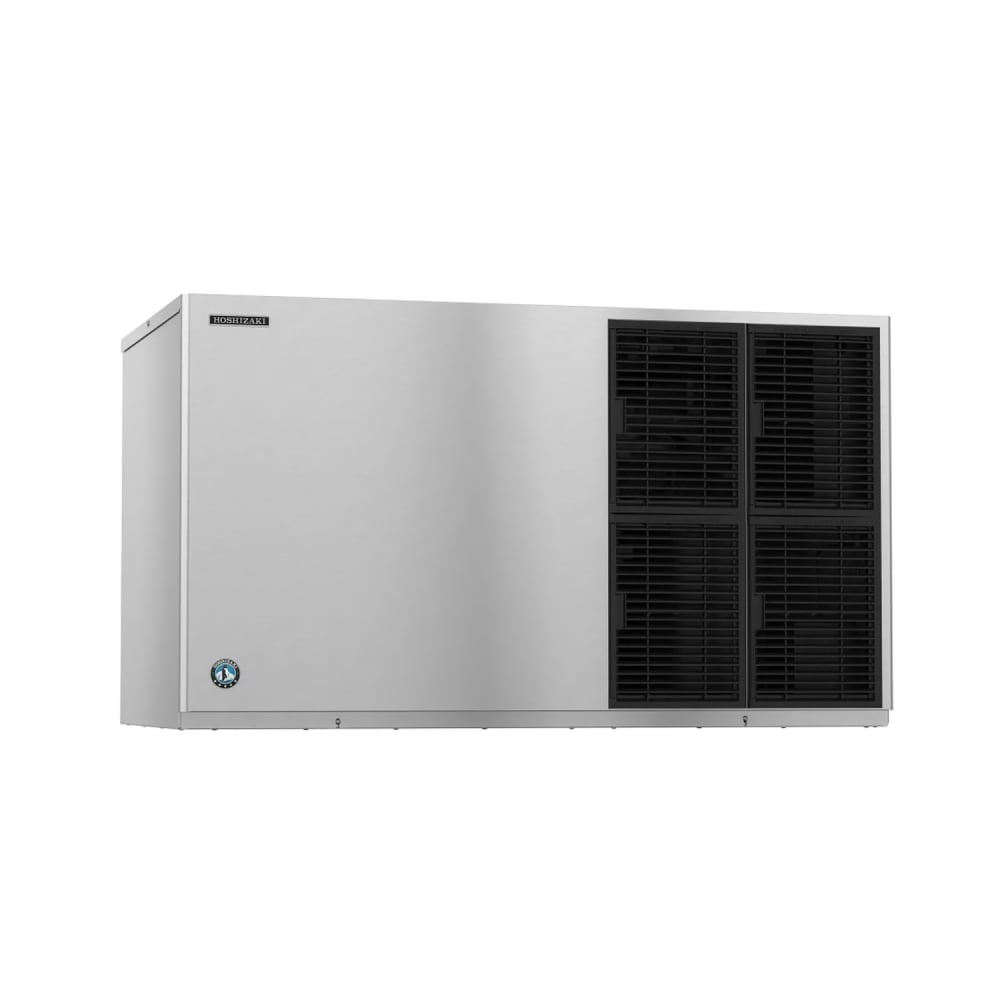

Hoshizaki KM-1601SAJ 48" Crescent Cube Ice Machine Head - 1513 lb/24 hr, Air Cooled, 208-230v/1ph

The Hoshizaki KM-1601SAJ crescent cube ice machine head is easy to service and clean since the panels are removable. This type of ice is perfect for water, iced tea, soda, and a variety of other beverages, and measures 1¹⁄₈ inches wide by ¹⁄₂ inches deep by 1¹⁄₂ inches tall. Crescent cube ice melts more slowly than other ice shapes and can also be used for bagging or dispensing. The stainless steel exterior resists scratches and dents to withstand commercial use, and the stainless steel evaporator resists corrosion that can be caused by water exposure.

CycleSaver™ technology freezes ice on both sides of the evaporator, so the Hoshizaki KM-1601SAJ crescent cube ice machine head needs fewer cycles to produce as much ice as competing units. A built-in antimicrobial agent called H-Guard Plus™ helps operators keep the machine clean by slowing the growth of microbes and bacteria. With the EverCheck™ feature, operators are notified to operating issues by an audible alarm.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

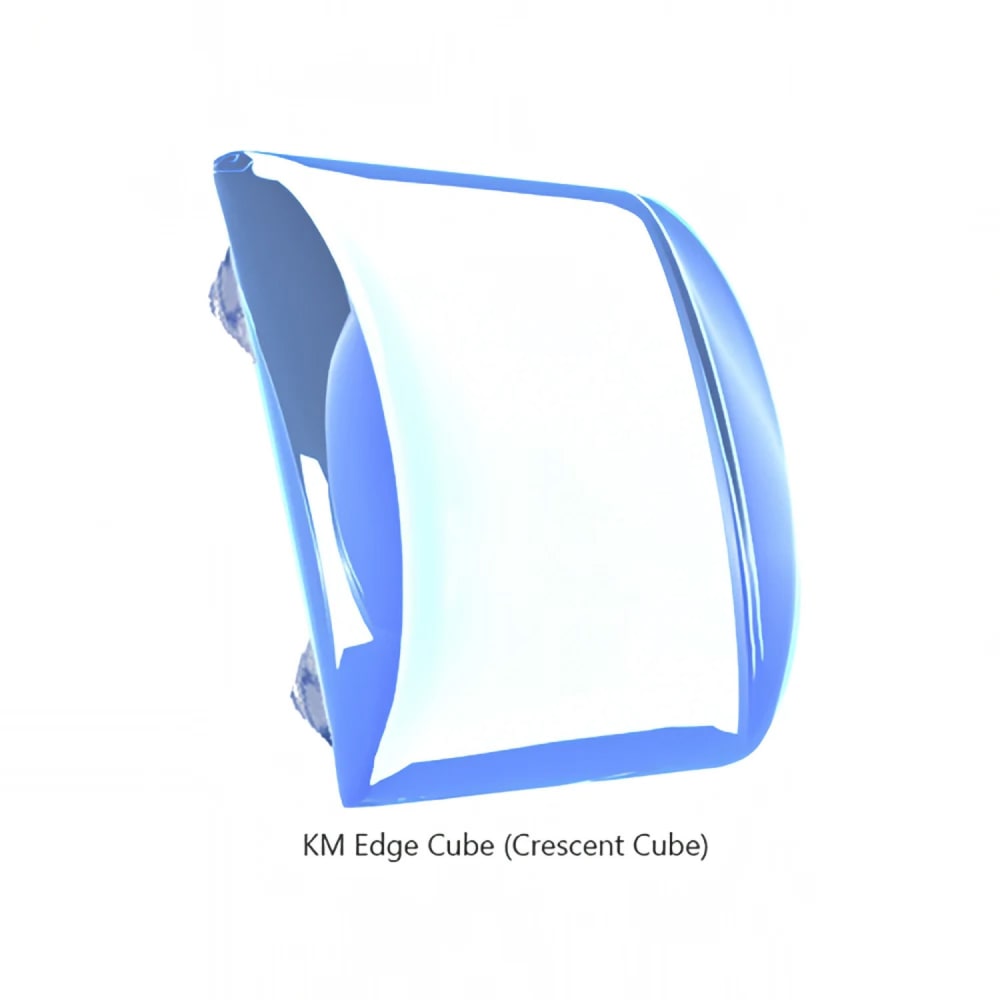

• Produces crescent cube ice that measures 1¹⁄₈ in. W x ¹⁄₂ in. D x 1¹⁄₂ in. H
• Ice production within 24 hrs. can range from 1,433-1,513 lbs.
• Fewer cycles are needed to produce an equivalent amount of ice as competitors with CycleSaver technology
• Built-in H-Guard Plus antimicrobial agent limits bacteria growth
• EverCheck system alerts operators to service issues
• Durability and minor damage resistance are provided by the stainless steel exterior
• Temperatures stay cool with the R-404A refrigerant
• Stainless steel evaporator resists corrosion
• Condenser is air cooled
• Machine is easy to clean and service thanks to the removable panels
• Bin is sold separately
• 18,500 BTU
• 208-230 V/60 Hz/1 ph, 15.9 A
• Overall Dimensions: 48¹⁄₄ in. W x 27⁷⁄₁₆ in. D x 27³⁄₈ in. H

Product Features

Operation Requirements

• Operates properly when the ambient temperature is between 45-100 degrees F
• Operates properly when the water temperature is between 45-90 degrees F
• Operates properly when water pressure is between 10-113 PSIG
• 9-in. clearance is required on rear, sides, and top for ideal air circulation

*Free shipping on Hoshizaki KM-1601SAJ within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1433 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 15.9 amps, NSF, UL

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

Stackable

This item can be safely stacked

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1601SAJ Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Certifications
