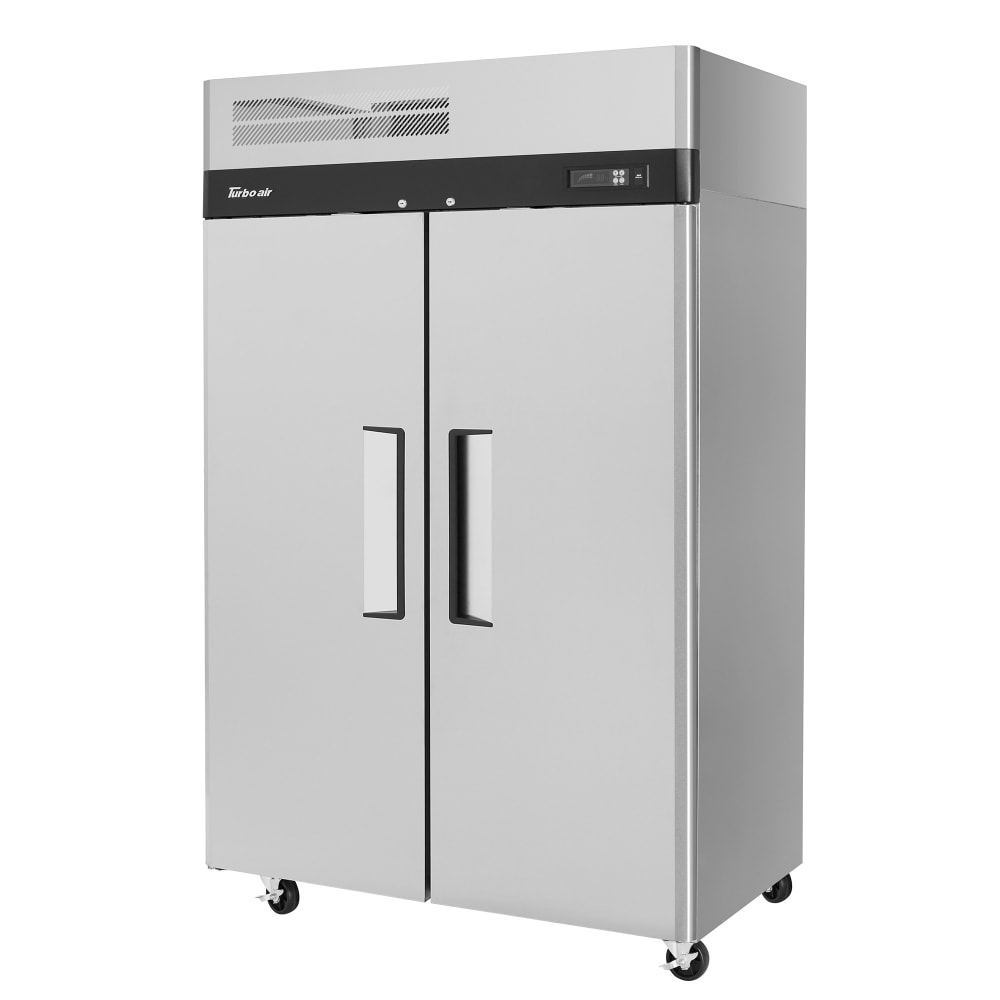

Turbo Air M3R47-2-N 51 3/4" Two Section Reach In Refrigerator, (2) Left/Right Hinge Solid Doors, 115v

The Turbo Air M3R47-2-N two-section reach-in refrigerator holds products on six polyethylene-coated wire shelves that are illuminated by LED lighting inside the cabinet. Part of the M3 Turbo Air refrigerator series, this unit's aluminum and stainless steel interior is designed to be heavy duty and easy to clean. To create a seal between the doors and the frame, the unit has magnetic door gaskets, but the door pressure release system ensures users will be able to open the doors without trouble. If the doors are not closed properly, an alarm sounds to alert staff members.

R-290 hydrocarbon refrigerant maintains cold temperatures between 33 and 38 degrees Fahrenheit, which can be monitored with a digital display. When the cabinet needs to be cooled rapidly, the Turbo Cooling function can be activated to allow the compressor to continuously run for 2 hours. The self-cleaning condenser is cleaned automatically to prevent premature system failures, and the evaporator has a corrosion-resistant coating. The top-mounted compressor maximizes space inside the Turbo Air M3R47-2-N two-section reach-in refrigerator, and the self-contained refrigeration system is easy to service.

Product Details

• Part of the M3 Turbo Air refrigerator series
• Polyethylene coating on the 6 wire shelves provide corrosion resistance
• Shelves can accommodate different products since they are adjustable
• Visibility in the cabinet is provided by LED lighting
• Aluminum interior resists corrosion and minor damage
• Interior floor is made of stainless steel, so it is durable and easy to clean
• Magnetic door gaskets create a seal between the doors and the frame
• Vacuum pressure is eliminated by the door pressure release device, making the doors easy to open

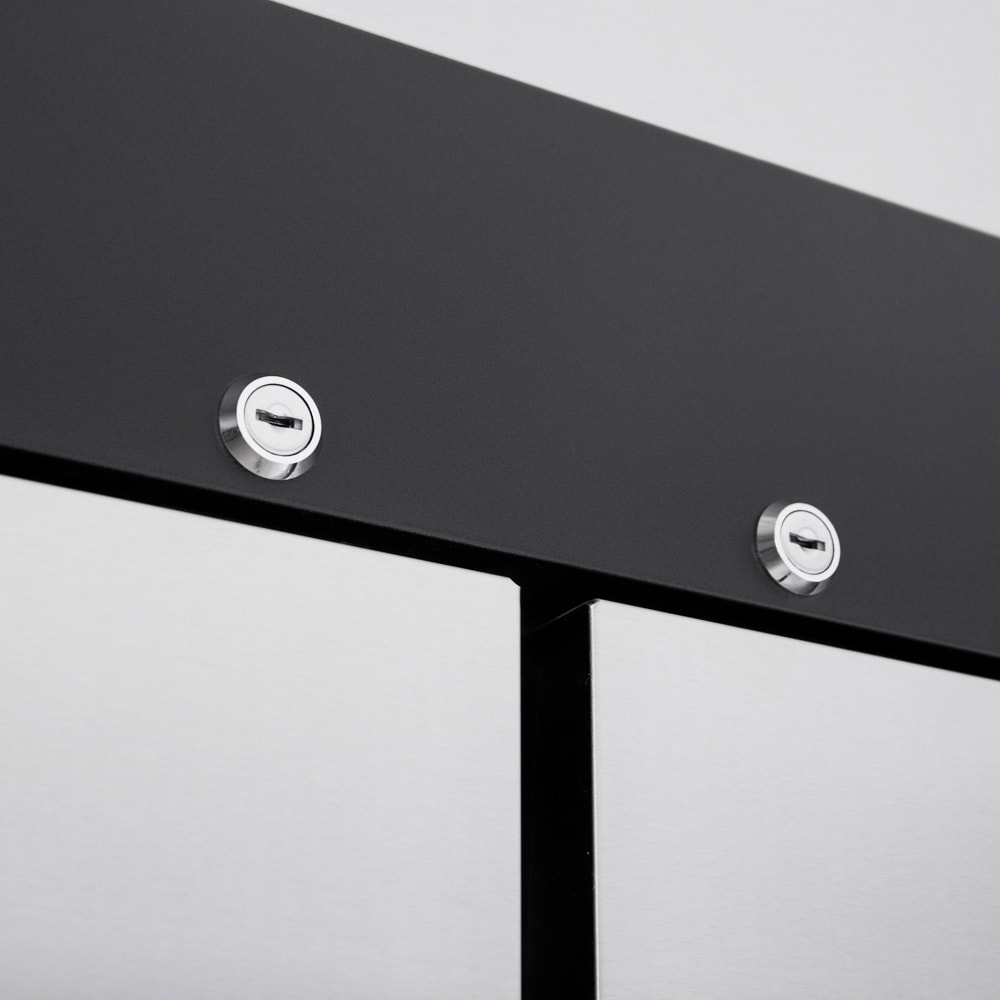

• Doors can be locked to limit access to product
• Polyurethane insulation is foamed in place to retain cold air and create structure
• Heavy-duty stainless and galvanized steel exterior construction
• Rounded edges and corners help prevent injury
• 4-in. dia. swivel casters have locks on the front set

Product Features

Self-Contained Refrigeration System

• Uses R-290 hydrocarbon refrigerant to maintain cold temperatures
• 33-38 degrees F temperature range
• Corrosion-resistant hot gas condensate system prevents overflowing water and leaking refrigerant

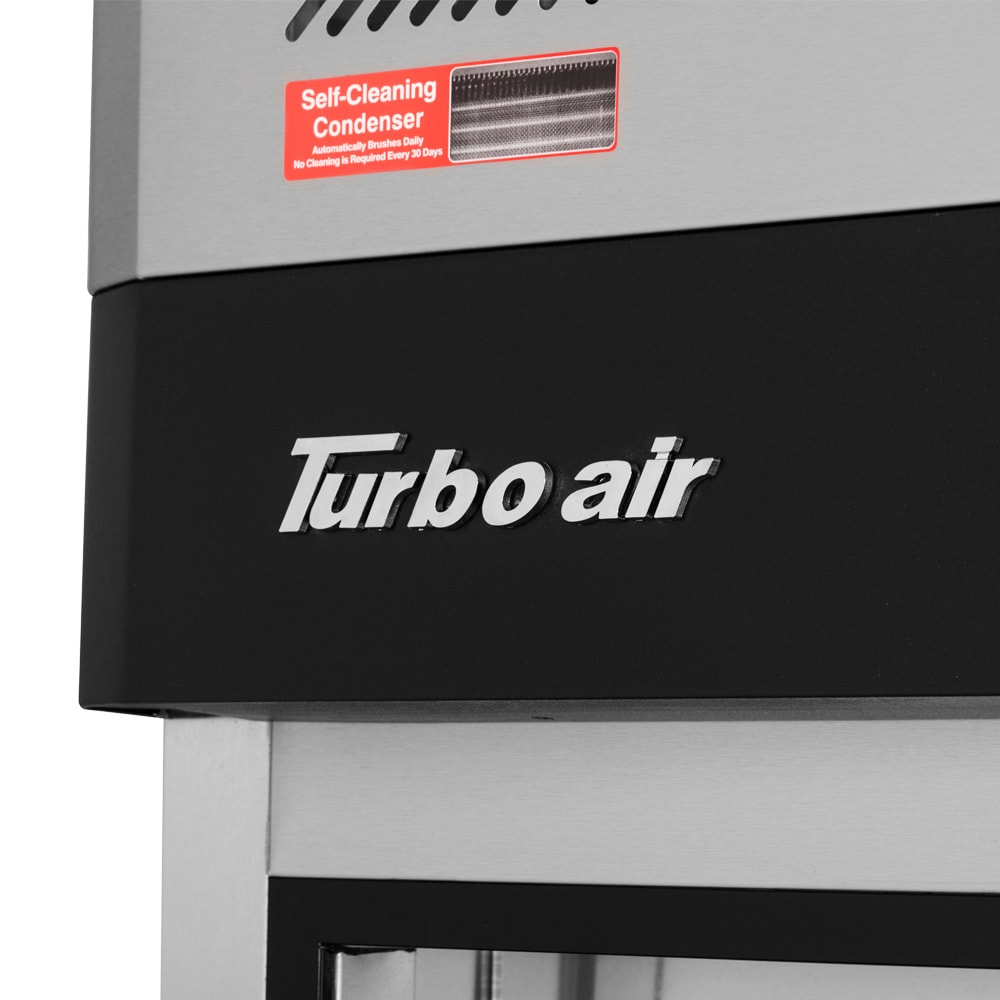

• Condenser uses a self-cleaning device to brush off dust buildup that could cause a system breakdown
• Evaporator is coated for corrosion resistance to add long lasting durability
• Top-mount compressor maximizes space in the cabinet
• Self-contained system is easy to service since all the components are built together

Digital Control System

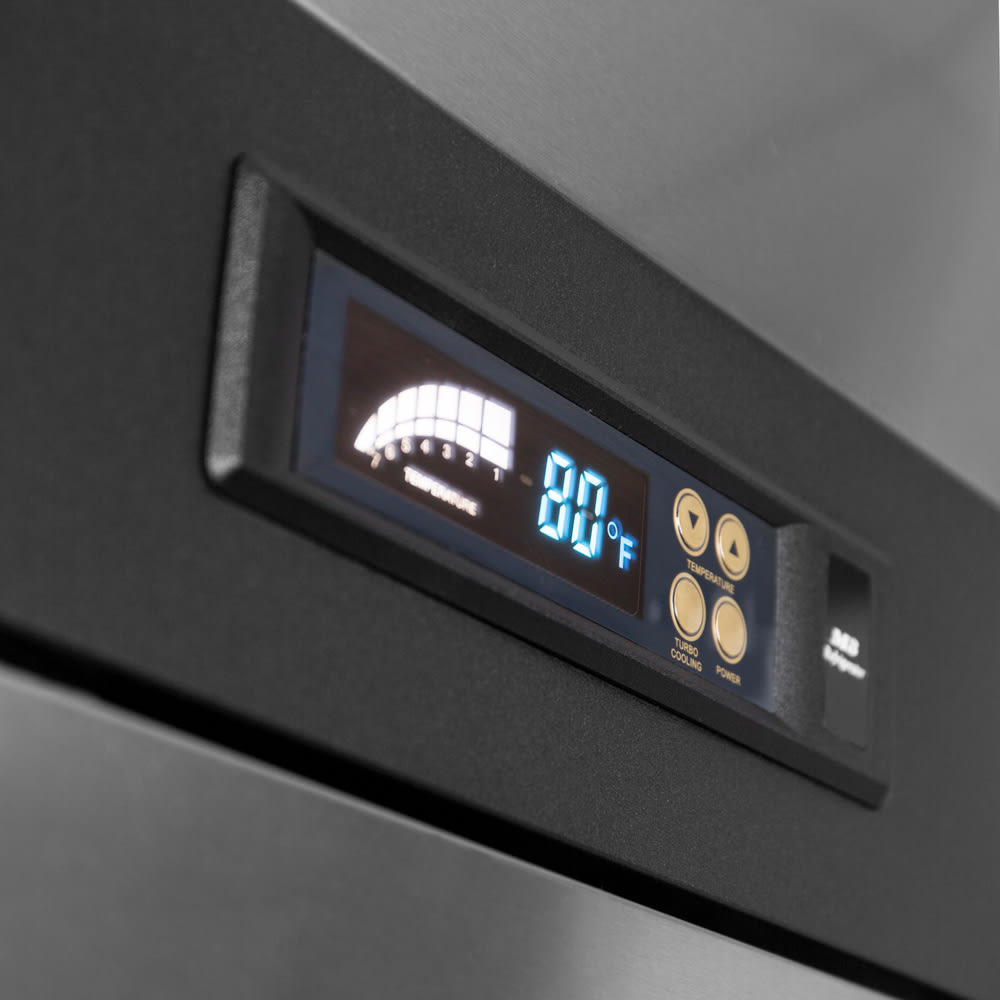

• Digital display makes it easy to monitor the interior temperature
• Cabinet is rapidly cooled by the Turbo Cooling function that allows the compressor to run for 2 hrs.

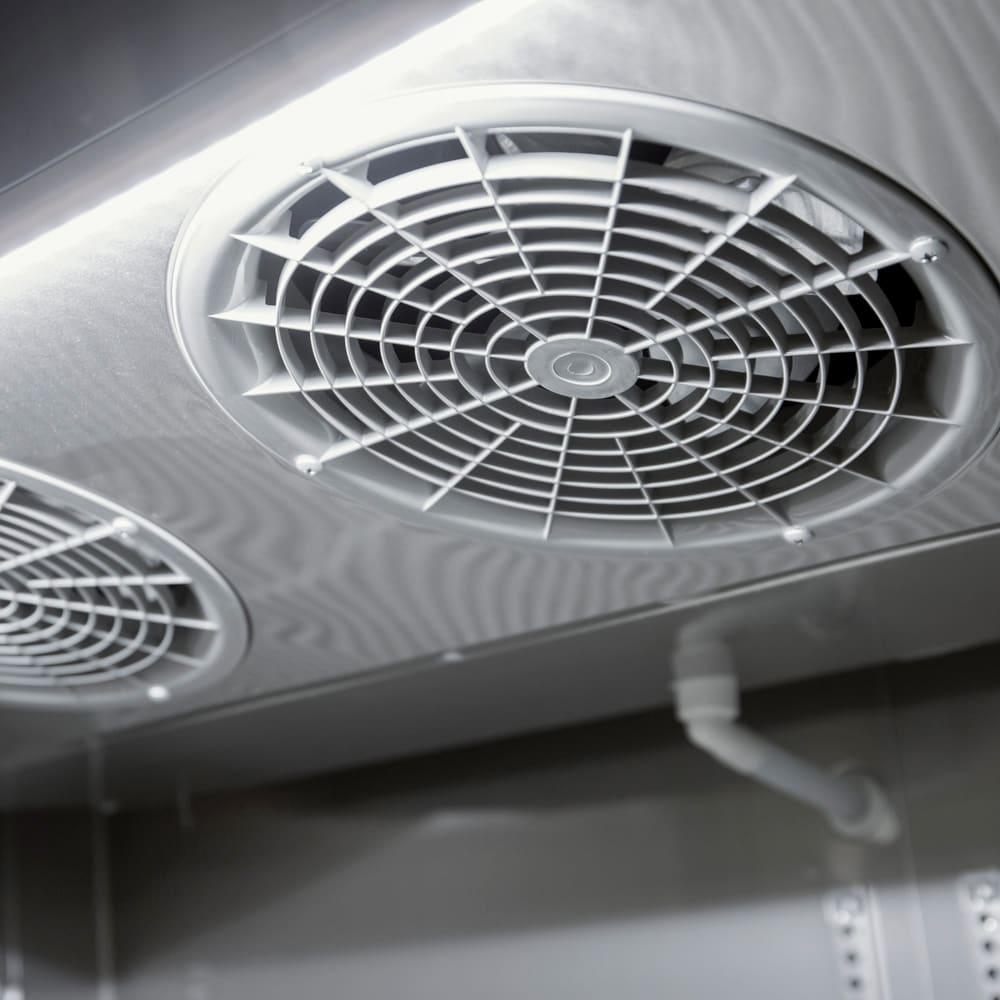

• Warm air is not sucked into the cabinet since the fan motor automatically delays when a door is opened
• Staff is alerted by an alarm if the door is not sealed shut, preventing cold air leaks
• Early Warning Alarm program detects issues in the system to help prevent a malfunction
• Self-diagnosis interprets the condition of the refrigeration system, so it is easy to service

Dimensions & Utilities

• Shelf: 23 in. W x 23¹⁄₂ in. D
• Interior: 47³⁄₄ in. W x 26¹⁄₂ in. D x 60⁵⁄₈ in. H
• Overall: 51³⁄₄ in. W x 32³⁄₄ in. D x 83 in. H
• 2.6 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

From The Manufacturer

M3 Refrigerator, reach-in, two-section, 42.3 cu. ft. exterior LED digital thermometer, door open beep, self-diagnostic monitoring system, hot gas condensate system, automatic fan motor delays, door pressure release, LED interior lighting, self-cleaning condenser device, (2) hinged solid door with recessed handle & lock, (6) PE coated wire shelves, stainless steel front & sides, aluminum interior with stainless steel floor, top mount self-contained compressor, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.6 amps, NEMA 5-15P, ETL-Sanitation, cETLus, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Turbo Air M3R47-2-N Specifications

Spec Attribute	Spec Value
Manufacturer	Turbo Air
Additional Info	Contact Customer Service for Additional Information
Color	Silver
Compressor Location	Top
Cubic Feet	42.3
Depth (in)	30.75
Door Type	Solid
Doors	Full
Evaporator Type	Capillary Tube
Height (in)	78
Hertz	60
Interior Material	Aluminum
Sections	2
Number of Shelves	6
Supports	Casters
Thermometer Type	Digital
Type	Reach In
Voltage	115
Warranty	5-year Parts & Labor, 7-year Limited Compressor Parts
Width (in)	51.75
Series	M3
Refrigerant	R290 (Hydrocarbon)
No. of Doors	2
Phase	1
Rating	Better
Product	Reach-In Refrigerators
Product Type	Commercial Refrigeration
NEMA	5-15P
Hinge Configuration	Left/Right
Weight	401.00
