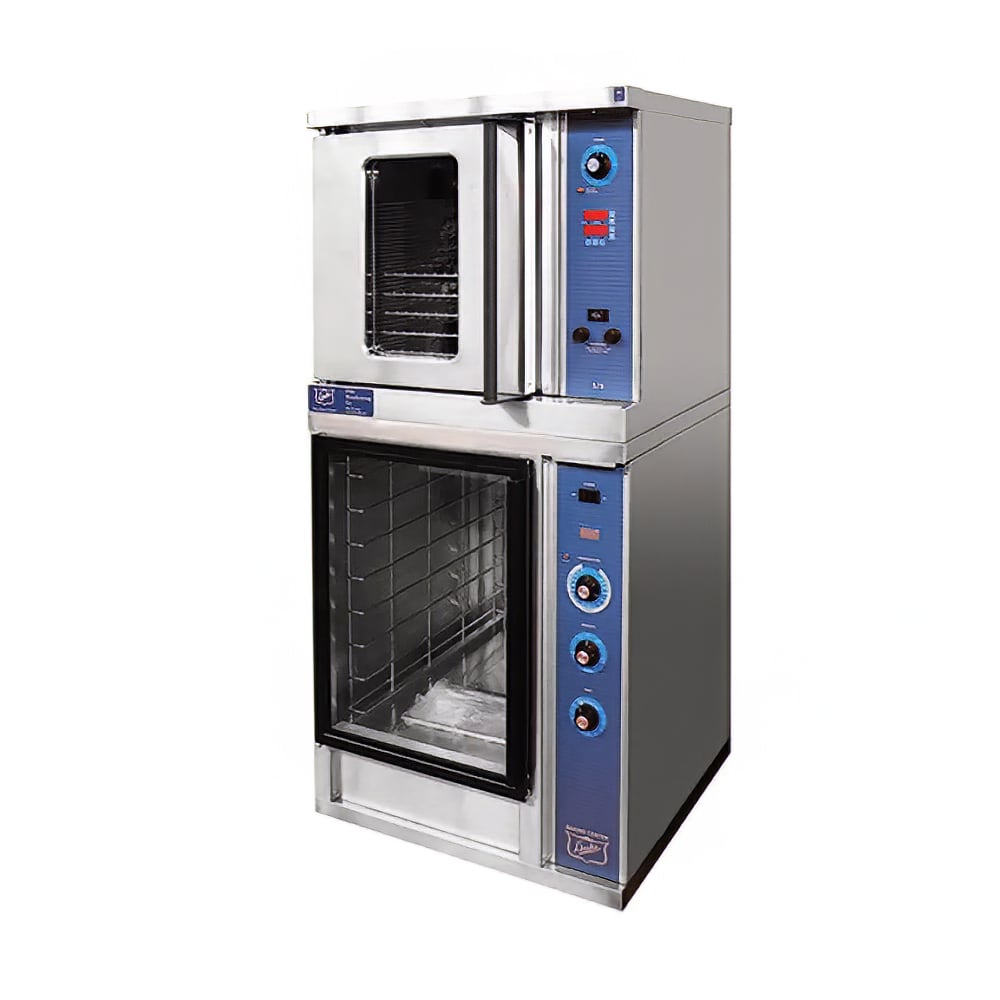

Duke 59-E3XX/PFB-1 Electric Proofer Oven with Cook and Hold, 240v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 066-59E3XXPFB12403 • MPN: 59-E3XX/PFB-1 240/3
Ships Free

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Retail Price: $14,094.00
$5,565.72 / Each

Selected Voltage: 240V, 3 Phase

240V, 3 Phase
240V, 1 Phase

Image may not depict product color, inclusions or accessories.

Duke 59-E3XX/PFB-1 Description


Also known as the DBC-1 baking center, the Duke 59-E3XX/PFB-1 240/3 combines a two-speed convection oven and a proofer cabinet to create an all-in-one proofing and baking station in one compact footprint. The unit's convection oven features reliable solid state controls that maintain accurate temperatures and a porcelainized interior for an even bake. The proofer base includes a manually-filled, 2-quart water reservoir for generating humidity for heat.

Product Details

  • Stainless steel exterior cabinets
  • Mounted on 6-in. polyurethane casters, 2 of which lock
  • Overall Dimensions: 30-in. W x 2838 in. W x 6612 in. H
  • cETLus and ETL-Sanitation Listed; NSF Certified
  • Note: This model is also known as the DBC-1 baking center

2-Speed Convection Oven

  • Interior porcelain lining distributes heat for an even bake and makes surfaces easy to clean
  • Solid state temperature and timer controls for reliability
  • 12-hr. countdown timer
  • "Cook and Hold" setting automatically lowers oven temperature after baking to hold foods at serving temperature
  • 2-speed fan allows users to set convection air speed
  • Powerful 12-HP blower motor
  • Bottom, sides, and back are insulated with 1-in. thick insulation
  • Top is insulted with 3-in. thick insulation.
  • 8-kW heating element
  • Includes 5 racks, adjustable on 9 positions
  • 208 V/60 Hz/3-ph, 8 kW, 21 A

Proofer Oven Base

  • Tempered glass door panel allows users to monitor progress of proofing dough
  • Proofer cavity is built with corrosion-resistant stainless steel
  • Solid state temperature controls are accurate and reliable
  • Humidity is controlled with infinite dial
  • Three zone settings: Proof, Warming, and Holding
  • 1-hr. electric dial timer with continuous buzzer alarm
  • Steam is generated from a manually-filled, 2-qt. water reservoir
  • 120 V/60 Hz/1-ph, 12.9 A, 1545 W, 6-ft cord and plug included

Convection Oven, electric, single-deck with proofer base, 30"W x 25-1/4"D, half-size, stainless steel exterior, (1) stainless steel door with window, (5) racks & (9) rack positions, porcelain interior, solid state digital time & temperature controls (200°-500°F), 12-hour countdown timer, cook & hold feature, 2-speed fan, pulse fan capability, stainless steel proofer with spring-loaded glass door holds (16) pans, 4" plastic legs, 1/2 HP, NSF, cETLus, ETL-Sanitation, 240v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Duke 59-E3XX/PFB-1 Specifications

PDF Spec Sheet
Manufacturer Duke
Door Type Independent
Heat Electric
Also Known As DBC-1, DBC1
Hertz 60
Voltage 240
Phase 3
Product Proofer Oven
Product Type Cooking Equipment
Weight 455.00
Duke 59-E3XX/PFB-1 Certifications
  • NSF
  • ETL
