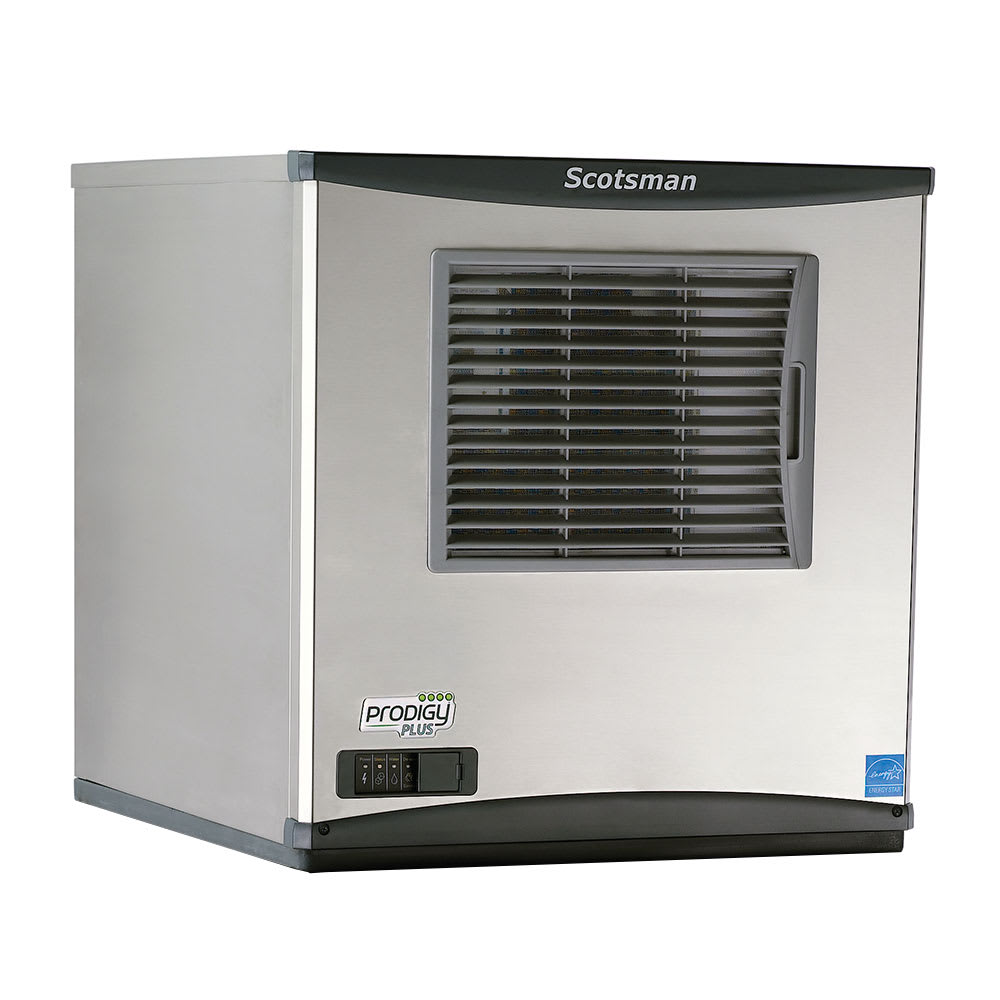

Scotsman N0422A-1 23" Prodigy Plus® Nugget Ice Machine Head - 420 lb/24 hr, Air Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 044-N0422A1A • MPN: N0422A-1
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $7,803.00
$3,121.00 / Each

Image may not depict product color, inclusions or accessories.

Scotsman N0422A-1 Description


The Scotsman N0422A-1A Prodigy Plus® is an ice machine head that can make up to 420 pounds of ice per day and is compatible with several bins and dispensers. This model creates nugget ice, the popular 'chewable' ice that is popular in both restaurants and healthcare, using air-cooled refrigeration and R-404A refrigerant. This type of ice uses up to 50 percent less water than cube ice due to the nuggets' less dense makeup, contributing to this machine's water efficiency. Several key internal parts make use of AgION® antimicrobial to help prevent the growth of bacteria.

The Prodigy Plus line is made to be easy to maintain and service, with LED AutoAlert&trade lights alerting users to when cleaning or service is needed. The air intake is located on the front of the unit for optimal airflow, which means the air filter is easy to access for regular cleaning. Each ice machine is shipped with its own unique QR code, which can link the user to service manuals, parts lists, and warranty information. The front panel is easy to remove to make service simple. This panel is also self-aligning to be sure that the panel is installed correctly after service is completed.

Product Details

  • Part of the Prodigy Plus® series
  • Ice machine head capable of making up to 420 lbs. of nugget ice per day
  • Uses up to 50 percent less water than cube ice machines
  • Each unit comes with a QR code that can quickly connect you to service manuals, parts lists, and warranty information
  • Air intake from the front means the machine requires no rear or side clearance between walls and equipment
  • Air filter is easily removable from the front for cleaning
  • Front panel is removable for easy maintenance, and is self-aligning to ensure it is reinstalled correctly
  • Internal surfaces feature AgION® antimicrobial protection to slow the growth of harmful bacteria
  • AutoAlert™ LED lights ensure operator knows when maintenance is needed
  • Stainless steel exterior is durable and easy to clean
  • Air-cooled refrigeration system uses R-404A refrigerant
  • 115 V/60 Hz/1-ph, 15.2 A
  • Overall Dimensions: 22910 in. W x 24 in. D x 23 in. H
  • cULus Listed; NSF, AHRI Certified

Prodigy Plus® Ice Maker, nugget style, air-cooled, self-contained condenser, production capacity up to 420 lb/24 hours at 70°/50° (348 lb AHRI certified at 90°/70°), Auto-alert™ indicating lights, stainless steel finish, R-404A refrigerant, 115v/60/1-ph, 15.2 amps, NSF, cULus

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Scotsman N0422A-1 Specifications

PDF Spec Sheet
Manufacturer Scotsman
24 Hr. Production (lbs) 420
Compressor Type Air Cooled
Depth (in) 24
Height (in) 23
Ice Type Nugget
Warranty 3-yr. Parts & Labor, Add'l 2 yrs. Parts Compressor; Residential 1 year parts & labor
Width (in) 22.9
Hertz 60
Voltage 115
Phase 1
Product Ice Machine Head
Product Type Ice Makers & Bins
Series Prodigy Plus®
Made in USA Yes
Recommended Bins B322S, B330P, B530P, B530S, B842S, B948S, BH1100BB-A, BH1100SS-A, BH1300BB-A, BH1300SS-A, BH1600BB-A, BH1600SS-A, ID150B-1, ID200B-1, ID250B-1, ICS-1, ICS-2, ICS-3, ICS-3-SL
Cold Water (in) 3/8
Indirect Waste Size (in) 3/4
Amps 15.2
Production Range (per day) 100-999 lb
Width (in) Range 10-29
Special Features Auto-alert™
Weight 172.00
Scotsman N0422A-1 Certifications
  • UL
  • NSF
