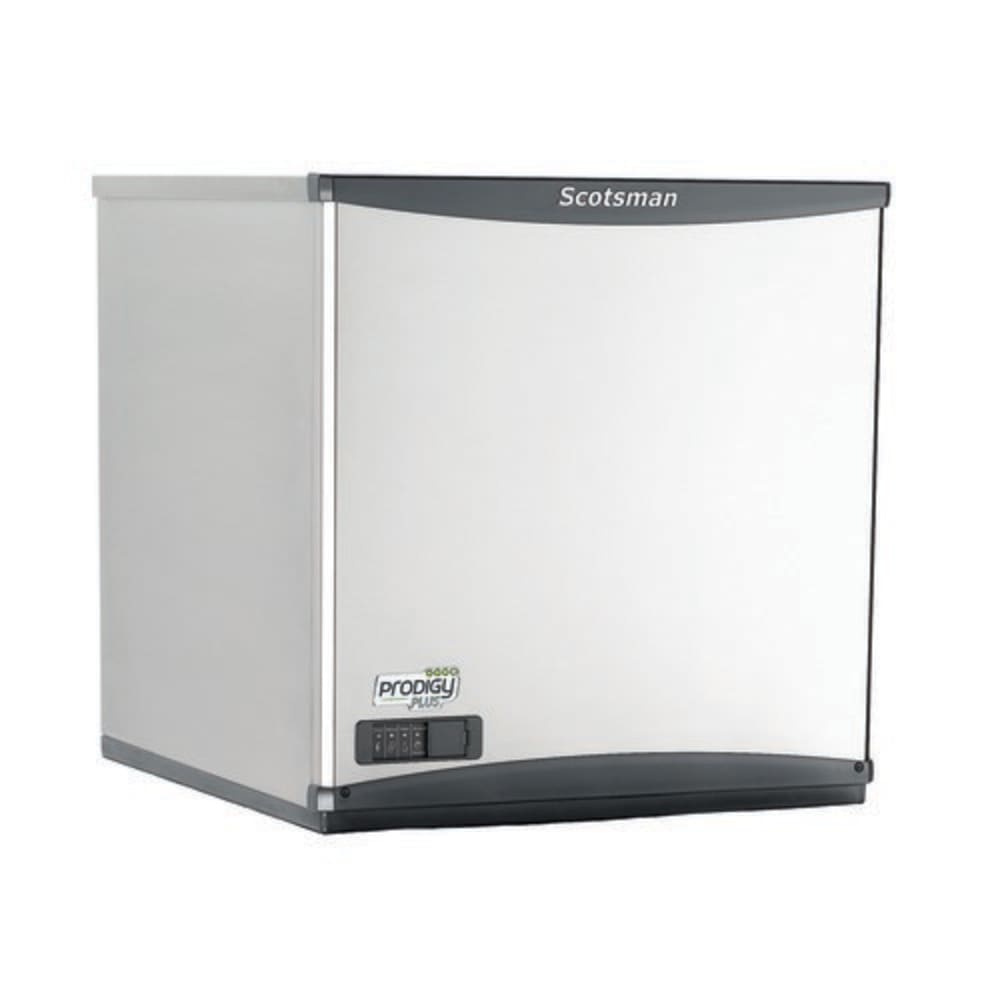

Scotsman FS0822R-1 22" Prodigy Plus® Flake Ice Machine Head - 760 lb/24 hr, Remote Cooled, 115v/1ph

Ideal for presenting seafood or produce, the Scotsman FS0822R-1 Prodigy Plus® ice maker head produces flake ice, which chills product quicker than other types of ice. When air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit, this unit produces as much as 760 pounds of ice in 24 hours. It uses a remote-cooled system and R-404A refrigerant to reach the necessary temperatures for proper ice production. The sealed refrigerant system reduces the risk of airborne contamination, while its sealed, maintenance-free bearings operate consistently with few preventive maintenance requirements.

AutoAlert™ indicator lights located on the front of the Scotsman FS0822R-1 ice maker enable users to monitor and manage operational status. To hinder bacterial growth between standard cleanings, AgION™ antimicrobial is molded into the key components, while a one-touch cleaning system reduces hands-on tasks to streamline operation. Its front-breathing design doesn't require a side clearance for flexible installation. Overall, this stainless steel unit measures 22 inches wide by 24 inches deep by 23 inches high and can be installed atop an ice storage bin (sold separately).

Product Details

• For use with an ice bin (sold separately)
• Daily ice production in ideal conditions: 760 lbs.
• AHRI-certified daily ice production: 631 lbs.
• Produces flake ice
• Remote-cooled unit
• R-404A refrigerant
• Front-breathing arrangement doesn't require side clearances
• Stainless steel finish
• Stainless steel auger and evaporator

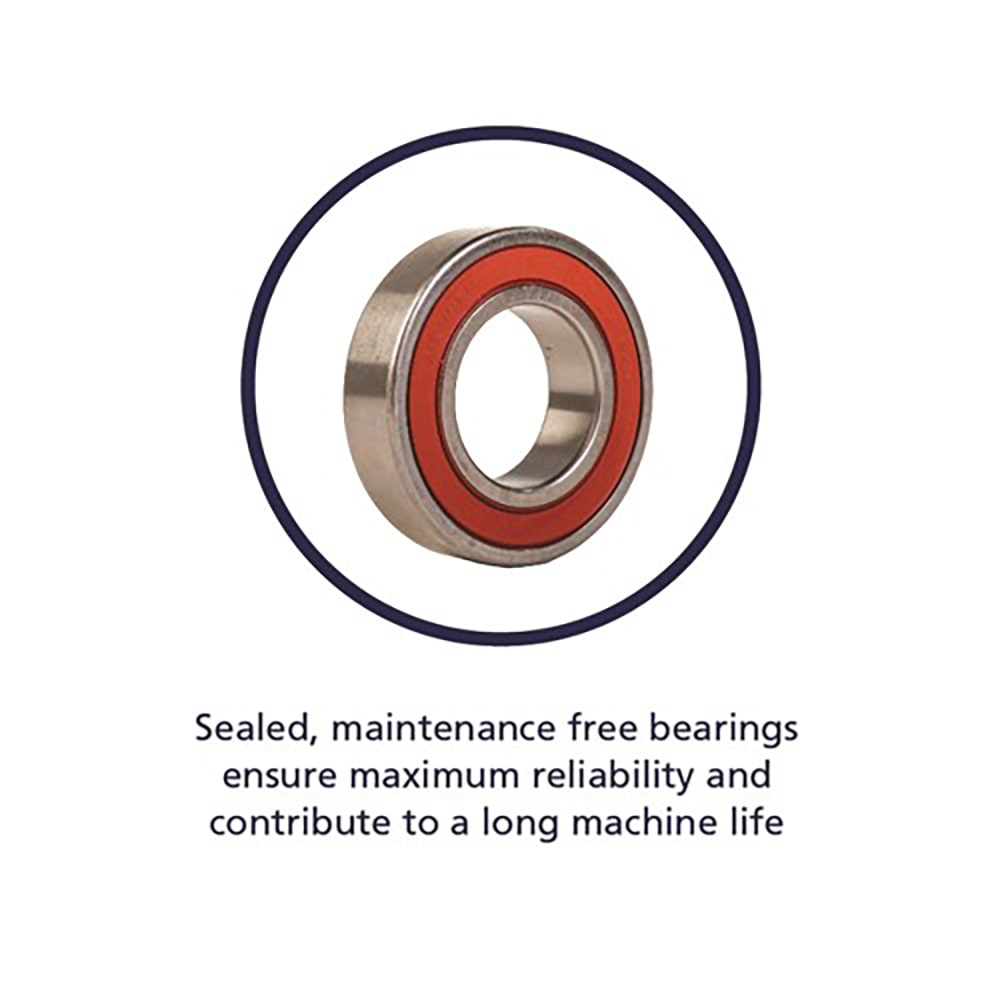

• Sealed, low-maintenance bearings
• AutoAlert indicating lights
• Antimicrobial protection molded into key components
• 1-touch cleaning system
• Unit-specific QR code
• Required operating air temperature: 50-100 degrees F
• Required operating water temperature: 40-100 degrees F
• Required remote condenser temperature: -20 to 120 degrees F
• Required operating water pressure: 20-80 PSIG
• 7,100 BTU per hour

Product Features

Dimensions & Utilities

• 22 in. W x 24 in. D x 23 in. H
• 17.1 A, 4.52 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Prodigy Plus® Ice Maker, flake style, remote-cooled, production capacity up to 760 lb/24 hours at 70°/50° (631 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless steel evaporator and auger, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 17.1 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor

Scotsman FS0822R-1 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Installation Guide

Brochure

Certifications
