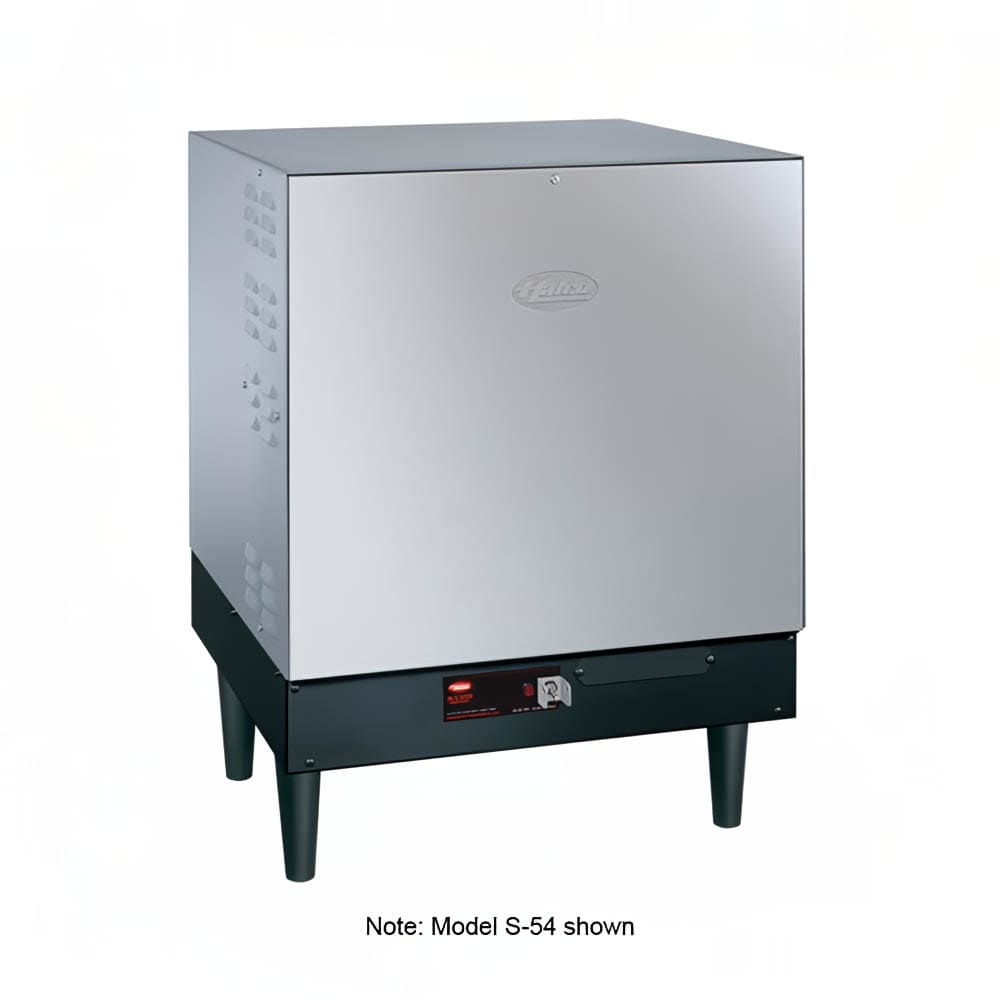

Hatco S-6 Imperial Booster Water Heater, 16 Gallon, 6 kW, 208v/3ph
Retail Price: $6,536.00
$3,594.80 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco S-6 Description
The Hatco S-6 Imperial booster water heater is made to heat rinse water to 180 degrees Fahrenheit—the safe temperature for killing bacteria—making it fit for heavy dishwasher use. This unit’s recovery rate is 60 gallons per hour at a 40-degree-Fahrenheit rise and 34 gallons at a 70-degree- Fahrenheit rise. Its tank has a piping heat trap and fiberglass insulation to maintain the temperature, saving the user money versus continuously heating the tank.
This tank is lined with Castone®, a concrete-like material that provides corrosion protection and mineral deposit defense. Because some of the wiring and plumbing are done ahead of time at the factory, the operator has one less hassle to worry about when first setting up their Hatco S-6 booster heater. The body has a hammertone finish and the stainless steel front resists rust and scratching. The front can be opened so internal components can be serviced promptly.
- Stainless steel front panel opens for service access
- Durable, powder-coated, hammertone body finish
- Maximum 60 GPH recovery at 40-degree-F rise
- Maximum 34 GPH recovery at 70-degree-F rise
- Factory pre-plumbing and pre-wiring simplify installation
- Castone-lined tank for resilience
- Low-water cut-off stops operation to prevent element burnout
- Calibrated immersion thermostat
- Heat trap and fiberglass insulation boost heat retention
- 16-gal. capacity
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 25 A, 6 kW
- 208 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-6 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 6-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, custom fittings, Castone tank, NSF, cUL, UL, 208v/60/3ph
Hatco S-6 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 60 |
| 70F Recovery (gph) | 34 |
| Amps | 25 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 6 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 0 - 10 |
| Width (in) | 23.5 |
| Weight | 200.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco S-6 Hatco S-6 Imperial Booster Water Heater, 16 Gallon, 6 kW, 208v/3ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $3,594.80 / Each | $3,594.80 / Each | $3,594.80 / Each | $3,594.80 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Heavy Duty | Heavy Duty | Heavy Duty | Heavy Duty |
| 40F Recovery (gph) | 60 | 60 | 60 | 60 |
| 70F Recovery (gph) | 34 | 34 | 34 | 34 |
| Capacity (gallons) | 16 | 16 | 16 | 16 |
| Width (in) | 23.5 | 23.5 | 23.5 | 23.5 |
| Watts | 0 - 10 | 0 - 10 | 0 - 10 | 0 - 10 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 208 | 208 | 240 | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
