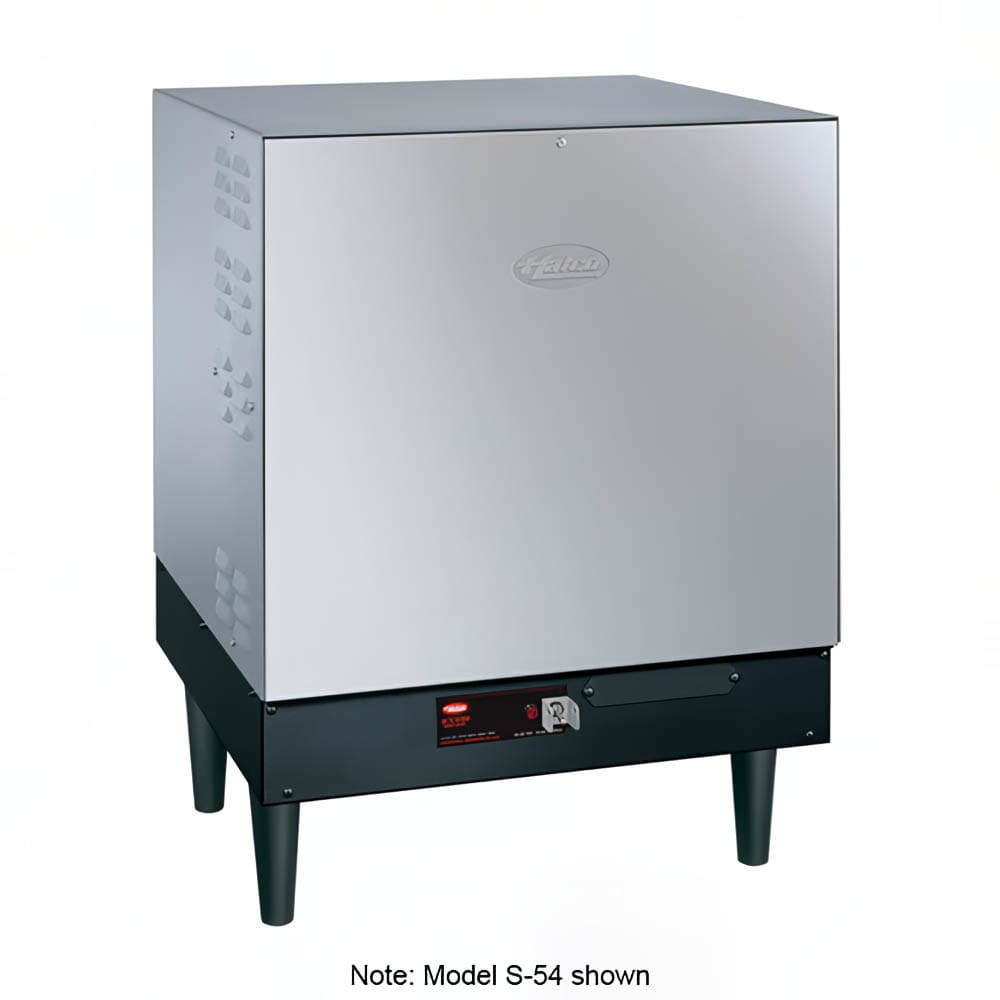

Hatco S-54 Booster Heater w/ 16 Gallon Storage Capacity, 54 kW, 240v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 042-S542403 • MPN: S-54-240-3-QS
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $6,011.00
$3,306.05 / Each

Selected Voltage: 240V, 3 Phase

Image may not depict product color, inclusions or accessories.

Hatco S-54 Description


The Hatco S-54 240-3 Imperial booster heater is designed to heat incoming water to the 180 degree Fahrenheit temperature required to sanitize dishes during the final rinse phase in a high-temperature dishwasher. The heater's thermostat can be adjusted to heat water to 140 degree Fahrenheit so it can also be used for low-temp dishmachines. The large 16-gallon tank is protected from corrosion with a Castone liner.

A high-limit cutoff switch will prevent the Hatco S-54 240-3 from ever overheating, and a low-water cutoff will protect the elements from burnout in the event that the water runs dry. A pilot light indicates that the unit is heating water, and users can monitor the water temperature and pressure with exterior gauges that provide those readouts.

Product Details

  • Hatco Imperial series booster heater
  • Provides a 40 degree F temperature rise to 542 gph water
  • Provides a 70 degree F temperature rise to 310 gph water
  • Stainless steel front panel and powder-coated, hammertone body give heater a rugged, damage-resistant finish
  • 16-gal. tank is lined with Castone to prevent corrosion and minimize limescale buildup
  • Dangerous pressure levels are prevented from building up by a pressure relief valve
  • High-temperature limit control shuts off elements if water begins to overheat
  • Low-water cutoff prevents element burnout in the event that water should run low
  • Heater is designed to be energy efficient with heat trap and fiberglass insulation
  • 240 V/60 Hz/1-ph, 130 A
  • Overall Dimensions: 23.53 in. W x 22.75 in. D x 31.03 in. H
  • cULus and CE Listed; NSF Certified

Built for Simple, Low-Maintenance Operation

  • Pilot indicator light signals that equipment is on and heating
  • Thermostat can be adjusted to provide 140 degree F water for low-temp machine wash cycles
  • Access to electronic components is provided through the front panel to make service calls easier
  • Temperature and pressure gauges allow operators to keep an eye on those conditions to ensure heater is working as it should

Imperial Booster Heater, Electric, 16-gallon storage capacity, 54-KW, stainless steel stainless steel front panel, powder-coated silver-gray hammertone body, custom fittings, Castone tank, NSF, cUL, UL, 240v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Hatco S-54 Specifications

PDF Spec Sheet
Manufacturer Hatco
40F Recovery 542 gph
70F Recovery 310 gph
Category Water Booster Heaters
Heat Electric
KW 54
Width (in) 23.5
Width (in) Range 21 - 30 in
Hertz 60
Voltage 240
Phase 3
Product Booster Heater
Product Type Dishwashing Equipment & Supplies
Weight 214.00
Hatco S-54 Certifications
  • UL
  • NSF
