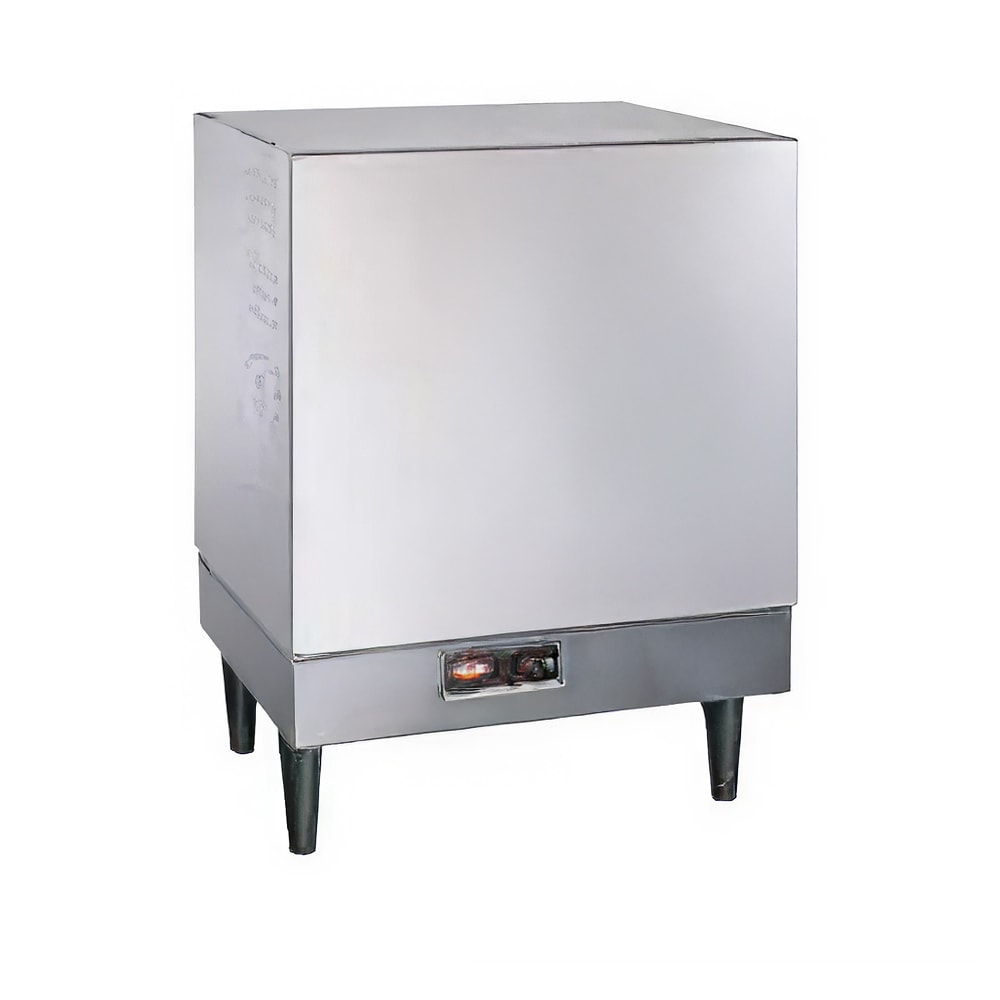

Hatco S-18 Booster Heater w/ 16 Gallon Storage Capacity, 18 kW, 240v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 042-S182401 • MPN: S-18 240/1
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $4,506.00
$2,478.30 / Each

Selected Voltage: 240V, 1 Phase

Image may not depict product color, inclusions or accessories.

Hatco S-18 Description

Hatco

The Hatco S-18 Imperial booster heater heats water to a sanitary 180 degrees Fahrenheit, and the thermostat can also be set to 140 degrees for use with low-temp dishwashers. Heating is provided by multiple metal-sheathed elements to help prevent burnouts. Ambient compensating thermostats ensure the temperature is precise, and the unit has a built-in heat trap and fiberglass insulation to keep the heat contained.

Its tank can hold 16 gallons and has a Castone® lining to protect the components and add durability. There is a low-water cutoff to prevent burnouts from low water levels and a high-limit control to shut off power if the unit overheats. The Hatco S-18 Imperial booster heater has a durable exterior with a stainless steel front and hammertone body that stands on 6-inch-tall plastic legs. Maintenance can be performed with ease from the front.

Product Details

  • Heats water to 180 degrees F for sanitary washing
  • Thermostat can be lowered to 140 degrees F for low-temp dishwashers
  • 16-gal. capacity
  • Castone lining resists corrosion to lengthen the service life
  • Fiberglass insulation and built-in heat trap reduce heat loss to increase efficiency
  • Electric, metal-sheathed heating elements are controlled with ambient compensating thermostats
  • Heavy-duty stainless steel front and hammertone body
  • Cover opens at the front to facilitate maintenance
  • Water temperature recovery with a 40-degree F rise: 181 GPH
  • Water temperature recovery with a 70-degree F rise: 103 GPH
  • Low-water cutoff shuts off power to the heating elements when the water level is too low to protect against burnouts
  • High-limit temperature switch shuts off power if the unit overheats
  • On/off switch with a pilot indicator light
  • Includes temperature/pressure relief and pressure reducing valves
  • 6-in.-tall plastic legs elevate the unit off the floor
  • 18 kW, 75 A
  • 240 V/60 Hz/1 ph
  • Overall dimensions: 28.53 in. W x 22.75 in. D x 31.03 in. H
  • CE approved; cULus listed; NSF certified
  • Made in the U.S.

Check out our booster heaters buyers' guide for more information on booster heaters.

Imperial Booster Heater, Electric, 16-gallon storage capacity, 18-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Hatco S-18 Specifications

PDF Spec Sheet
Manufacturer Hatco
40F Recovery 181 gph
70F Recovery 103 gph
Category Water Booster Heaters
Heat Electric
KW 18
Width (in) 23.5
Width (in) Range 21 - 30 in
Hertz 60
Voltage 240
Phase 1
Product Booster Heater
Product Type Dishwashing Equipment & Supplies
Weight 200.00
Hatco S-18 Certifications
  • UL
  • NSF
